Steel Commercial Spring Loaded Ladder 1 Step 16 In. Wide with Anti-Slip Rubber Mat 300 Lb. Capacity Yellow

Rolling Warehouse Ladder for Safer Elevated Access in Industrial Work Areas, 300 lb. Capacity with 16 in. Wide, Yellow Finish – Model LAD-1-Y

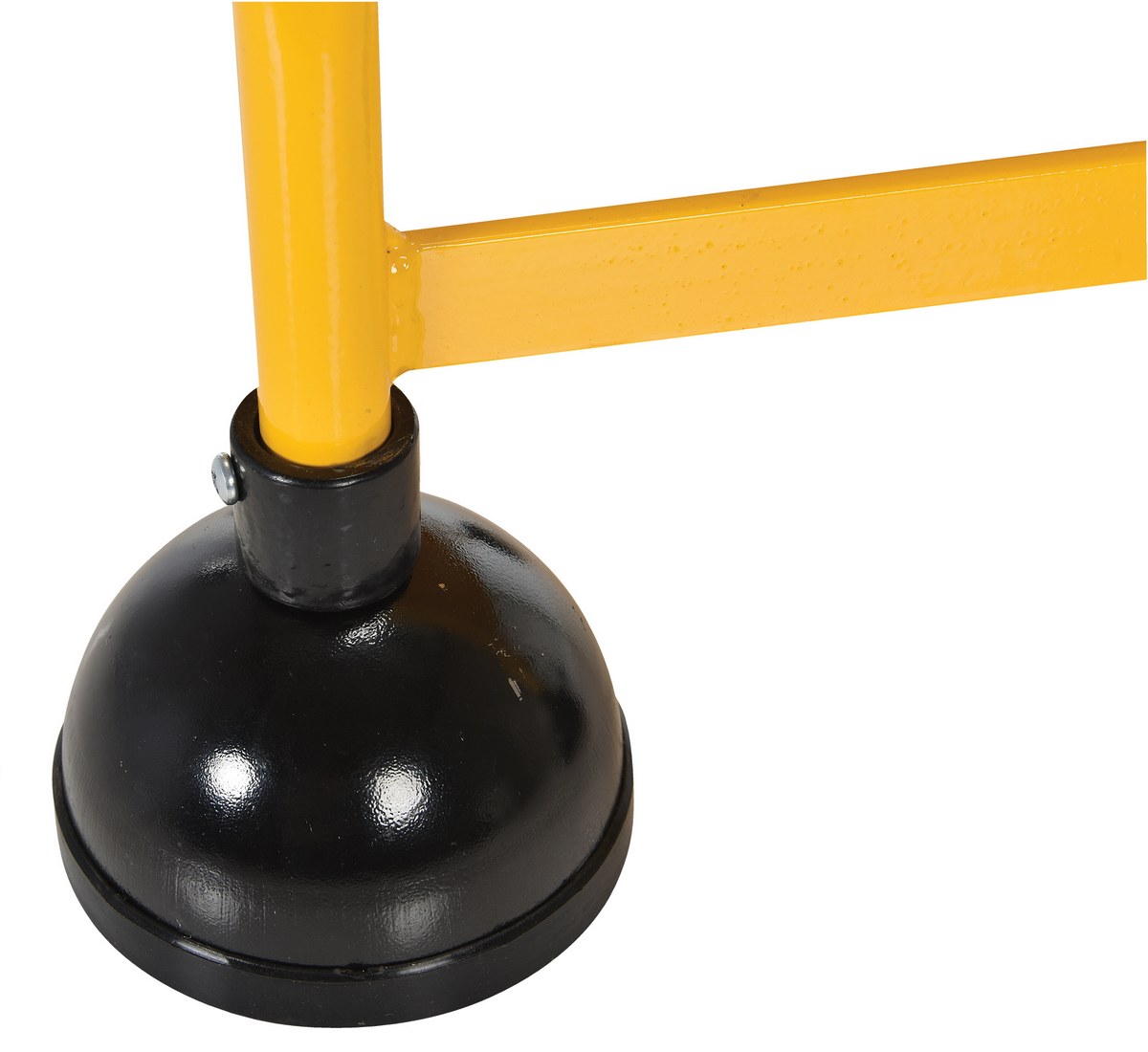

Commercial users of rolling ladders now have an attractive and economical alternative to the traditional warehouse rolling ladders. This commercial spring loaded ladder has a sleek design, also provides maximum safety and convenience. The all directional spring-loaded swivel casters feature steel dome protection which includes rubber pad bottoms to minimize movement. The powder coat finish provides a durable attractive appearance.
Product Status
Available
Key Features
  • Ladder design is an attractive and economical alternative to traditional warehouse rolling ladders
  • Non-slip rubber step surface provides a positive grip
  • Rubber dome covers protect the spring-loaded casters
  • Powder coat finish provides a durable attractive appearance
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   LAD-series Portable Warehouse Ladders, 1-5 Steps Instruction Manual   1 Year Warranty
Product Data

Core Data

Assembled Weight 19 lbs
Assembled Size 21.125"W x 16.125"L x 9.5"H
Total Ship Weight 21 lbs
Package 1 Size 19"W x 19"D x 6"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 300
Top Step Height (in.) 9-1/2
Top Step Width (in.) 16
Top Step Depth (in.) 11
Steps (qty.) 1
Caster Quantity/Diameter/Width (in.) (4) 1-1/2 x 3/4
Caster Material Phenolic
Step Type Rubber
OSHA 1910.29
ANSI A14.7
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LAD-1-Y
Product Name
Steel Commercial Spring Loaded Ladder 1 Step 16 In. Wide with Anti-Slip Rubber Mat 300 Lb. Capacity Yellow
UPC
691215025737
GTIN
00691215025737
Taxonomy 1
Building Supplies
Taxonomy 2
Ladders & Scaffolding
Taxonomy 3
Ladders
Taxonomy 4
Portable Rolling
Assembled Depth (in.)
16.125
Assembled Width(in.)
21.125
Assembled Height(in.)
9.5
Assembled Weight(lbs.)
19
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
19
Package Width (in.)
19
Package Height (in.)
6
Package Weight (in.)
21
Subclass
3
Freight Class
300
NMFC Code
Stepladders industrial metal wheel or caster
NMFC Number
108850
LTL Freight
Parcel
UNSPSC
30191501
HTSUS Number
7326.90.8660
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LAD-1-Y

LAD-1-Y

Steel Commercial Spring Loaded Ladder 1 Step 16 In. Wide with Anti-Slip Rubber Mat 300 Lb. Capacity Yellow

Commercial users of rolling ladders now have an attractive and economical alternative to the traditional warehouse rolling ladders. This commercial spring loaded ladder has a sleek design, also provides maximum safety and convenience. The all directional spring-loaded swivel casters feature steel dome protection which includes rubber pad bottoms to minimize movement. The powder coat finish provides a durable attractive appearance.

  • Ladder design is an attractive and economical alternative to traditional warehouse rolling ladders
  • Non-slip rubber step surface provides a positive grip
  • Rubber dome covers protect the spring-loaded casters
  • Powder coat finish provides a durable attractive appearance

Core Data

Assembled Weight: 19 Assembled Size: 21.125"W x 16.125"L x 9.5"H Color: Yellow
Total Ship Weight: 21 Package 1 Size: 19"W x 19"D x 6"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 300
Top Step Height (in.): 9-1/2
Top Step Width (in.): 16
Top Step Depth (in.): 11
Steps (qty.): 1
Caster Quantity/Diameter/Width (in.): (4) 1-1/2 x 3/4
Caster Material: Phenolic
Step Type: Rubber
OSHA: 1910.29
ANSI: A14.7
