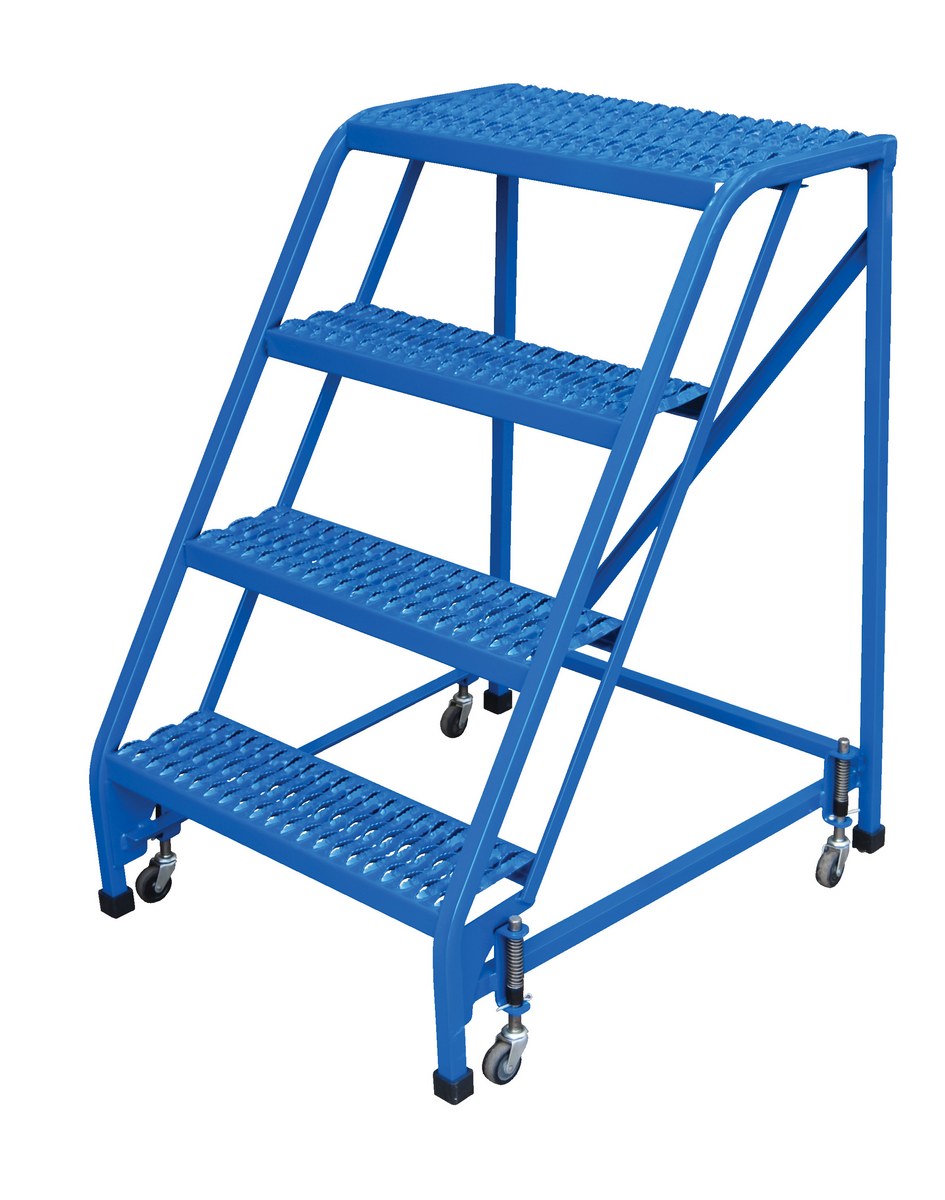

Steel Standard Slope Ladder 58 Degree 4 Grip No Handrail Step 350 Lb. Capacity Blue

Warehouse Ladder for Safer Elevated Access in Industrial Work Areas, 350 lb. Capacity, Blue Finish – Model LAD-PW-26-4-G-NHR
The standard slope ladder is a portable warehouse ladder for every-day use applications. Grip strut steps, no handrail and welded square tubular steel construction with powder-coat blue finish. Rubber feet provided for floor protection. Unit has (2) two all directional spring-loaded swivel casters and (2) swivel casters with total locks. Ships fully assembled and ready to use.
Product Status
Temporarily Unavailable - Please Contact Sales
Key Features
  • Portable design easily moves through the warehouse
  • Top tread design provides a safe non-slip grip
  • Bottom step caster lock provides added safety when climbing
  • Heavy-duty formed steel construction offers maximum strength
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   LAD-PW Series Standard Slope Ladders Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 73 lbs
Assembled Size 27.625"W x 38.625"L x 40"H
Total Ship Weight 115 lbs
Package 1 Size 36"W x 60"D x 19"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 350
Step Angle (degrees) 58
Step Depth (in.) 7
Top Step Depth (in.) 14
Step Width (in.) 23-9/16
Step (qty.) 4
Rear Caster Quantity/Diameter/Width (in.) (2) 3x1-1/4
Rear Caster Material Poly-on-Poly
Rear Caster Type Swivel Lock
Front Caster Quantity/Diameter/Width (in.) (2) 2x1
Front Caster Material Poly-on-Poly
Front Caster Type All directional spring-loaded swivel
Step Type Grip Strut
OSHA 1910.29
ANSI A14.7
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LAD-PW-26-4-G-NHR
Product Name
Steel Standard Slope Ladder 58 Degree 4 Grip No Handrail Step 350 Lb. Capacity Blue
UPC
691215125796
GTIN
00691215125796
Taxonomy 1
Building Supplies
Taxonomy 2
Ladders & Scaffolding
Taxonomy 3
Ladders
Taxonomy 4
Portable Rolling
Assembled Depth (in.)
38.625
Assembled Width(in.)
27.625
Assembled Height(in.)
40
Assembled Weight(lbs.)
73
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
60
Package Width (in.)
36
Package Height (in.)
19
Package Weight (in.)
115
Subclass
3
Freight Class
300
NMFC Code
Stepladders industrial metal wheel or caster
NMFC Number
108850
LTL Freight
LTL Palletized
UNSPSC
30191501
HTSUS Number
7326.90.8660
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LAD-PW-26-4-G-NHR

LAD-PW-26-4-G-NHR

Steel Standard Slope Ladder 58 Degree 4 Grip No Handrail Step 350 Lb. Capacity Blue

The standard slope ladder is a portable warehouse ladder for every-day use applications. Grip strut steps, no handrail and welded square tubular steel construction with powder-coat blue finish. Rubber feet provided for floor protection. Unit has (2) two all directional spring-loaded swivel casters and (2) swivel casters with total locks. Ships fully assembled and ready to use.

  • Portable design easily moves through the warehouse
  • Top tread design provides a safe non-slip grip
  • Bottom step caster lock provides added safety when climbing
  • Heavy-duty formed steel construction offers maximum strength

Core Data

Assembled Weight: 73 Assembled Size: 27.625"W x 38.625"L x 40"H Color: Blue
Total Ship Weight: 115 Package 1 Size: 36"W x 60"D x 19"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 350
Step Angle (degrees): 58
Step Depth (in.): 7
Top Step Depth (in.): 14
Step Width (in.): 23-9/16
Step (qty.): 4
Rear Caster Quantity/Diameter/Width (in.): (2) 3x1-1/4
Rear Caster Material: Poly-on-Poly
Rear Caster Type: Swivel Lock
Front Caster Quantity/Diameter/Width (in.): (2) 2x1
Front Caster Material: Poly-on-Poly
Front Caster Type: All directional spring-loaded swivel
Step Type: Grip Strut
OSHA: 1910.29
ANSI: A14.7
