Steel Curb Lifting Chains 60 In. Length For Aluminum Dock Boards Silver

Aluminum Bta Dock Board for Trailer Loading, Dock Access, and Material Transfer, 400 lb. Capacity with 60 in. Length

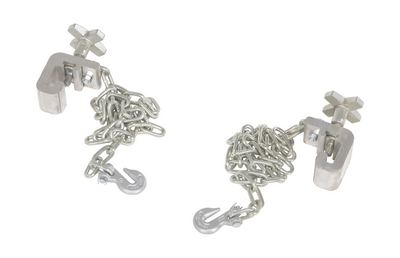

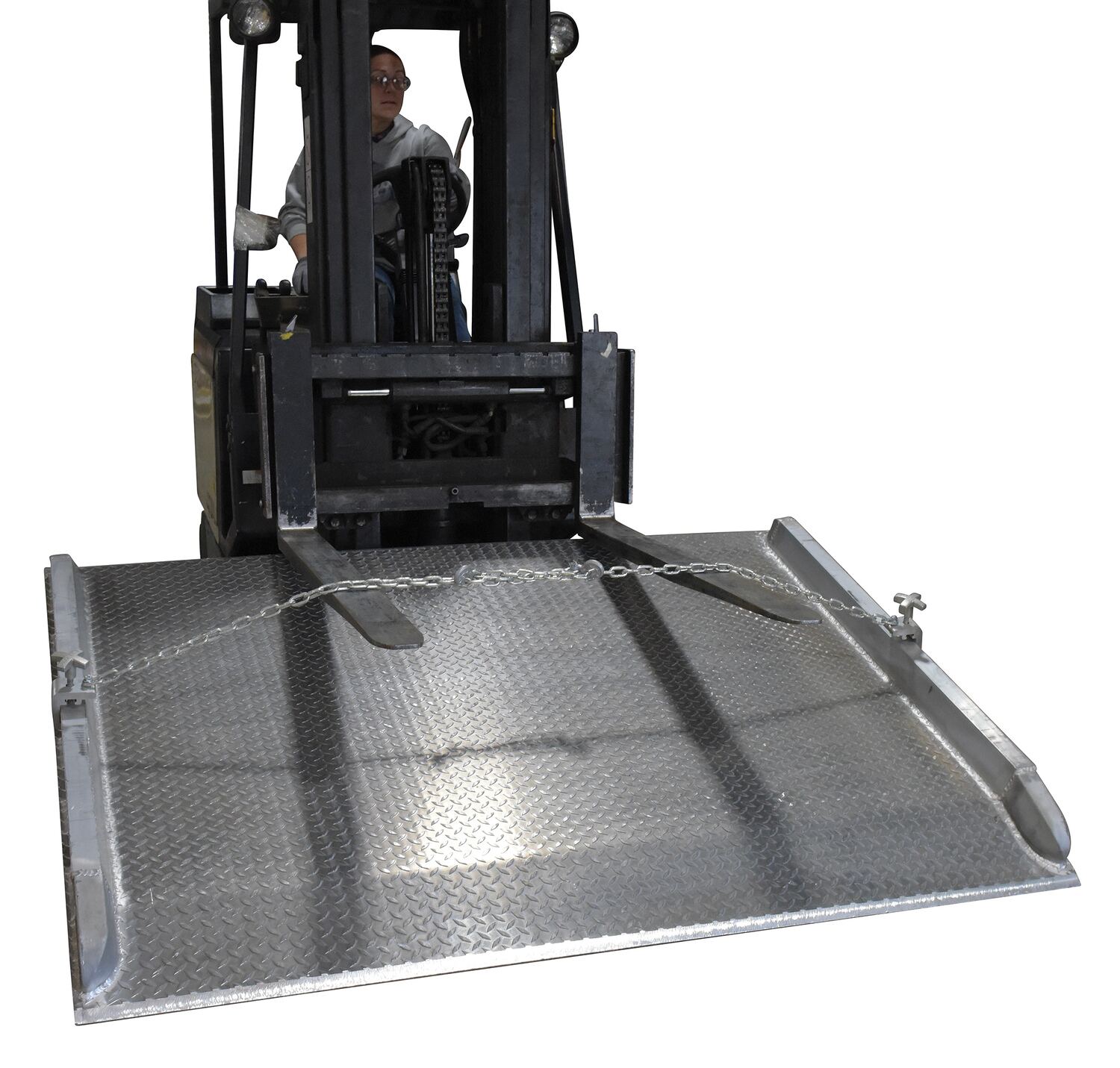

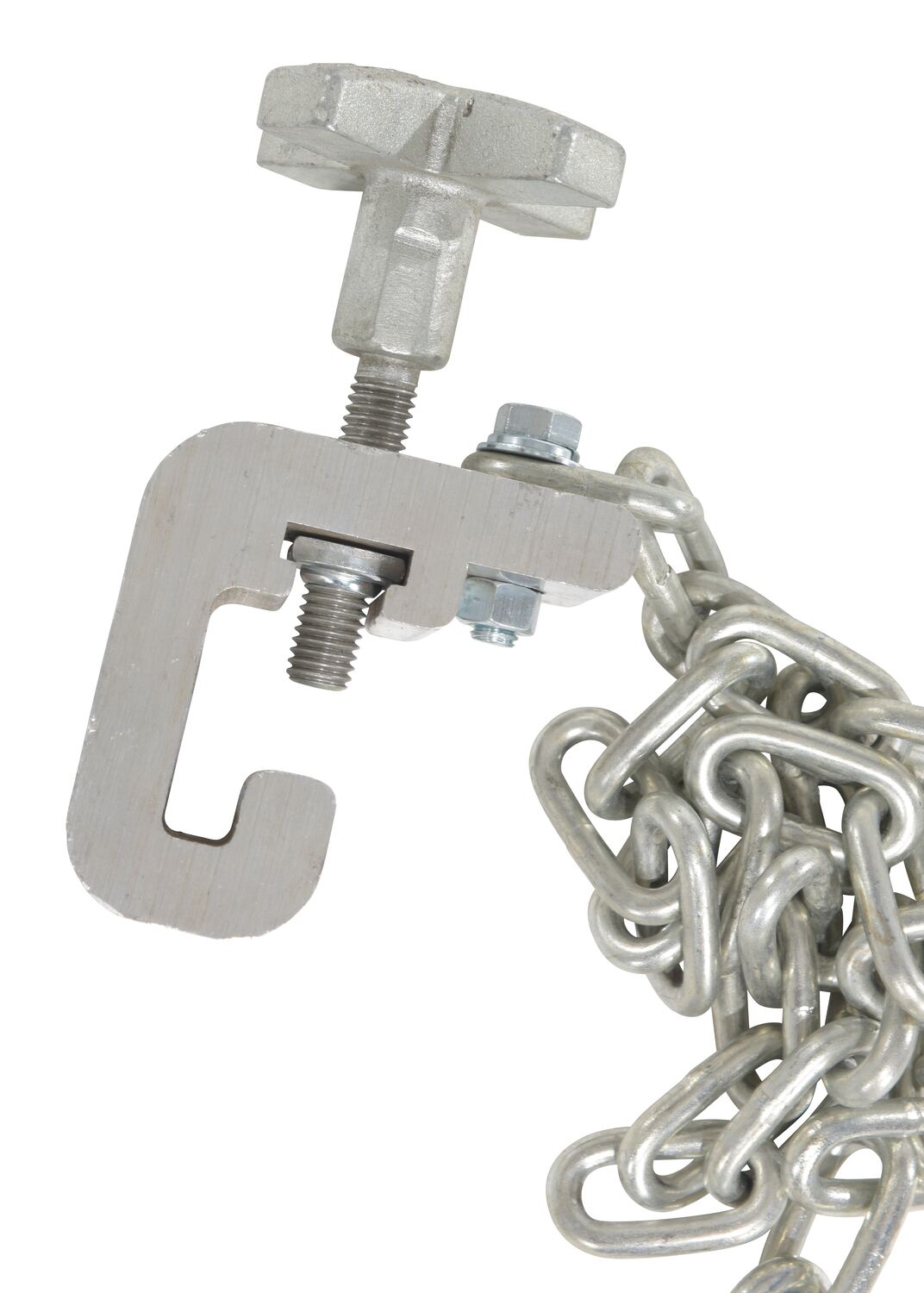

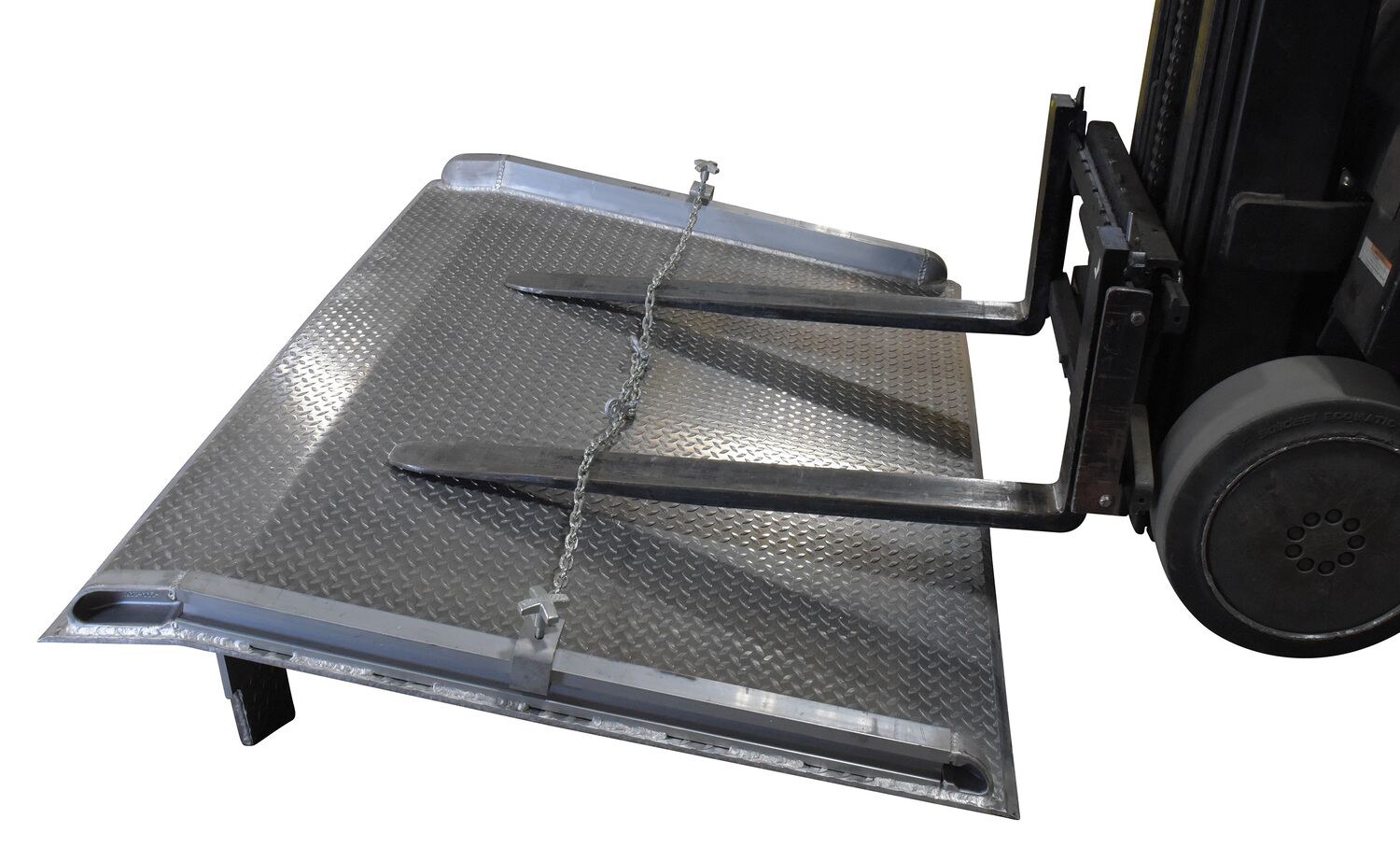

A lifting chain minimizes the manual labor associated with maneuvering heavy oversized dock boards. The chains provide a central point to be securely grasped by a lifting device, such as a fork lift. A bracket with a knob for quick hand tightening is included and can be attached to the side of a dock board to assist with the chain tightening.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Chains provide efficient lifting capabilities
  • Rugged construction for long lasting use
  • Bracket fits snugly to side of dock board
  • Chain link width supports safe securing
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   BTA, SE, SEH, TS Dockboards Manual   30 Days Warranty
Product Data

Core Data

Assembled Weight 10 lbs
Assembled Size 3"W x 66.75"L x 3"H
Total Ship Weight 11 lbs
Package 1 Size 7.00"W x 8.00"D x 6.00"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Chain Length (in.) 60
Chain Diameter (in.) .25
Chain Bracket Depth (in.) 3
Chain Bracket Height (in.) 5.8125
Chain Bracket Length (in.) 3.375
Bracket Knobs Size (in.) 3.375
Bracket Knobs Thread Size (in.) .5
Chain Bracket Mount Material Aluminum
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LC-BTA-72-84
Product Name
Steel Curb Lifting Chains 60 In. Length For Aluminum Dock Boards Silver
UPC
691215368100
GTIN
00691215368100
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dockboards & Accessories
Taxonomy 4
Accessories
Taxonomy 5
Lifting Chains
Assembled Depth (in.)
66.75
Assembled Width(in.)
3
Assembled Height(in.)
3
Assembled Weight(lbs.)
10
Color/Finish
Silver
Material
Steel
Option? Y/N
Y
Sell UOM
PR-Pair
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
Aluminum Truck Dockboards, Aluminum Truck Dockboards with Steel Safety Curbs

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
8.00
Package Width (in.)
7.00
Package Height (in.)
6.00
Package Weight (in.)
11
Freight Class
50
NMFC Code
Chains NOI iron or steel plain or galvanized
NMFC Number
94050
LTL Freight
Parcel
UNSPSC
31151600
HTSUS Number
7315.90.0000
USMCA HS
7315.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LC-BTA-72-84

LC-BTA-72-84

Steel Curb Lifting Chains 60 In. Length For Aluminum Dock Boards Silver

A lifting chain minimizes the manual labor associated with maneuvering heavy oversized dock boards. The chains provide a central point to be securely grasped by a lifting device, such as a fork lift. A bracket with a knob for quick hand tightening is included and can be attached to the side of a dock board to assist with the chain tightening.

  • Chains provide efficient lifting capabilities
  • Rugged construction for long lasting use
  • Bracket fits snugly to side of dock board
  • Chain link width supports safe securing

Core Data

Assembled Weight: 10 Assembled Size: 3"W x 66.75"L x 3"H Color: Silver
Total Ship Weight: 11 Package 1 Size: 7.00"W x 8.00"D x 6.00"H Freight: Parcel

Specifications

Chain Length (in.): 60
Chain Diameter (in.): .25
Chain Bracket Depth (in.): 3
Chain Bracket Height (in.): 5.8125
Chain Bracket Length (in.): 3.375
Bracket Knobs Size (in.): 3.375
Bracket Knobs Thread Size (in.): .5
Chain Bracket Mount Material: Aluminum
