  All Products   Loading Dock Equipment   Hose & Cable Crossovers   Extruded Aluminum Hose & Cable Crossovers LHCR-48-BRN
Product Image

Visual Reference

LHCR-48-BRN
LHCR-48-BRN
LHCR-48-BRN
LHCR-48-BRN
LHCR-48-BRN

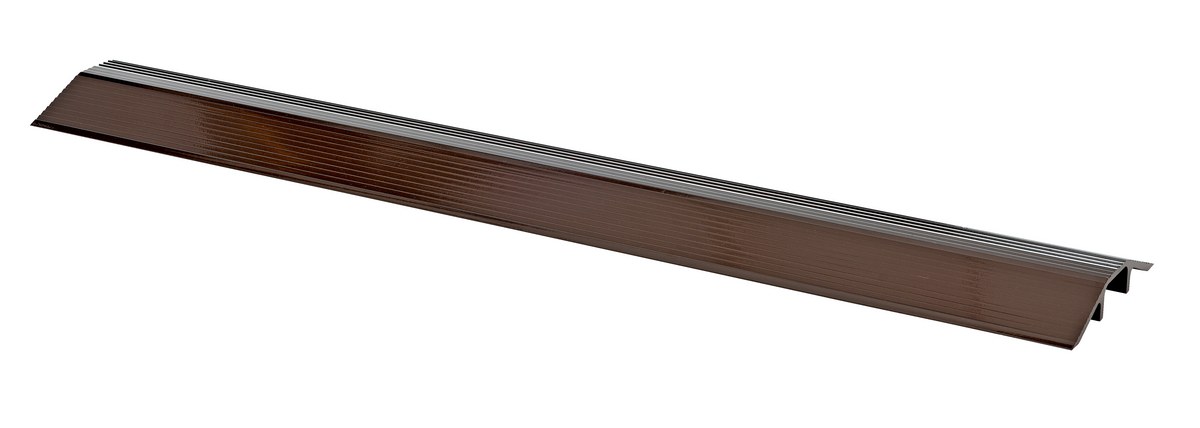

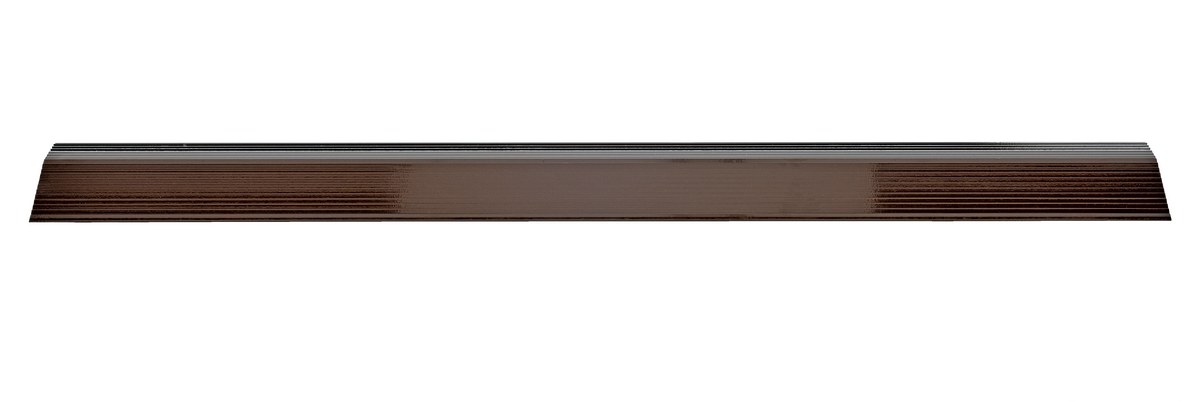

Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Brown

Aluminum Hose and Cable Crossover for Protecting Hoses and Cables Across Traffic Areas, 10,000 lb. Capacity with 48 in. Length, Brown Finish
The Extruded Aluminum hose and cable Crossover is designed to protect air lines, electrical cords and computer cables from damage by fork trucks, carts, and personnel. This ramp has serrated edges for maximum traction and are lightweight for easy portability.
Product Status
Available Non-Returnable
Key Features
  • Aluminum construction offers robust long lasting use
  • Unique design protects wires and cords from traffic wear and tear
  • Single-channel design
  • Serrated edges provide maximum traction
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 16 lbs
Assembled Size 9.125"W x 48"L x 1.5"H
Total Ship Weight 17 lbs
Package 1 Size 10"W x 49"D x 2"H
Color / Finish Brown
Freight Type Parcel

Additional Attributes

Single Wheel Uniform Capacity (lb.) 10,000
Cable Opening Width (in.) 2-1/2
Cable Opening Height (in.) 1-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LHCR-48-BRN
Product Name
Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Brown
UPC
691215100960
GTIN
00691215100960
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Ramps & Accessories
Taxonomy 4
Cable / Hose Bridges
Assembled Depth (in.)
48
Assembled Width(in.)
9.125
Assembled Height(in.)
1.5
Assembled Weight(lbs.)
16
Color/Finish
Brown
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
49
Package Width (in.)
10
Package Height (in.)
2
Package Weight (in.)
17
Subclass
1
Freight Class
100
NMFC Code
Ramps Dockboards freight loading not mechanical
NMFC Number
168720
LTL Freight
Parcel
UNSPSC
24141510
HTSUS Number
7616.99.5190
USMCA HS
7616.99
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LHCR-48-BRN

LHCR-48-BRN

Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Brown

The Extruded Aluminum hose and cable Crossover is designed to protect air lines, electrical cords and computer cables from damage by fork trucks, carts, and personnel. This ramp has serrated edges for maximum traction and are lightweight for easy portability.

  • Aluminum construction offers robust long lasting use
  • Unique design protects wires and cords from traffic wear and tear
  • Single-channel design
  • Serrated edges provide maximum traction

Core Data

Assembled Weight: 16 Assembled Size: 9.125"W x 48"L x 1.5"H Color: Brown
Total Ship Weight: 17 Package 1 Size: 10"W x 49"D x 2"H Freight: Parcel

Specifications

Single Wheel Uniform Capacity (lb.): 10,000
Cable Opening Width (in.): 2-1/2
Cable Opening Height (in.): 1-1/4
