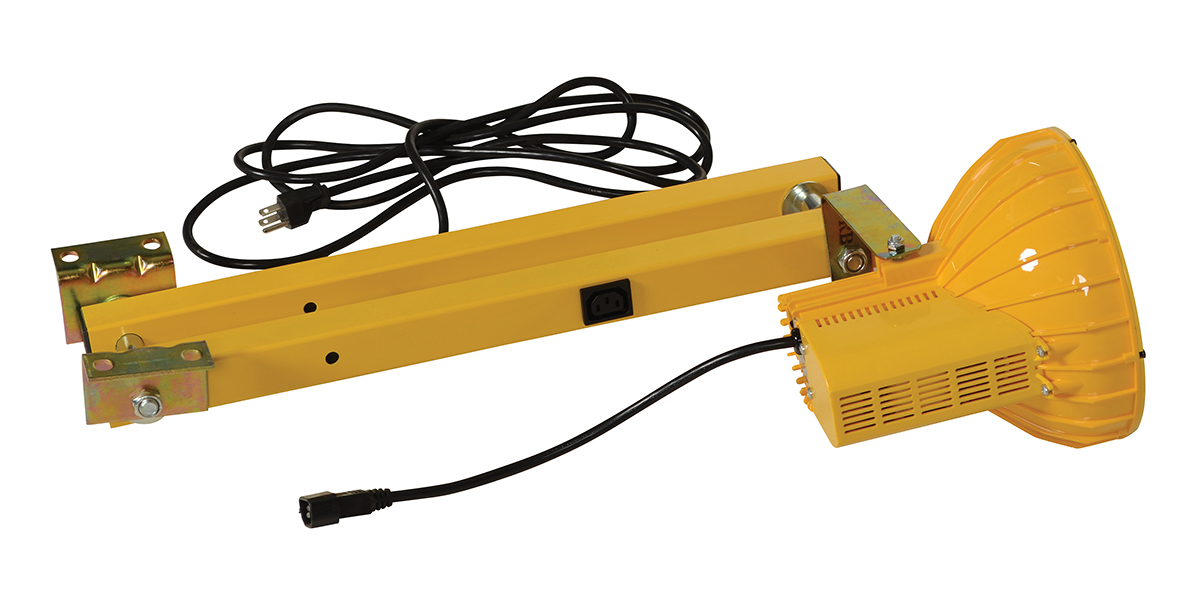

Steel Single Arm Sodium Dock Light 24 In. Length Yellow

Single Arm Sodium Dock Light for Commercial Dock Access and Waterfront Operations, 24 in. Length
A dock loading light minimize freight damage while expediting loading and unloading operations. Designed to provide uniform visibility inside trailers or around dock areas. This dock loading light offers much higher lumens/watt output and a very long lamp life. Its illumination color rendition (yellowish) is not as desirable as an incandescent. They typically require several minutes to fully illuminate, and even longer if in a cold environment. Low operating cost and can be used in damp locations. UL listed.
Product Status
Available Ships from Chicago, IL 60613 Non-Returnable
Key Features
  • Light minimizes freight damage and expedites loading and unloading
  • Design provides uniform visibility in trailers or around dock areas
  • Low operating cost and can be used in damp locations
  • UL listed
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 9 lbs
Assembled Size 8.5"W x 25.875"L x 14.75"H
Total Ship Weight 10 lbs
Package 1 Size 9"W x 23"D x 11"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Voltage/Phase 115/1
Arm Length (in.) 24
Extended Length (in.) 24
Arm Type Single
Bulb Type High Pressure Sodium
Maximum Watts per bulb 50
Total Maximum Watts 150
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LLS-24
Product Name
Steel Single Arm Sodium Dock Light 24 In. Length Yellow
UPC
691215027014
GTIN
00691215027014
Taxonomy 1
Lighting & Fans
Taxonomy 2
Work Lights & Accessories
Taxonomy 3
Work Lights
Taxonomy 4
Corded
Assembled Depth (in.)
25.875
Assembled Width(in.)
8.5
Assembled Height(in.)
14.75
Assembled Weight(lbs.)
9
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
23
Package Width (in.)
9
Package Height (in.)
11
Package Weight (in.)
10
Subclass
5
Freight Class
125
NMFC Code
Lamps or Lighting Fixtures
NMFC Number
109700
LTL Freight
Parcel
UNSPSC
39112004
HTSUS Number
8530.80.0000
USMCA HS
8530.80
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Chicago, IL
Supplier Postal Code
60613
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
No

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LLS-24

LLS-24

Steel Single Arm Sodium Dock Light 24 In. Length Yellow

A dock loading light minimize freight damage while expediting loading and unloading operations. Designed to provide uniform visibility inside trailers or around dock areas. This dock loading light offers much higher lumens/watt output and a very long lamp life. Its illumination color rendition (yellowish) is not as desirable as an incandescent. They typically require several minutes to fully illuminate, and even longer if in a cold environment. Low operating cost and can be used in damp locations. UL listed.

  • Light minimizes freight damage and expedites loading and unloading
  • Design provides uniform visibility in trailers or around dock areas
  • Low operating cost and can be used in damp locations
  • UL listed

Core Data

Assembled Weight: 9 Assembled Size: 8.5"W x 25.875"L x 14.75"H Color: Yellow
Total Ship Weight: 10 Package 1 Size: 9"W x 23"D x 11"H Freight: Parcel

Specifications

Voltage/Phase: 115/1
Arm Length (in.): 24
Extended Length (in.): 24
Arm Type: Single
Bulb Type: High Pressure Sodium
Maximum Watts per bulb: 50
Total Maximum Watts: 150
