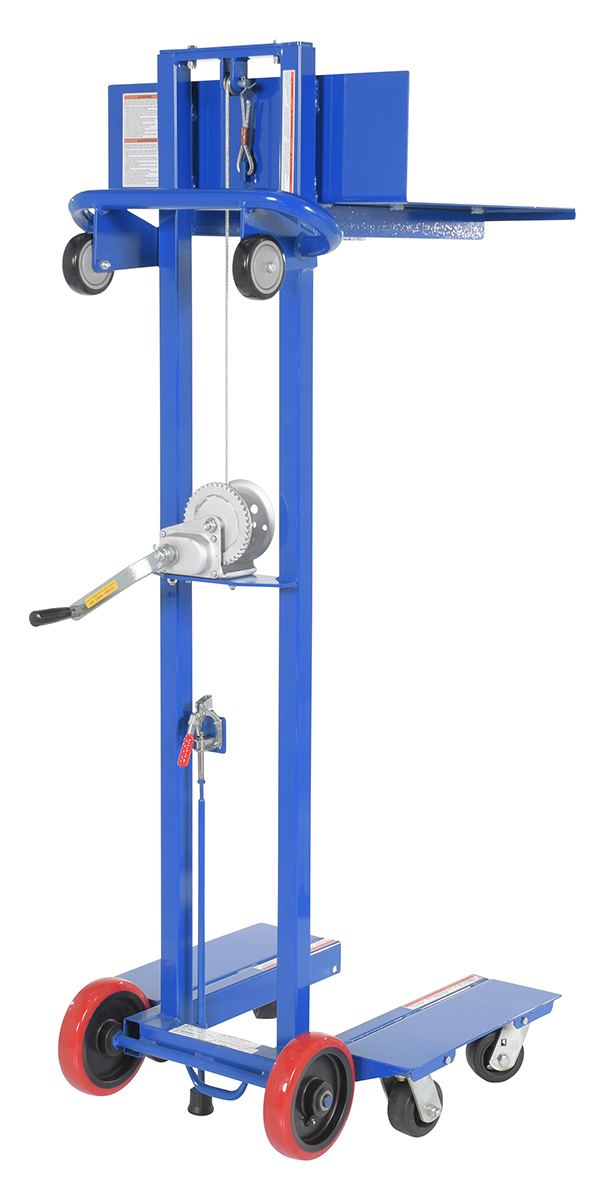

Steel Lite Load Lift With Winch, Swivel Casters and Manual Floor Lock 24 In. x 20 In. Platform 400 Lb. Capacity Blue

Swivel Manual Low-Profile Lite Load Lift for Commercial and Industrial Portable Load Lifters Use, 400 lb. Capacity with 24 in. x 20 in., Blue Finish – Model LLW-242060-4SFL
The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. This lift has an easy to operate hand winch and an steel construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two (2) rollers to ease loading into delivery trucks.
Product Status
Available
Key Features
  • Solid steel construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two rear and four swivel front wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   LLW, LLPW, ALLW, ALLPW Light Load Lifters Use and Maintenance Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 192 lbs
Assembled Size 27.1875"W x 33.125"L x 69.4375"H
Total Ship Weight 198 lbs
Package 1 Size 40"W x 48"D x 72"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 400
Platform Width (in.) 24
Platform Length (in.) 20
Lowered Height (in.) 6-1/8
Raised Height (in.) 60
Per Winch Rotation (in.) 1
Horizontal Load Center (in.) 10
Operation Type Hand Winch
Rear Wheel Quantity/Diameter/Width (in.) (2) 8 x 2
Rear Wheel Material Poly on Poly
Rear Wheel Type Rigid
Front Caster Quantity/Diameter/Width (in.) (4) 4 x2
Front Caster Material Mold on Rubber
Front Caster Type Swivel
Handle Caster Quantity/Diameter/Width (in.) (2) 4 x 1-1/4
Handle Caster Material Poly on Poly
Handle Caster Type Rigid
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LLW-242060-4SFL
Product Name
Steel Lite Load Lift With Winch, Swivel Casters and Manual Floor Lock 24 In. x 20 In. Platform 400 Lb. Capacity Blue
UPC
691215027090
GTIN
00691215027090
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Manual
Assembled Depth (in.)
33.125
Assembled Width(in.)
27.1875
Assembled Height(in.)
69.4375
Assembled Weight(lbs.)
192
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
72
Package Weight (in.)
198
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101608
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LLW-242060-4SFL

LLW-242060-4SFL

Steel Lite Load Lift With Winch, Swivel Casters and Manual Floor Lock 24 In. x 20 In. Platform 400 Lb. Capacity Blue

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. This lift has an easy to operate hand winch and an steel construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two (2) rollers to ease loading into delivery trucks.

  • Solid steel construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two rear and four swivel front wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks

Core Data

Assembled Weight: 192 Assembled Size: 27.1875"W x 33.125"L x 69.4375"H Color: Blue
Total Ship Weight: 198 Package 1 Size: 40"W x 48"D x 72"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 400
Platform Width (in.): 24
Platform Length (in.): 20
Lowered Height (in.): 6-1/8
Raised Height (in.): 60
Per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10
Operation Type: Hand Winch
Rear Wheel Quantity/Diameter/Width (in.): (2) 8 x 2
Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid
Front Caster Quantity/Diameter/Width (in.): (4) 4 x2
Front Caster Material: Mold on Rubber
Front Caster Type: Swivel
Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
Handle Caster Material: Poly on Poly
Handle Caster Type: Rigid
