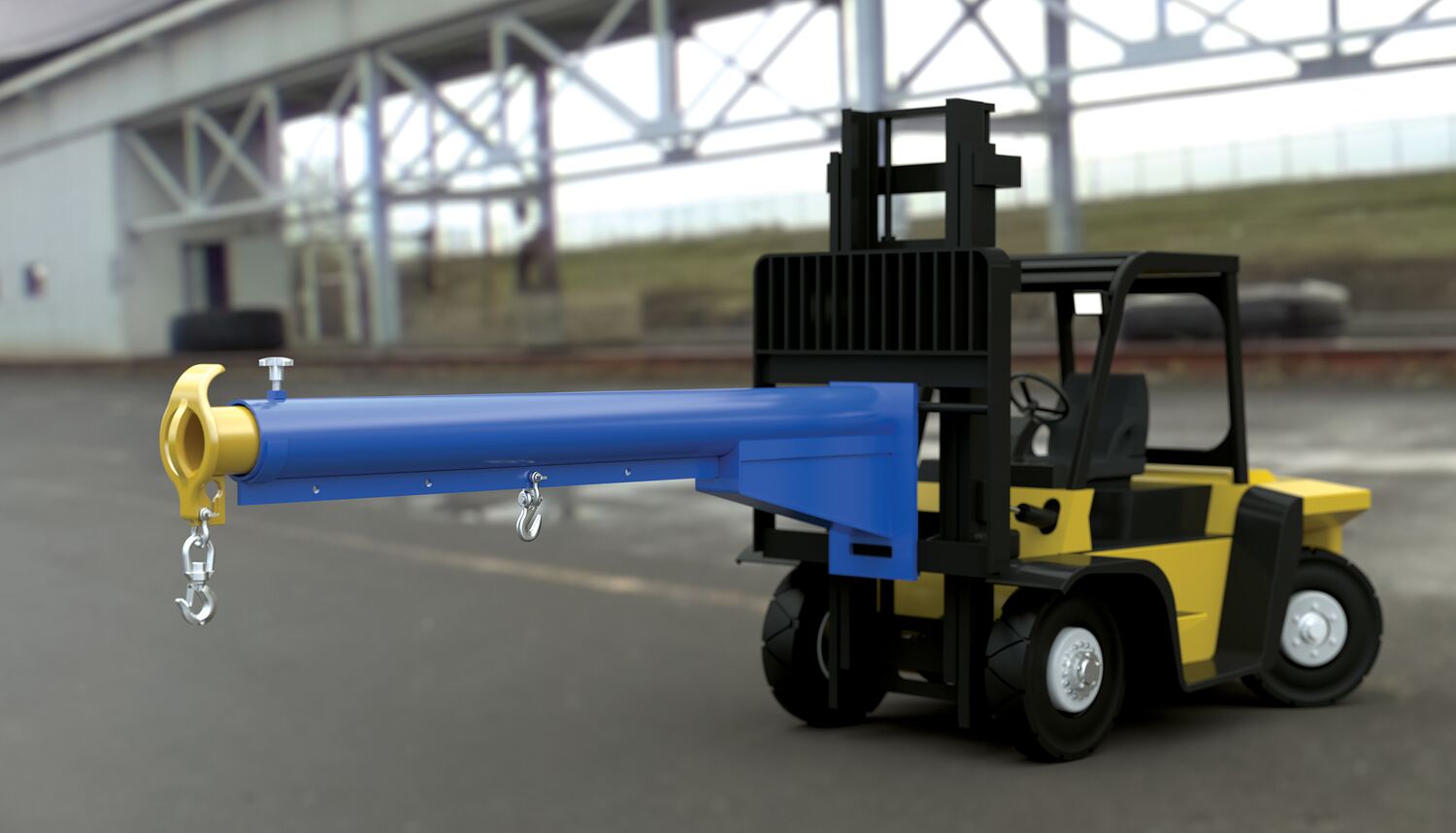

Steel Carriage Mount Lift Master Boom Class II 6,000 Lb. Capacity Blue and Yellow

Lift Master Booms for Overhead Load Lifting and Controlled Positioning, 6,000 lb. Capacity
Unique performance, convenience and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.
Product Status
Available
Key Features
  • Unique design converts fork trucks into overhead lifting cranes
  • Carriage mounted for secure attachment to fork truck
  • Distinct construction provides precision and durability
  • Hooks for simple product attachment
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   LM-CM-EBT-46 Series Carriage Mount Lift Master Booms Owners Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 360 lbs
Assembled Size 11.5"W x 145.875"L x 23.625"H
Total Ship Weight 409 lbs
Package 1 Size 40"W x 92"D x 18"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Mounting Style Carriage Mount Class 2
Uniform Capacity (lbs) 6,000
Capacity at 48 in. Extended (lb.) 5,000
Capacity at 60 in. Extended (lb.) 4,500
Capacity at 72 in. Extended (lb.) 4,000
Capacity at 84 in. Extended (lb.) 3,500
Capacity at 96 in. Extended (lb.) 3,000
Capacity at 108 in. Extended (lb.) 2,600
Capacity at 120 in. Extended (lb.) 2,300
Capacity at 132 in. Extended (lb.) 2,000
Capacity at 144 in. Extended (lb.) 1,800
Retracted Center of Gravity (in.) 34-7/8
Extended Center of Gravity (in.) 52-5/8
Vertical Center of Gravity (in.) 14-3/4
Overall Width (in.) 11-1/2
Overall Length (in.) 145-7/8
Usable Length (in.) 144
Overall Height (in.) 23-5/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LM-CM2-EBT-6
Product Name
Steel Carriage Mount Lift Master Boom Class II 6,000 Lb. Capacity Blue and Yellow
UPC
691215346436
GTIN
00691215346436
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Lifting Boom
Assembled Depth (in.)
145.875
Assembled Width(in.)
11.5
Assembled Height(in.)
23.625
Assembled Weight(lbs.)
360
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
92
Package Width (in.)
40
Package Height (in.)
18
Package Weight (in.)
409
Subclass
2
Freight Class
100
NMFC Code
Derrick bases booms legs mast or sills or sections
NMFC Number
119380
LTL Freight
LTL Palletized
UNSPSC
22101803
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LM-CM2-EBT-6

LM-CM2-EBT-6

Steel Carriage Mount Lift Master Boom Class II 6,000 Lb. Capacity Blue and Yellow

Unique performance, convenience and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

  • Unique design converts fork trucks into overhead lifting cranes
  • Carriage mounted for secure attachment to fork truck
  • Distinct construction provides precision and durability
  • Hooks for simple product attachment

Core Data

Assembled Weight: 360 Assembled Size: 11.5"W x 145.875"L x 23.625"H Color: Blue
Total Ship Weight: 409 Package 1 Size: 40"W x 92"D x 18"H Freight: LTL Palletized

Specifications

Mounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 6,000
Capacity at 48 in. Extended (lb.): 5,000
Capacity at 60 in. Extended (lb.): 4,500
Capacity at 72 in. Extended (lb.): 4,000
Capacity at 84 in. Extended (lb.): 3,500
Capacity at 96 in. Extended (lb.): 3,000
Capacity at 108 in. Extended (lb.): 2,600
Capacity at 120 in. Extended (lb.): 2,300
Capacity at 132 in. Extended (lb.): 2,000
Capacity at 144 in. Extended (lb.): 1,800
Retracted Center of Gravity (in.): 34-7/8
Extended Center of Gravity (in.): 52-5/8
Vertical Center of Gravity (in.): 14-3/4
Overall Width (in.): 11-1/2
Overall Length (in.): 145-7/8
Usable Length (in.): 144
Overall Height (in.): 23-5/8
