Product Data Sheet

  Print to PDF
  All Products   Fork Truck Attachments   Hoisting Hooks & Hitch   Hook Plates LM-HP10-SL
Product Image

Visual Reference

LM-HP10-SL
LM-HP10-SL
LM-HP10-SL
LM-HP10-SL
LM-HP10-SL
LM-HP10-SL
LM-HP10-SL
LM-HP10-SL
LM-HP10-SL
LM-HP10-SL
LM-HP10-SL

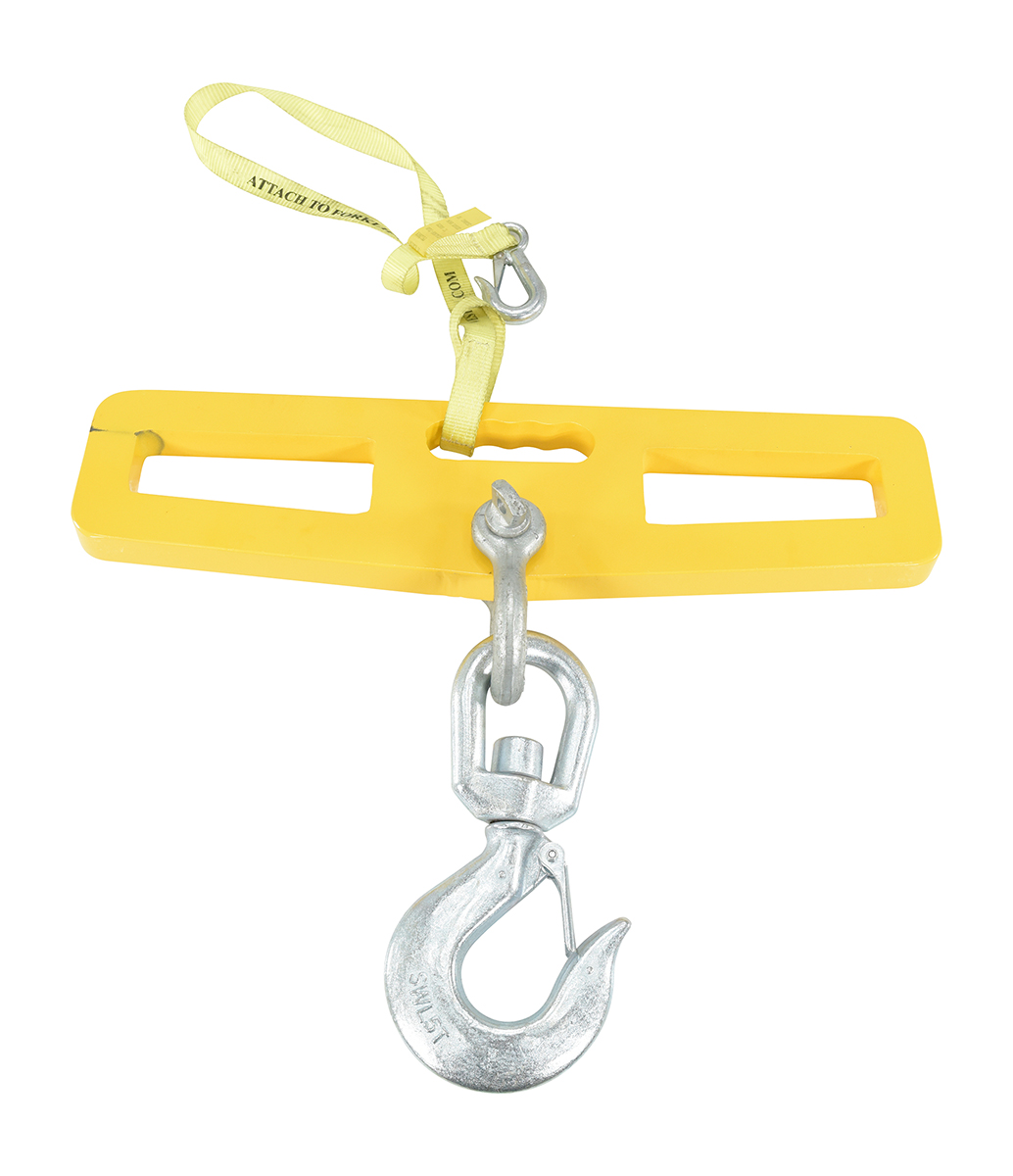

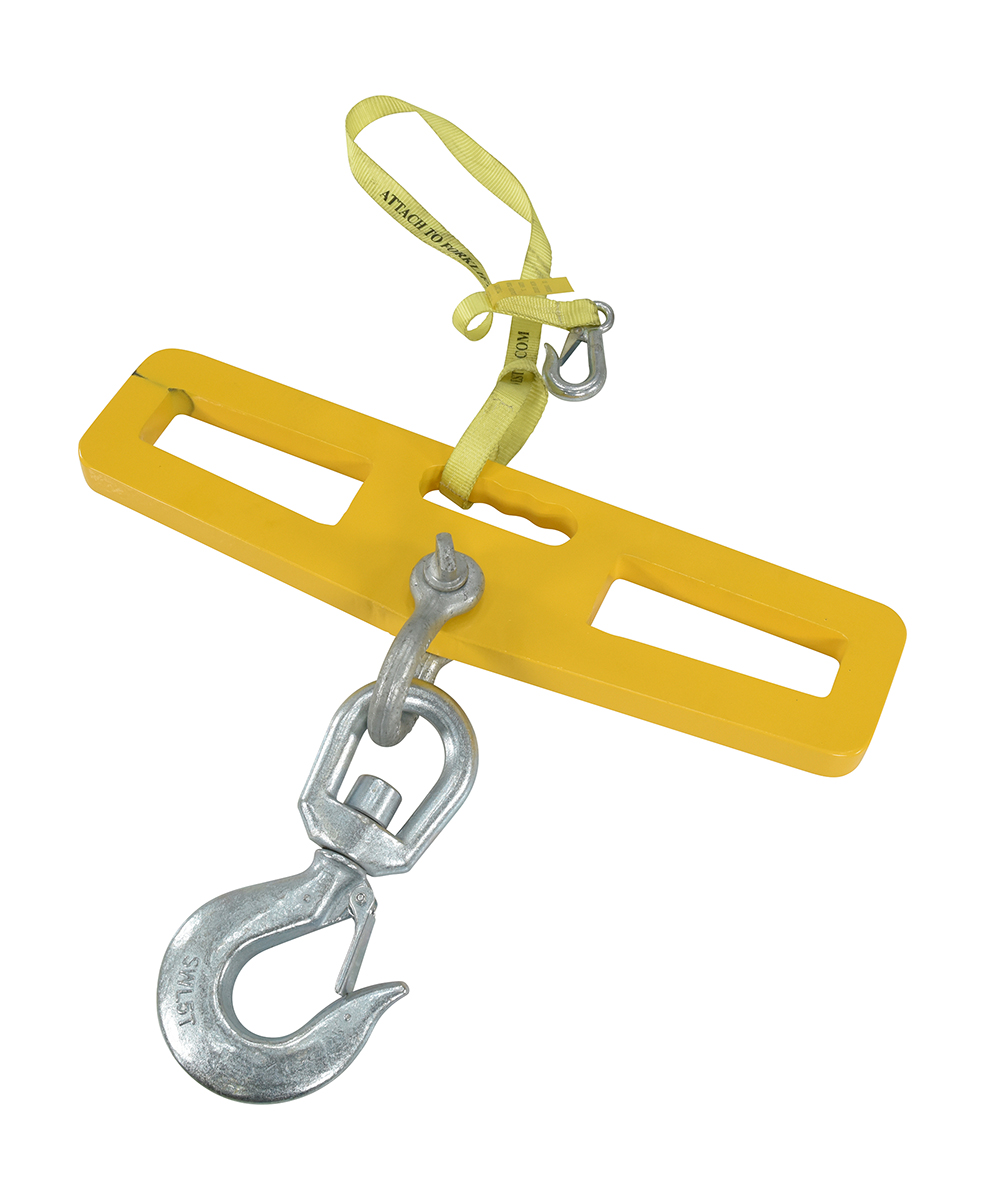

Steel Fork Truck Hook Plate Swivel with Latch 10,000 Lb. Capacity Yellow

Fork Truck Hook Plate Swivel with Latch 10,000 Lb. Capacity for Overhead Load Lifting and Controlled Positioning, 10,000 lb. Capacity

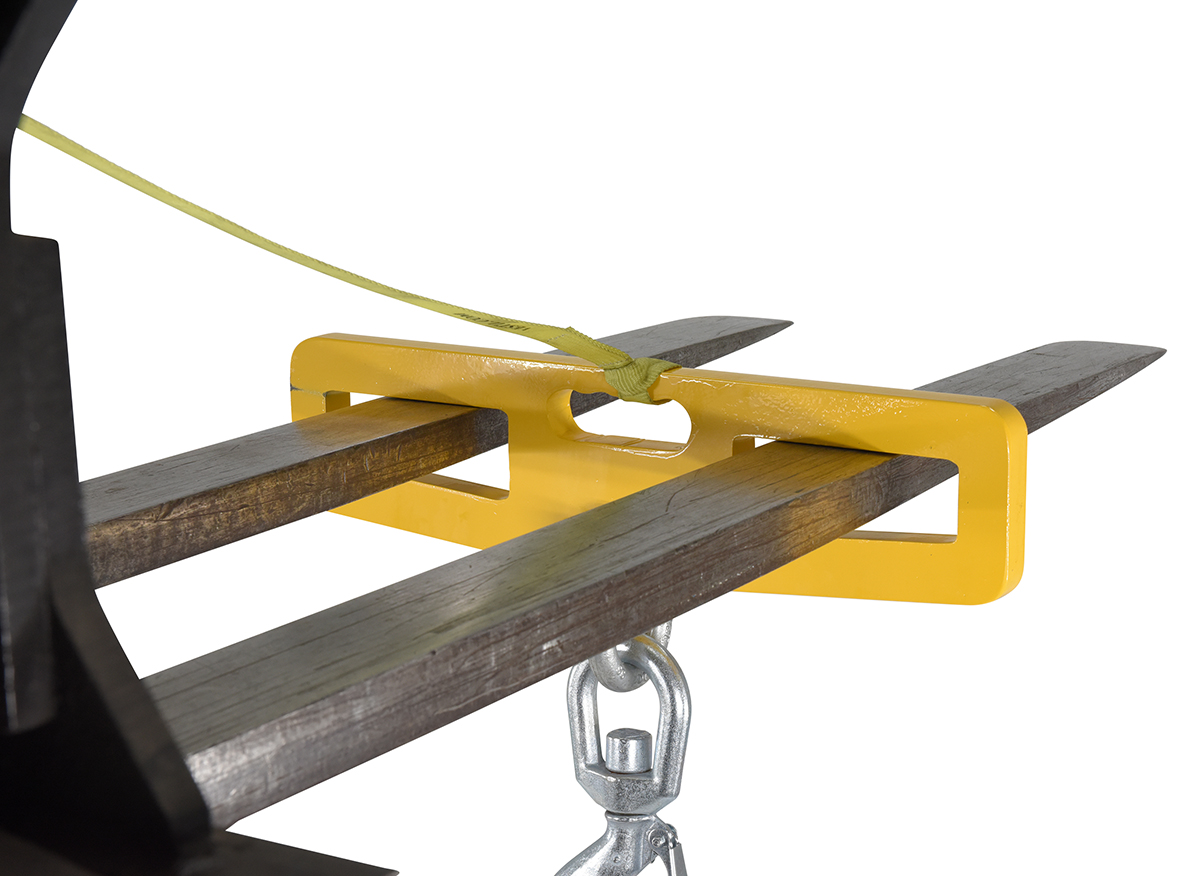

A lift-master hook plate is wonderful asset for securing and lifting heavy loads. With a strong steel construction the lift is easily maneuvered by utilizing the two fork slots. A centrally located hook and latch are also included for simple securing of the product being lifted. A sleek, compact design takes up minimal room when not in use. A centered built in handle is great for lifting and moving by hand.
Product Status
Available QuickShip
Key Features
  • Two fork slots for simple lifting

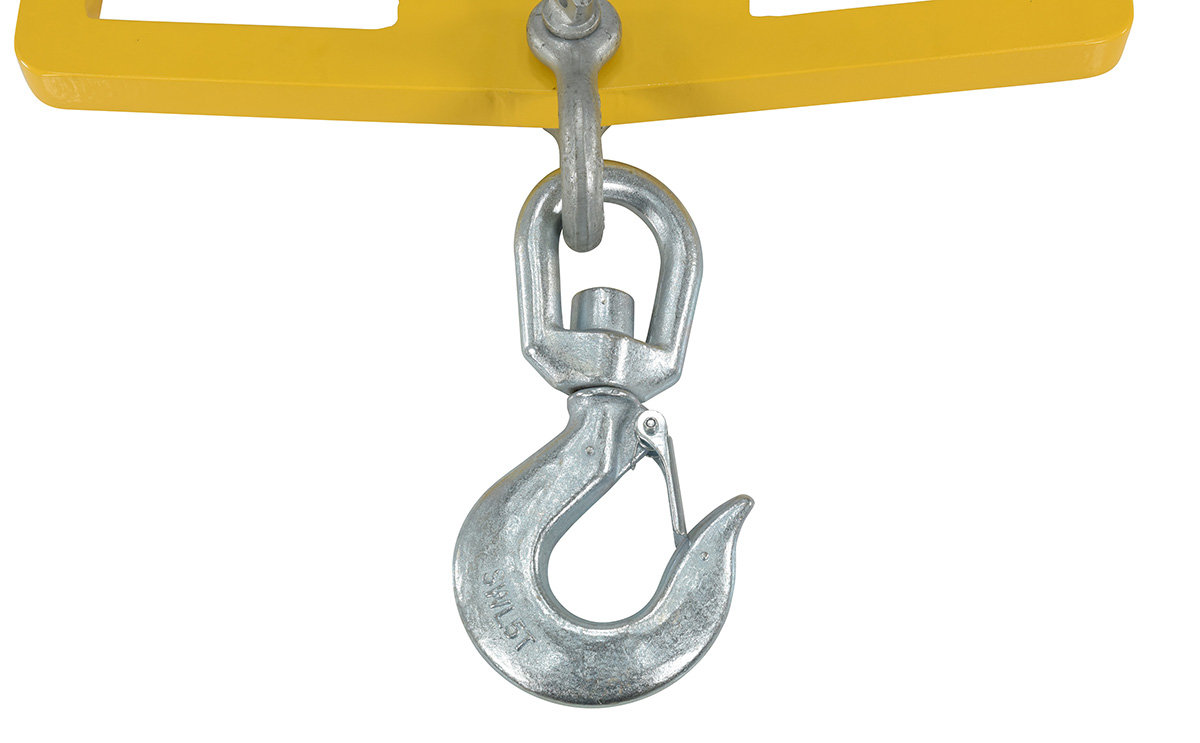

  • Hook and latch for securing load
  • Powder coated finish
  • Center handle for maneuvering by hand
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hoisting Hook Plate Owners Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 50 lbs

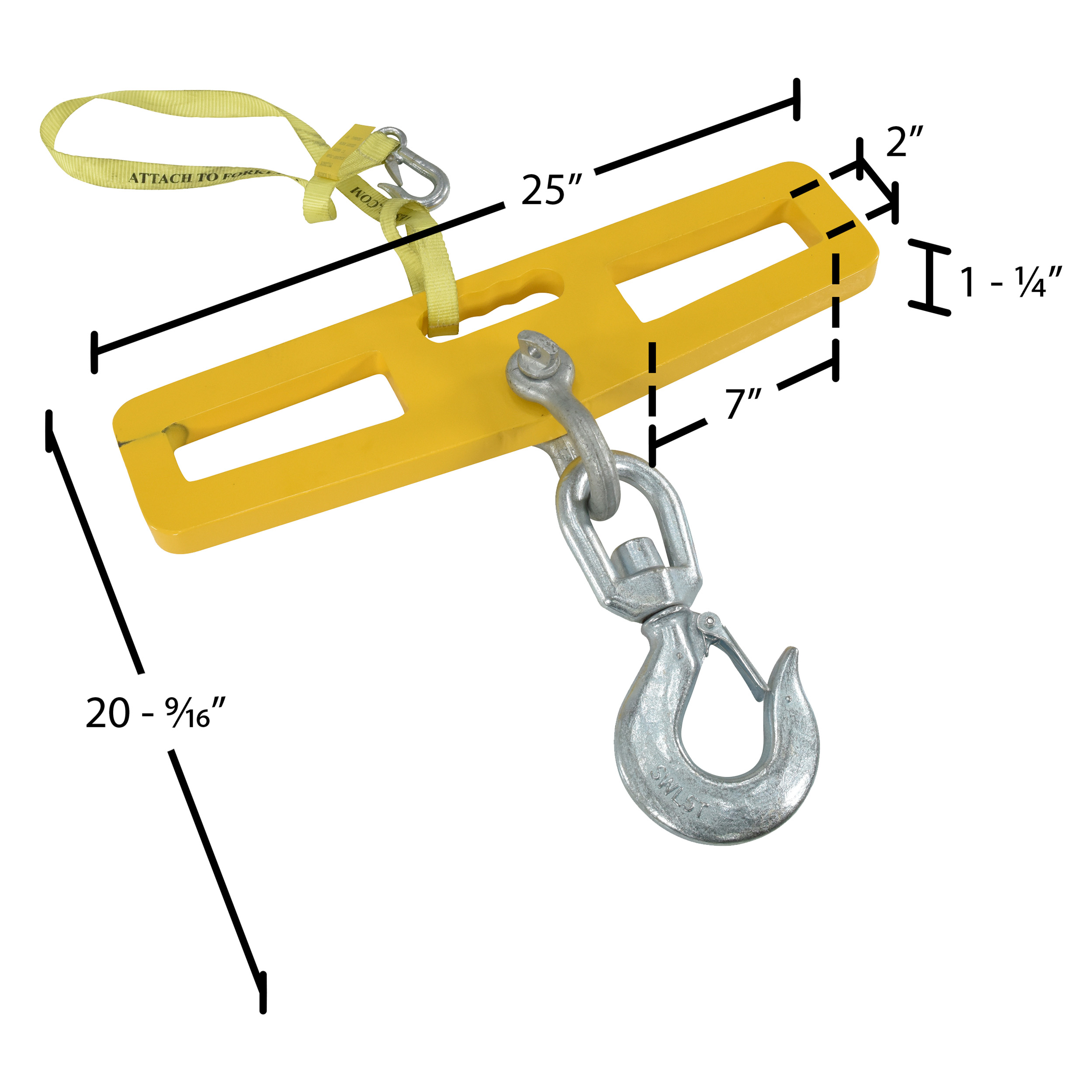

Assembled Size 25"W x 5"L x 20.5625"H
Total Ship Weight 52 lbs
Package 1 Size 4"W x 26"D x 7"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 10,000
Fork Pocket WxH (in.) 7x2
Fork Pocket Center (in.) 15
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LM-HP10-SL
Product Name
Steel Fork Truck Hook Plate Swivel with Latch 10,000 Lb. Capacity Yellow
UPC
691215326391
GTIN
00691215326391
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Hook Plates
Assembled Depth (in.)
5
Assembled Width(in.)
25
Assembled Height(in.)
20.5625
Assembled Weight(lbs.)
50
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
26
Package Width (in.)
4
Package Height (in.)
7
Package Weight (in.)
52
Subclass
11
Freight Class
60
NMFC Code
Lift truck attachments; NOI, steel or steel and rubber, in boxes or on skids
NMFC Number
193100
LTL Freight
Parcel
UNSPSC
31162600
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LM-HP10-SL

LM-HP10-SL

Steel Fork Truck Hook Plate Swivel with Latch 10,000 Lb. Capacity Yellow

A lift-master hook plate is wonderful asset for securing and lifting heavy loads. With a strong steel construction the lift is easily maneuvered by utilizing the two fork slots. A centrally located hook and latch are also included for simple securing of the product being lifted. A sleek, compact design takes up minimal room when not in use. A centered built in handle is great for lifting and moving by hand.

  • Two fork slots for simple lifting
  • Hook and latch for securing load
  • Powder coated finish
  • Center handle for maneuvering by hand

Core Data

Assembled Weight: 50 Assembled Size: 25"W x 5"L x 20.5625"H Color: Yellow
Total Ship Weight: 52 Package 1 Size: 4"W x 26"D x 7"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 10,000
Fork Pocket WxH (in.): 7x2
Fork Pocket Center (in.): 15
