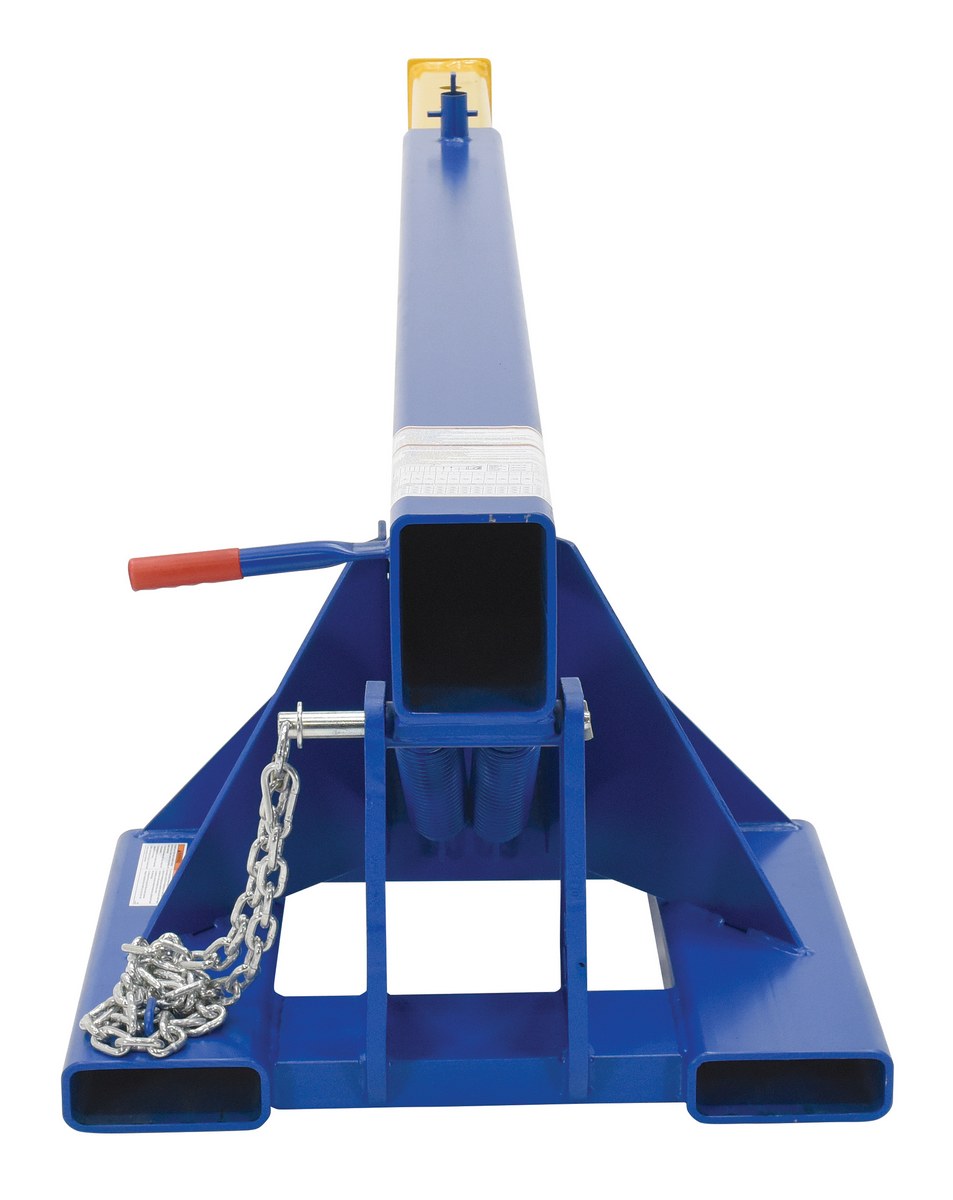

Steel Orbit Telescoping Lift Boom 24 In. Fork Pocket Center 8,000 Lb. Capacity Blue

Telescoping Lift Master Boom for Overhead Load Lifting and Controlled Positioning, 8,000 lb. Capacity with 24 in., Blue (base Frame) and Yellow (extension) Finish – Model LM-OBT-8-24
The orbit lift boom delivers heavy-duty performance, maximum operator convenience, and uncompromising safety in challenging manufacturing and warehouse environments. Fabricated from high-strength structural steel and welded to rigorous AWS standards, this rugged, durable unit is engineered for years of reliable, long-term service. For precision operation, it features a locking detest and safety restraint that secures the boom directly to the fork truck to ensure secure, slip-free performance. Ready for immediate use, each unit comes fully equipped with two high-capacity lifting hooks to maximize your facility's material handling efficiency.
Product Status
Available
Key Features
  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   LM-Series and LMS-Series Fork Truck Attachments Use and Maintenance Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 622 lbs
Assembled Size 32"W x 85.25"L x 29"H
Total Ship Weight 622 lbs
Package 1 Size 32"W x 84"D x 31"H
Color / Finish Blue (Base Frame)/Yellow (Extension)
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 8,000
Fork Pocket Center (in.) 24
Fork Pocket Width (in.) 7-1/4 x 2-1/4
Restraint Length (in.) 36
Boom Style Telescoping
Minimum/Maximum Hook Point (in.) 36/144
Single-Hook Capacity at 36" (lb.) 8000
Single-Hook Capacity at 48" (lb.) 6650
Single-Hook Capacity at 60" (lb.) 6000
Single-Hook Capacity at 72" (lb.) 5300
Single-Hook Capacity at 84" (lb.) 4650
Single-Hook Capacity at 96" (lbs.) 4000
Single-Hook Capacity at 108" (lbs.) 3500
Single-Hook Capacity at 120" (lbs.) 3000
Single-Hook Capacity at 132" (lbs.) 2600
Single-Hook Capacity at 144" (lbs.) 2200
Overall Extended Height (in.) 96-1/8
Retracted Hook Height (in.) 5-1/8
Extended Hook Height (in.) 76-9/16
Overall Extended Length (in.) 148-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LM-OBT-8-24
Product Name
Steel Orbit Telescoping Lift Boom 24 In. Fork Pocket Center 8,000 Lb. Capacity Blue
UPC
691215027557
GTIN
00691215027557
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Lifting Boom
Assembled Depth (in.)
85.25
Assembled Width(in.)
32
Assembled Height(in.)
29
Assembled Weight(lbs.)
622
Color/Finish
Blue (Base Frame)/Yellow (Extension)
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
84
Package Width (in.)
32
Package Height (in.)
31
Package Weight (in.)
622
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors, Elevators or Lifts, or Parts thereof
NMFC Number
120700
LTL Freight
LTL Loose
UNSPSC
22101804
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
