  All Products   Overhead Lifting   Hoists & Trollies   Low Headroom Combination Chain Hoist/Trolley LOW-1P
Product Image

Visual Reference

LOW-1P
LOW-1P
LOW-1P
LOW-1P
LOW-1P
LOW-1P

Steel Low Headroom Chain Hoist Push Trolley 10-1/4 In. x 9-1/2 In. x 10 In. 1,000 Lb. Capacity Orange

Combination Hoist Trolley for Overhead Load Lifting and Controlled Positioning, 1,000 lb. Capacity with 10-1/4 in. x 9-1/2 in. x 10 in.
Use this low headroom Chain Hoist geared trolley to gain additional raised hook height. Chain hoist hook travel is ten (10) feet. Fits on wide flange or S-type I-beam.
Product Status
Available QuickShip
Key Features
  • Compact design works well in locations where more headroom is required
  • Heavy-duty industrial steel construction provides long lasting use
  • Chain hoist features ten foot of vertical lift
  • Bright orange color for strong visibility
Quick Actions

Product Resources

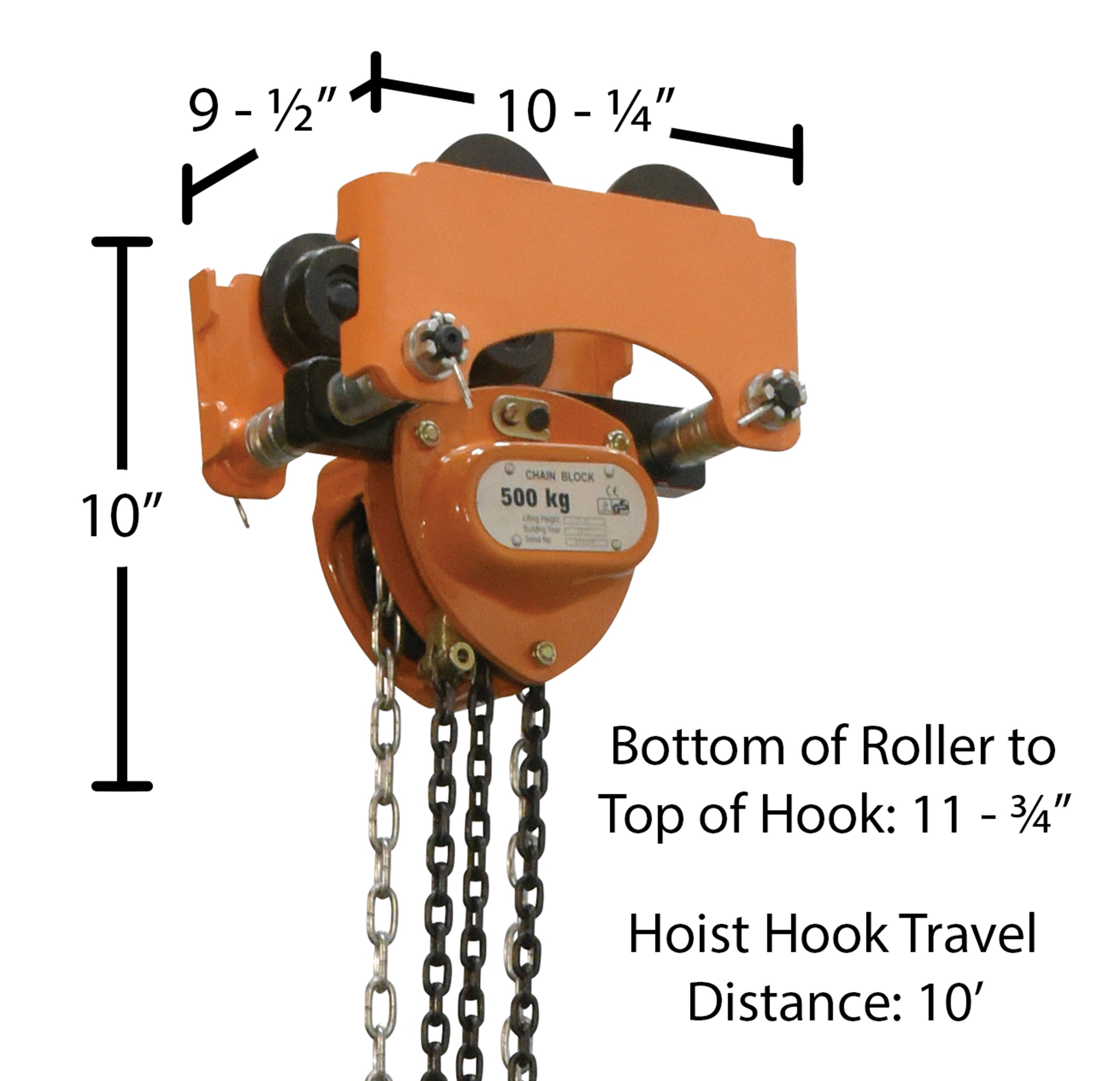

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   LOW series Low Profile Manual Chain Blocks Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 35 lbs
Assembled Size 9.5"W x 10.25"L x 10"H
Total Ship Weight 45 lbs
Package 1 Size 13"W x 15"D x 14"H
Color / Finish Orange
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,000
Fits Beam Flange Width (in.) 2 to 6
Bottom of Roller to Top of Hook (in.) 11-3/4
Hoist Hook Travel Distance (ft,) 10
Operation Manual Push
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LOW-1P
Product Name
Steel Low Headroom Chain Hoist Push Trolley 10-1/4 In. x 9-1/2 In. x 10 In. 1,000 Lb. Capacity Orange
UPC
691215077408
GTIN
00691215077408
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Manual Trollies
Assembled Depth (in.)
10.25
Assembled Width(in.)
9.5
Assembled Height(in.)
10
Assembled Weight(lbs.)
35
Color/Finish
Orange
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
15
Package Width (in.)
13
Package Height (in.)
14
Package Weight (in.)
45
Freight Class
70
NMFC Code
Trolleys overhead track iron with or without gear
NMFC Number
132450
LTL Freight
Parcel
UNSPSC
24101706
HTSUS Number
8425.19.0000
USMCA HS
8425.19
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LOW-1P

LOW-1P

Steel Low Headroom Chain Hoist Push Trolley 10-1/4 In. x 9-1/2 In. x 10 In. 1,000 Lb. Capacity Orange

Use this low headroom Chain Hoist geared trolley to gain additional raised hook height. Chain hoist hook travel is ten (10) feet. Fits on wide flange or S-type I-beam.

  • Compact design works well in locations where more headroom is required
  • Heavy-duty industrial steel construction provides long lasting use
  • Chain hoist features ten foot of vertical lift
  • Bright orange color for strong visibility

Core Data

Assembled Weight: 35 Assembled Size: 9.5"W x 10.25"L x 10"H Color: Orange
Total Ship Weight: 45 Package 1 Size: 13"W x 15"D x 14"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6
Bottom of Roller to Top of Hook (in.): 11-3/4
Hoist Hook Travel Distance (ft,): 10
Operation: Manual Push
