Steel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity Blue

Plate Lifting Clamp for Commercial and Industrial Clamps & Tongs Use, 6,000 lb. Capacity with 15 in. x 4 in. x 8 in.
The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
Product Status
Available QuickShip
Key Features
  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications
Quick Actions

Product Resources

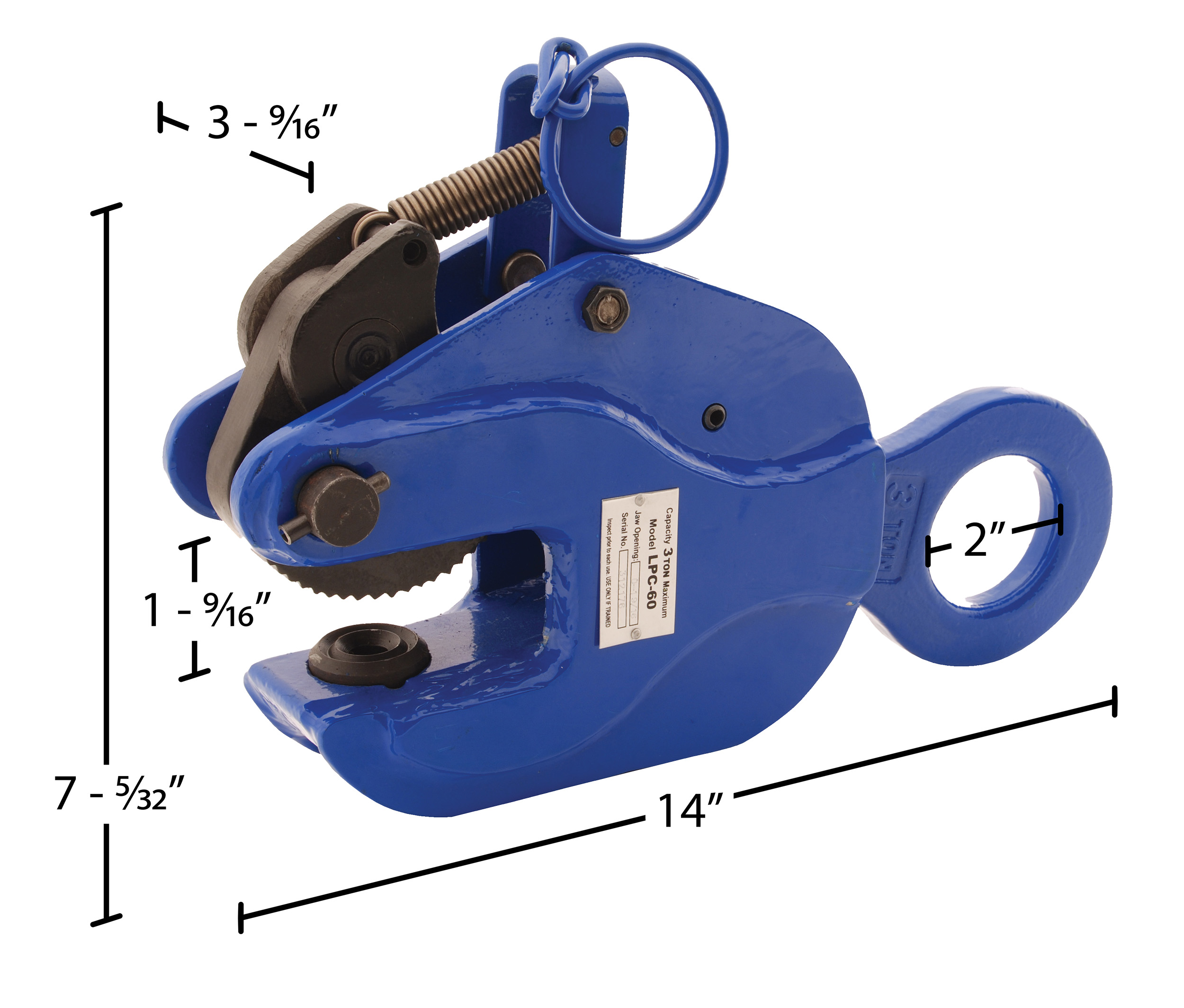

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Positive Locking Plate Clamp Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 20 lbs
Assembled Size 4"W x 15"L x 8"H
Total Ship Weight 21 lbs
Package 1 Size 11"W x 11"D x 8"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Working Load Limit (lb.) 6,000
Min Uniform Plate Weight (lb.) 1,200
Minimum Plate Thickness (in.) zero
Maximum Plate Thickness (in.) 1.5625
Throat Depth (in.) 3.34
Bale Opening (in.) 1.9
Extended Product Details

Marketing Specs.

MFG Model # (Series)
LPC-60
Product Name
Steel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity Blue
UPC
691215054577
GTIN
00691215054577
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Clamps
Assembled Depth (in.)
15
Assembled Width(in.)
4
Assembled Height(in.)
8
Assembled Weight(lbs.)
20
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
11
Package Width (in.)
11
Package Height (in.)
8
Package Weight (in.)
21
Subclass
11
Freight Class
60
NMFC Code
Tools NOI hand other than power
NMFC Number
186620
LTL Freight
Parcel
UNSPSC
31162900
HTSUS Number
8205.70.0090
USMCA HS
8205.70
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LPC-60

LPC-60

Steel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity Blue

The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications

Core Data

Assembled Weight: 20 Assembled Size: 4"W x 15"L x 8"H Color: Blue
Total Ship Weight: 21 Package 1 Size: 11"W x 11"D x 8"H Freight: Parcel

Specifications

Uniform Working Load Limit (lb.): 6,000
Min Uniform Plate Weight (lb.): 1,200
Minimum Plate Thickness (in.): zero
Maximum Plate Thickness (in.): 1.5625
Throat Depth (in.): 3.34
Bale Opening (in.): 1.9
