Extruded Rubber Fender Bumper 12 In. x 6-5/16 In. x 6 In. Black

Rubber Bumper Guard for Commercial Dock Access and Waterfront Operations, 12 in. x 6 in. x 6 in.

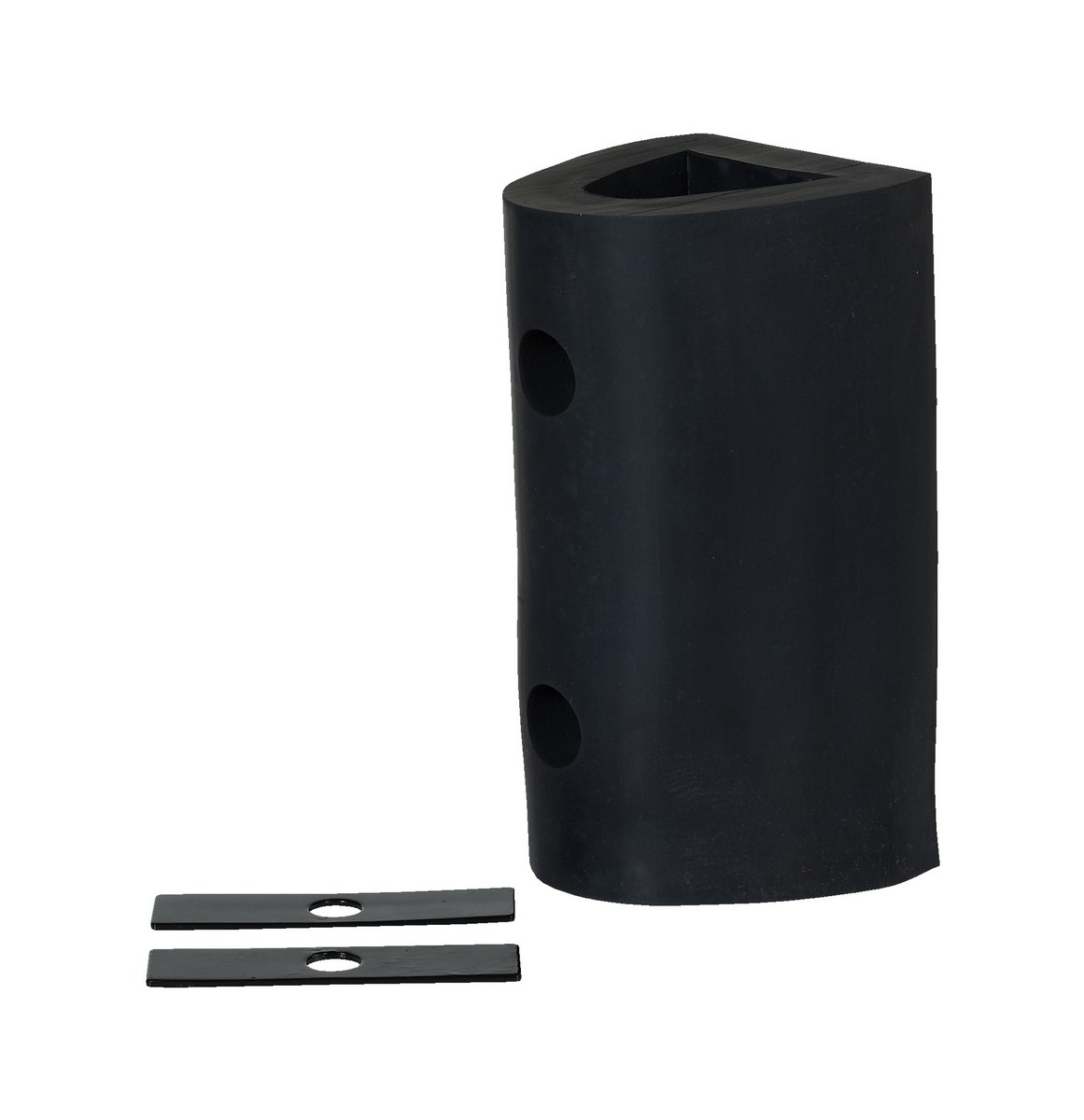

The Extruded bumper protects against heavy impact and damaging results of semi-trailers and trucks. This bumper is made of all weather and abrasion resistant rubber with a half-oval shape that allows for effective fendering action over a wide radius. The unit comes with one washer per hole. The installation hardware is not included, but it is available separately.
Product Status
Available QuickShip
Key Features
  • Extruded bumper protects against heavy impact and damaging results of semi-trailers and trucks
  • Half-oval shape allows for effective fendering action over a wide radius
  • Made of all weather and abrasion resistant rubber for long lasting use
  • One piece construction for quick and easy installation
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 11 lbs

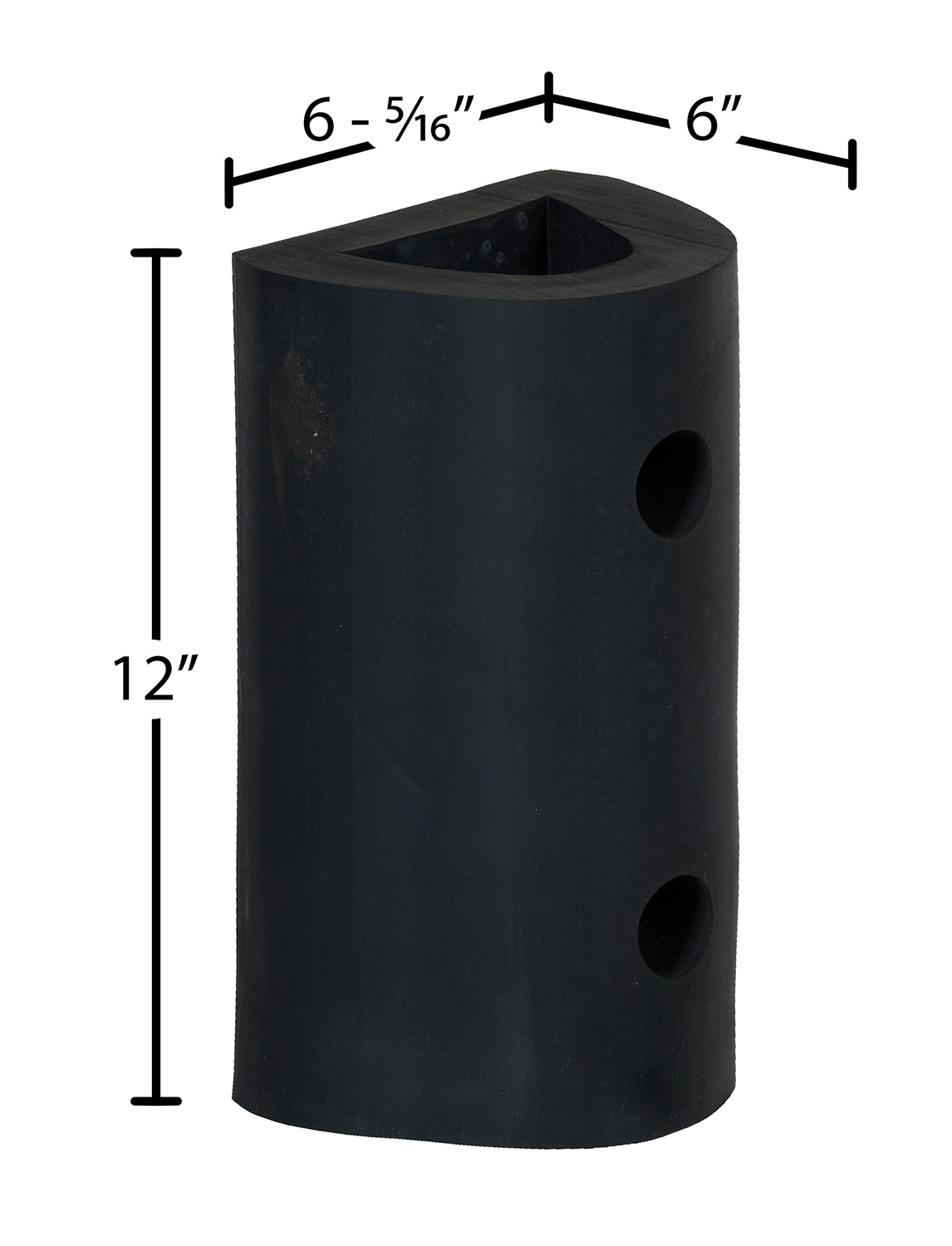

Assembled Size 6.3125"W x 12"L x 6"H
Total Ship Weight 14 lbs
Package 1 Size 13"W x 13"D x 7"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Durometer (+/-5) 70
Mounting Hole Quantity 2
Mounting Hole Diameter (in.) 7/8
Access Hole (in.) 1-3/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
M-6-12
Product Name
Extruded Rubber Fender Bumper 12 In. x 6-5/16 In. x 6 In. Black
UPC
691215028134
GTIN
00691215028134
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Bumpers
Assembled Depth (in.)
12
Assembled Width(in.)
6.3125
Assembled Height(in.)
6
Assembled Weight(lbs.)
11
Color/Finish
Black
Material
Rubber
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
IN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
13
Package Width (in.)
13
Package Height (in.)
7
Package Weight (in.)
14
Subclass
7
Freight Class
92.5
NMFC Code
Fender or Bumper boat or dock NOI loose or pkg
NMFC Number
38655
LTL Freight
Parcel
UNSPSC
24101805
HTSUS Number
4006.90.1000
USMCA HS
4006.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: M-6-12

M-6-12

Extruded Rubber Fender Bumper 12 In. x 6-5/16 In. x 6 In. Black

The Extruded bumper protects against heavy impact and damaging results of semi-trailers and trucks. This bumper is made of all weather and abrasion resistant rubber with a half-oval shape that allows for effective fendering action over a wide radius. The unit comes with one washer per hole. The installation hardware is not included, but it is available separately.

  • Extruded bumper protects against heavy impact and damaging results of semi-trailers and trucks
  • Half-oval shape allows for effective fendering action over a wide radius
  • Made of all weather and abrasion resistant rubber for long lasting use
  • One piece construction for quick and easy installation

Core Data

Assembled Weight: 11 Assembled Size: 6.3125"W x 12"L x 6"H Color: Black
Total Ship Weight: 14 Package 1 Size: 13"W x 13"D x 7"H Freight: Parcel

Specifications

Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Mounting Hole Diameter (in.): 7/8
Access Hole (in.): 1-3/8
