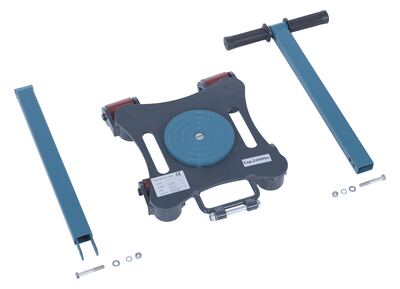

Steel Multi Direction Machinery Skate 12 In. Length x 12 In. Width x 3-1/2 In. Height 2,200 Lb. Capacity Blue and Gray

Machine Skate for Commercial and Industrial Machine Rollers & Lifts Use, 2,200 lb. Capacity with 12 in. Length, Blue and Gray Finish – Model MDSKT-2
Sometimes moving heavy equipment can be a difficult process. But, with a machinery skate things get a whole lot easier! The high capacity design lets the user transfer large, heavy, and oversized loads without the need of costly industrial lifting equipment. With the skates’ compact size; multiple skates can be used under a single piece of equipment giving the user complete control of the movement during transport. Blue and gray powder coat finish. Hardware is included.
Product Status
Out of Stock QuickShip
Key Features
  • Detachable handle
  • Rollers are comprised of red poly on steel
  • Rubber surface provides extra grip
  • All swivel rollers for movement in any direction
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 38 lbs
Assembled Size 12"W x 14.5"L x 43.3125"H
Total Ship Weight 40 lbs
Package 1 Size 14"W x 20"D x 6"H
Color / Finish Blue & Gray
Freight Type Parcel

Additional Attributes

Uniform Static Capacity (Lbs.) 2,200
Roller Material Poly on Steel
Roller (qty.) 4
Wheel Diameter (in.) 2
Wheel Width (in.) 2-3/8
Style Multi-directional Steerable
Skate Height (in.) 3.5
Rubber Surface Length (in.) 12
Rubber Surface Width (in.) 12
Extended Product Details

Marketing Specs.

MFG Model # (Series)
MDSKT-2
Product Name
Steel Multi Direction Machinery Skate 12 In. Length x 12 In. Width x 3-1/2 In. Height 2,200 Lb. Capacity Blue and Gray
UPC
691215378697
GTIN
00691215378697
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Wheeled Dollies / Skates
Assembled Depth (in.)
14.5
Assembled Width(in.)
12
Assembled Height(in.)
43.3125
Assembled Weight(lbs.)
38
Color/Finish
Blue & Gray
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
20
Package Width (in.)
14
Package Height (in.)
6
Package Weight (in.)
40
Freight Class
70
NMFC Code
Dollies, materials handling, NOI, wood and/or stee
NMFC Number
189035
LTL Freight
Parcel
UNSPSC
24101502
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: MDSKT-2

MDSKT-2

Steel Multi Direction Machinery Skate 12 In. Length x 12 In. Width x 3-1/2 In. Height 2,200 Lb. Capacity Blue and Gray

Sometimes moving heavy equipment can be a difficult process. But, with a machinery skate things get a whole lot easier! The high capacity design lets the user transfer large, heavy, and oversized loads without the need of costly industrial lifting equipment. With the skates’ compact size; multiple skates can be used under a single piece of equipment giving the user complete control of the movement during transport. Blue and gray powder coat finish. Hardware is included.

  • Detachable handle
  • Rollers are comprised of red poly on steel
  • Rubber surface provides extra grip
  • All swivel rollers for movement in any direction

Core Data

Assembled Weight: 38 Assembled Size: 12"W x 14.5"L x 43.3125"H Color: Blue & Gray
Total Ship Weight: 40 Package 1 Size: 14"W x 20"D x 6"H Freight: Parcel

Specifications

Uniform Static Capacity (Lbs.): 2,200
Roller Material: Poly on Steel
Roller (qty.): 4
Wheel Diameter (in.): 2
Wheel Width (in.): 2-3/8
Style: Multi-directional Steerable
Skate Height (in.): 3.5
Rubber Surface Length (in.): 12
Rubber Surface Width (in.): 12
