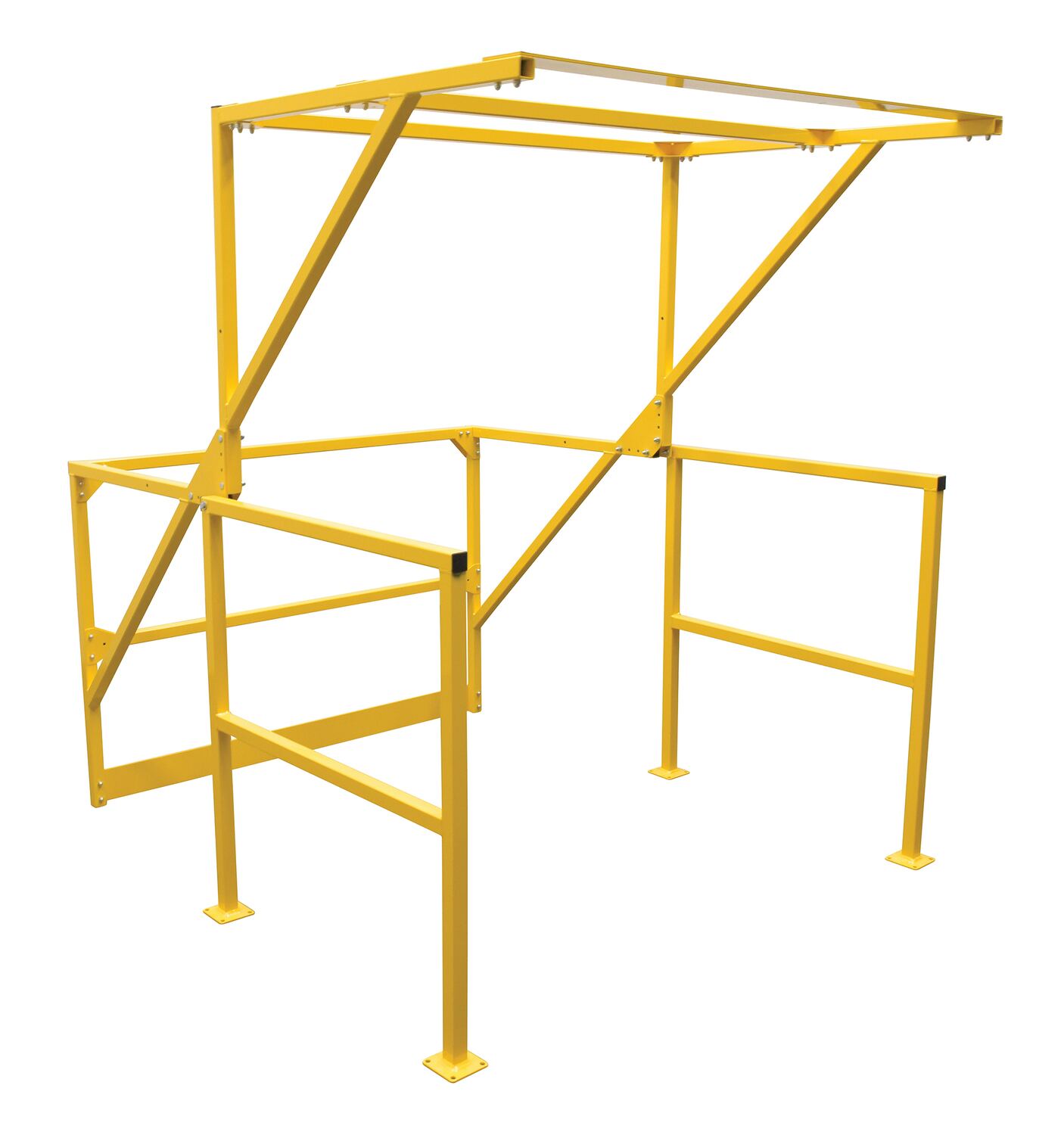

Steel Bolt Together Mezzanine Safety Gate 111 in. x 68.5 in. x 80 in. Yellow

Yellow Mezzanine Safety Gate for Controlled Access and Fall Protection in Work Areas, 111 in. x 68.5 in. x 80 in.
The mezzanine safety gate provides a handrail, mid-rail and kick-plate for mezzanines, without sacrificing load accessibility. With a bolt-together design, the gate can be the constructed, disassembled, or easily transferred to a new location. To accommodate the maximum load height, when utilizing a standard pallet, load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. The gate rotates and is balanced to allow for easy operation without the use of springs.
Product Status
Temporarily Unavailable - Please Contact Sales
Key Features
  • 42-3/8" high handrail
  • Manually operated rotation
  • Pre-drilled mounting holes
  • Assembly hardware included
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   "MEZZ-200 Mezzanine Gate System Instruction Manual"   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 223 lbs
Assembled Size 68.5"W x 111.625"L x 80.0625"H
Total Ship Weight 258 lbs
Package 1 Size 40"W x 64"D x 14"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Base Plate Width (in.) 4
Base Plate Length (in.) 4
Number of Mounting Holes 4
Hole Diameter (in.) .4375
Handrail Length (in.) 37.375
Handrail Height (in.) 42.375
Midrail Height (in.) 19.5
Extended Product Details

Marketing Specs.

MFG Model # (Series)
MEZZ-200-BT
Product Name
Steel Bolt Together Mezzanine Safety Gate 111 in. x 68.5 in. x 80 in. Yellow
UPC
691215373333
GTIN
00691215373333
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Mezzanine Safety Gates
Assembled Depth (in.)
111.625
Assembled Width(in.)
68.5
Assembled Height(in.)
80.0625
Assembled Weight(lbs.)
223
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
14
Package Weight (in.)
258
Subclass
8
Freight Class
85
NMFC Code
Racks and Related Articles viz
NMFC Number
164390
LTL Freight
LTL Palletized
UNSPSC
30103100
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: MEZZ-200-BT

MEZZ-200-BT

Steel Bolt Together Mezzanine Safety Gate 111 in. x 68.5 in. x 80 in. Yellow

The mezzanine safety gate provides a handrail, mid-rail and kick-plate for mezzanines, without sacrificing load accessibility. With a bolt-together design, the gate can be the constructed, disassembled, or easily transferred to a new location. To accommodate the maximum load height, when utilizing a standard pallet, load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. The gate rotates and is balanced to allow for easy operation without the use of springs.

  • 42-3/8" high handrail
  • Manually operated rotation
  • Pre-drilled mounting holes
  • Assembly hardware included

Core Data

Assembled Weight: 223 Assembled Size: 68.5"W x 111.625"L x 80.0625"H Color: Yellow
Total Ship Weight: 258 Package 1 Size: 40"W x 64"D x 14"H Freight: LTL Palletized

Specifications

Base Plate Width (in.): 4
Base Plate Length (in.): 4
Number of Mounting Holes: 4
Hole Diameter (in.): .4375
Handrail Length (in.): 37.375
Handrail Height (in.): 42.375
Midrail Height (in.): 19.5
