  All Products   Protective Barriers   Safety Railing   Mezzanine Safety Gates MEZZ-200-DW-A
Product Image

Visual Reference

MEZZ-200-DW-A
MEZZ-200-DW-A
MEZZ-200-DW-A
MEZZ-200-DW-A
MEZZ-200-DW-A
MEZZ-200-DW-A

Aluminum Double Wide Mezzanine Safety Gate 42-3/8 In. Handrail Height Silver

Aluminum Yellow Mezzanine Safety Gate for Controlled Access and Fall Protection in Work Areas, 42-3/8 in.
This double mezzanine safety gate maintains a level of security while providing users with access to loading and unloading areas. With a double wide gate feature, more materials can be secured at a given time. A sleek aluminum design gives the ability to lift and lower the gate with ease. To accommodate the maximum load height, when utilizing a standard pallet, load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. The gate rotates and is balanced to allow for easy operation without use of springs. Hardware is included.
Product Status
Available
Key Features
  • Includes hand and mid rails for sustained security
  • Manually operated gate rotates to allow mezzanine access
  • Aluminum construction provides long lasting use
  • Smooth finish offers an attractive appearance
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   "MEZZ-200 Mezzanine Gate System Instruction Manual"   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 186 lbs
Assembled Size 108.5"W x 111.75"L x 80.0625"H
Total Ship Weight 218 lbs
Package 1 Size 43"W x 102"D x 43"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

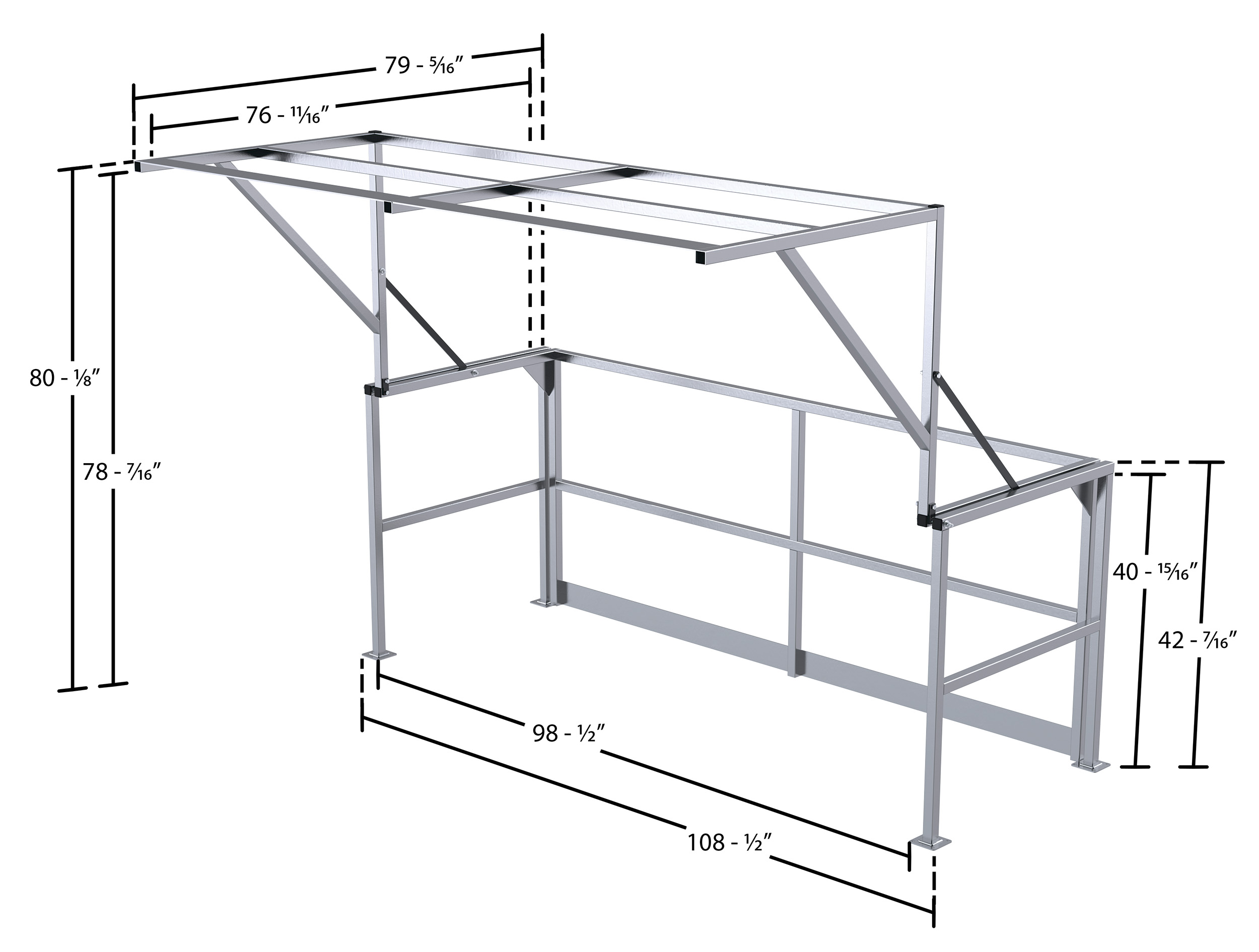

Handrail Height (in.) 42-3/8
Mid-Rail Height (in.) 21
Kickplate Height (in.) 4
Usable Width (in.) 96
Overall Width (in.) 108-1/2
Inside Width (in.) 98-1/2
Overall Height (in.) 80-1/8
Inside Height (in.) 78-7/16
Overall Length (in.) 79-5/16
Inside Length (in.) 76-11/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
MEZZ-200-DW-A
Product Name
Aluminum Double Wide Mezzanine Safety Gate 42-3/8 In. Handrail Height Silver
UPC
691215337304
GTIN
00691215337304
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Mezzanine Safety Gates
Assembled Depth (in.)
111.75
Assembled Width(in.)
108.5
Assembled Height(in.)
80.0625
Assembled Weight(lbs.)
186
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
102
Package Width (in.)
43
Package Height (in.)
43
Package Weight (in.)
218
Subclass
3
Freight Class
250
NMFC Code
Racks and Related Articles viz
NMFC Number
164390
LTL Freight
LTL Palletized
UNSPSC
30103100
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: MEZZ-200-DW-A

MEZZ-200-DW-A

Aluminum Double Wide Mezzanine Safety Gate 42-3/8 In. Handrail Height Silver

This double mezzanine safety gate maintains a level of security while providing users with access to loading and unloading areas. With a double wide gate feature, more materials can be secured at a given time. A sleek aluminum design gives the ability to lift and lower the gate with ease. To accommodate the maximum load height, when utilizing a standard pallet, load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. The gate rotates and is balanced to allow for easy operation without use of springs. Hardware is included.

  • Includes hand and mid rails for sustained security
  • Manually operated gate rotates to allow mezzanine access
  • Aluminum construction provides long lasting use
  • Smooth finish offers an attractive appearance

Core Data

Assembled Weight: 186 Assembled Size: 108.5"W x 111.75"L x 80.0625"H Color: Silver
Total Ship Weight: 218 Package 1 Size: 43"W x 102"D x 43"H Freight: LTL Palletized

Specifications

Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Kickplate Height (in.): 4
Usable Width (in.): 96
Overall Width (in.): 108-1/2
Inside Width (in.): 98-1/2
Overall Height (in.): 80-1/8
Inside Height (in.): 78-7/16
Overall Length (in.): 79-5/16
Inside Length (in.): 76-11/16
