Steel Knockdown Mezzanine Safety Gate 87-3/16 In x 96 In x 87-9/16 In Yellow

Yellow Mezzanine Safety Gate for Controlled Access and Fall Protection in Work Areas, Yellow Finish
This mezzanine safety gate provides an OSHA required 42" high handrail. To accommodate the load height when utilizing a standard 48"W x 48"D pallet load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. Gate design is balanced to allow for easy operation without use of springs. Construction is welded steel with a baked-in powder-coated finish for increased toughness. Ships knockdown to the customer. Wooden cross rails are not included and must be supplied by the customer.
Product Status
Available QuickShip
Key Features
  • Access to mezzanines with safety first concept
  • Manually operated gate rotates to allow access mezzanine
  • Heavy-duty welded steel construction provides long lasting use
  • Powder coat safety yellow finish offers an attractive appearance
Quick Actions

Product Resources

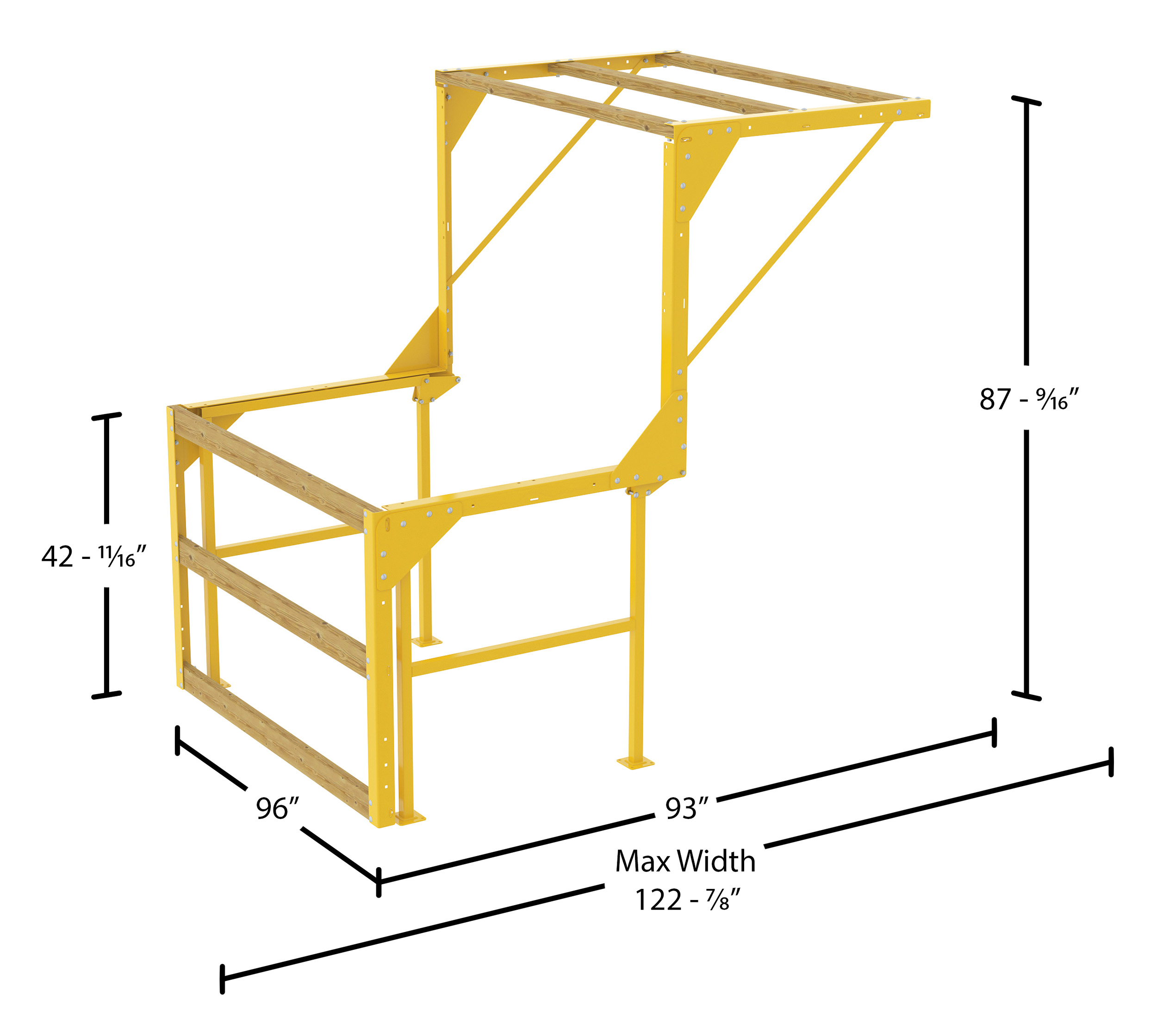

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   BABAA   Knock-Down Mezzanine Gate Systems MEZZ-KD Series Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 184 lbs
Assembled Size 96"W x 87.1875"L x 87.5625"H
Total Ship Weight 186 lbs
Package 1 Size 45"W x 45"D x 10"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Base Plate Thickness (in.) 3/16
Base Plate Width/Length (in.) 4/4
Base Mounting Holes (qty.) 4
Base Mounting Hole Diameter (in.) 7/16
Hardware Included Yes
Extended Product Details

Marketing Specs.

MFG Model # (Series)
MEZZ-KD-88T-93D
Product Name
Steel Knockdown Mezzanine Safety Gate 87-3/16 In x 96 In x 87-9/16 In Yellow
UPC
691215326797
GTIN
00691215326797
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Mezzanine Safety Gates
Assembled Depth (in.)
87.1875
Assembled Width(in.)
96
Assembled Height(in.)
87.5625
Assembled Weight(lbs.)
184
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
45
Package Width (in.)
45
Package Height (in.)
10
Package Weight (in.)
186
Subclass
3
Freight Class
250
NMFC Code
Racks and Related Articles viz
NMFC Number
164390
LTL Freight
LTL Palletized
UNSPSC
30103100
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: MEZZ-KD-88T-93D

MEZZ-KD-88T-93D

Steel Knockdown Mezzanine Safety Gate 87-3/16 In x 96 In x 87-9/16 In Yellow

This mezzanine safety gate provides an OSHA required 42" high handrail. To accommodate the load height when utilizing a standard 48"W x 48"D pallet load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. Gate design is balanced to allow for easy operation without use of springs. Construction is welded steel with a baked-in powder-coated finish for increased toughness. Ships knockdown to the customer. Wooden cross rails are not included and must be supplied by the customer.

  • Access to mezzanines with safety first concept
  • Manually operated gate rotates to allow access mezzanine
  • Heavy-duty welded steel construction provides long lasting use
  • Powder coat safety yellow finish offers an attractive appearance

Core Data

Assembled Weight: 184 Assembled Size: 96"W x 87.1875"L x 87.5625"H Color: Yellow
Total Ship Weight: 186 Package 1 Size: 45"W x 45"D x 10"H Freight: LTL Palletized

Specifications

Base Plate Thickness (in.): 3/16
Base Plate Width/Length (in.): 4/4
Base Mounting Holes (qty.): 4
Base Mounting Hole Diameter (in.): 7/16
Hardware Included: Yes
