Steel Mini Cable Hoist Option 19-1/4 In. x 8 In. x 11-3/4 In. 1000 Lb. Capacity Red

Electric Cable Hoist for Overhead Load Lifting and Controlled Positioning, 1,000 lb. Capacity with 19-1/4 in. x 8 in. x 11-3/4 in.
This mini cable hoist can be used in both single-line and double-line lifting applications. Includes electric motor and hand-held push button controls. Optional swivel hook plate must be ordered for attaching hoist to trolley, (trolley not included).
Product Status
Out of Stock QuickShip
Key Features
  • Economical electric hoist for light-duty use
  • Both single and double-line lifting applications are easy to configure
  • Hand pendant control cord is 5' long
  • Requires 115V AC power source for operation
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 75 lbs

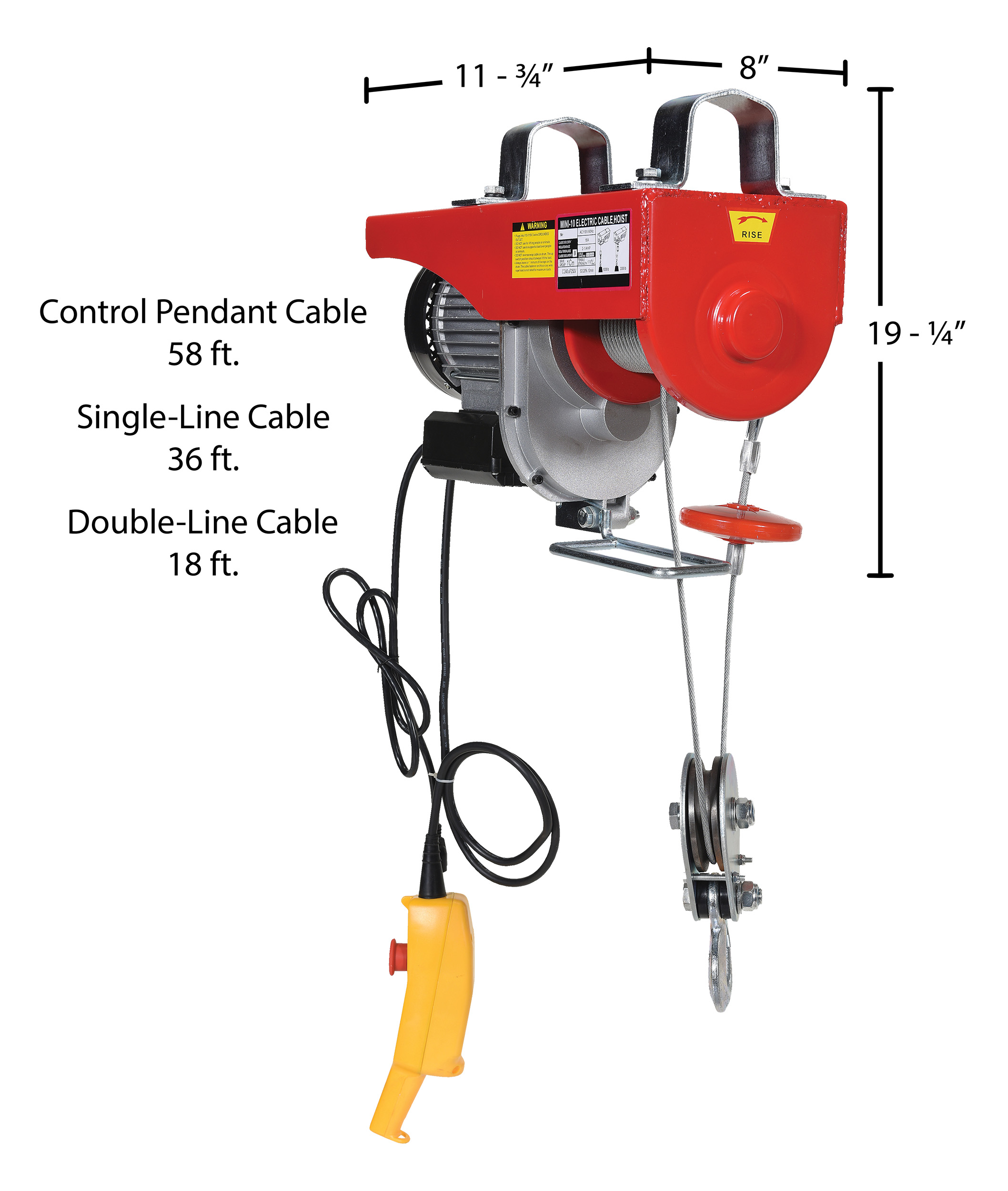

Assembled Size 8"W x 19.25"L x 11.75"H
Total Ship Weight 83 lbs
Package 1 Size 11"W x 23"D x 14"H
Color / Finish Red
Freight Type Parcel

Additional Attributes

Single-Line Uniform Capacity (lb.) 1,000
Double-Line Uniform Capacity (lb.) 2,000
Lifting Speed (ft. per minute) 30
Single-Line Cable Length (ft,) 36
Double-Line Cable Length (ft.) 18
Voltage 115
Phase 1
Control Pendant Cable Length (in.) 58
Extended Product Details

Marketing Specs.

MFG Model # (Series)
MINI-10
Product Name
Steel Mini Cable Hoist Option 19-1/4 In. x 8 In. x 11-3/4 In. 1000 Lb. Capacity Red
UPC
691215120739
GTIN
00691215120739
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Chain Hoists
Taxonomy 4
Electric
Assembled Depth (in.)
19.25
Assembled Width(in.)
8
Assembled Height(in.)
11.75
Assembled Weight(lbs.)
75
Color/Finish
Red
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
23
Package Width (in.)
11
Package Height (in.)
14
Package Weight (in.)
83
Subclass
1
Freight Class
85
NMFC Code
Chain Pulley Hoists Chain Hoist Pulley Block
NMFC Number
117040
LTL Freight
Parcel
UNSPSC
24101602
HTSUS Number
8425.11.0000
USMCA HS
8425.11
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: MINI-10

MINI-10

Steel Mini Cable Hoist Option 19-1/4 In. x 8 In. x 11-3/4 In. 1000 Lb. Capacity Red

This mini cable hoist can be used in both single-line and double-line lifting applications. Includes electric motor and hand-held push button controls. Optional swivel hook plate must be ordered for attaching hoist to trolley, (trolley not included).

  • Economical electric hoist for light-duty use
  • Both single and double-line lifting applications are easy to configure
  • Hand pendant control cord is 5' long
  • Requires 115V AC power source for operation

Core Data

Assembled Weight: 75 Assembled Size: 8"W x 19.25"L x 11.75"H Color: Red
Total Ship Weight: 83 Package 1 Size: 11"W x 23"D x 14"H Freight: Parcel

Specifications

Single-Line Uniform Capacity (lb.): 1,000
Double-Line Uniform Capacity (lb.): 2,000
Lifting Speed (ft. per minute): 30
Single-Line Cable Length (ft,): 36
Double-Line Cable Length (ft.): 18
Voltage: 115
Phase: 1
Control Pendant Cable Length (in.): 58
