Steel and Neodymium Magnetic Lifter 10-3/4 In. x 11 In. x 8-1/2 In. 1,200 Lb. Capacity Yellow

Magnetic Lifter for Commercial and Industrial Magnets Use, 1,200 lb. Capacity with 10-3/4 in. x 11 in. x 8-1/2 in.
Pick up sheets of material by use of overhead crane or chain with the permanent magnetic lifter. Magnet is activated or deactivated by simply rotating the lever. Lifter is lightweight, so transporting from work area to work area is convenient.
Product Status
Available QuickShip
Key Features
  • Pick up sheets of material by use of overhead crane or chain
  • Magnet is activated or deactivated by simply rotating the lever
  • Transporting from work area to work area is convenient
  • Lifter is permanent lightweight
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hoist Mounted Magnetic Lifter model ML-12 Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 52 lbs

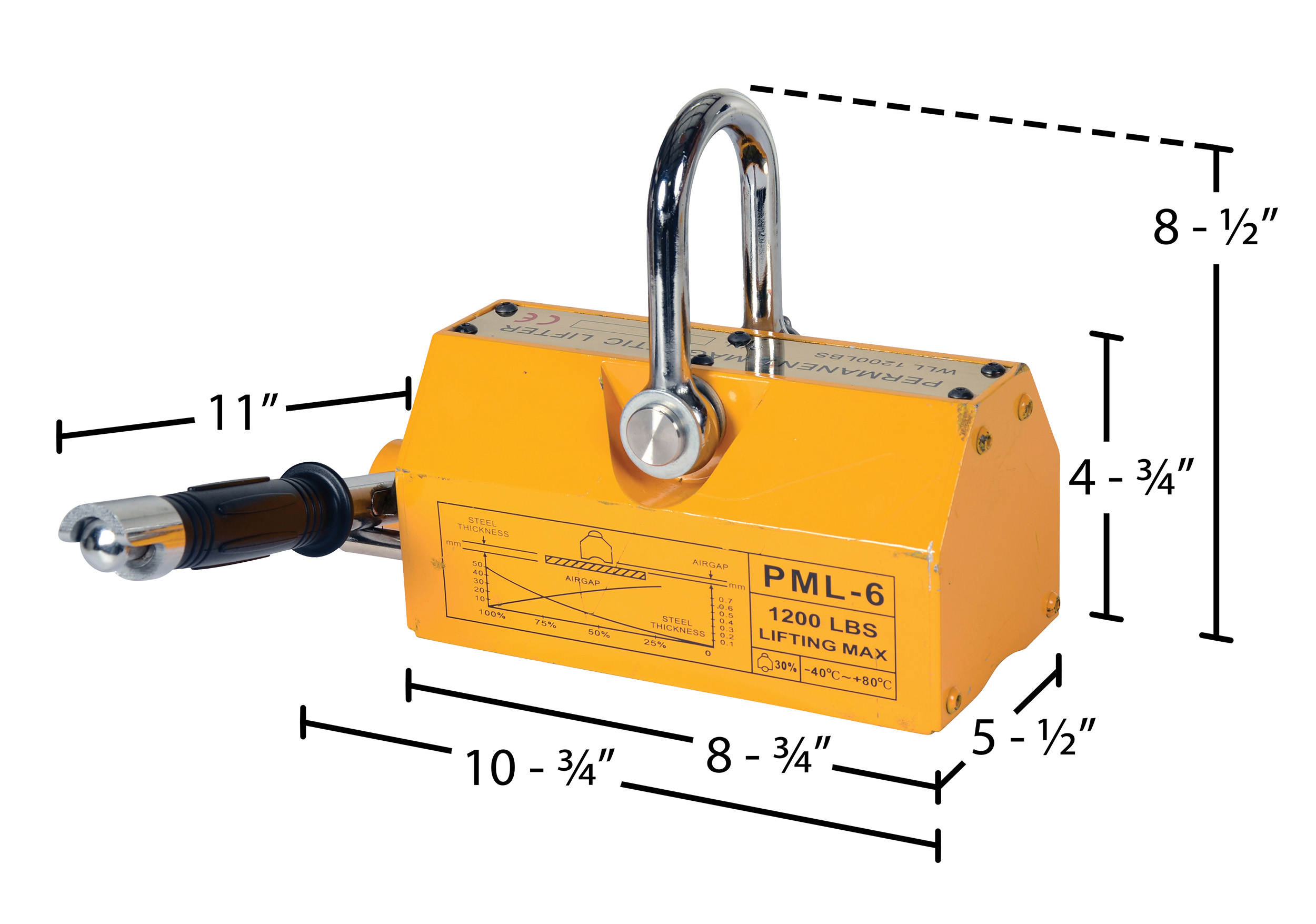

Assembled Size 11"W x 10.75"L x 8.5"H
Total Ship Weight 52 lbs
Package 1 Size 13"W x 13"D x 9"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Flat Surface Capacity (lb.) 1,200
Uniform Round Surface Capacity (lb.) 400
Base Plate Width (in.) 5-1/2
Base Plate Length (in.) 8-3/4
Minimum Working Temperature (degrees Celsius) -40
Maximum Working Temperature (degrees Celsius) 80
Handle Length (in.) 7.7
Max. Breakaway Force (lbs) 4629
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ML-12
Product Name
Steel and Neodymium Magnetic Lifter 10-3/4 In. x 11 In. x 8-1/2 In. 1,200 Lb. Capacity Yellow
UPC
691215028417
GTIN
00691215028417
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Magnetic Lifters
Assembled Depth (in.)
10.75
Assembled Width(in.)
11
Assembled Height(in.)
8.5
Assembled Weight(lbs.)
52
Color/Finish
Yellow
Material
Steel and Neodymium
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
13
Package Width (in.)
13
Package Height (in.)
9
Package Weight (in.)
52
Freight Class
77.5
NMFC Code
Magnets electro lifting NOI
NMFC Number
124700
LTL Freight
Parcel
UNSPSC
24101600
HTSUS Number
8505.90.7501
USMCA HS
8505.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ML-12

ML-12

Steel and Neodymium Magnetic Lifter 10-3/4 In. x 11 In. x 8-1/2 In. 1,200 Lb. Capacity Yellow

Pick up sheets of material by use of overhead crane or chain with the permanent magnetic lifter. Magnet is activated or deactivated by simply rotating the lever. Lifter is lightweight, so transporting from work area to work area is convenient.

  • Pick up sheets of material by use of overhead crane or chain
  • Magnet is activated or deactivated by simply rotating the lever
  • Transporting from work area to work area is convenient
  • Lifter is permanent lightweight

Core Data

Assembled Weight: 52 Assembled Size: 11"W x 10.75"L x 8.5"H Color: Yellow
Total Ship Weight: 52 Package 1 Size: 13"W x 13"D x 9"H Freight: Parcel

Specifications

Uniform Flat Surface Capacity (lb.): 1,200
Uniform Round Surface Capacity (lb.): 400
Base Plate Width (in.): 5-1/2
Base Plate Length (in.): 8-3/4
Minimum Working Temperature (degrees Celsius): -40
Maximum Working Temperature (degrees Celsius): 80
Handle Length (in.): 7.7
Max. Breakaway Force (lbs): 4629
