Mechanical Machinery Jack 12-3/8 In. x 14-5/16 In. x 42-15/16 In. 6000 Lb. Capacity Blue

Manual Mechanical Jack for Lifting, Leveling, and Supporting Heavy Loads, 6,000 lb. Capacity with 12-3/8 in. x 14-5/16 in. x 42-15/16 in.
The mechanical machinery jack is good for repairing vehicles, lifting trucks, railway maintenance, construction, mining, and agriculture. Compact design with collapsible lever offers easy operation and simple maintenance. A self locking, anti-kickback operating lever reduces injuries. Standard features include: folding handle, two carrying handles and a large base plate. Lifting and lowering speed is controllable. No seals to leak. Will not drift down even after an extended period of time.
Product Status
Available QuickShip
Key Features
  • Compact design with collapsible lever offers easy operation and simple maintenance
  • Self locking, anti-kickback operating lever reduces injuries
  • Lifting and lowering speeds are controllable for easy operation
  • Will not drift down even after an extended period of time
Quick Actions

Product Resources

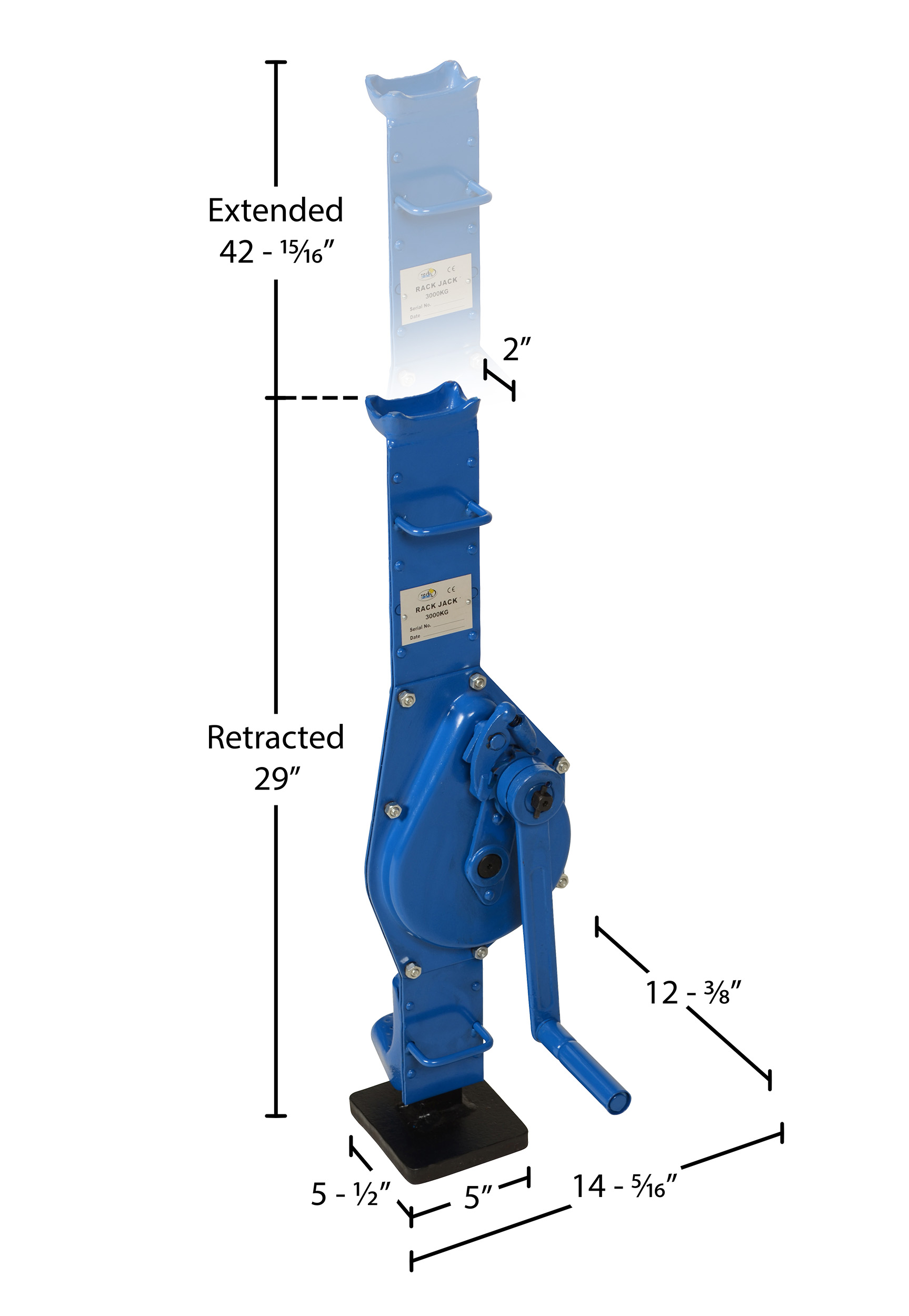

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   MMJ series Mechanical Machinery Jacks Manual   30 Days Warranty
Product Data

Core Data

Assembled Weight 46 lbs
Assembled Size 14.3125"W x 12.375"L x 42.9375"H
Total Ship Weight 48 lbs
Package 1 Size 11"W x 29"D x 14"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 6000
Lowered Height (in.) 29
Raised Height (in.) 42-15/16
Travel (in.) 13-15/16
Force Required to Lift Max Load (lb.) 79
Base Length (in.) 5-1/2
Base Width (in.) 5-1/2
Large Runner to Base Plate (in.) 3
Overload Protection Yes
Jack Mechanism Ratcheting
Extended Product Details

Marketing Specs.

MFG Model # (Series)
MMJ-6
Product Name
Mechanical Machinery Jack 12-3/8 In. x 14-5/16 In. x 42-15/16 In. 6000 Lb. Capacity Blue
UPC
691215089968
GTIN
00691215089968
Taxonomy 1
Building Supplies
Taxonomy 2
Industrial Jacks
Taxonomy 3
Machinery Jacks
Assembled Depth (in.)
12.375
Assembled Width(in.)
14.3125
Assembled Height(in.)
42.9375
Assembled Weight(lbs.)
46
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
29
Package Width (in.)
11
Package Height (in.)
14
Package Weight (in.)
48
Subclass
5
Freight Class
125
NMFC Code
Jacks or Jackscrews, lifting, NOI, hydraulic, mechanical or pneumatic, wheeled or not wheeled
NMFC Number
186600
LTL Freight
Parcel
UNSPSC
24101612
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: MMJ-6

MMJ-6

Mechanical Machinery Jack 12-3/8 In. x 14-5/16 In. x 42-15/16 In. 6000 Lb. Capacity Blue

The mechanical machinery jack is good for repairing vehicles, lifting trucks, railway maintenance, construction, mining, and agriculture. Compact design with collapsible lever offers easy operation and simple maintenance. A self locking, anti-kickback operating lever reduces injuries. Standard features include: folding handle, two carrying handles and a large base plate. Lifting and lowering speed is controllable. No seals to leak. Will not drift down even after an extended period of time.

  • Compact design with collapsible lever offers easy operation and simple maintenance
  • Self locking, anti-kickback operating lever reduces injuries
  • Lifting and lowering speeds are controllable for easy operation
  • Will not drift down even after an extended period of time

Core Data

Assembled Weight: 46 Assembled Size: 14.3125"W x 12.375"L x 42.9375"H Color: Blue
Total Ship Weight: 48 Package 1 Size: 11"W x 29"D x 14"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 6000
Lowered Height (in.): 29
Raised Height (in.): 42-15/16
Travel (in.): 13-15/16
Force Required to Lift Max Load (lb.): 79
Base Length (in.): 5-1/2
Base Width (in.): 5-1/2
Large Runner to Base Plate (in.): 3
Overload Protection: Yes
Jack Mechanism: Ratcheting
