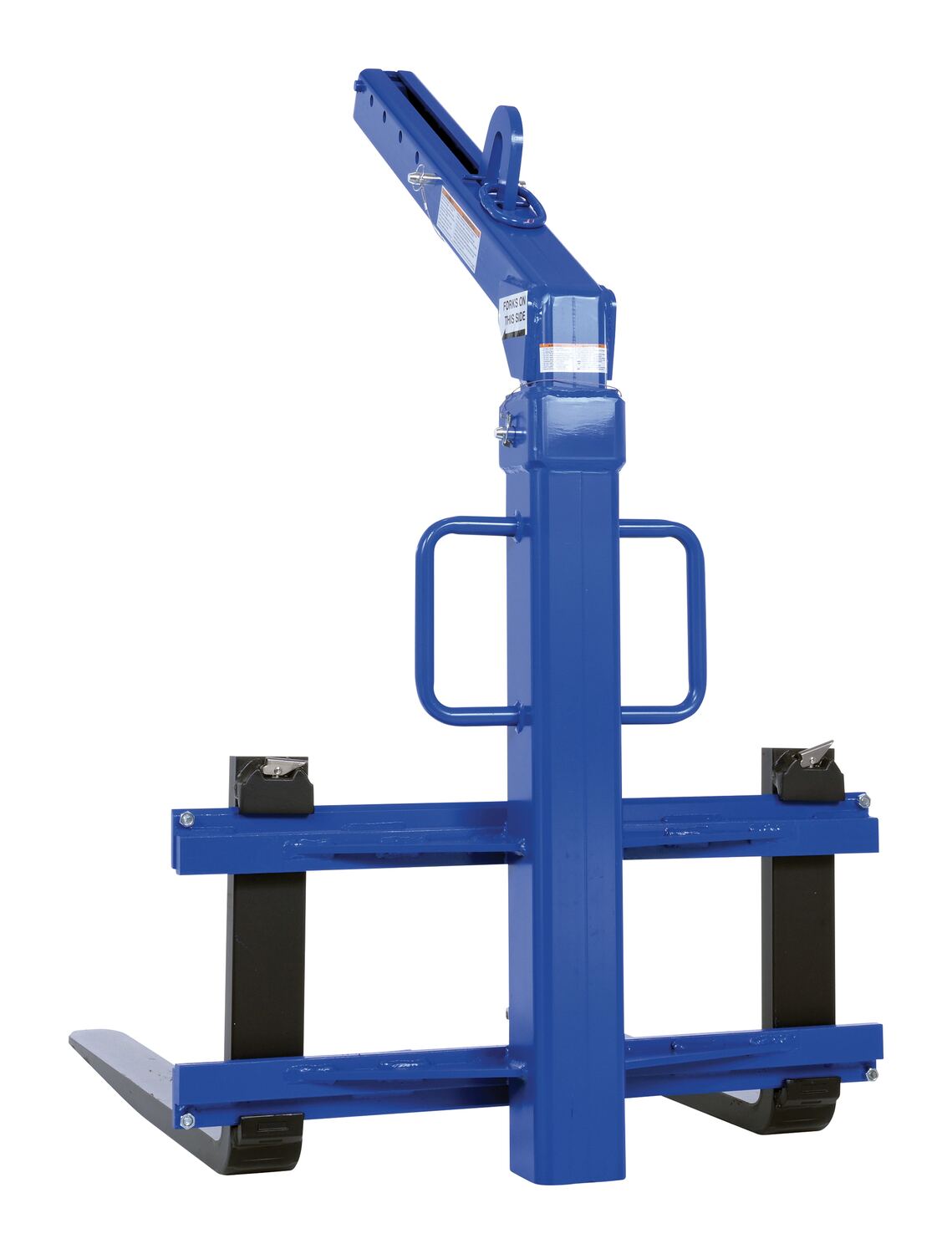

Steel Overhead Load Lifter Adjustable 42 In. Fork 2000 Lb. Capacity Blue

Adjustable Hoist Pallet Lifters for Commercial and Industrial Overhead Load Lifters Use, 2,000 lb. Capacity with 42 in.

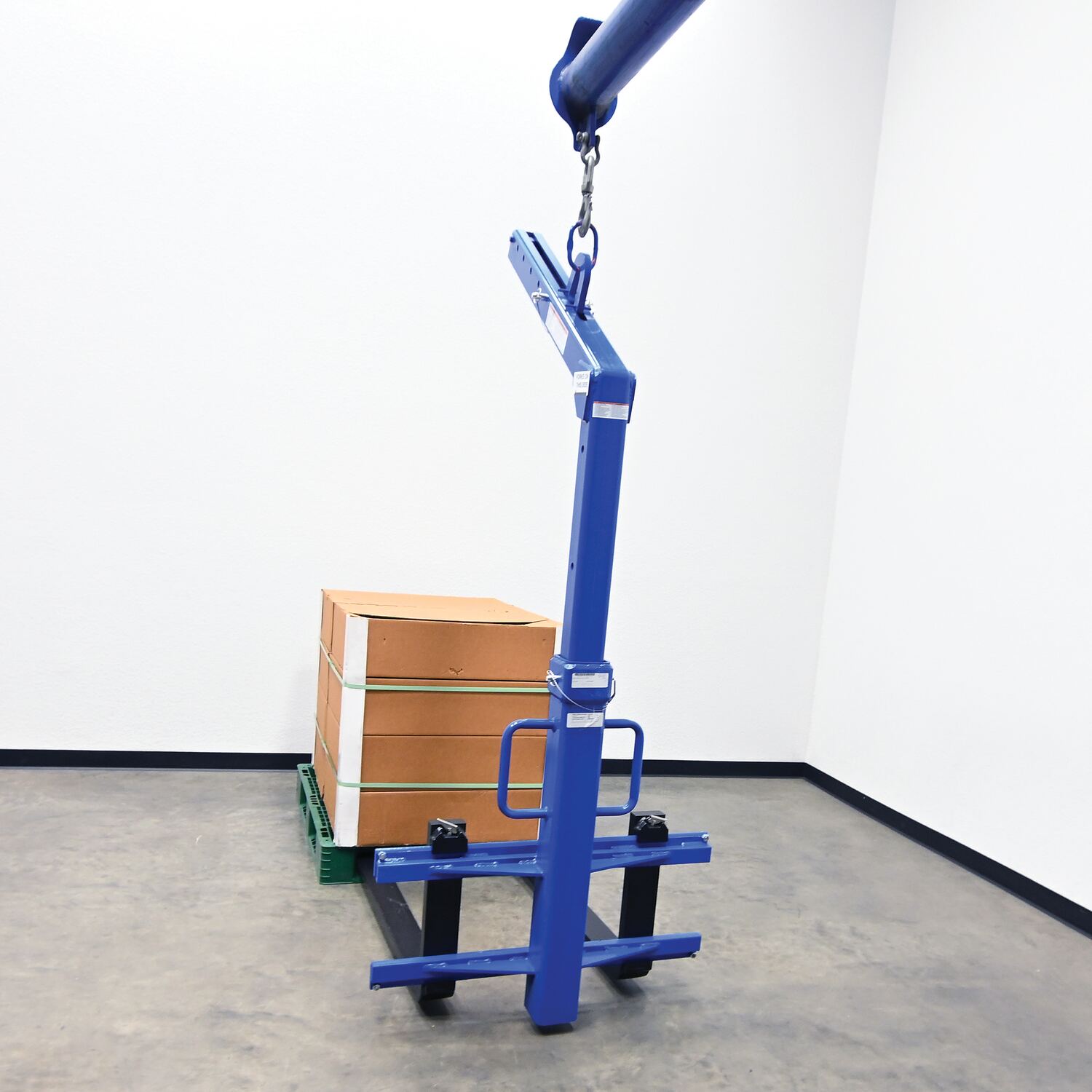

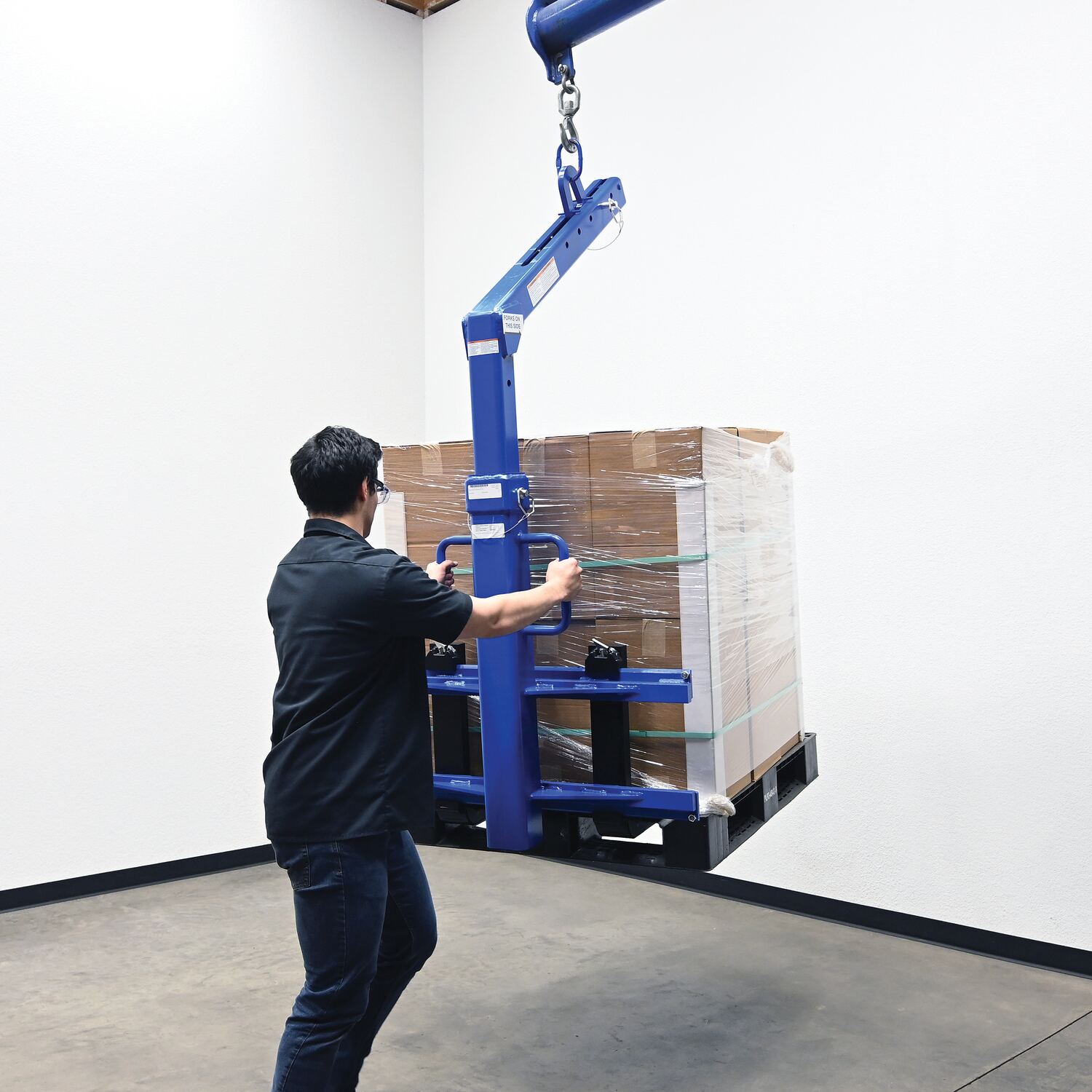

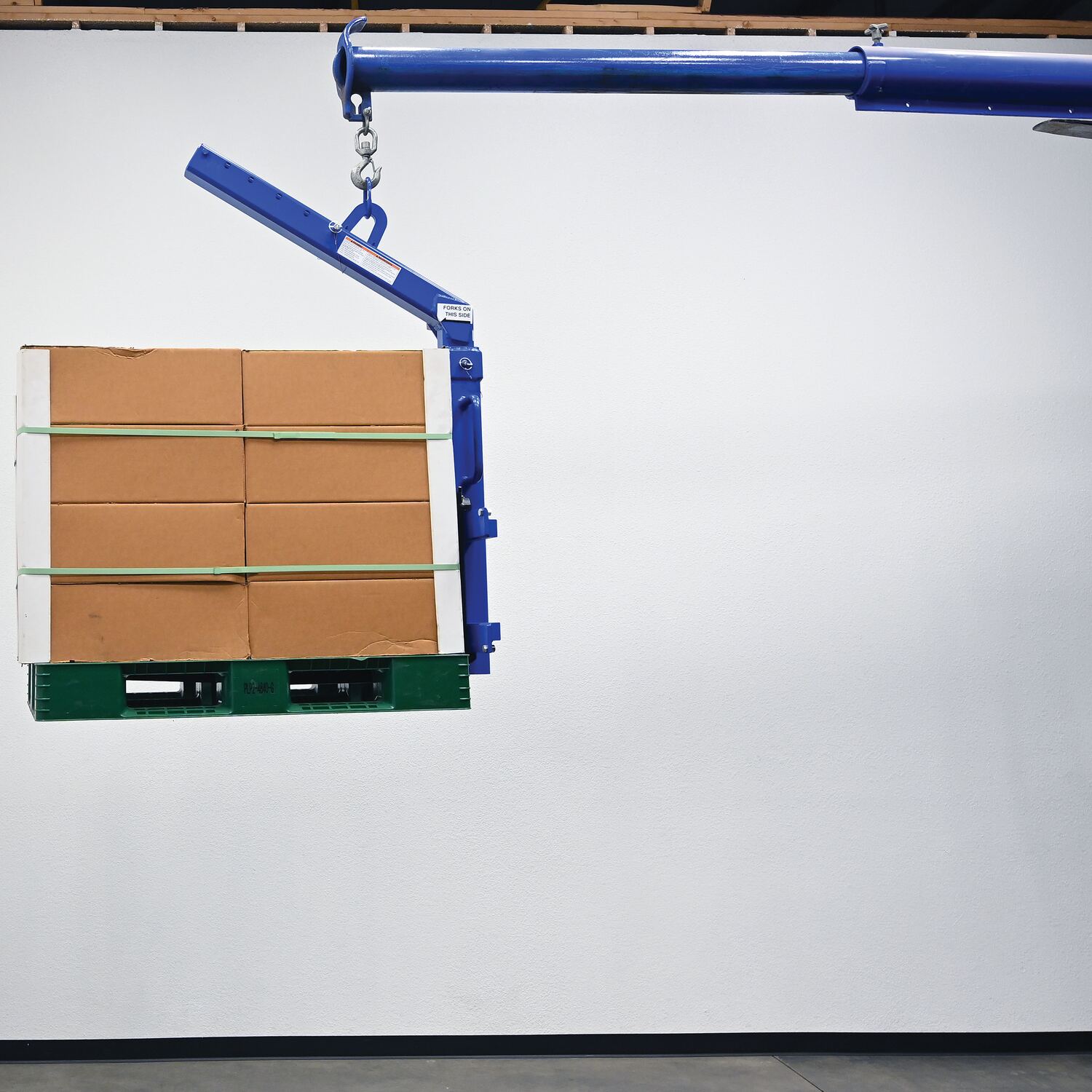

The overhead load lifter is designed for lifting and moving pallets, skids and crates with an overhead lifting crane. Includes an adjustable bail for keeping the load level when moving. Includes three (3) height positions for use with different sized loads.
Product Status
Available
Key Features
  • Lifter is designed to move pallets, skids and crates in industrial applications
  • Use with an overhead lifting crane for optimal results

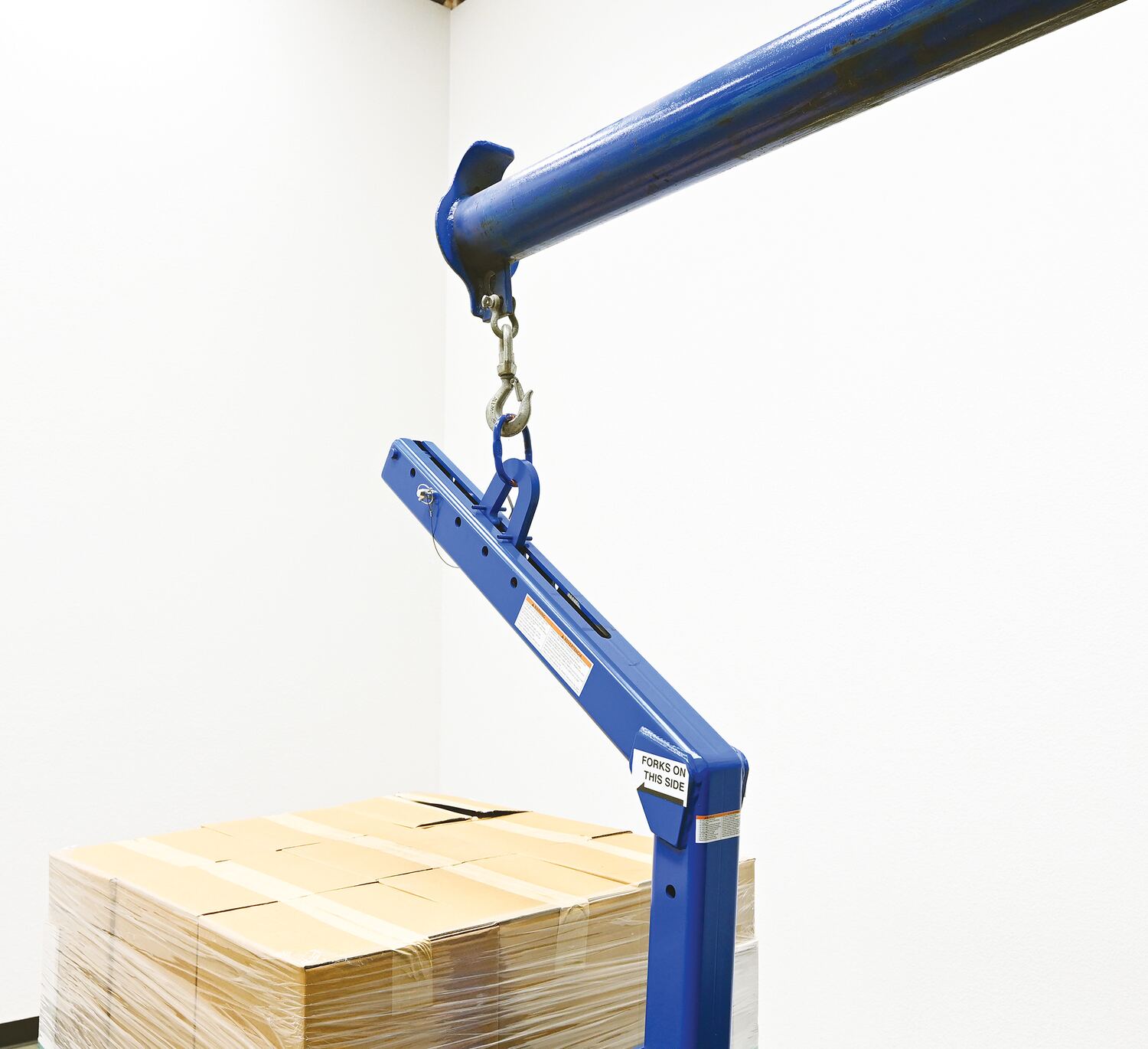

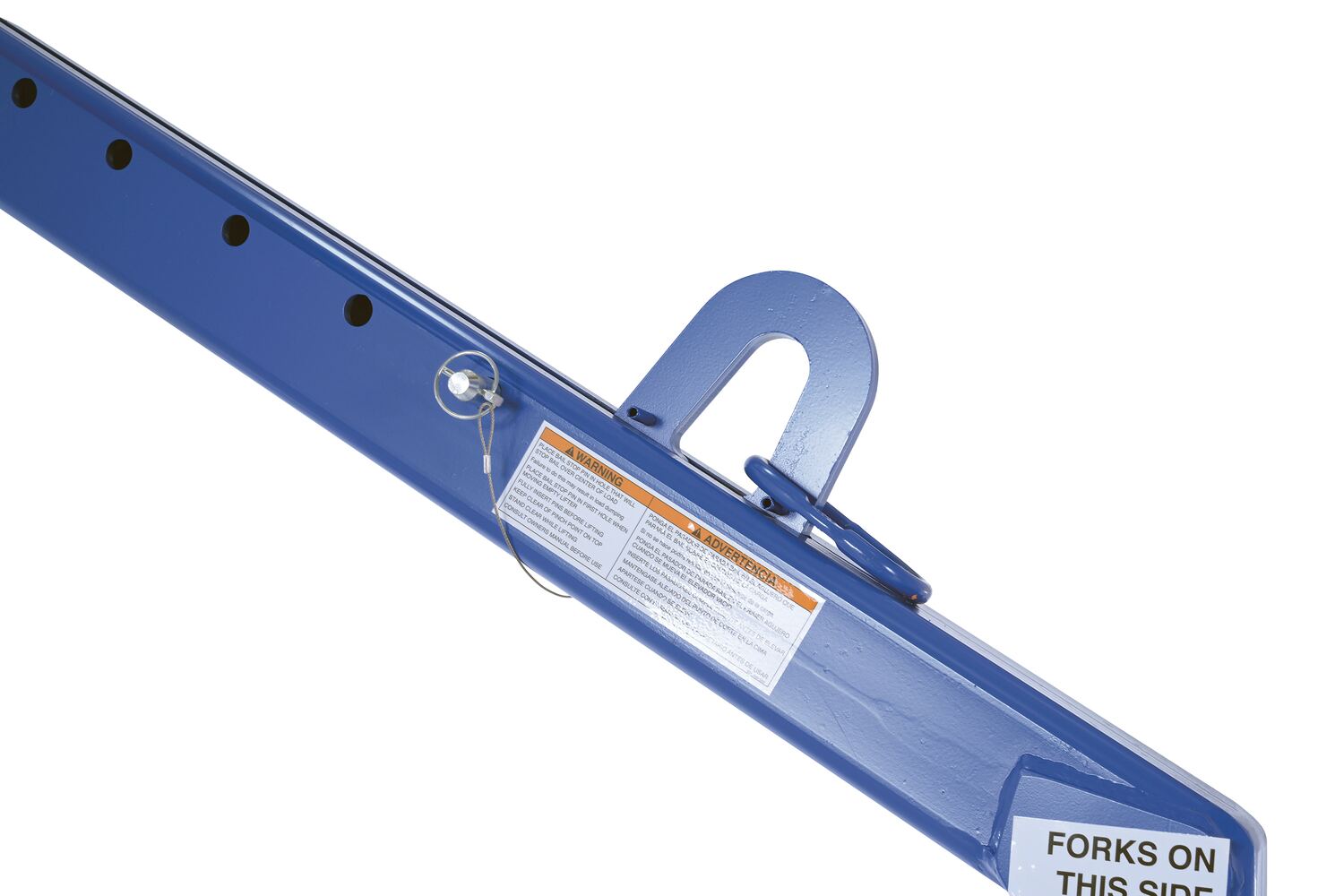

  • Includes an adjustable bail for keeping the load level when moving
  • Includes three height positions for use with different sized loads
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Deluxe Overhead Load Lifter OLA-2 Series   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 495 lbs
Assembled Size 39.75"W x 50"L x 89.3125"H
Total Ship Weight 531 lbs
Package 1 Size 40"W x 49"D x 63"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Retracted Height (in.) 65-13/16
Adjustable Clearance Height (in.) 42-1/2, 54-1/4, 66
Overall Height (in.) 65-13/16, 77-9/16, 89-5/16

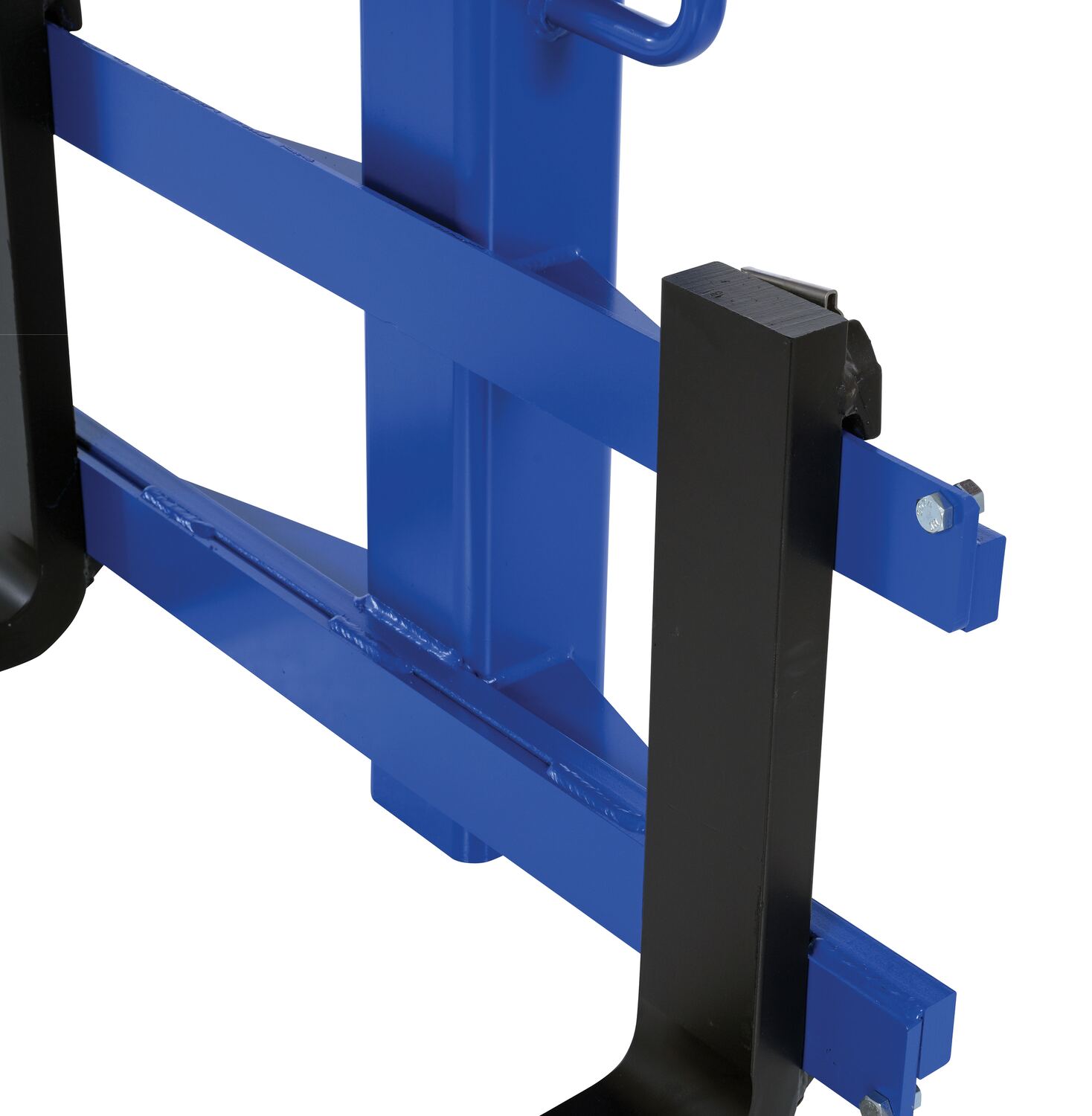

Adjustable Overall Fork Width O.D. (in.) 13 to 38
Fork Size (in.) 1-1/2 x 4
Usable Fork Length (in.) 42
Overall Width (in.) 39-3/4
Overall Length (in.) 50
Extended Product Details

Marketing Specs.

MFG Model # (Series)
OLA-2-42
Product Name
Steel Overhead Load Lifter Adjustable 42 In. Fork 2000 Lb. Capacity Blue
UPC
691215029094
GTIN
00691215029094
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Manual
Assembled Depth (in.)
50
Assembled Width(in.)
39.75
Assembled Height(in.)
89.3125
Assembled Weight(lbs.)
495
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
49
Package Width (in.)
40
Package Height (in.)
63
Package Weight (in.)
531
Subclass
8
Freight Class
175
NMFC Code
Machinery Group
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101600
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: OLA-2-42

OLA-2-42

Steel Overhead Load Lifter Adjustable 42 In. Fork 2000 Lb. Capacity Blue

The overhead load lifter is designed for lifting and moving pallets, skids and crates with an overhead lifting crane. Includes an adjustable bail for keeping the load level when moving. Includes three (3) height positions for use with different sized loads.

  • Lifter is designed to move pallets, skids and crates in industrial applications
  • Use with an overhead lifting crane for optimal results
  • Includes an adjustable bail for keeping the load level when moving
  • Includes three height positions for use with different sized loads

Core Data

Assembled Weight: 495 Assembled Size: 39.75"W x 50"L x 89.3125"H Color: Blue
Total Ship Weight: 531 Package 1 Size: 40"W x 49"D x 63"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Retracted Height (in.): 65-13/16
Adjustable Clearance Height (in.): 42-1/2, 54-1/4, 66
Overall Height (in.): 65-13/16, 77-9/16, 89-5/16
Adjustable Overall Fork Width O.D. (in.): 13 to 38
Fork Size (in.): 1-1/2 x 4
Usable Fork Length (in.): 42
Overall Width (in.): 39-3/4
Overall Length (in.): 50
