Steel Cam Action Pallet Puller 3 In. Jaw Opening 5000 Lb. Pulling Capacity Silver

Single Scissor Pallet Puller for Commercial Dock Access and Waterfront Operations, 5,000 lb. Capacity with 3 in.
The pallet puller is used to pull pallets to rear of trailers for easy fork truck access. Made of rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. The cam closing action provides maximum gripping strength and reduces pinch points. Safety handle enables easier positioning and removal. Grips both metal and wood pallets with biting action. The pallet puller is not designed for lifting.
Product Status
Available QuickShip
Key Features
  • Self-cleaning head is unaffected by particles or debris
  • Heavy-duty capacity can easily pull heavy loads
  • Solid steel construction provides rugged long lasting use
  • Puller design pulls pallet across a smooth truck floor with ease
Quick Actions

Product Resources

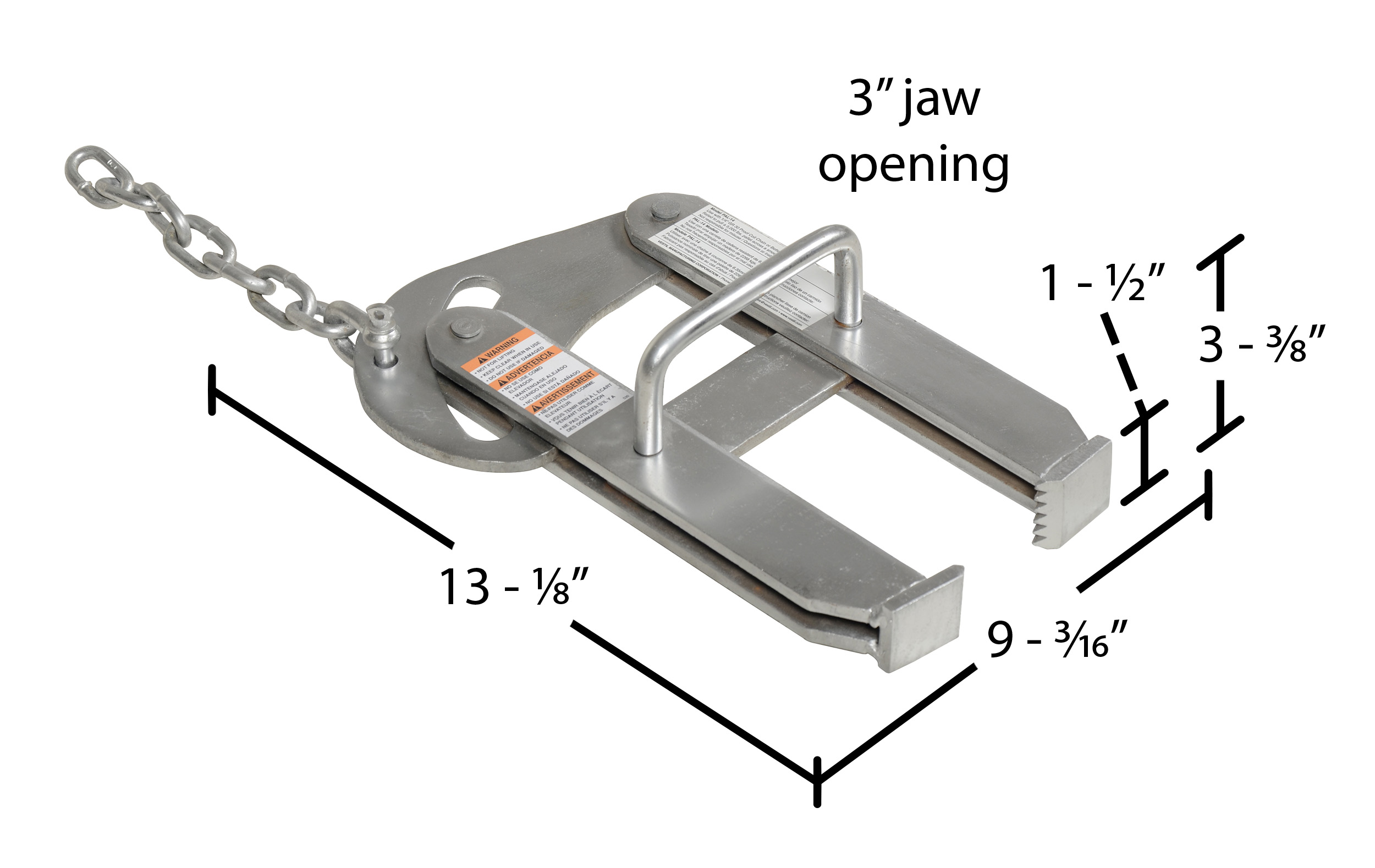

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   PAL Series Pallet Puller Owners Manual   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 14 lbs
Assembled Size 9"W x 3.5"L x 20.5"H
Total Ship Weight 17 lbs
Package 1 Size 11"W x 15"D x 4"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Pulling Capacity (lb.) 5000
Teeth Pad Height (in.) 1-1/2
Minimum Stringer Height (in.) 1-3/7 +
Jaw Opening (in.) 3
Closed Width (in.) 9-1/4
Closed Height (in.) 23-3/4
Chain Length (in.) 9
Action Cam
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PAL-14
Product Name
Steel Cam Action Pallet Puller 3 In. Jaw Opening 5000 Lb. Pulling Capacity Silver
UPC
691215029247
GTIN
00691215029247
Taxonomy 1
Material Handling
Taxonomy 2
Pallets & Accessories
Taxonomy 3
Pallet Pullers
Assembled Depth (in.)
3.5
Assembled Width(in.)
9
Assembled Height(in.)
20.5
Assembled Weight(lbs.)
14
Color/Finish
Silver
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
15
Package Width (in.)
11
Package Height (in.)
4
Package Weight (in.)
17
Subclass
11
Freight Class
60
NMFC Code
Tools NOI hand other than power
NMFC Number
186620
LTL Freight
Parcel
UNSPSC
27111712
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PAL-14

PAL-14

Steel Cam Action Pallet Puller 3 In. Jaw Opening 5000 Lb. Pulling Capacity Silver

The pallet puller is used to pull pallets to rear of trailers for easy fork truck access. Made of rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. The cam closing action provides maximum gripping strength and reduces pinch points. Safety handle enables easier positioning and removal. Grips both metal and wood pallets with biting action. The pallet puller is not designed for lifting.

  • Self-cleaning head is unaffected by particles or debris
  • Heavy-duty capacity can easily pull heavy loads
  • Solid steel construction provides rugged long lasting use
  • Puller design pulls pallet across a smooth truck floor with ease

Core Data

Assembled Weight: 14 Assembled Size: 9"W x 3.5"L x 20.5"H Color: Silver
Total Ship Weight: 17 Package 1 Size: 11"W x 15"D x 4"H Freight: Parcel

Specifications

Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 1-1/2
Minimum Stringer Height (in.): 1-3/7 +
Jaw Opening (in.): 3
Closed Width (in.): 9-1/4
Closed Height (in.): 23-3/4
Chain Length (in.): 9
Action: Cam
