Steel Low Profile Double Scissor Pallet Puller 2 In. x 16-3/4 In. x 13-3/4 In. 5000 Lb. Capacity Yellow

Low-Profile Heavy-duty Pallet Puller for Commercial Dock Access and Waterfront Operations, 5,000 lb. Capacity with 2 in. x 16-3/4 in. x 13-3/4 in.
The pallet puller is used to pull pallets to rear of trailers for easy fork truck access. Made of rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. The one (1) piece curved heads have integral spurs for gripping pallet stringers. The pallet puller is not designed for lifting.
Product Status
Available QuickShip
Key Features
  • Self-cleaning head is unaffected by particles or debris
  • Heavy-duty capacity can easily pull heavy loads
  • Solid steel construction provides rugged long lasting use
  • Puller design pulls pallet across a smooth truck floor with ease
Quick Actions

Product Resources

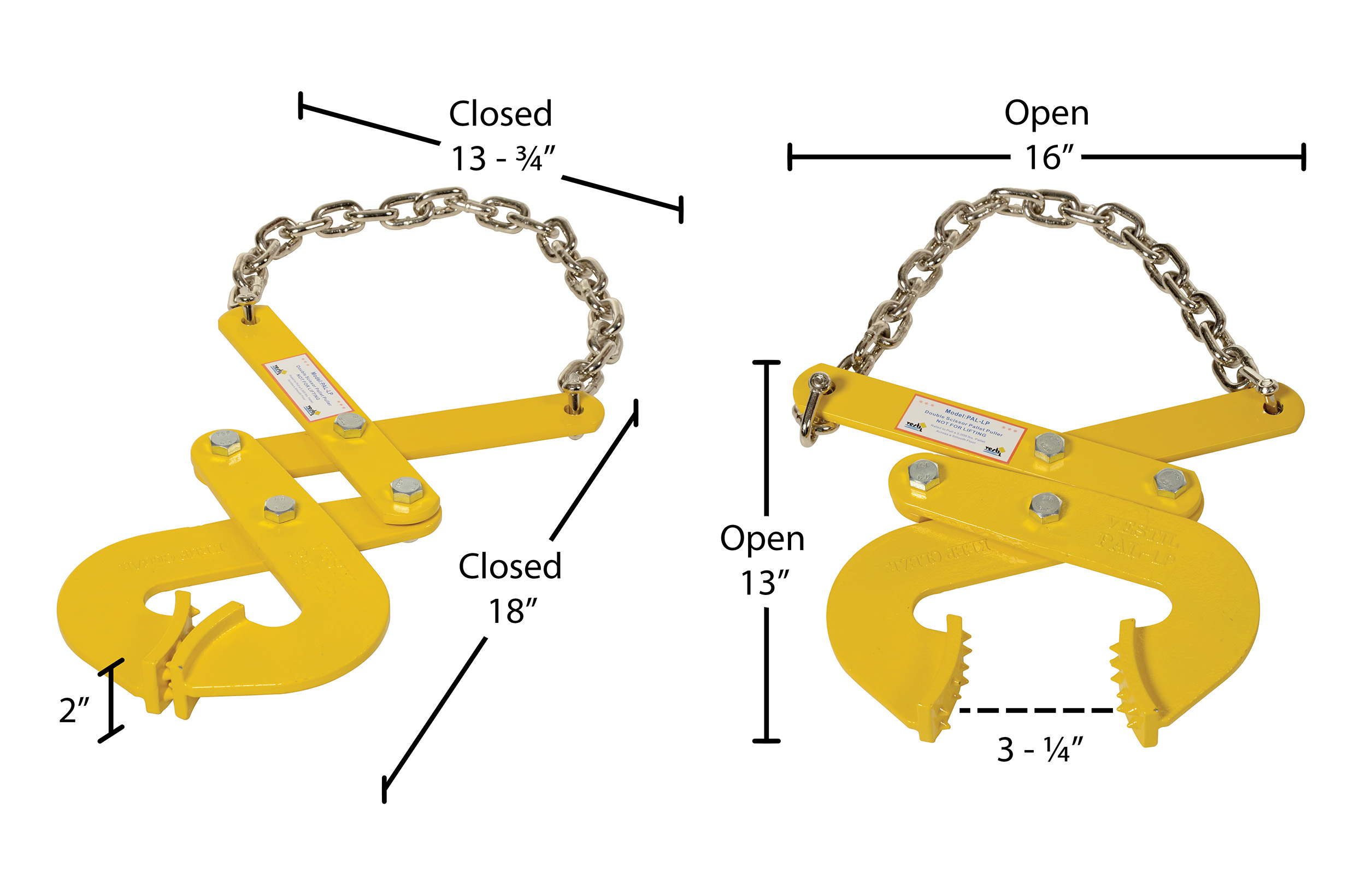

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   PAL Series Pallet Puller Owners Manual   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 22 lbs
Assembled Size 16.75"W x 2"L x 13.75"H
Total Ship Weight 24 lbs
Package 1 Size 15"W x 17"D x 4"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Pulling Capacity (lb.) 5000
Jaw Height (in.) 2
Teeth Pad Length (in.) 3-1/2
Jaw Opening (in.) 3-1/4
Closed Width (in.) 16-3/4
Closed Height (in.) 13-3/4
Overall Chain Length (in.) 30
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PAL-LP
Product Name
Steel Low Profile Double Scissor Pallet Puller 2 In. x 16-3/4 In. x 13-3/4 In. 5000 Lb. Capacity Yellow
UPC
691215029308
GTIN
00691215029308
Taxonomy 1
Material Handling
Taxonomy 2
Pallets & Accessories
Taxonomy 3
Pallet Pullers
Assembled Depth (in.)
2
Assembled Width(in.)
16.75
Assembled Height(in.)
13.75
Assembled Weight(lbs.)
22
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
17
Package Width (in.)
15
Package Height (in.)
4
Package Weight (in.)
24
Subclass
11
Freight Class
60
NMFC Code
Tools NOI hand other than power
NMFC Number
186620
LTL Freight
Parcel
UNSPSC
27111712
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PAL-LP

PAL-LP

Steel Low Profile Double Scissor Pallet Puller 2 In. x 16-3/4 In. x 13-3/4 In. 5000 Lb. Capacity Yellow

The pallet puller is used to pull pallets to rear of trailers for easy fork truck access. Made of rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. The one (1) piece curved heads have integral spurs for gripping pallet stringers. The pallet puller is not designed for lifting.

  • Self-cleaning head is unaffected by particles or debris
  • Heavy-duty capacity can easily pull heavy loads
  • Solid steel construction provides rugged long lasting use
  • Puller design pulls pallet across a smooth truck floor with ease

Core Data

Assembled Weight: 22 Assembled Size: 16.75"W x 2"L x 13.75"H Color: Yellow
Total Ship Weight: 24 Package 1 Size: 15"W x 17"D x 4"H Freight: Parcel

Specifications

Uniform Pulling Capacity (lb.): 5000
Jaw Height (in.): 2
Teeth Pad Length (in.): 3-1/2
Jaw Opening (in.): 3-1/4
Closed Width (in.): 16-3/4
Closed Height (in.): 13-3/4
Overall Chain Length (in.): 30
