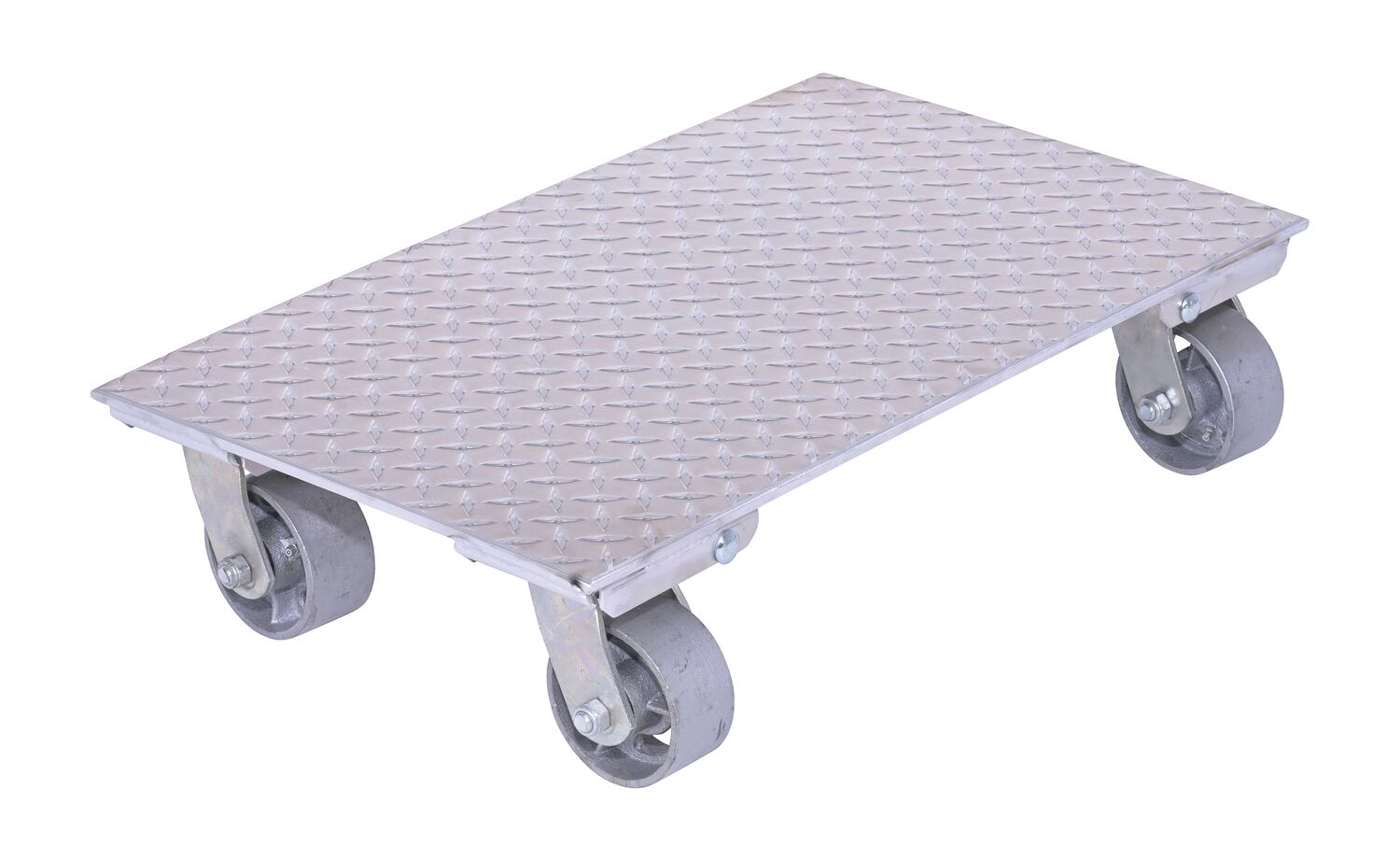

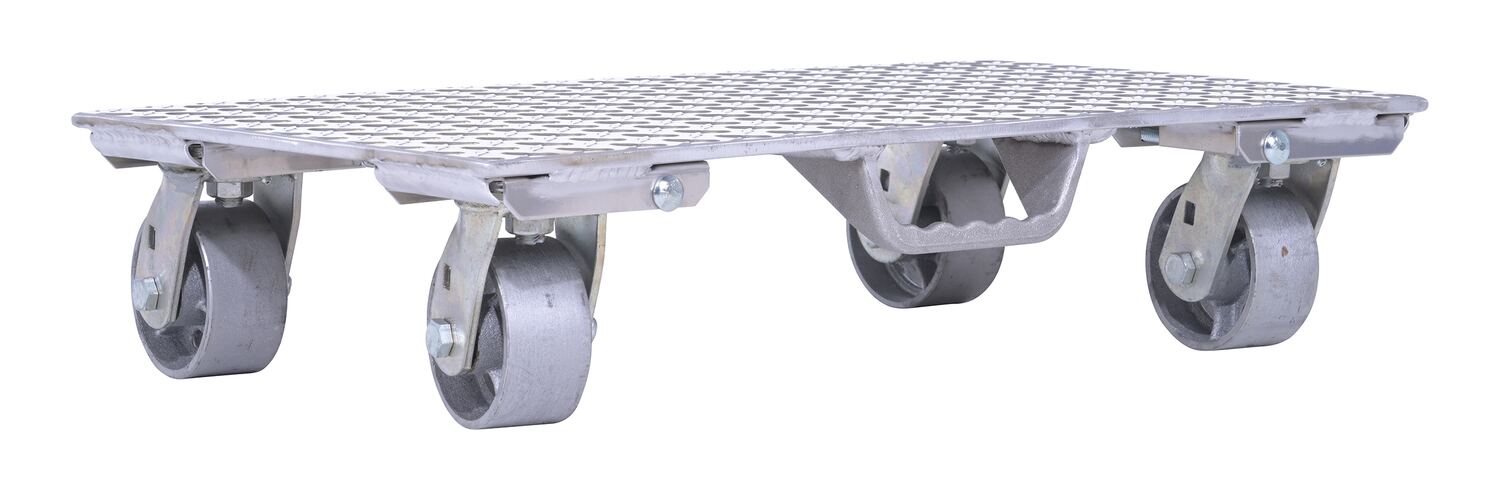

Aluminum Plate Dolly with Cast Steel Wheels and Handle 27 In. x 16 In. x 6 In. 2800 Lb. Capacity Silver

Aluminum Pallet Dolly for Moving Loads Through Warehouses and Production Areas, 2,800 lb. Capacity with 27 in. x 16 in. x 6 in.
The Aluminum plate dolly is manufactured from heavy-duty raised diamond tread plate for strength and extra grip.
Product Status
Available
Key Features
  • Manufactured from aluminum for lightweight heavy-duty applications

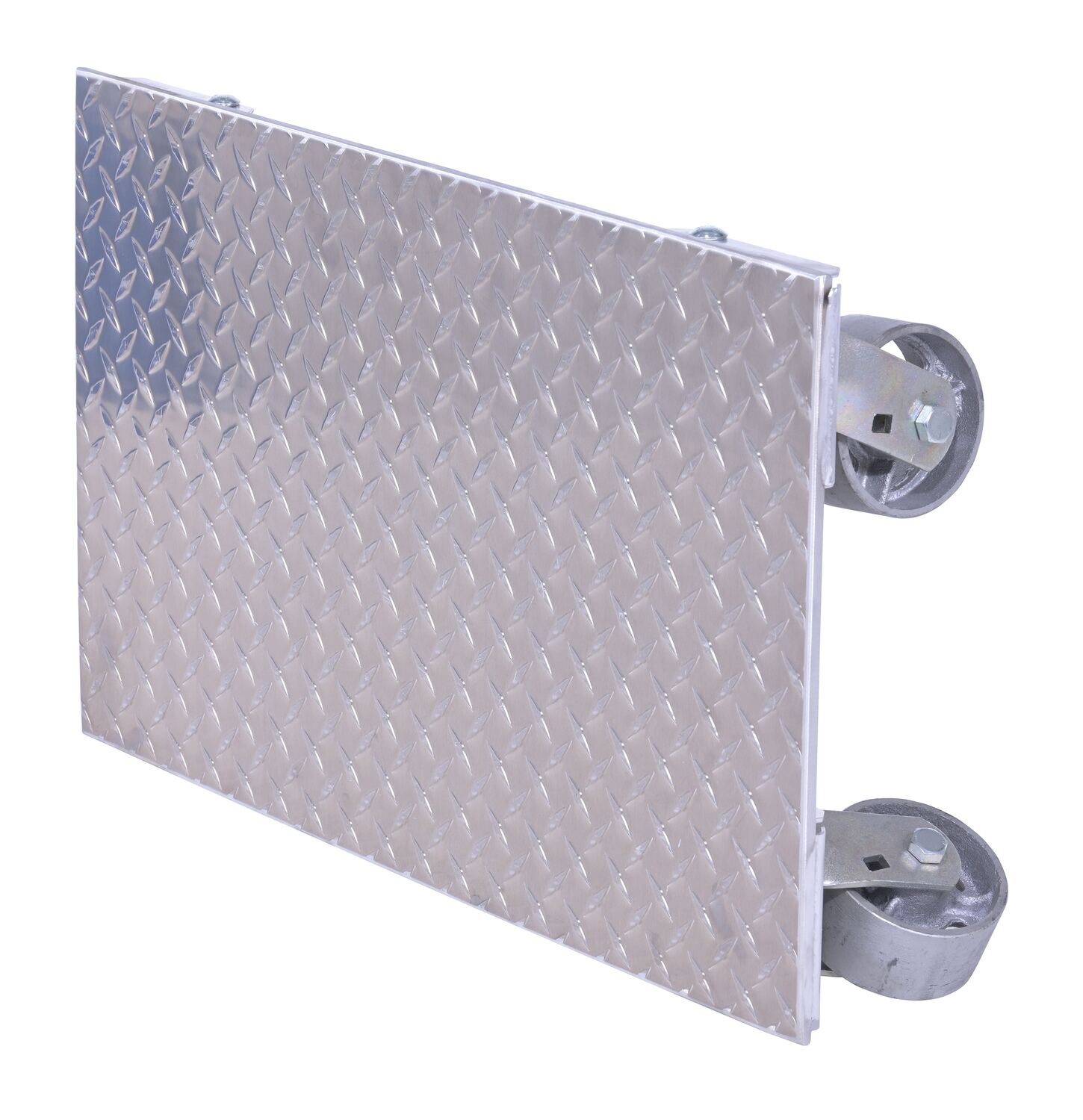

  • Raised diamond tread plate for strength and extra grip

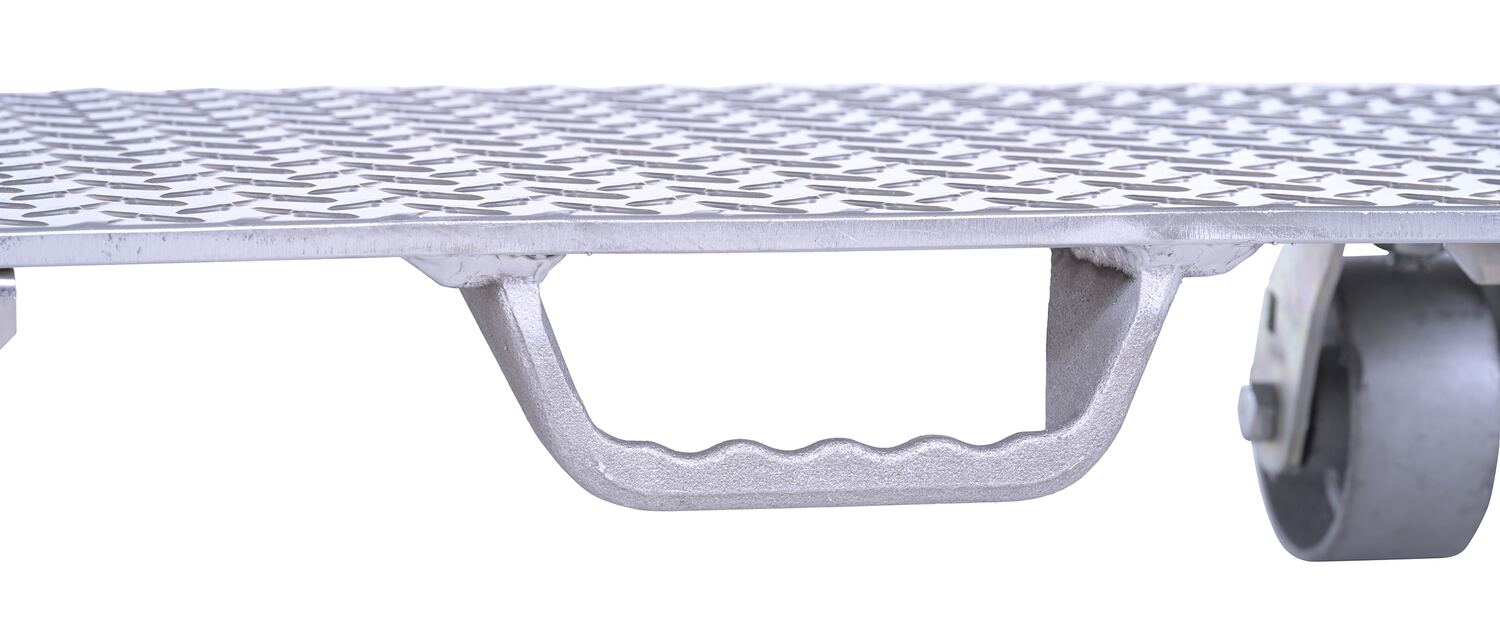

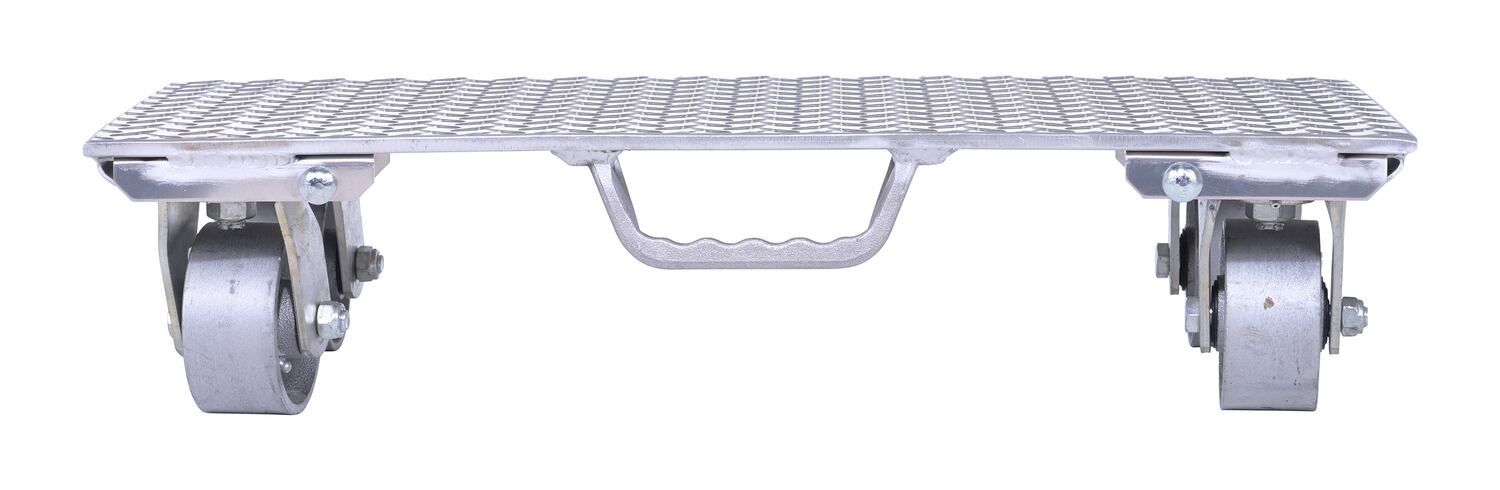

  • Carrying handle on one end for simple transportation

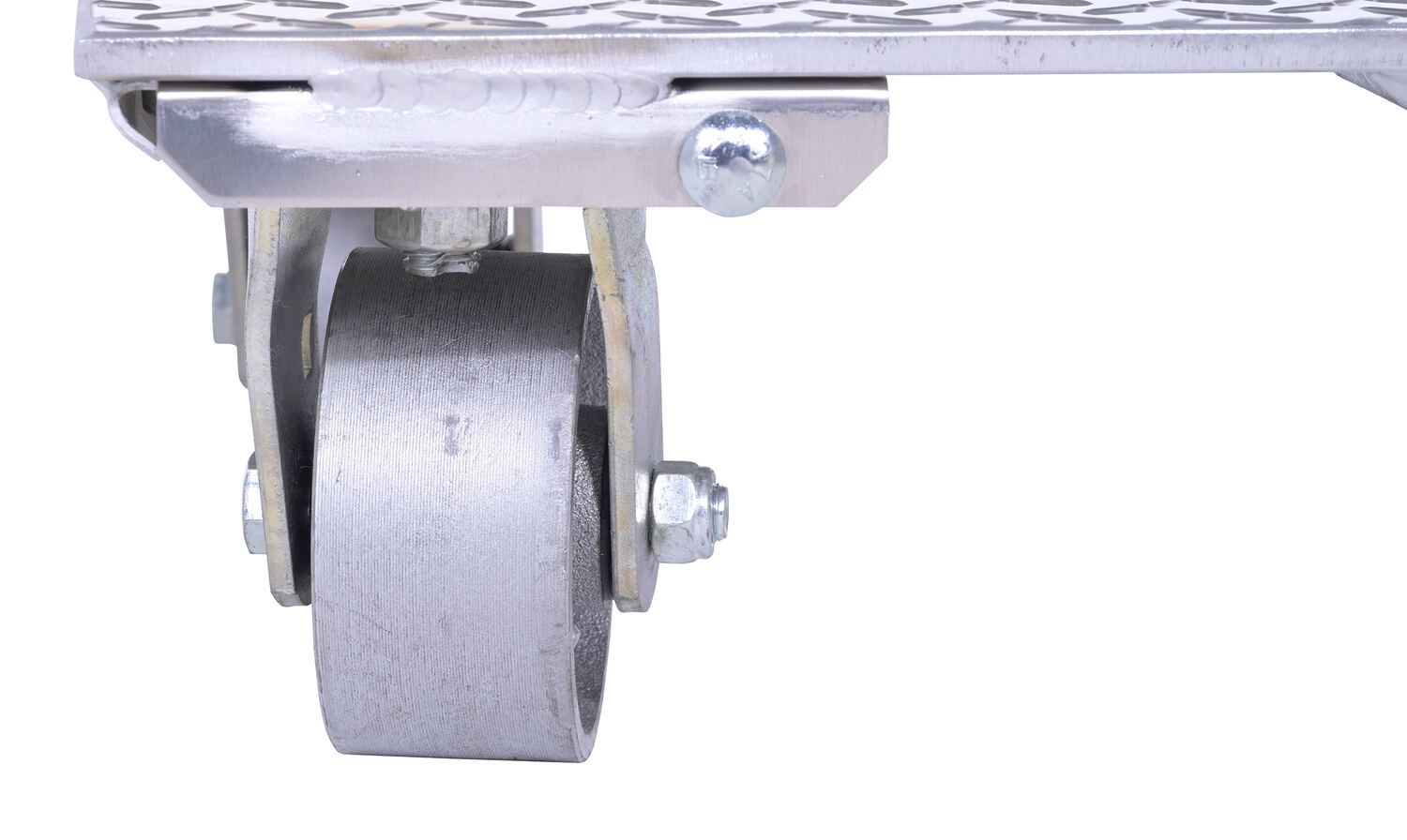

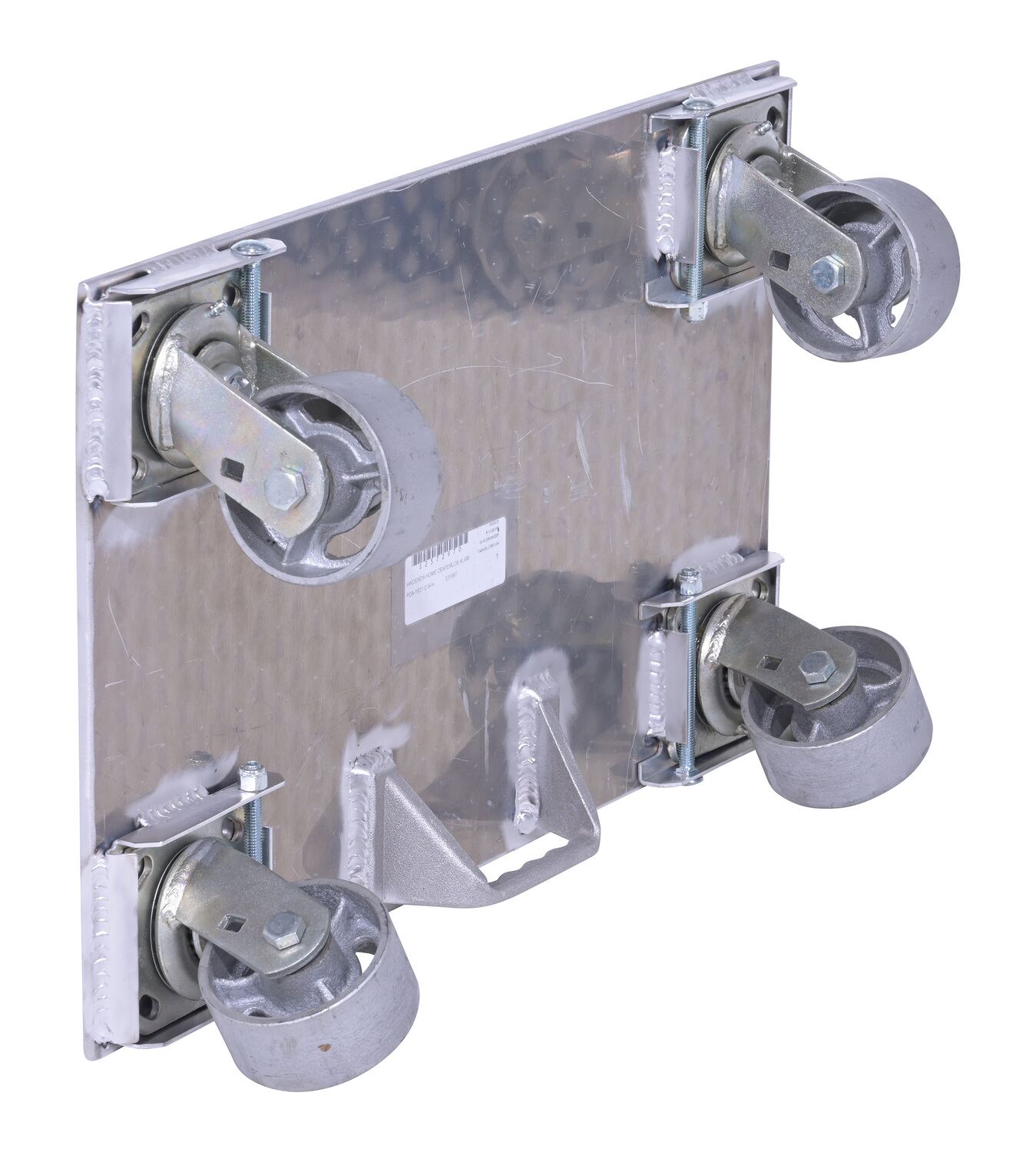

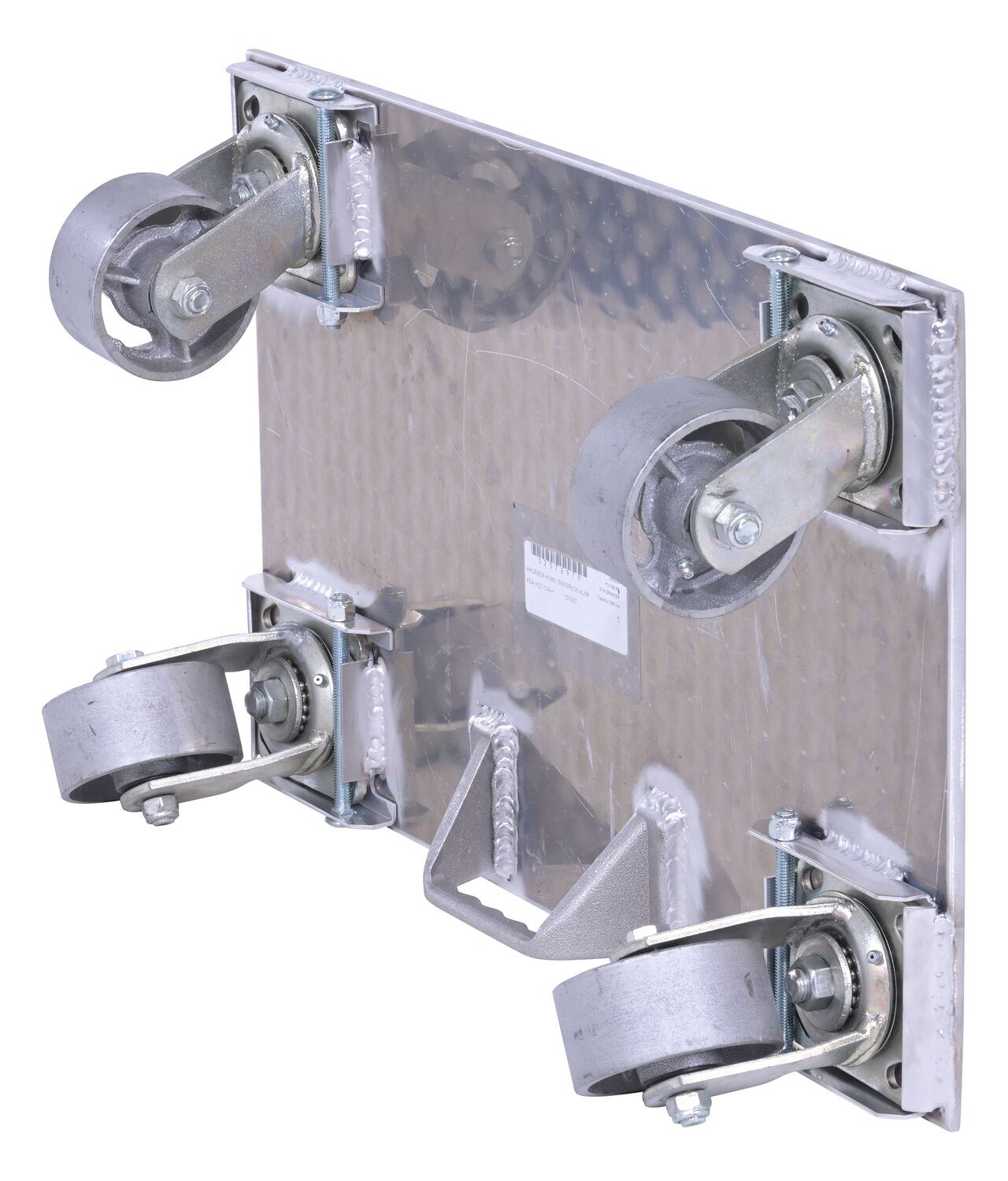

  • Includes four cast steel swivel casters for heavy-duty maneuverability
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 47 lbs
Assembled Size 16"W x 27"L x 6"H
Total Ship Weight 82 lbs
Package 1 Size 16"W x 27"D x 3"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,800
Caster Material Cast Steel
Caster Type Swivel
Caster Quantity/Diameter/Width (in.) (4) 4 x 2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PDA-1627-C-S-H
Product Name
Aluminum Plate Dolly with Cast Steel Wheels and Handle 27 In. x 16 In. x 6 In. 2800 Lb. Capacity Silver
UPC
691215052771
GTIN
00691215052771
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Cargo / Moving Dollies
Assembled Depth (in.)
27
Assembled Width(in.)
16
Assembled Height(in.)
6
Assembled Weight(lbs.)
47
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
27
Package Width (in.)
16
Package Height (in.)
3
Package Weight (in.)
56
Freight Class
100
NMFC Code
Dollies,pallet,without standing ends,sides,stakes
NMFC Number
133770
Package 2 Depth (in.)
12
Package 2 Width (in.)
11
Package 2 Height (in.)
8
Package 2 Weight (lbs.)
26
Package 2 Freight Class
65
Package2 NMFC Number
41725
LTL Freight
LTL Palletized
UNSPSC
24101503
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PDA-1627-C-S-H

PDA-1627-C-S-H

Aluminum Plate Dolly with Cast Steel Wheels and Handle 27 In. x 16 In. x 6 In. 2800 Lb. Capacity Silver

The Aluminum plate dolly is manufactured from heavy-duty raised diamond tread plate for strength and extra grip.

  • Manufactured from aluminum for lightweight heavy-duty applications
  • Raised diamond tread plate for strength and extra grip
  • Carrying handle on one end for simple transportation
  • Includes four cast steel swivel casters for heavy-duty maneuverability

Core Data

Assembled Weight: 47 Assembled Size: 16"W x 27"L x 6"H Color: Silver
Total Ship Weight: 82 Package 1 Size: 16"W x 27"D x 3"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,800
Caster Material: Cast Steel
Caster Type: Swivel
Caster Quantity/Diameter/Width (in.): (4) 4 x 2
