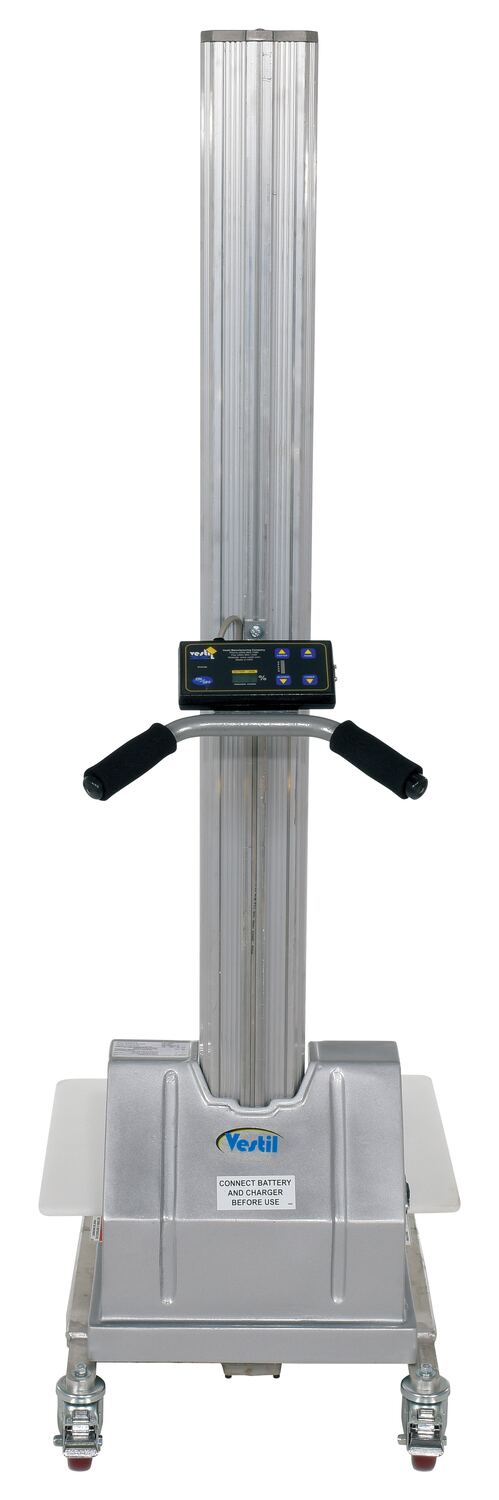

Aluminum Quick Lift DC Powered Lift 57 In. Raised Height 175 Lb. Capacity

Aluminum DC-Powered Electric Lift Truck for Commercial and Industrial Portable Load Lifters Use, 175 lb. Capacity with 57 in. Raised Height
The DC powered quick lift is a quiet, lightweight unit used for transport and positioning loads quickly with just the push of the button. The unit is battery operated with a high density polyethylene platform. It features a low profile design for maneuvering in narrow aisles and confined spaces. The poly casters consist of two swivel and two swivel-locking that are standard. The DC system runs with an AC on-board charger.
Product Status
Out of Stock QuickShip
Key Features
  • DC powered battery is fast and quite
  • White HDPE platform offers durability and aesthetics
  • Chain driven platform operation provides precise positioning

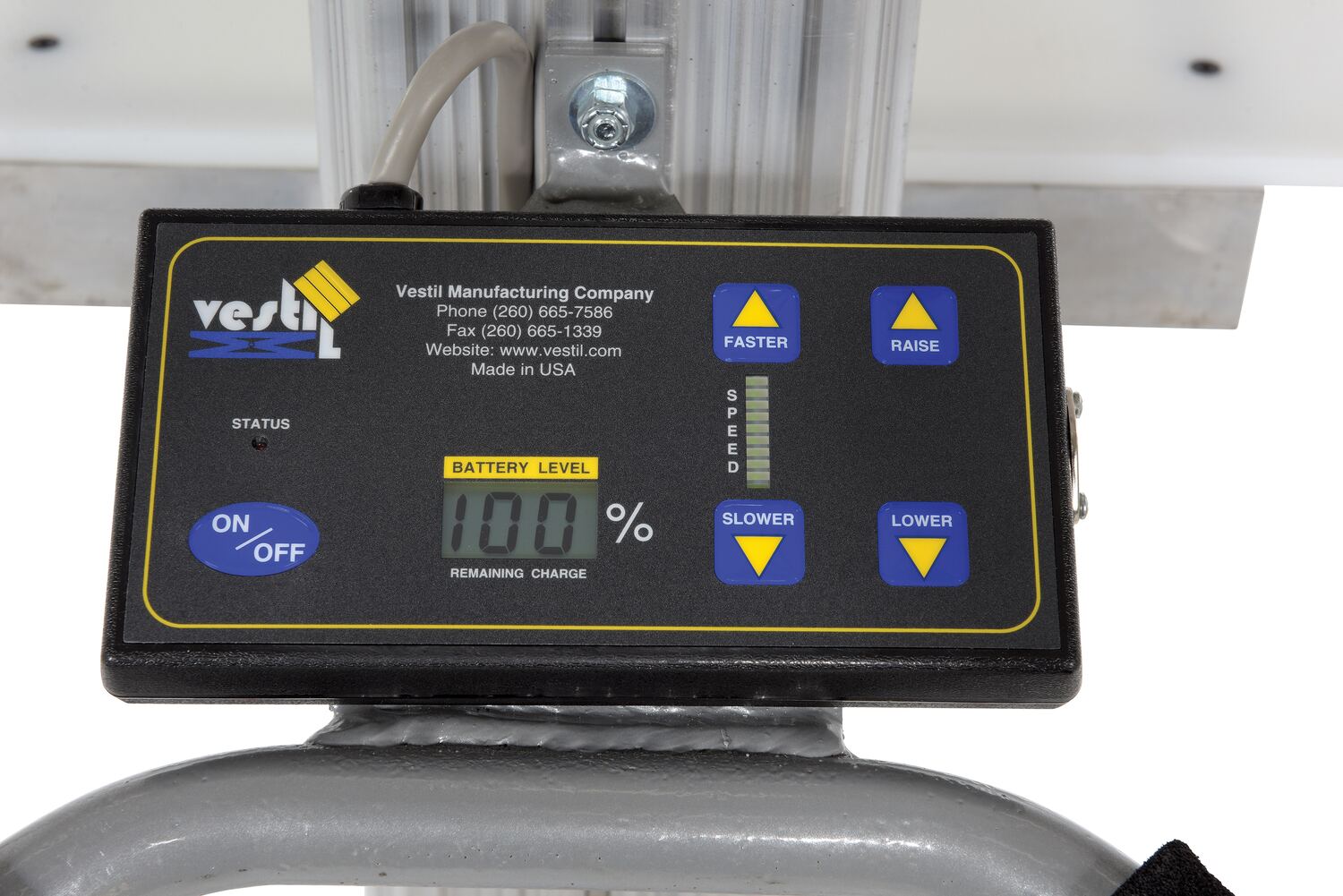

  • Touch-pad control allows for easy operation
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Steel & Aluminum Quick Lifts ALuminum Models PEL-88-A & PEL-100-A - Steel Models PEL-88, PEL-100, & PEL-400   Label Page PDF   Hydraulic Oil SDS   Valve-Regulated Lead Acid Battery Series SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 148 lbs
Assembled Size 23.5"W x 36.125"L x 70.1875"H
Total Ship Weight 205 lbs
Package 1 Size 40"W x 48"D x 78"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 175
Lowered Height (in.) 5-1/2
Raised Height (in.) 57
Caster Diameter (in.) 3
Caster Type (2) Swivel (2) Swivel with Brake
Caster Material Poly-on-Poly
DC Voltage 24
AC Charger Voltage 115
Horizontal Load Center (in.) 9
Platform Width (in.) 23-1/2
Platform Length (in.) 18-1/2
Platform Thickness (in.) 1/2
Lift Speed - Loaded 17" / sec
Lift Speed - Unloaded 1" / sec

Battery Information

Battery Depth 6
Battery Width 8
Battery Height 4
Battery Weight 20
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PEL-88A-D3
Product Name
Aluminum Quick Lift DC Powered Lift 57 In. Raised Height 175 Lb. Capacity
UPC
691215029636
GTIN
00691215029636
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Electric
Assembled Depth (in.)
36.125
Assembled Width(in.)
23.5
Assembled Height(in.)
70.1875
Assembled Weight(lbs.)
148
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
78
Package Weight (in.)
205
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101600
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
20
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PEL-88A-D3

PEL-88A-D3

Aluminum Quick Lift DC Powered Lift 57 In. Raised Height 175 Lb. Capacity

The DC powered quick lift is a quiet, lightweight unit used for transport and positioning loads quickly with just the push of the button. The unit is battery operated with a high density polyethylene platform. It features a low profile design for maneuvering in narrow aisles and confined spaces. The poly casters consist of two swivel and two swivel-locking that are standard. The DC system runs with an AC on-board charger.

  • DC powered battery is fast and quite
  • White HDPE platform offers durability and aesthetics
  • Chain driven platform operation provides precise positioning
  • Touch-pad control allows for easy operation

Core Data

Assembled Weight: 148 Assembled Size: 23.5"W x 36.125"L x 70.1875"H Color: Silver
Total Ship Weight: 205 Package 1 Size: 40"W x 48"D x 78"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 175
Lowered Height (in.): 5-1/2
Raised Height (in.): 57
Caster Diameter (in.): 3
Caster Type: (2) Swivel (2) Swivel with Brake
Caster Material: Poly-on-Poly
DC Voltage: 24
AC Charger Voltage: 115
Horizontal Load Center (in.): 9
Platform Width (in.): 23-1/2
Platform Length (in.): 18-1/2
Platform Thickness (in.): 1/2
Lift Speed - Loaded: 17" / sec
Lift Speed - Unloaded: 1" / sec
