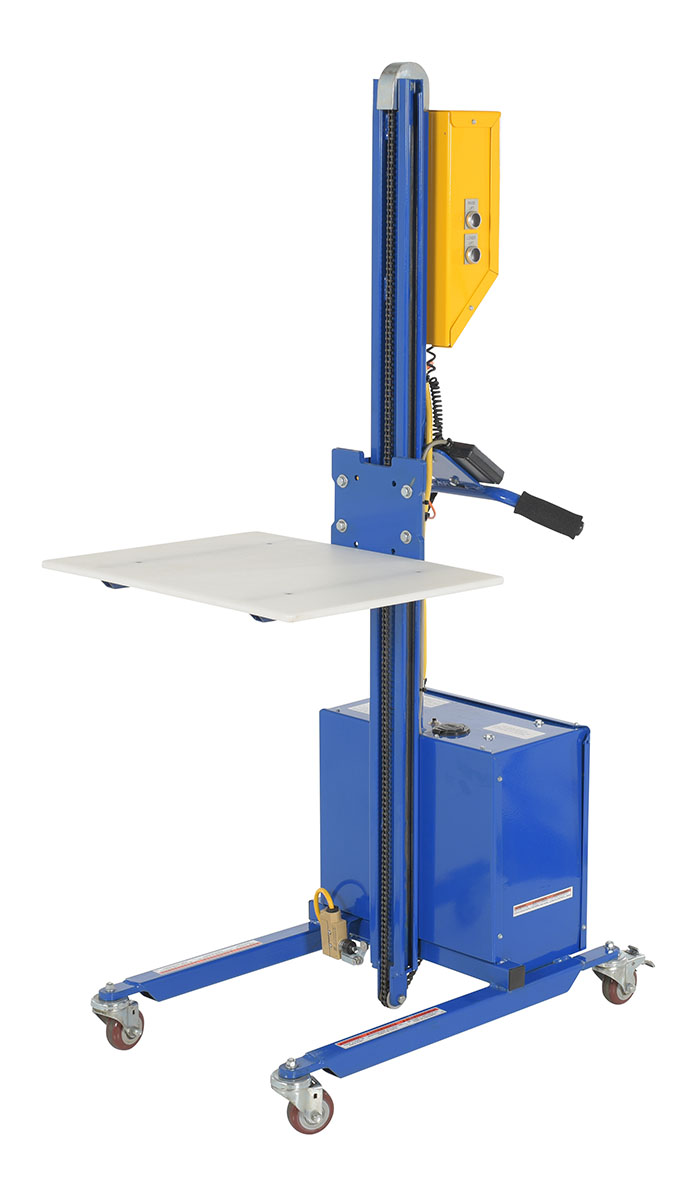

Steel DC Powered Quick Lift with Auto Height Indexer 175lb Capacity Blue

DC-Powered Power Lift Truck for Commercial and Industrial Portable Load Lifters Use, 175 lb. Capacity

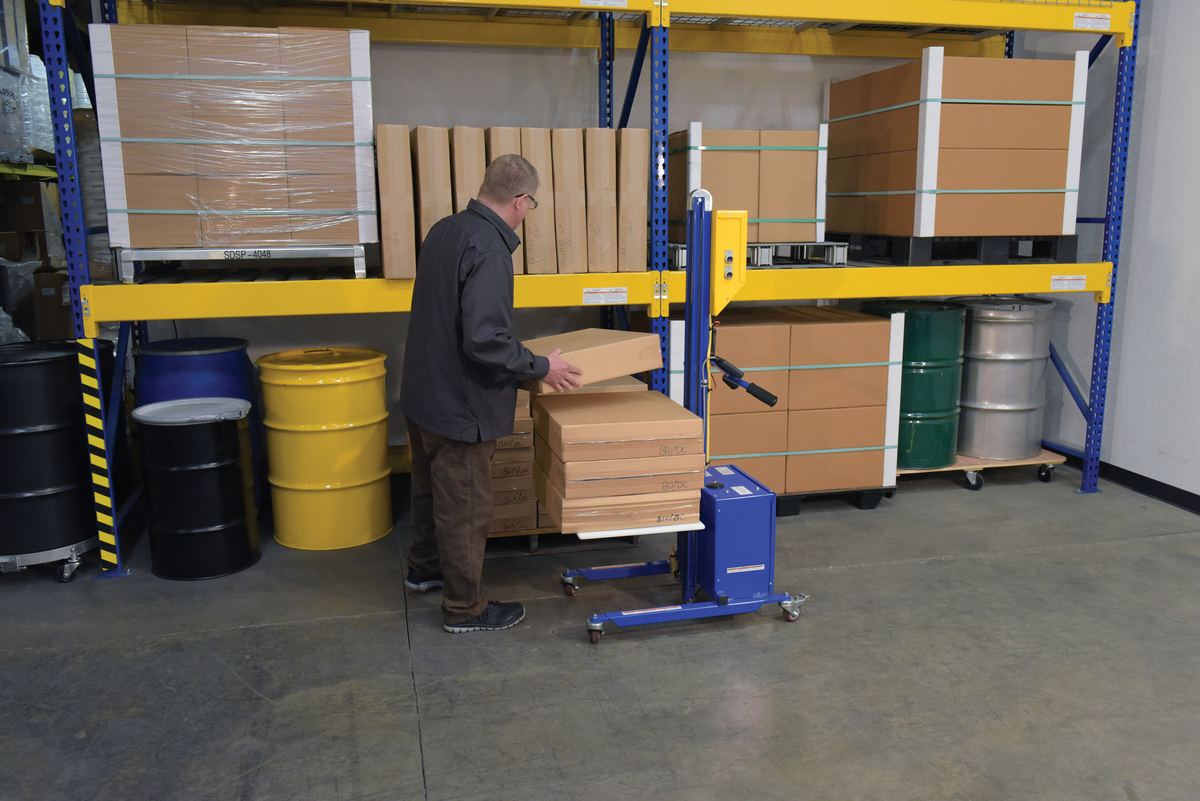

Powered quick lift units transport and position loads quickly and efficiently. Featuring a low profile design with dual push handles for maneuvering in narrow aisles and confined spaces. The auto height indexer lets the platform be unadjusted to the most suitable height. When unloading many boxes, as one box is taken off of the platform, the height of the platform automatically re-adjusts back to the set proper height. This minimizes bending and keeps the user in a more ergonomic position throughout the process. Unit is powder coated for baked in added toughness.
Product Status
Temporarily Unavailable - Please Contact Sales (7) Non-Returnable
Key Features
  • Durable platform secures items large and small
  • Automatic platform height adjustment

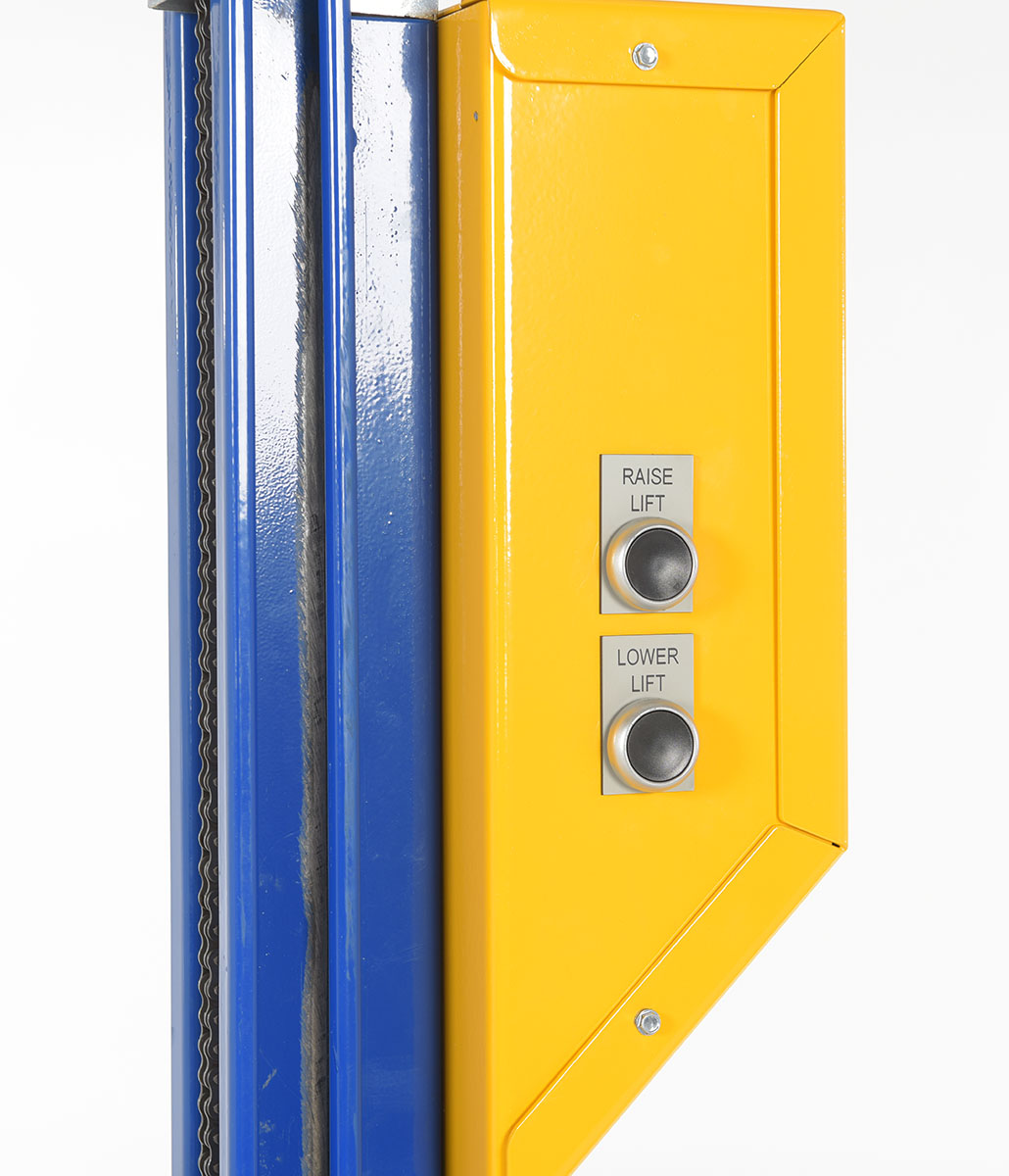

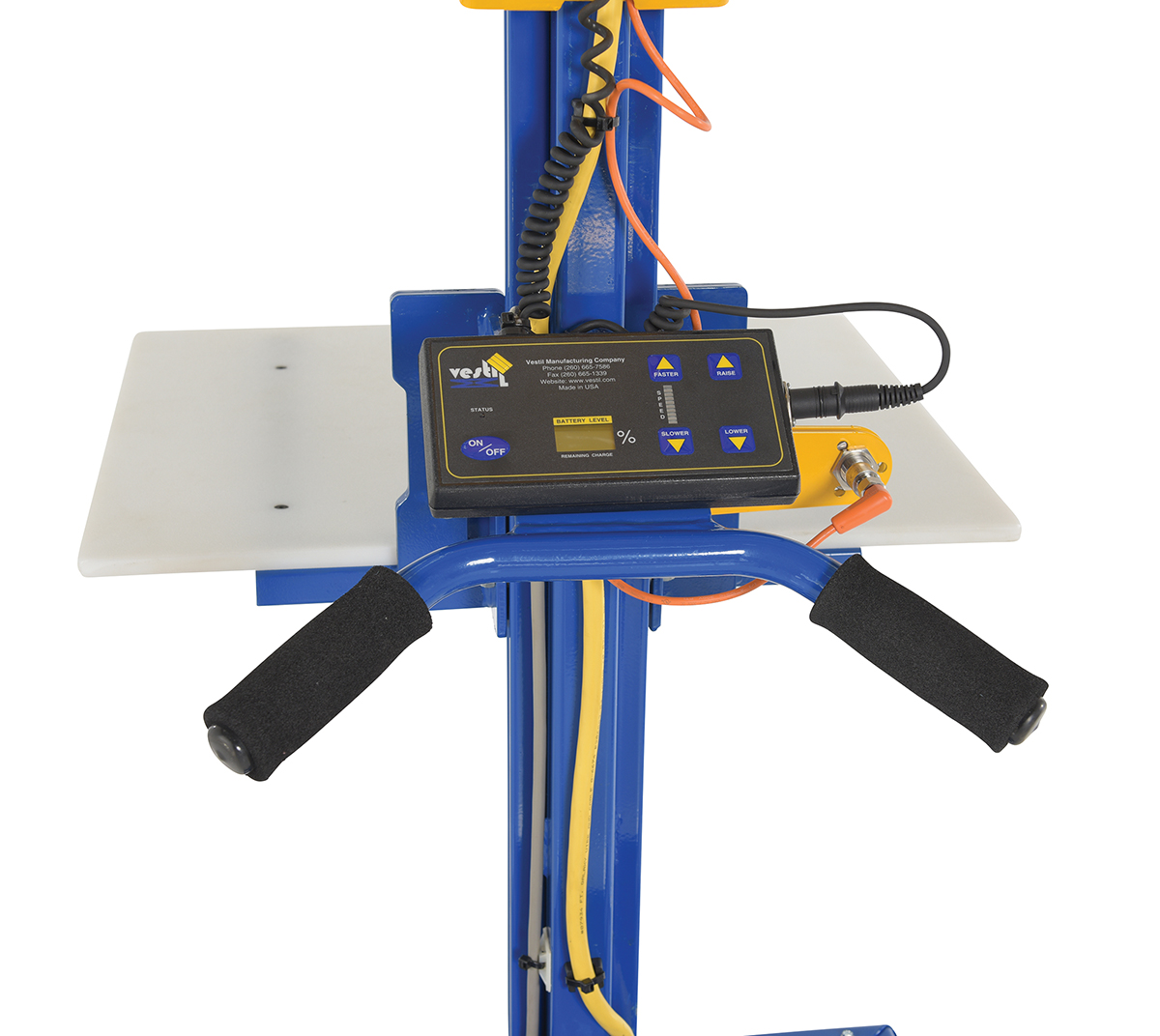

  • Touch-pad control allows for easy operation
  • DC powered battery is fast and quite
Limited Availability Product This model is still in the final Engineering Phase. Contact Vestil Sales for current availability, production status, and ordering details.
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Steel & Aluminum Quick Lifts ALuminum Models PEL-88-A & PEL-100-A - Steel Models PEL-88, PEL-100, & PEL-400   Label Page PDF   Hydraulic Oil SDS   Valve-Regulated Lead Acid Battery Series SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 201 lbs
Assembled Size 23.5"W x 37.5625"L x 65.3125"H
Total Ship Weight 251 lbs
Package 1 Size 40"W x 48"D x 86"H
Color / Finish BLUE
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lbs) 175
Lowered Height (in.) 5-5/8
Raised Height (in.) 56
Swivel Caster Quantity/Diameter/Width (2) 3 x 1-1/4
Caster Color Red
Caster Material Polyurethane
DC Power (2) 24V
Rigid Caster Quantity/Diameter/Width (2) 3 x 1-1/4
Push Handle Height (in.) 38
Handle Diameter (in.) 1
Hardware Included No
Battery Type Lead Acid
Batteries (Qty) 2
Platform Width (in.) 23-1/2
Platform Length (in.) 18-1/2

Battery Information

Battery Depth 10
Battery Width 14
Battery Height 11
Battery Weight 60
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PEL-88S-D3-AHI
Product Name
Steel DC Powered Quick Lift with Auto Height Indexer 175lb Capacity Blue
UPC
691215364980
GTIN
00691215364980
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Electric
Assembled Depth (in.)
37.5625
Assembled Width(in.)
23.5
Assembled Height(in.)
65.3125
Assembled Weight(lbs.)
201
Color/Finish
BLUE
Material
STEEL
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
86
Package Weight (in.)
251
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101604
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, In
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
YES
Batteries Included?
Yes
Battery Weight (lbs.)
60
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PEL-88S-D3-AHI

PEL-88S-D3-AHI

Steel DC Powered Quick Lift with Auto Height Indexer 175lb Capacity Blue

Powered quick lift units transport and position loads quickly and efficiently. Featuring a low profile design with dual push handles for maneuvering in narrow aisles and confined spaces. The auto height indexer lets the platform be unadjusted to the most suitable height. When unloading many boxes, as one box is taken off of the platform, the height of the platform automatically re-adjusts back to the set proper height. This minimizes bending and keeps the user in a more ergonomic position throughout the process. Unit is powder coated for baked in added toughness.

  • Durable platform secures items large and small
  • Automatic platform height adjustment
  • Touch-pad control allows for easy operation
  • DC powered battery is fast and quite

Core Data

Assembled Weight: 201 Assembled Size: 23.5"W x 37.5625"L x 65.3125"H Color: BLUE
Total Ship Weight: 251 Package 1 Size: 40"W x 48"D x 86"H Freight: LTL Palletized

Specifications

Uniform Capacity (lbs): 175
Lowered Height (in.): 5-5/8
Raised Height (in.): 56
Swivel Caster Quantity/Diameter/Width: (2) 3 x 1-1/4
Caster Color: Red
Caster Material: Polyurethane
DC Power: (2) 24V
Rigid Caster Quantity/Diameter/Width: (2) 3 x 1-1/4
Push Handle Height (in.): 38
Handle Diameter (in.): 1
Hardware Included: No
Battery Type: Lead Acid
Batteries (Qty): 2
Platform Width (in.): 23-1/2
Platform Length (in.): 18-1/2
