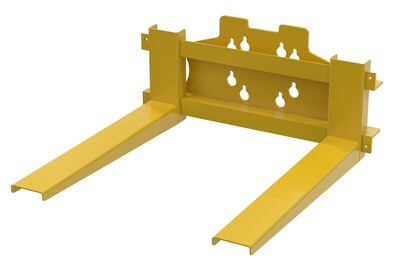

Steel Pel Adjustable Fork Attachment for PEL Models Yellow

Adjustable Fork Attachment for Commercial and Industrial Portable Load Lifters Use, Yellow Finish
The fork attachment allows the user to lift and transport a variety of sized items with a single attachment. Often times the most common attachments on the market are capable of only a single job, but this fork attachment is not so common. It is adaptable to fit each scenario and can be modified quickly and in the moment. The blunt tips with rounded sides minimize any unnecessary damage that can occur during the lifting and loading process. Each fork attachment is built of steel and includes a powder coat finish.
Product Status
Temporarily Unavailable - Please Contact Sales (7)
Key Features
  • Each fork is individually adjustable
  • 3" individual fork width
  • Oversized attachment holes
  • Fits directly on the quick lift's mast
Limited Availability Product This model is still in the final Engineering Phase. Contact Vestil Sales for current availability, production status, and ordering details.
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Steel & Aluminum Quick Lifts ALuminum Models PEL-88-A & PEL-100-A - Steel Models PEL-88, PEL-100, & PEL-400   90 Days Warranty
Product Data

Core Data

Assembled Weight 26 lbs
Assembled Size 22"W x 22.625"L x 9.875"H
Total Ship Weight 27 lbs
Package 1 Size 12"W x 24"D x 6"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Attachment Method Bolt On
Capacity (lbs) Determined by Base Model
Adjustable Fork Width (in.) 6-1/4 to 20-1/4
Usable Fork Length (in.) 20
Overall Width (in.) 22
Overall Length (in.) 22-5/8
Overall Height (in.) 9-7/8
Usable Height (in) 8-1/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PEL-AFK
Product Name
Steel Pel Adjustable Fork Attachment for PEL Models Yellow
UPC
691215376761
GTIN
00691215376761
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifter / Tilters
Taxonomy 4
Load Lifters
Taxonomy 5
Accessories / Components
Assembled Depth (in.)
22.625
Assembled Width(in.)
22
Assembled Height(in.)
9.875
Assembled Weight(lbs.)
26
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
PEL-88, PEL-88-A, PEL-100, PEL-100-A, PEL-400S-57-D3, PEL-400S-72-D3

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
24
Package Width (in.)
12
Package Height (in.)
6
Package Weight (in.)
27
Subclass
2
Freight Class
70
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine
NMFC Number
192210
LTL Freight
Parcel
UNSPSC
24101629
HTSUS Number
8431.31.0060
USMCA HS
8431.31
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PEL-AFK

PEL-AFK

Steel Pel Adjustable Fork Attachment for PEL Models Yellow

The fork attachment allows the user to lift and transport a variety of sized items with a single attachment. Often times the most common attachments on the market are capable of only a single job, but this fork attachment is not so common. It is adaptable to fit each scenario and can be modified quickly and in the moment. The blunt tips with rounded sides minimize any unnecessary damage that can occur during the lifting and loading process. Each fork attachment is built of steel and includes a powder coat finish.

  • Each fork is individually adjustable
  • 3" individual fork width
  • Oversized attachment holes
  • Fits directly on the quick lift's mast

Core Data

Assembled Weight: 26 Assembled Size: 22"W x 22.625"L x 9.875"H Color: Yellow
Total Ship Weight: 27 Package 1 Size: 12"W x 24"D x 6"H Freight: Parcel

Specifications

Attachment Method: Bolt On
Capacity (lbs): Determined by Base Model
Adjustable Fork Width (in.): 6-1/4 to 20-1/4
Usable Fork Length (in.): 20
Overall Width (in.): 22
Overall Length (in.): 22-5/8
Overall Height (in.): 9-7/8
Usable Height (in): 8-1/8
