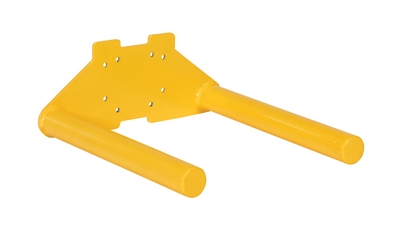

Steel Quick Lift Double Spindle Attachment For PEL Models Yellow

Spindle Attachment for Commercial and Industrial Portable Load Lifters Use, 175 lb. Capacity, Yellow Finish – Model PEL-DSPIN
The double spindle attachment is designed of a strong construction for lifting rolls of material and other hollow cylinder objects. A simple installation allows the user to obtain immediate use and diminishes the grind of bending and lifting heavy objects. A bright yellow finish promotes safety and visibility while transferring units.
Product Status
Available
Key Features
  • Extended spindle for lifting
  • Simply attachable for immediate use
  • Smooth finish for safety
  • Promotes ergonomic lifting
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Steel & Aluminum Quick Lifts ALuminum Models PEL-88-A & PEL-100-A - Steel Models PEL-88, PEL-100, & PEL-400   90 Days Warranty
Product Data

Core Data

Assembled Weight 21 lbs
Assembled Size 19"W x 20.375"L x 8"H
Total Ship Weight 21 lbs
Package 1 Size 20"W x 21"D x 9"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Capacity PEL-88 & PEL-88-A (lb.) 175
Capacity PEL-100 & PEL-100-A (lb.) 125
Capacity PEL-400-57 & PEL-400-72 (lb.) 400
Spindle Diameter (in.) 2-3/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PEL-DSPIN
Product Name
Steel Quick Lift Double Spindle Attachment For PEL Models Yellow
UPC
691215130387
GTIN
00691215130387
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Accessories / Components
Assembled Depth (in.)
20.375
Assembled Width(in.)
19
Assembled Height(in.)
8
Assembled Weight(lbs.)
21
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
PEL-88, PEL-88-A, PEL-100, PEL-100-A, PEL-400S-57-D3, PEL-400S-72-D3

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
21
Package Width (in.)
20
Package Height (in.)
9
Package Weight (in.)
21
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
Parcel
UNSPSC
27112800
HTSUS Number
8431.20.0000
USMCA HS
8431.20
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PEL-DSPIN

PEL-DSPIN

Steel Quick Lift Double Spindle Attachment For PEL Models Yellow

The double spindle attachment is designed of a strong construction for lifting rolls of material and other hollow cylinder objects. A simple installation allows the user to obtain immediate use and diminishes the grind of bending and lifting heavy objects. A bright yellow finish promotes safety and visibility while transferring units.

  • Extended spindle for lifting
  • Simply attachable for immediate use
  • Smooth finish for safety
  • Promotes ergonomic lifting

Core Data

Assembled Weight: 21 Assembled Size: 19"W x 20.375"L x 8"H Color: Yellow
Total Ship Weight: 21 Package 1 Size: 20"W x 21"D x 9"H Freight: Parcel

Specifications

Capacity PEL-88 & PEL-88-A (lb.): 175
Capacity PEL-100 & PEL-100-A (lb.): 125
Capacity PEL-400-57 & PEL-400-72 (lb.): 400
Spindle Diameter (in.): 2-3/8
