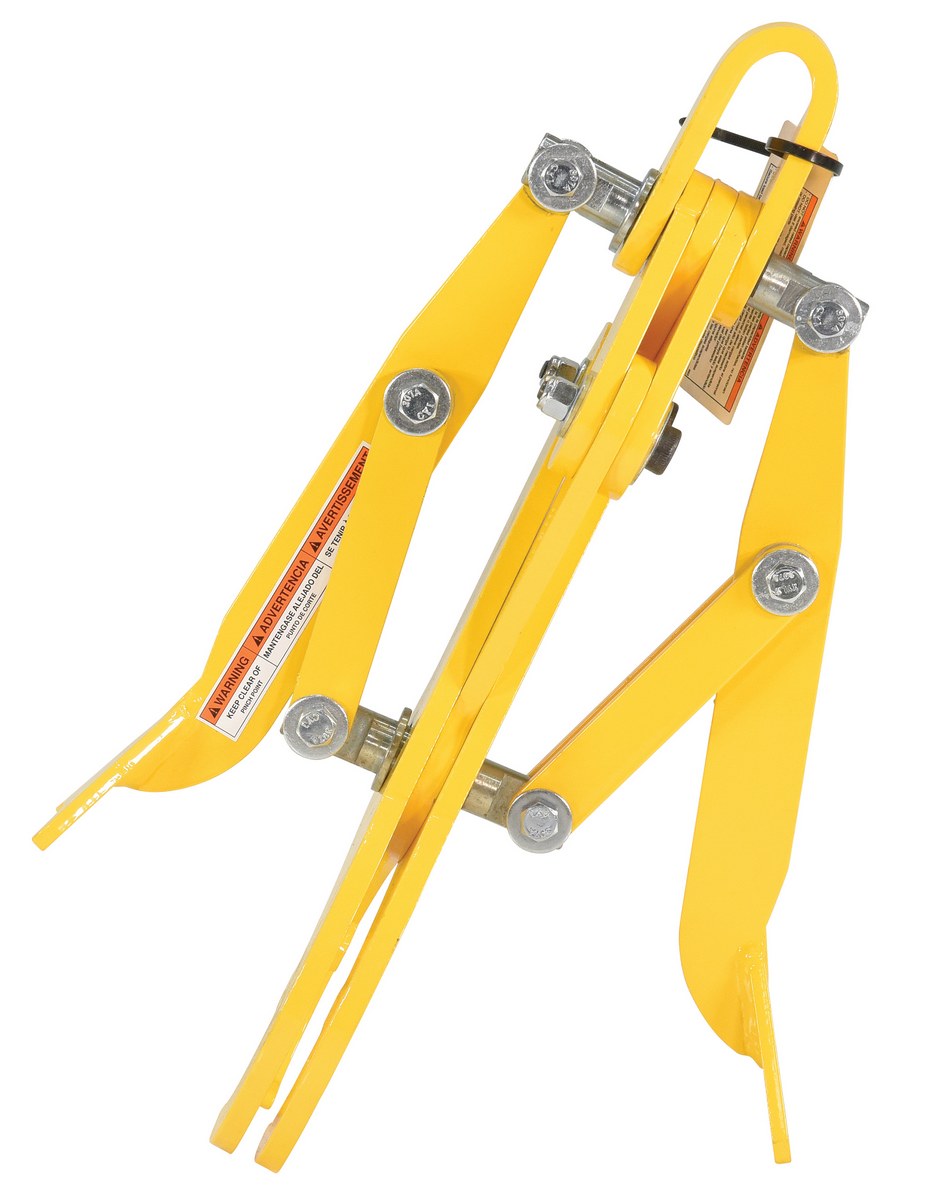

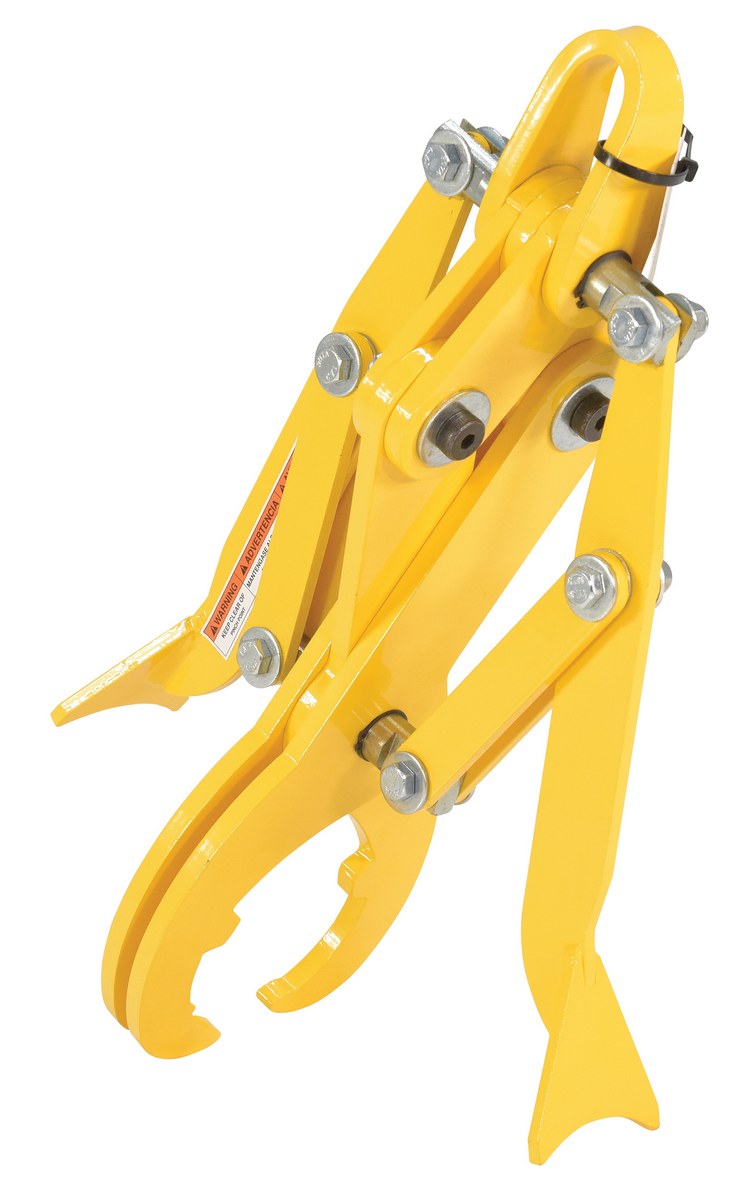

Steel Heavy Duty Pipe Grab For Cast Iron Pipes 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity Yellow

Heavy Duty Crane for Commercial and Industrial Overhead Load Lifters Use, 600 lb. Capacity with 27 in. x 8-3/8 in. x 18-3/4 in., Yellow Finish – Model PG-C-060
The heavy-duty pipe grip is ideal for the manufacturing and material handling facilities. The bright colored design enables the unit to be distinguished for clear discernibility from both near and far. The unit is powder coated for smooth finish that minimizes deterioration of unit over a prolonged time of use.
Product Status
Available
Key Features

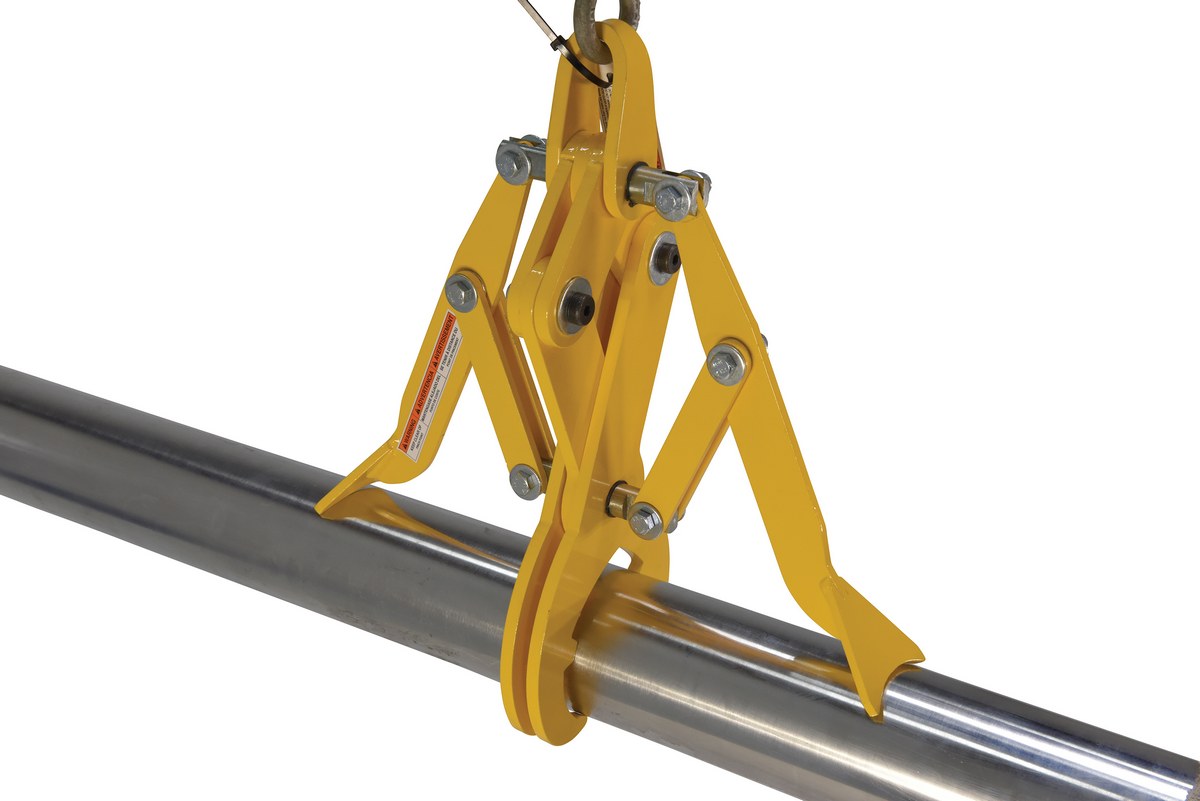

  • Designed for lifting cast iron pipe with overhead lifting device
  • Automatic operation allows for easy use by anyone
  • Loads must be centered and guided during lifting operations
  • Heavy-duty steel construction for strength & durability
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Heavy-Duty Pipe Grab Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 19 lbs
Assembled Size 8.375"W x 27"L x 18.75"H
Total Ship Weight 22 lbs
Package 1 Size 11"W x 18"D x 10"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Working Load Limit (lb.) 600
Works with Pipe (O.D.) 4-1/2 to 4-3/4
Designed For Use With Cast Iron
Lifting Clamp Style Horizontal
Jaw Depth (in.) 4
Minimum Jaw Opening Height (in.) 3-1/8
Includes Clamp Lock Mechanism
Overall Thickness (in.) 3/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PG-C-060
Product Name
Steel Heavy Duty Pipe Grab For Cast Iron Pipes 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity Yellow
UPC
691215054676
GTIN
00691215054676
Taxonomy 1
Material Handling
Taxonomy 2
Rigging
Taxonomy 3
Rigging Hardware
Taxonomy 4
Grabs
Assembled Depth (in.)
27
Assembled Width(in.)
8.375
Assembled Height(in.)
18.75
Assembled Weight(lbs.)
19
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
18
Package Width (in.)
11
Package Height (in.)
10
Package Weight (in.)
22
Freight Class
77.5
NMFC Code
Tools NOI other than hand or plastic in boxes
NMFC Number
186630
LTL Freight
Parcel
UNSPSC
20122824
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PG-C-060

PG-C-060

Steel Heavy Duty Pipe Grab For Cast Iron Pipes 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity Yellow

The heavy-duty pipe grip is ideal for the manufacturing and material handling facilities. The bright colored design enables the unit to be distinguished for clear discernibility from both near and far. The unit is powder coated for smooth finish that minimizes deterioration of unit over a prolonged time of use.

  • Designed for lifting cast iron pipe with overhead lifting device
  • Automatic operation allows for easy use by anyone
  • Loads must be centered and guided during lifting operations
  • Heavy-duty steel construction for strength & durability

Core Data

Assembled Weight: 19 Assembled Size: 8.375"W x 27"L x 18.75"H Color: Yellow
Total Ship Weight: 22 Package 1 Size: 11"W x 18"D x 10"H Freight: Parcel

Specifications

Uniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
Designed For Use With: Cast Iron
Lifting Clamp Style: Horizontal
Jaw Depth (in.): 4
Minimum Jaw Opening Height (in.): 3-1/8
Includes: Clamp Lock Mechanism
Overall Thickness (in.): 3/8
