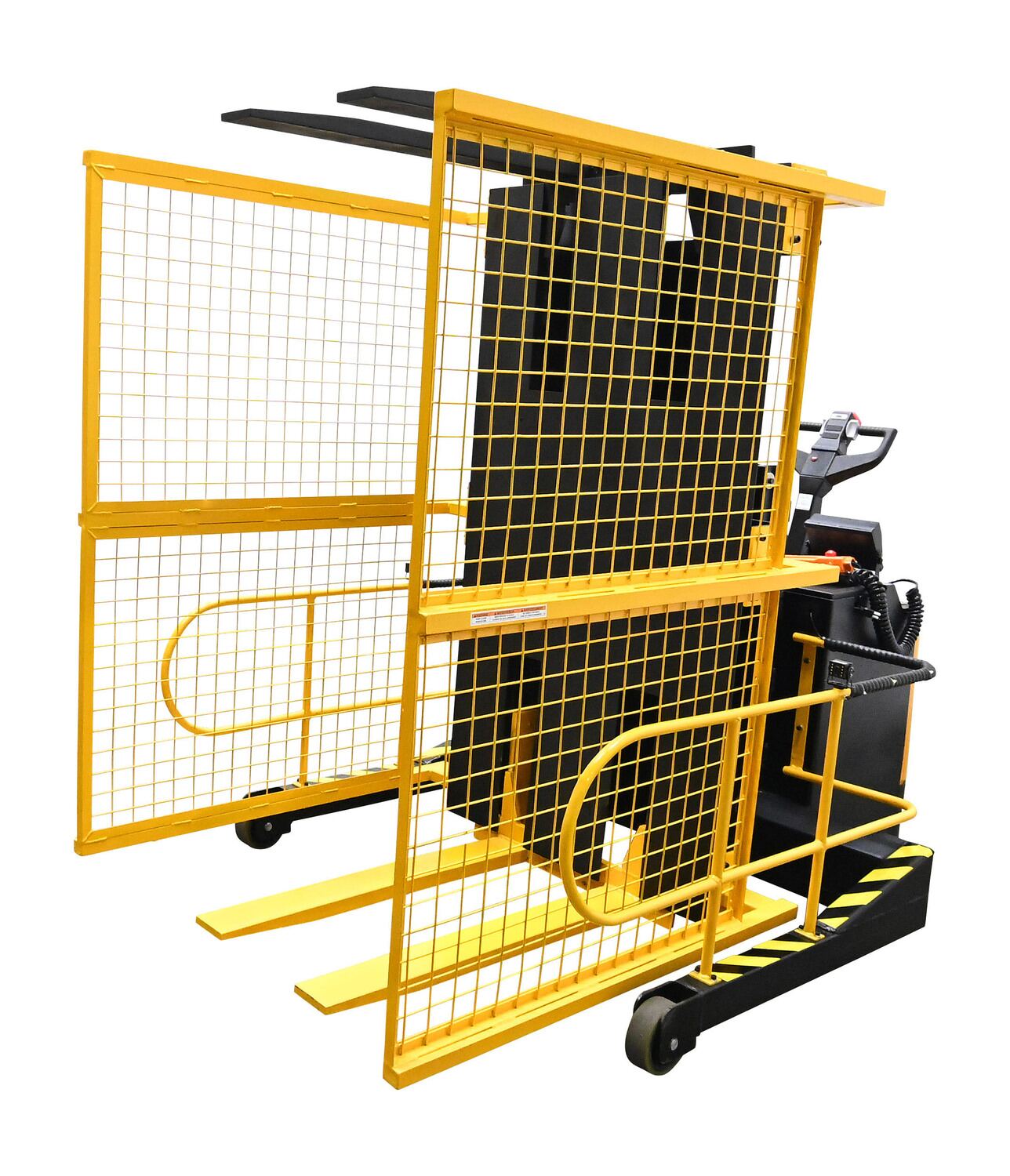

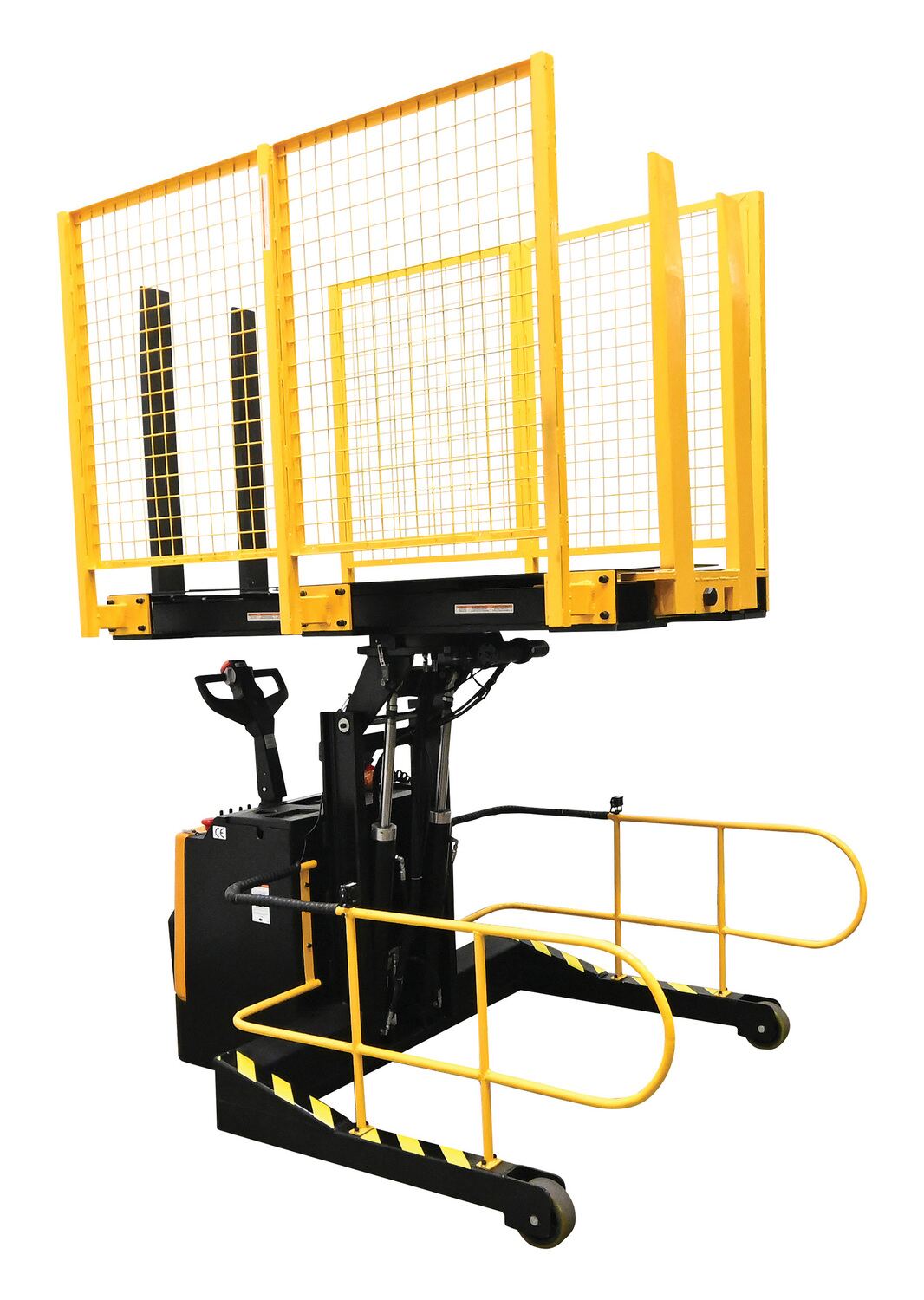

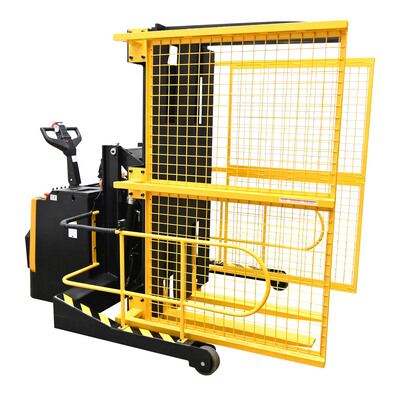

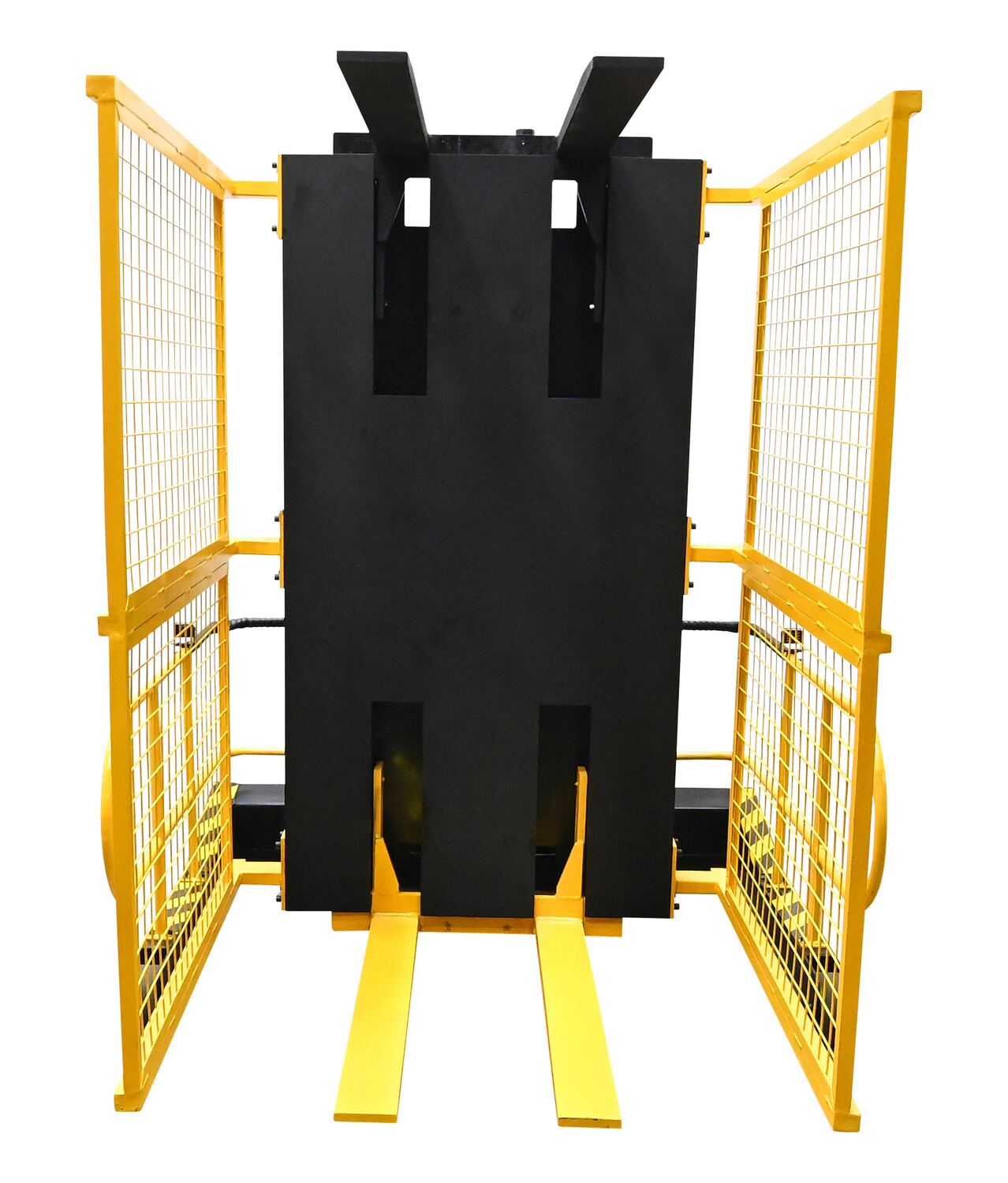

Steel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/Black

Portable Pallet Rotator for Rotating and Exchanging Palletized Loads, 3,000 lb. Capacity with 32 in., Yellow and Black Finish – Model PI-P-SL-3276-PRSR

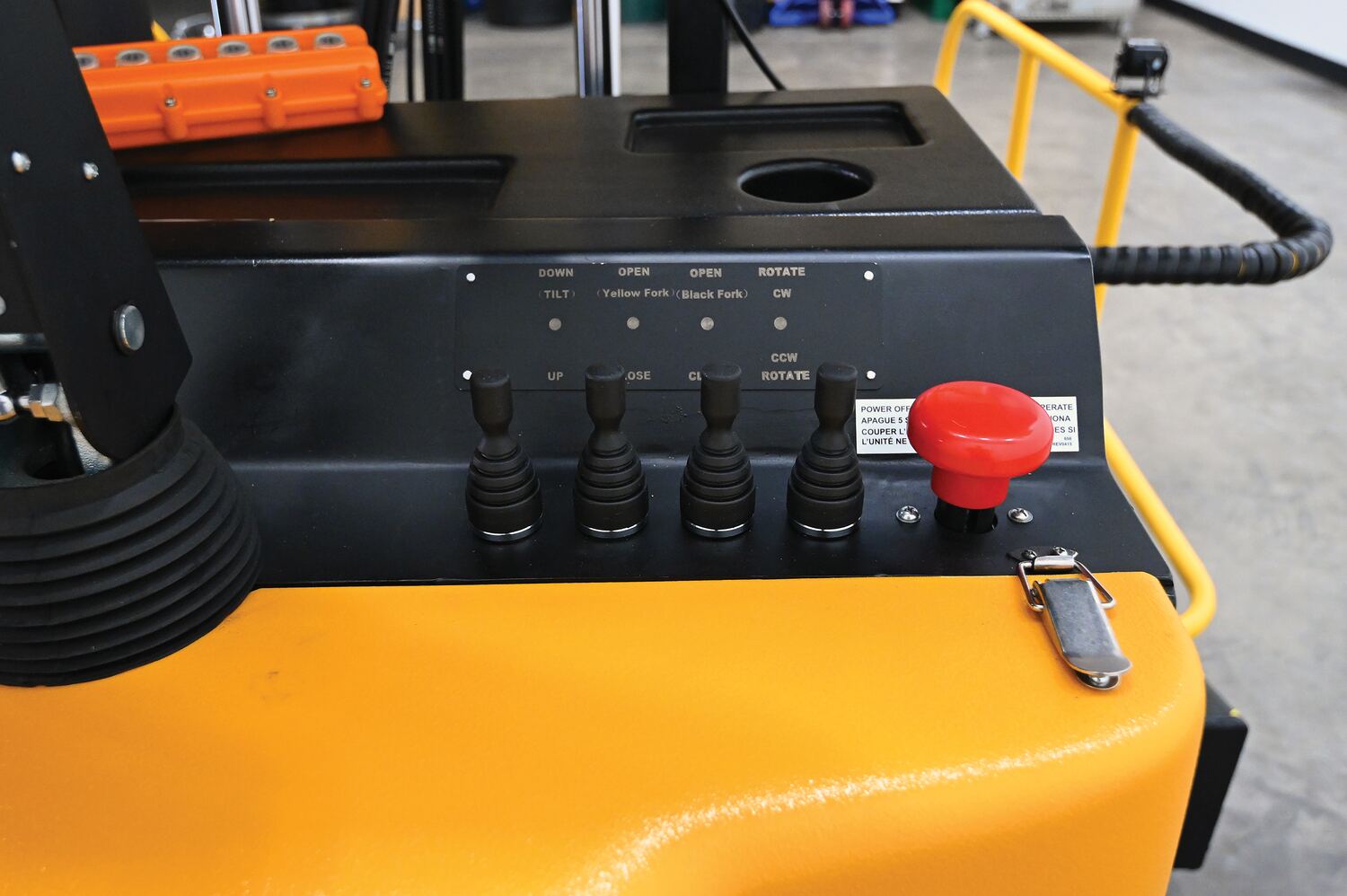

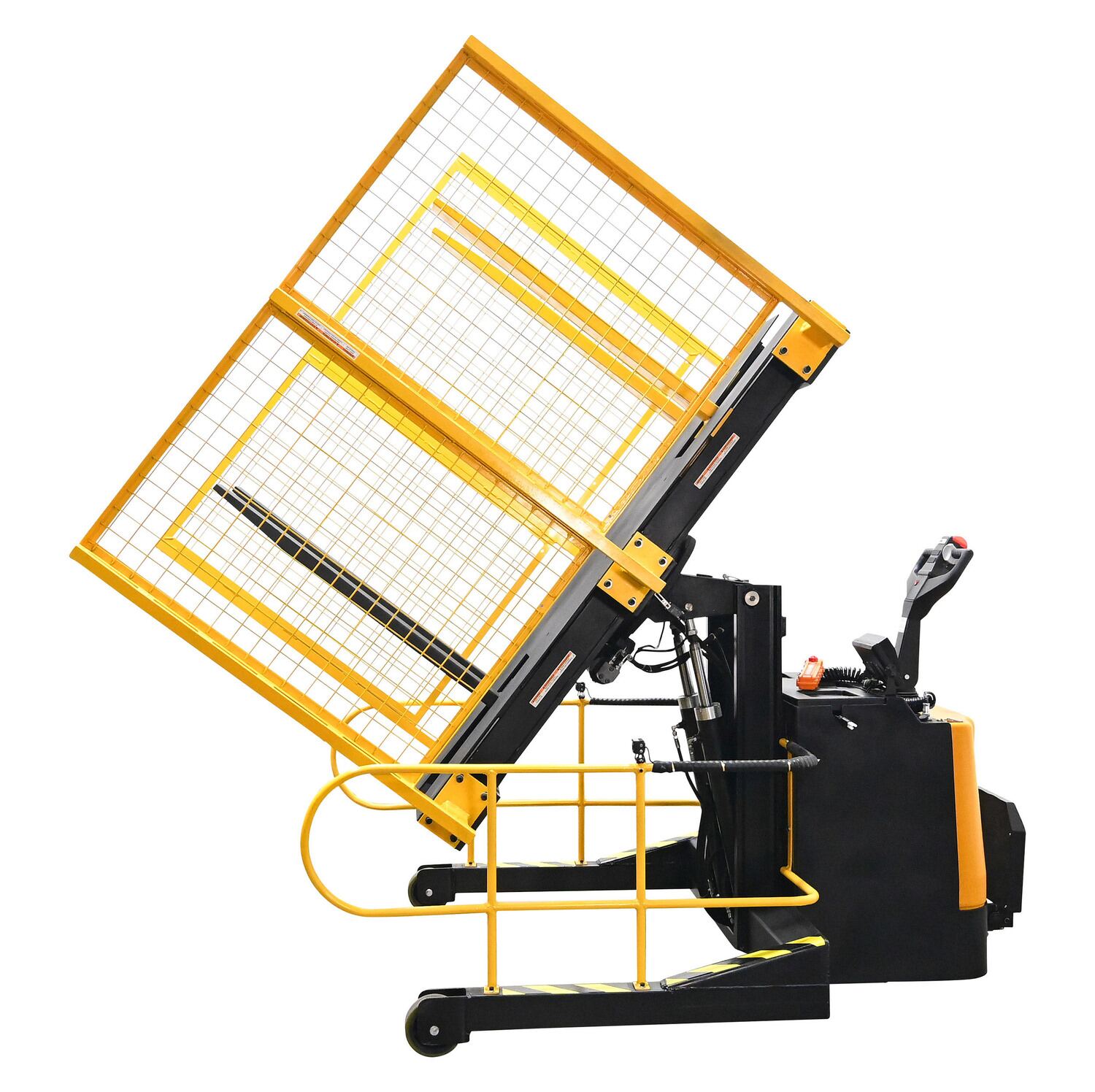

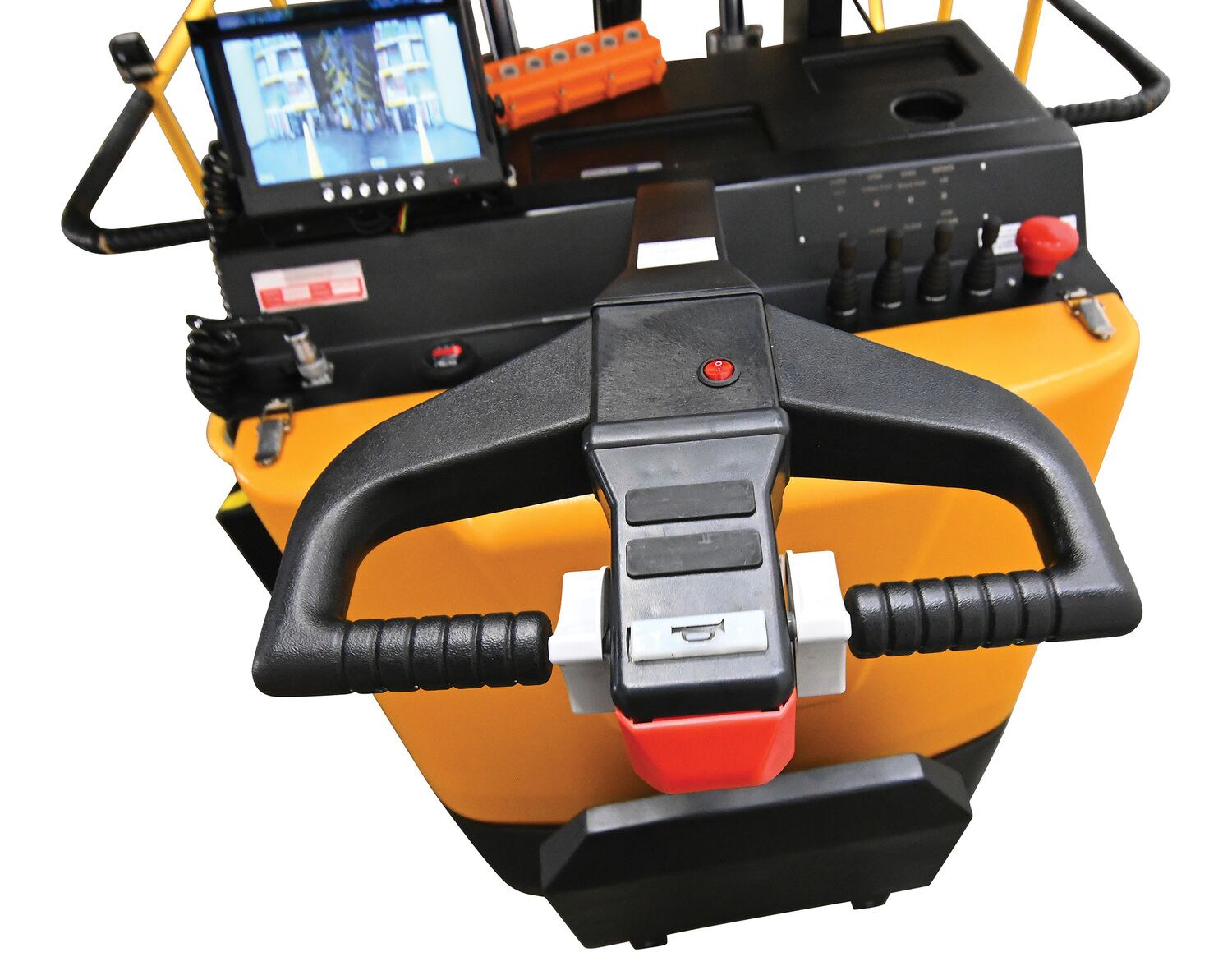

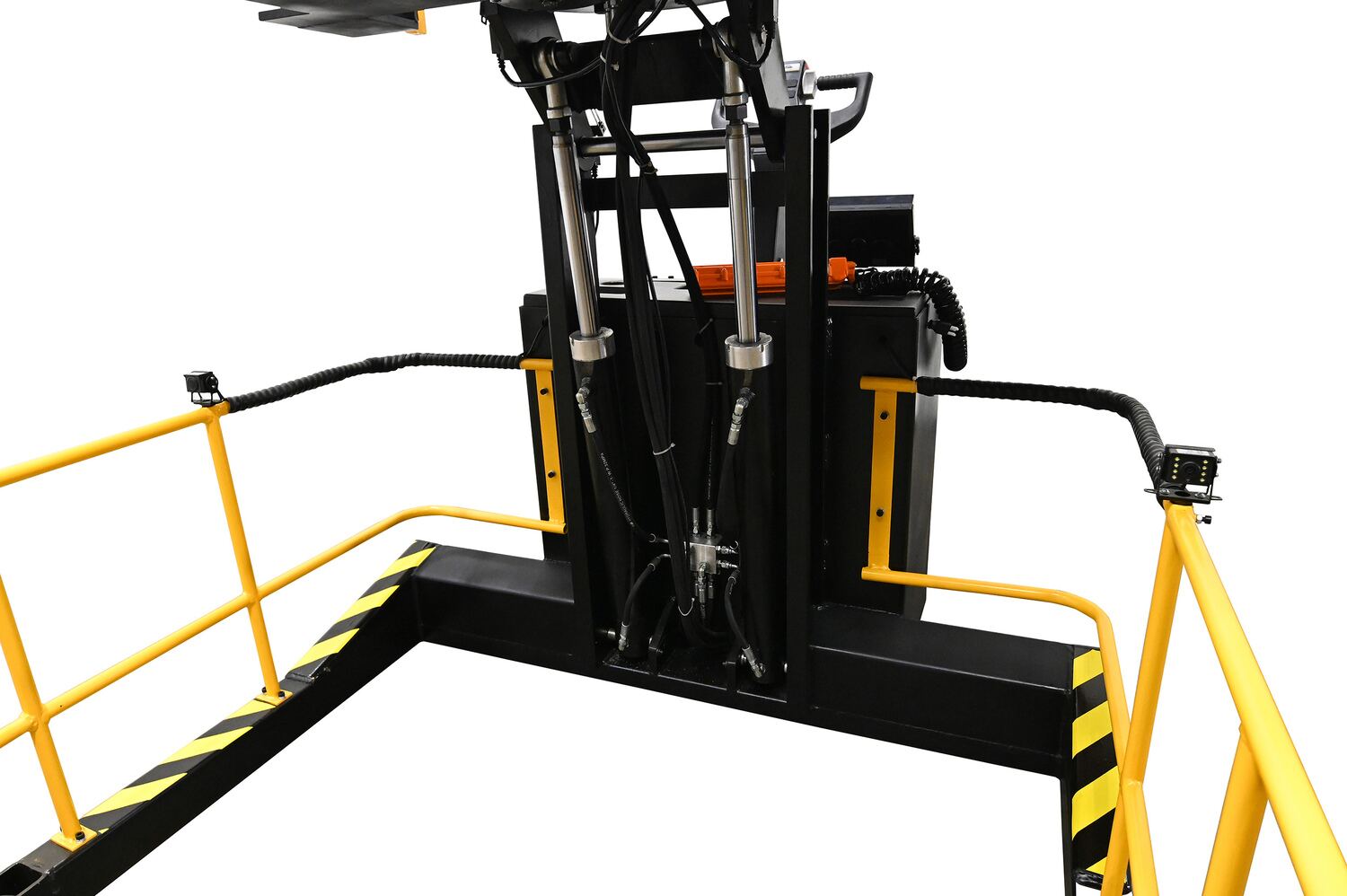

Tilt (powered) and rotate (manual) loads with our durable pallet inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle and tilt/lower controls. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.
Product Status
Available Non-Returnable
Key Features
  • Safety belly reverse button
  • On-board battery charger and level gauge
  • Steel mesh sides for safe enclosure
  • Infinite forward and reverse speeds
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hydraulic Oil SDS   Li-Ion Battery SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 3463 lbs
Assembled Size 56.625"W x 113"L x 108.25"H
Total Ship Weight 5400 lbs
Package 1 Size 68"W x 108"D x 86"H
Color / Finish Yellow / Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 3,000
Fork Opening (in.) 32 to 76
Fork Width (in.) 5
Fork Size (in.) 22 x 42-1/8
Lowered Height (in.) 3-1/4
Turn Radius (in.) 84-1/2
Fork Center (in.) 17-9/16
Caster Material Poly-on-Steel
Caster Color Yellow
Stabilizer Caster Quantity/Size (in.) (2) 5 x 2
Driver Caster Quantity/Size (in.) (1) 9-7/8 x 3-1/8
Load Roller Quantity (2) 6-1/4 x 2-3/8
Handle Height (in.) 5-3/16
Handle Diameter (in.) 1-1/8
Hardware Included No
For Use With Pallets & Skids
Travel Speed - Unloaded (MPH) 3.7
Travel Speed - Loaded (MPH) 2.5
Drive Motor 24V / 1.2 KW
Lift Motor 24V / 2.0 KW
Battery 4 -6 V / 200 Ah
Battery Charger 24V

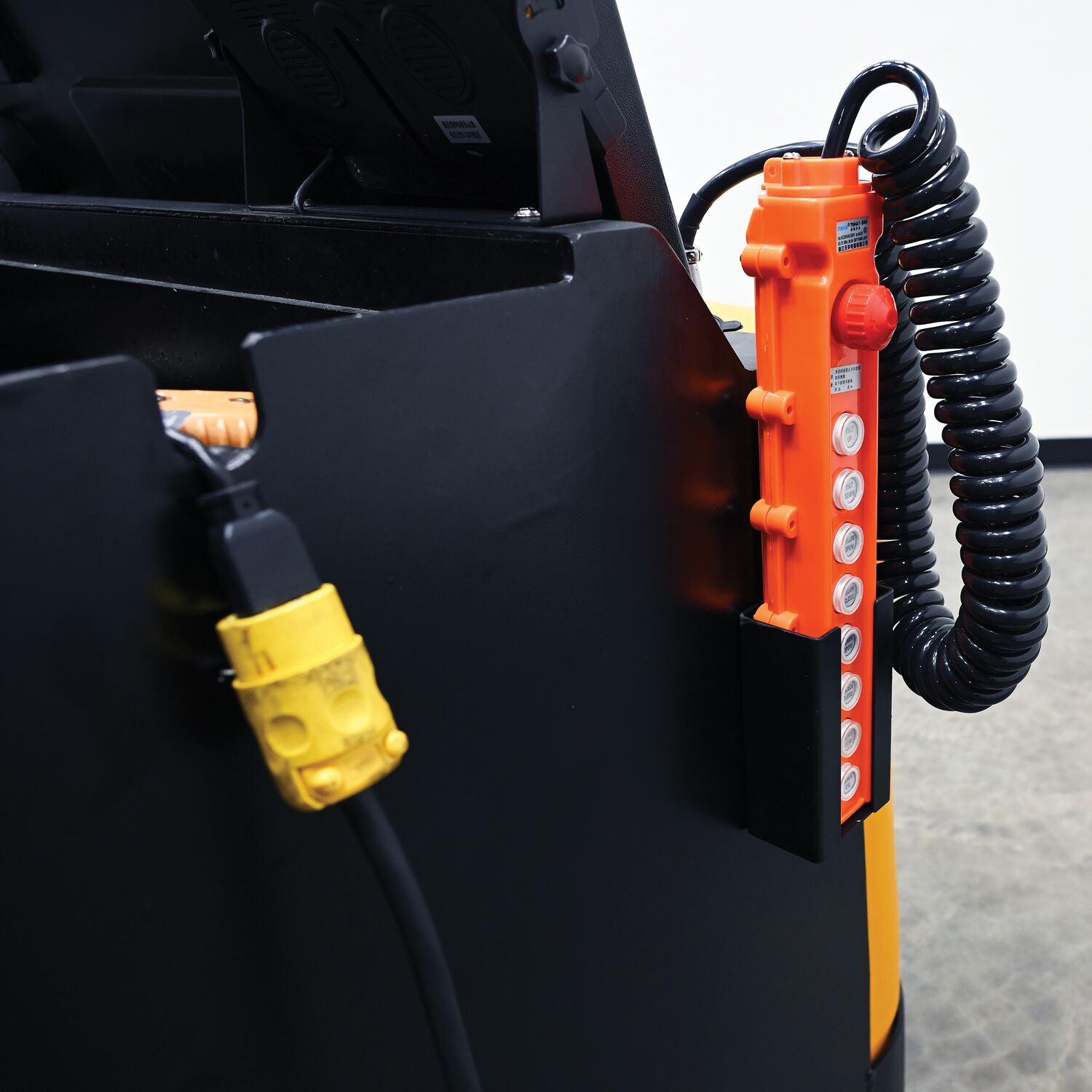

Control Hand Control w/ Coil Cord

Battery Information

Battery Depth 22
Battery Width 21
Battery Height 11
Battery Weight 248
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PI-P-SL-3276-PRSR
Product Name
Steel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/Black
UPC
691215378673
GTIN
00691215378673
Taxonomy 1
Material Handling
Taxonomy 2
Pallets & Accessories
Taxonomy 3
Portable Pallet Inverter
Assembled Depth (in.)
113
Assembled Width(in.)
56.625
Assembled Height(in.)
108.25
Assembled Weight(lbs.)
3463
Color/Finish
Yellow / Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
108
Package Width (in.)
68
Package Height (in.)
86
Package Weight (in.)
5400
Subclass
8
Freight Class
77.5
NMFC Code
Cars, Lift Trucks or Vehicles, NOI, not designed for general highway use
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
32121705
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
248
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PI-P-SL-3276-PRSR

PI-P-SL-3276-PRSR

Steel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/Black

Tilt (powered) and rotate (manual) loads with our durable pallet inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle and tilt/lower controls. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

  • Safety belly reverse button
  • On-board battery charger and level gauge
  • Steel mesh sides for safe enclosure
  • Infinite forward and reverse speeds

Core Data

Assembled Weight: 3463 Assembled Size: 56.625"W x 113"L x 108.25"H Color: Yellow / Black
Total Ship Weight: 5400 Package 1 Size: 68"W x 108"D x 86"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 3,000
Fork Opening (in.): 32 to 76
Fork Width (in.): 5
Fork Size (in.): 22 x 42-1/8
Lowered Height (in.): 3-1/4
Turn Radius (in.): 84-1/2
Fork Center (in.): 17-9/16
Caster Material: Poly-on-Steel
Caster Color: Yellow
Stabilizer Caster Quantity/Size (in.): (2) 5 x 2
Driver Caster Quantity/Size (in.): (1) 9-7/8 x 3-1/8
Load Roller Quantity: (2) 6-1/4 x 2-3/8
Handle Height (in.): 5-3/16
Handle Diameter (in.): 1-1/8
Hardware Included: No
For Use With: Pallets & Skids
Travel Speed - Unloaded (MPH): 3.7
Travel Speed - Loaded (MPH): 2.5
Drive Motor: 24V / 1.2 KW
Lift Motor: 24V / 2.0 KW
Battery: 4 -6 V / 200 Ah
Battery Charger: 24V
Control: Hand Control w/ Coil Cord
