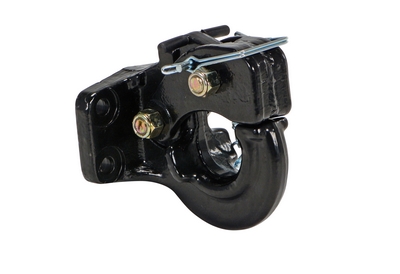

Steel Pintle Hook for Fork Truck Base

Pintle Hook for Fork Truck Base for Overhead Load Lifting and Controlled Positioning, 2,000 lb. Capacity
Optional Pintle hook for the Fork Truck base. Bolt on design.
Product Status
Available QuickShip
Key Features
  • Four base plate attachment holes
  • Quick level open and close
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Fork Truck Base series HOOK-BASE Manual   30 Days Warranty
Product Data

Core Data

Assembled Weight 10 lbs

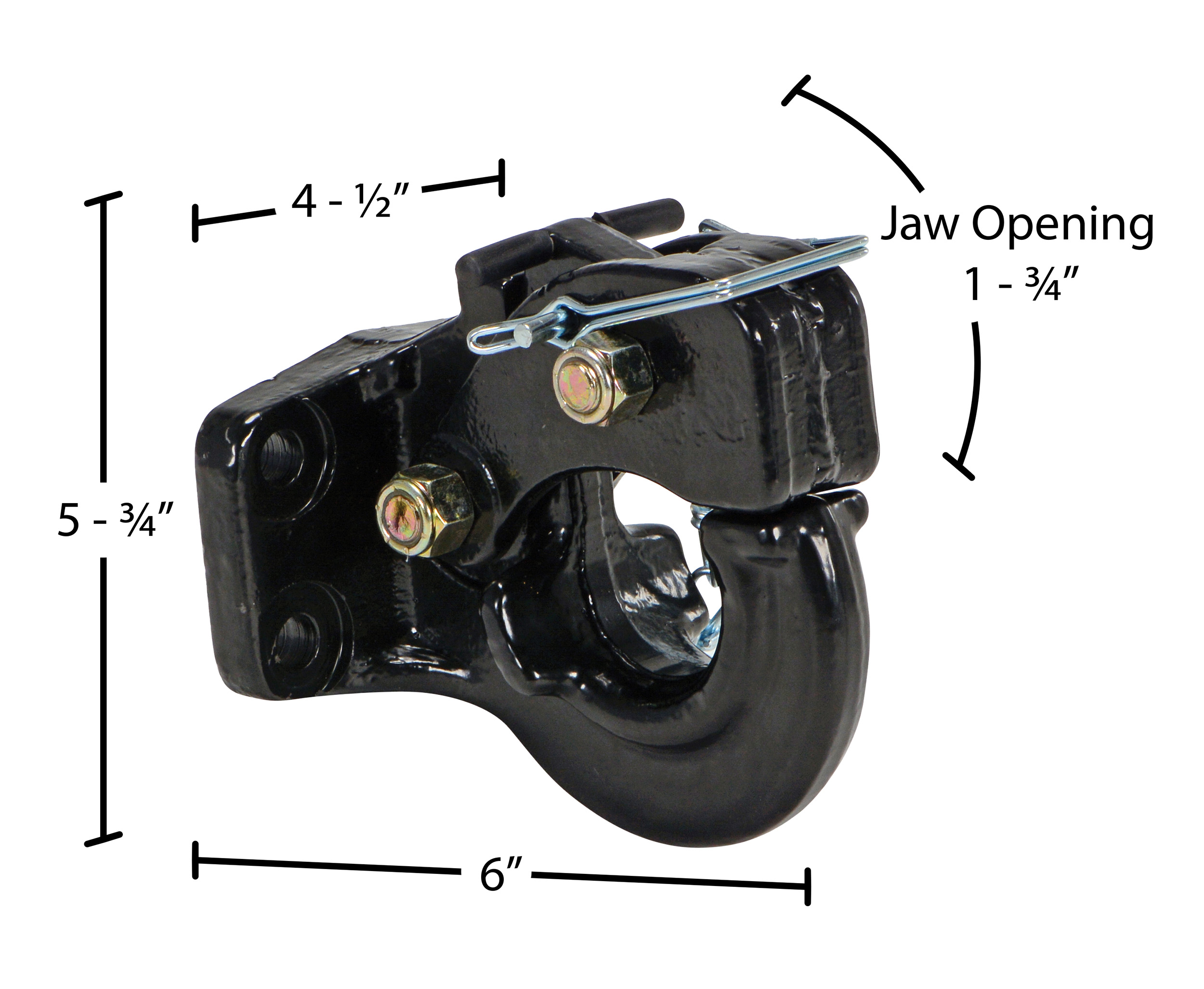

Assembled Size 4.5"W x 6"L x 5.75"H
Total Ship Weight 10 lbs
Package 1 Size 7"W x 7"D x 5"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Uniform Lifting Capacity (lb.) 2,000
Uniform Trailer Capacity (lb.) 10,000
Jaw Opening (in.) 1-3/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PINTLE
Product Name
Steel Pintle Hook for Fork Truck Base
UPC
691215052818
GTIN
00691215052818
Taxonomy 1
Automotive
Taxonomy 2
Accessories
Taxonomy 3
Truck & Towing
Taxonomy 4
Towing & Hitch Components
Taxonomy 5
Pintle Hooks
Assembled Depth (in.)
6
Assembled Width(in.)
4.5
Assembled Height(in.)
5.75
Assembled Weight(lbs.)
10
Color/Finish
Black
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
HOOK-BASE-32, HOOK-BASE-38, HOOK-BASE-44

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
7
Package Width (in.)
7
Package Height (in.)
5
Package Weight (in.)
10
Freight Class
60
NMFC Code
Tools Hooks Iron or Steel
NMFC Number
184850
LTL Freight
Parcel
UNSPSC
25181708
HTSUS Number
7318.15.2095
USMCA HS
7318.15
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PINTLE

PINTLE

Steel Pintle Hook for Fork Truck Base

Optional Pintle hook for the Fork Truck base. Bolt on design.

  • Four base plate attachment holes
  • Quick level open and close
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 10 Assembled Size: 4.5"W x 6"L x 5.75"H Color: Black
Total Ship Weight: 10 Package 1 Size: 7"W x 7"D x 5"H Freight: Parcel

Specifications

Uniform Lifting Capacity (lb.): 2,000
Uniform Trailer Capacity (lb.): 10,000
Jaw Opening (in.): 1-3/4
