Product Data Sheet

  Print to PDF
  All Products   Ergonomic Solutions   Pallet Truck Accessories   Pallet Jockeys for "Walkie" Trucks PJ-1005
Product Image

Visual Reference

PJ-1005
PJ-1005
PJ-1005
PJ-1005
PJ-1005
PJ-1005
PJ-1005
PJ-1005
PJ-1005

Steel Non-Adjustable Pallet Jockey 10-3/16 In. x 28-1/2 In. x 4-1/8 In. 4000 Lb. Capacity Blue

Adjustable Pallet Truck Walkie for Moving Loads Through Warehouses and Production Areas, 4,000 lb. Capacity with 10-3/16 in. x 28-1/2 in. x 4-1/8 in.
The pallet jockey is a great addition to the "walkie" style truck in the material handling facilities. The steel construction is strong and durable for heavy lifting on a day to day basis. To use simply place the pallet jockey hooks into the fork wheel openings.
Product Status
Available QuickShip
Key Features
  • Drivers and warehouse personnel can efficiently unload sideways pallets
  • Unload with their "walkie" powered pallet trucks w/o wasting time and resources
  • Ideal for distribution centers that have one particular electric pallet truck model
  • Fits popular sizes of walkie trucks and is non-adjustable
Quick Actions

Product Resources

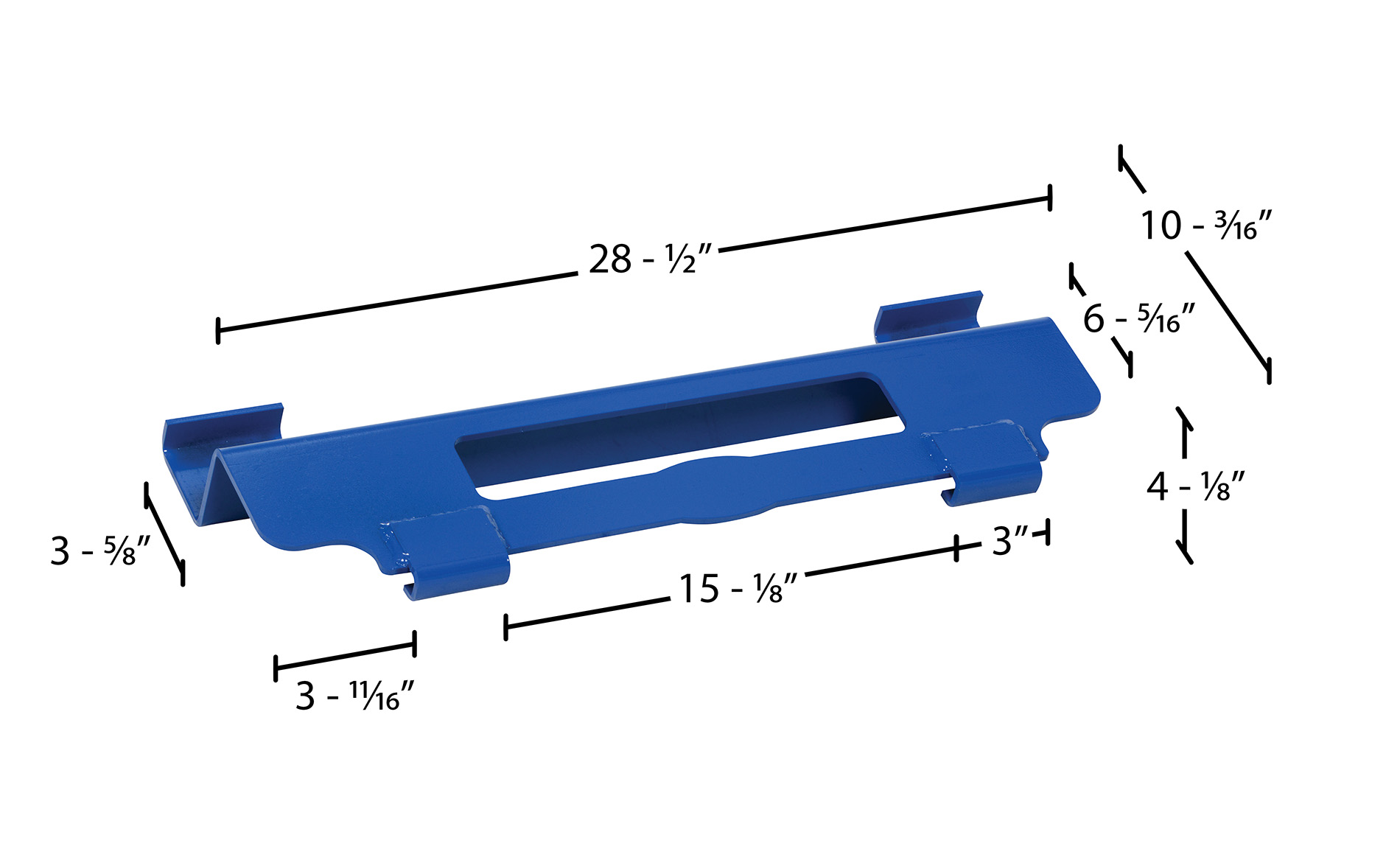

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 18 lbs
Assembled Size 28.5"W x 10.1875"L x 4.125"H
Total Ship Weight 20 lbs
Package 1 Size 11"W x 30"D x 5"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 4,000
Powered Pallet Truck Style Unit Works With Various Electric Walkie Trucks
Electric Pallet Truck Unit Works With EPT-2547-30
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PJ-1005
Product Name
Steel Non-Adjustable Pallet Jockey 10-3/16 In. x 28-1/2 In. x 4-1/8 In. 4000 Lb. Capacity Blue
UPC
691215029865
GTIN
00691215029865
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Truck Accessories
Taxonomy 3
Pallet Jockey
Assembled Depth (in.)
10.1875
Assembled Width(in.)
28.5
Assembled Height(in.)
4.125
Assembled Weight(lbs.)
18
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
EPT-2547-30

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
30
Package Width (in.)
11
Package Height (in.)
5
Package Weight (in.)
20
Subclass
9
Freight Class
70
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine, s
NMFC Number
193100
LTL Freight
Parcel
UNSPSC
24101629
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PJ-1005

PJ-1005

Steel Non-Adjustable Pallet Jockey 10-3/16 In. x 28-1/2 In. x 4-1/8 In. 4000 Lb. Capacity Blue

The pallet jockey is a great addition to the "walkie" style truck in the material handling facilities. The steel construction is strong and durable for heavy lifting on a day to day basis. To use simply place the pallet jockey hooks into the fork wheel openings.

  • Drivers and warehouse personnel can efficiently unload sideways pallets
  • Unload with their "walkie" powered pallet trucks w/o wasting time and resources
  • Ideal for distribution centers that have one particular electric pallet truck model
  • Fits popular sizes of walkie trucks and is non-adjustable

Core Data

Assembled Weight: 18 Assembled Size: 28.5"W x 10.1875"L x 4.125"H Color: Blue
Total Ship Weight: 20 Package 1 Size: 11"W x 30"D x 5"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 4,000
Powered Pallet Truck Style Unit Works With: Various Electric Walkie Trucks
Electric Pallet Truck Unit Works With: EPT-2547-30
