Polyethylene Heavy Duty D Style Hopper Lid (Use with 2 Cubic Yard Hoppers) Black

Heavy-Duty Steel Hopper Bin Lid for Forklift Material Handling and Controlled Load Discharge, 2 Cubic Yard
Keep the contents of hoppers out of sight and safe from the elements with a heavy-duty poly lid for self-dumping hoppers. Not only is this lightweight design simple to open and close, but an added benefit of the poly construction is the minimal noise created during the closing process. The multi bracketed connection to the hopper allows the lids to swing freely up and down without constraint.
Product Status
Available QuickShip
Key Features
  • Easily field-installed by the customer, or can be factory installed when combined with PLID-INSTALL option
  • Poly construction resists rust and corrosion
  • Ribbed design for strength and aesthetics
  • Flat edged for quick displacement of rainwater
Quick Actions

Product Resources

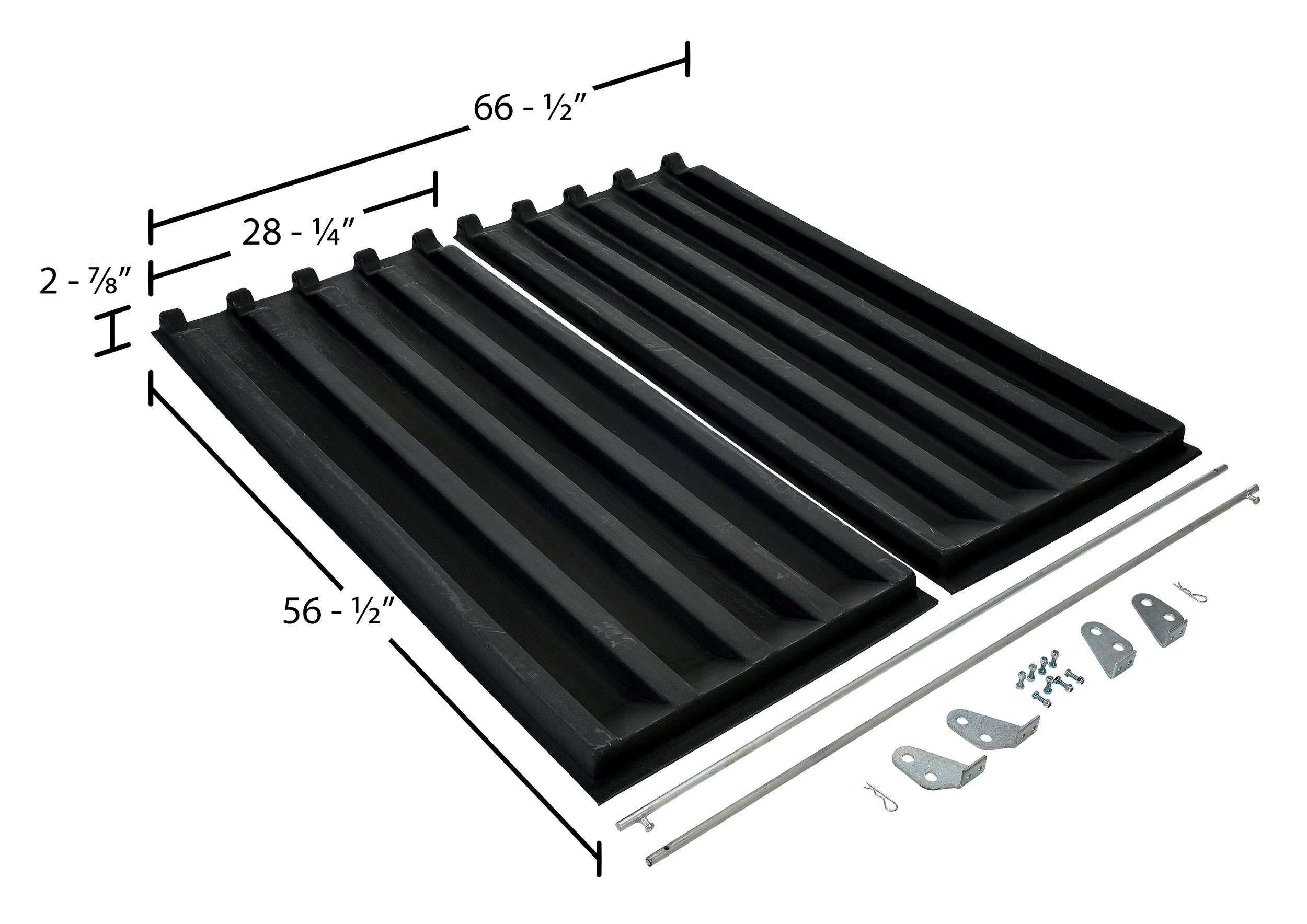

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Heavy-Duty Poly Lids for Self-Dumping Hoppers   90 Days Warranty
Product Data

Core Data

Assembled Weight 47 lbs
Assembled Size 56.5"W x 66.5"L x 2.875"H
Total Ship Weight 100 lbs
Package 1 Size 40"W x 67"D x 10"H
Color / Finish Black
Freight Type LTL Palletized

Additional Attributes

Use With (cu. yrd.) 2
Use With (style) D
Number of Pieces 2
Maximum Continuous Temperature Before Bend or Deformation (degrees) 150
Individual Lid Piece Width (in.) 28-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PLID-D-200
Product Name
Polyethylene Heavy Duty D Style Hopper Lid (Use with 2 Cubic Yard Hoppers) Black
UPC
691215030243
GTIN
00691215030243
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Hoppers & Accessories
Taxonomy 4
Hopper Lids
Assembled Depth (in.)
66.5
Assembled Width(in.)
56.5
Assembled Height(in.)
2.875
Assembled Weight(lbs.)
47
Color/Finish
Black
Material
Polyethylene
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required
Compatible Products
D-200 Style Hoppers

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
67
Package Width (in.)
40
Package Height (in.)
10
Package Weight (in.)
100
Subclass
45
Freight Class
125
NMFC Code
Plastic or rubber articles containers
NMFC Number
156600
LTL Freight
LTL Palletized
UNSPSC
47121704
HTSUS Number
3923.50.0000
USMCA HS
3923.50
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PLID-D-200

PLID-D-200

Polyethylene Heavy Duty D Style Hopper Lid (Use with 2 Cubic Yard Hoppers) Black

Keep the contents of hoppers out of sight and safe from the elements with a heavy-duty poly lid for self-dumping hoppers. Not only is this lightweight design simple to open and close, but an added benefit of the poly construction is the minimal noise created during the closing process. The multi bracketed connection to the hopper allows the lids to swing freely up and down without constraint.

  • Easily field-installed by the customer, or can be factory installed when combined with PLID-INSTALL option
  • Poly construction resists rust and corrosion
  • Ribbed design for strength and aesthetics
  • Flat edged for quick displacement of rainwater

Core Data

Assembled Weight: 47 Assembled Size: 56.5"W x 66.5"L x 2.875"H Color: Black
Total Ship Weight: 100 Package 1 Size: 40"W x 67"D x 10"H Freight: LTL Palletized

Specifications

Use With (cu. yrd.): 2
Use With (style): D
Number of Pieces: 2
Maximum Continuous Temperature Before Bend or Deformation (degrees): 150
Individual Lid Piece Width (in.): 28-1/4
