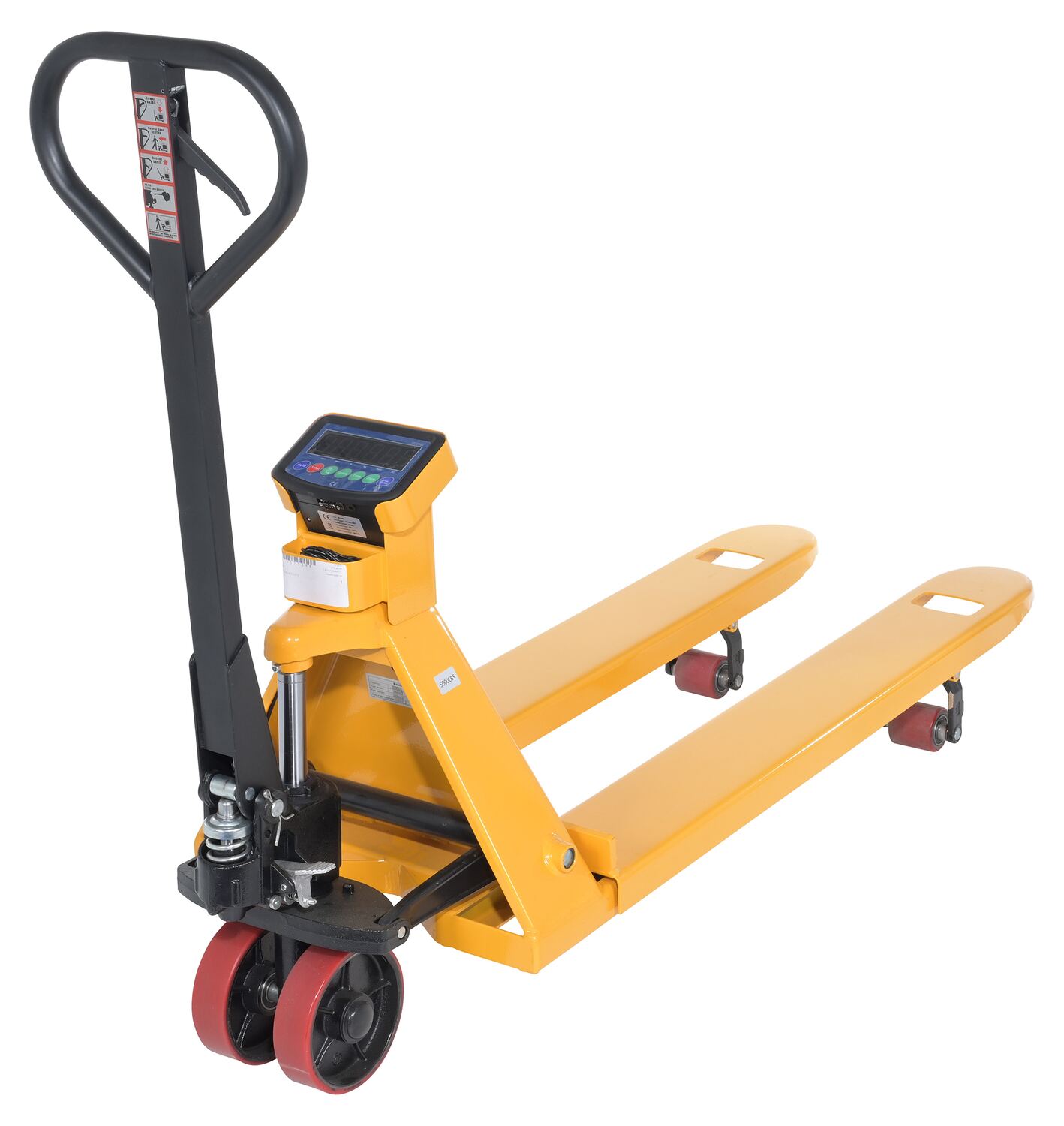

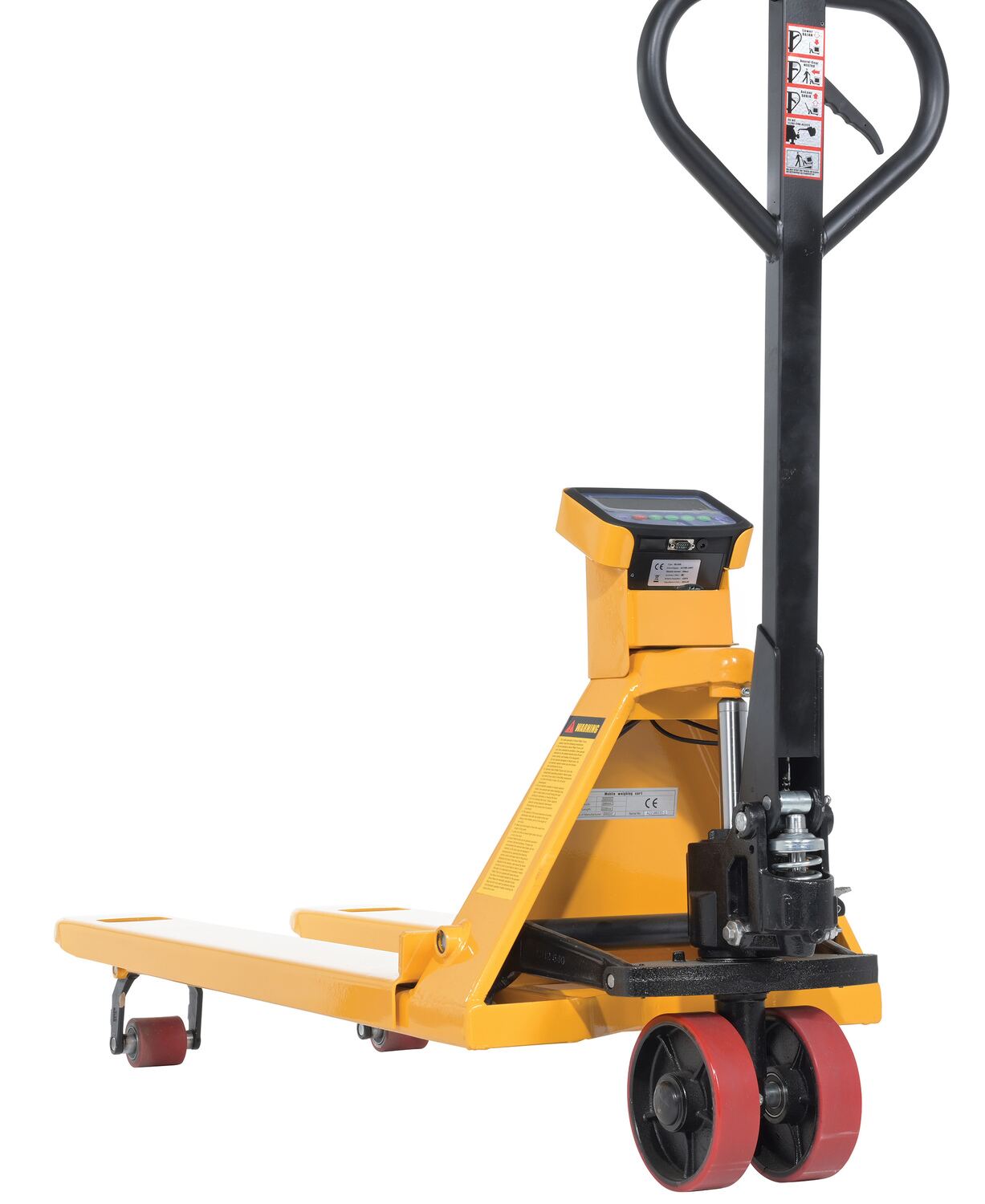

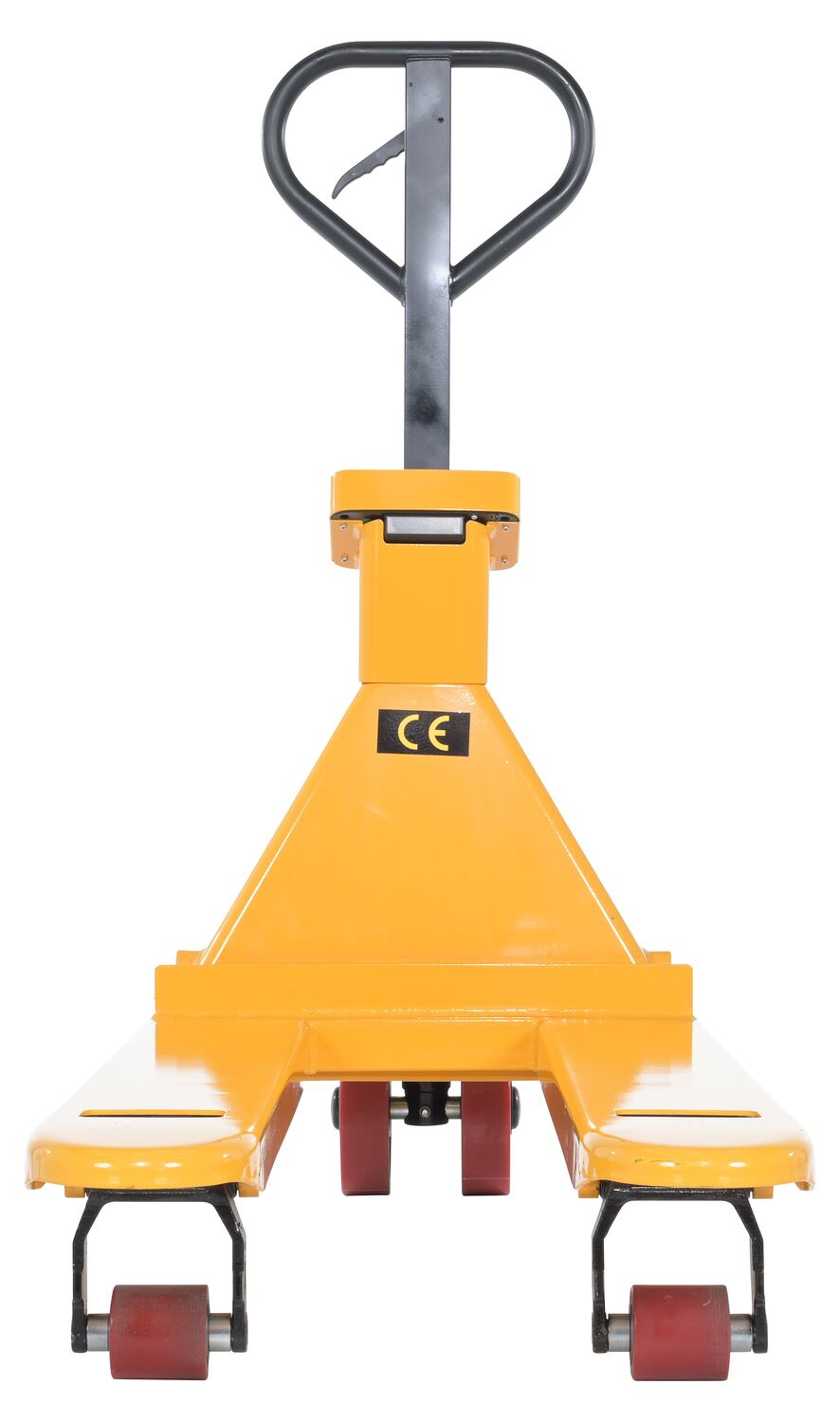

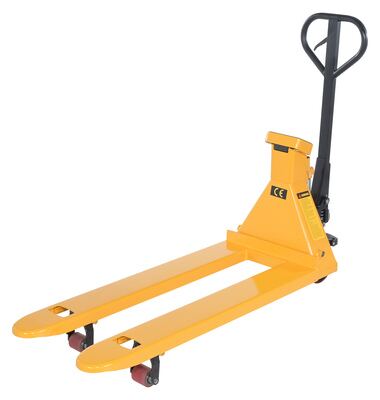

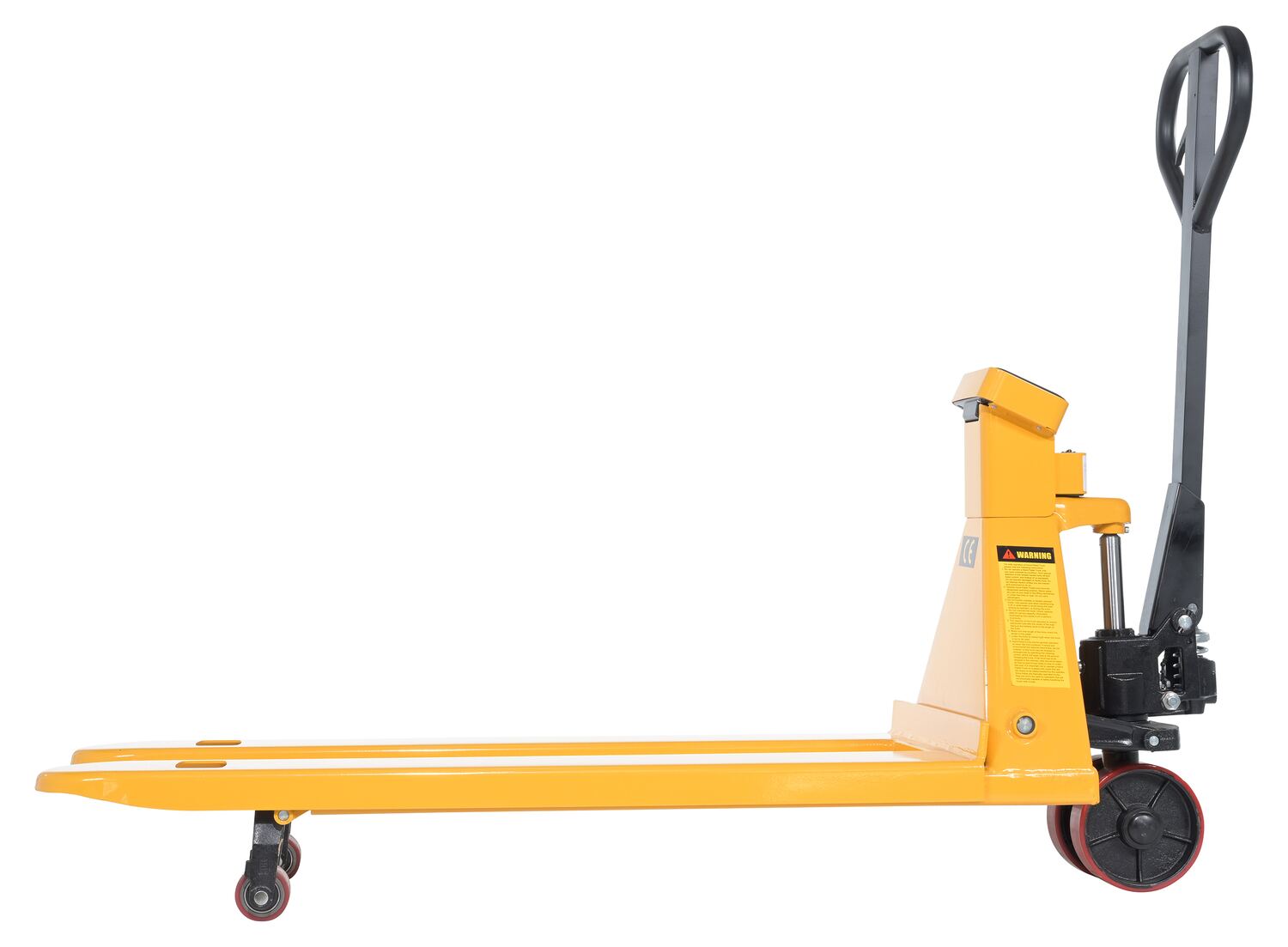

Steel Low Profile Economy Pallet Truck with Scale 67-1/2 In. x 20 In. x 47 In. 5000 Lb. Capacity Yellow

Low-Profile Pallet Truck with Digital Scale for Moving Loads Through Warehouses and Production Areas, 5,000 lb. Capacity with 67-1/2 in. x 20 in. x 47 in.
A low profile pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck. With a scale included, items can be weighed and moved all in one unit. This brings efficiencies to warehouses and shipping areas, while bypassing the traditional time consuming weigh areas. The casters (two steer and two rollers) give the pallet truck quick movement and smooth turn-ability. The forks are built of steel and are powder coated yellow.
Product Status
Out of Stock QuickShip
Key Features
  • Scale includes (1) 6V 4 amp battery
  • Manual hydraulic lift and lowering
  • 5000 lb capacity

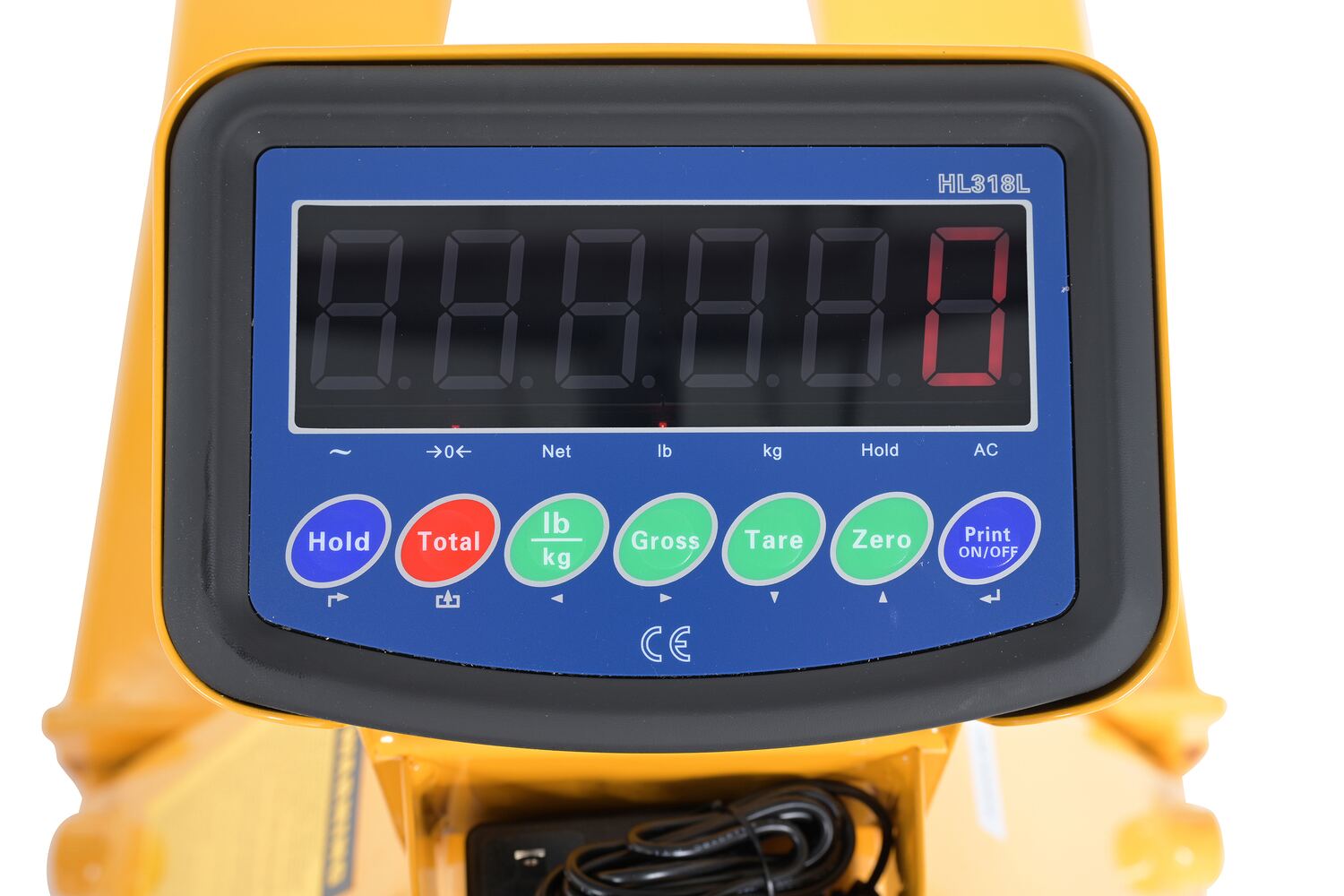

  • Large digital screen display with multiple weight functions
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Series PM-SCALE Pallet Truck with Scale Operators Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 250 lbs
Assembled Size 20"W x 67.5"L x 47"H
Total Ship Weight 280 lbs
Package 1 Size 40"W x 68"D x 23"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5,000
Fork Spacing (in.) 22-1/2
Fork Width/Length (in.) 7 x 48
Service Range (in.) 3-1/8 to 7-1/8

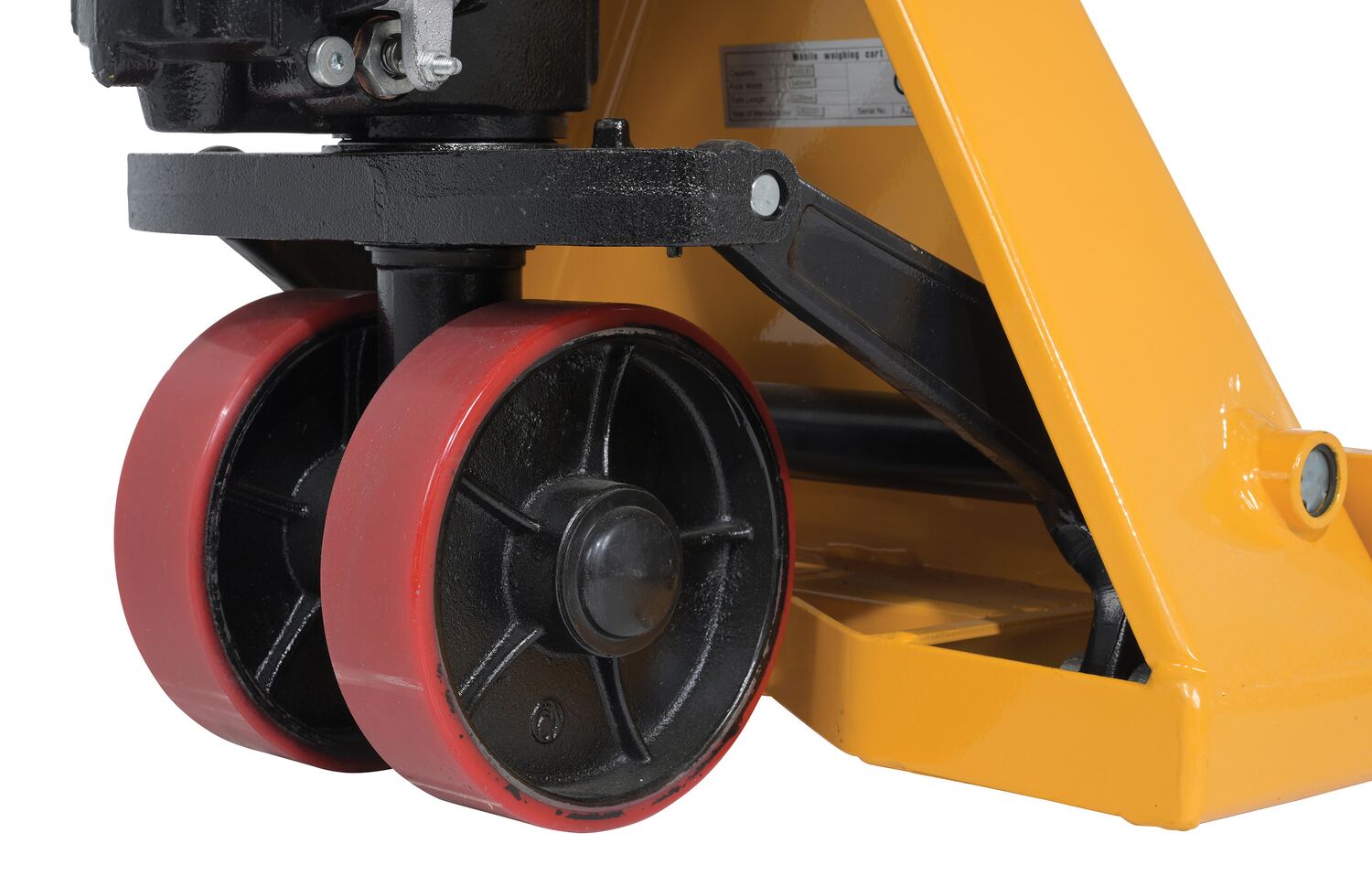

Steer Caster Qty./Diameter/Width (in.) (2) 7-1/4 x 2
Steer Caster Material Poly-on-Steel
Load Roller Qty./Diameter/Width (in.) (2) 2-1/2 x 2-5/8
Load Roller Material Polyurethane
Handle Height (in.) 47
Load Center (in.) 13-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM-2048-SCL-LP-E
Product Name
Steel Low Profile Economy Pallet Truck with Scale 67-1/2 In. x 20 In. x 47 In. 5000 Lb. Capacity Yellow
UPC
691215379021
GTIN
00691215379021
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
67.5
Assembled Width(in.)
20
Assembled Height(in.)
47
Assembled Weight(lbs.)
250
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
68
Package Width (in.)
40
Package Height (in.)
23
Package Weight (in.)
280
Subclass
2
Freight Class
92.5
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM-2048-SCL-LP-E

PM-2048-SCL-LP-E

Steel Low Profile Economy Pallet Truck with Scale 67-1/2 In. x 20 In. x 47 In. 5000 Lb. Capacity Yellow

A low profile pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck. With a scale included, items can be weighed and moved all in one unit. This brings efficiencies to warehouses and shipping areas, while bypassing the traditional time consuming weigh areas. The casters (two steer and two rollers) give the pallet truck quick movement and smooth turn-ability. The forks are built of steel and are powder coated yellow.

  • Scale includes (1) 6V 4 amp battery
  • Manual hydraulic lift and lowering
  • 5000 lb capacity
  • Large digital screen display with multiple weight functions

Core Data

Assembled Weight: 250 Assembled Size: 20"W x 67.5"L x 47"H Color: Yellow
Total Ship Weight: 280 Package 1 Size: 40"W x 68"D x 23"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 5,000
Fork Spacing (in.): 22-1/2
Fork Width/Length (in.): 7 x 48
Service Range (in.): 3-1/8 to 7-1/8
Steer Caster Qty./Diameter/Width (in.): (2) 7-1/4 x 2
Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 2-1/2 x 2-5/8
Load Roller Material: Polyurethane
Handle Height (in.): 47
Load Center (in.): 13-1/2
