Steel Trade Legal Low Profile Pallet Truck with Scale and Printer 66 In. x 28 In. x 48 In. 5000 Lb. Capacity Red

Low-Profile Pallet Truck with Digital Scale for Moving Loads Through Warehouses and Production Areas, 5,000 lb. Capacity with 66 in. x 28 in. x 48 – Model PM-2746-TL-SCL-LP-PT

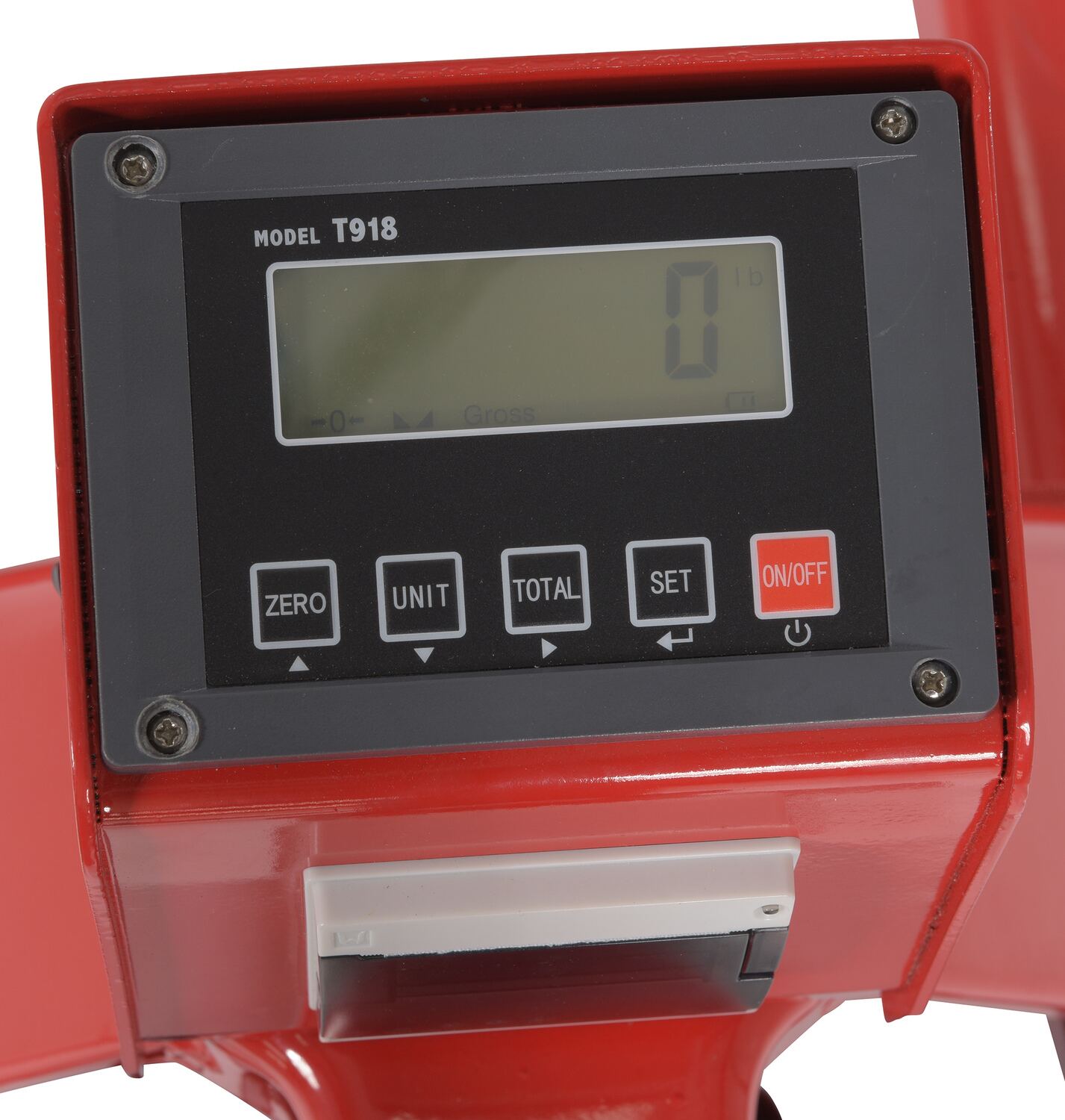

The pallet truck with digital scale allows you to weigh your load on the spot for maximum efficiency. The frame uses heavy-duty steel construction for maximum strength and durability. The unit is very user friendly and is suitable for low height lifting. The built-in scale allows you to weigh your load while it is being handled and comes with a scale and printer. The scale is selectable in a variety of increments to adjust to the size of your load. It has keyboard calibration and functional setup with automatic zero capabilities. Digital filtering is used to help compensate for vibration and motion to make the pallet truck with digital scale smooth and accurate. The scale is powered by batteries with AC adapter included. NTEP approval is also available.
Product Status
Available
Key Features
  • Pallet truck with digital scale & printer allows you to weigh your load on the spot and print information for maximum efficiency
  • Uses heavy-duty steel construction for maximum strength and durability
  • The scale is selectable in a variety of increments to adjust to the size of your load
  • Digital filtering is used to help compensate for vibration and motion to make the pallet truck with digital scale smooth and accurate
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   360 Image   model PM-2746-TL-SCL-LP Indicator Operators Manual   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 306 lbs
Assembled Size 27.5"W x 61"L x 45"H
Total Ship Weight 345 lbs
Package 1 Size 50"W x 72"D x 48"H
Color / Finish Red
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5,000
Fork Spacing (in.) 27
Fork Width/Length (in.) 7 x 46
Service Range (in.) 3-1/8 to 7-1/2
Steer Caster Qty./Diameter/Width (in.) (2) 7 x 2
Steer Caster Material Poly-on-Steel
Load Roller Qty./Diameter/Width (in.) (2) 4 x 3
Load Roller Material Polyurethane
Handle Height (in.) 47
Features Scale and Printer

Battery Information

Battery Depth 3
Battery Width 2
Battery Height 2
Battery Weight 5
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM-2746-TL-SCL-LP-PT
Product Name
Steel Trade Legal Low Profile Pallet Truck with Scale and Printer 66 In. x 28 In. x 48 In. 5000 Lb. Capacity Red
UPC
691215322423
GTIN
00691215322423
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
61
Assembled Width(in.)
27.5
Assembled Height(in.)
45
Assembled Weight(lbs.)
306
Color/Finish
Red
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
72
Package Width (in.)
50
Package Height (in.)
48
Package Weight (in.)
345
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
5
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
