Steel Low Profile Economy Pallet Truck with Scale 67-1/2 In. x 27 In. x 47 In. 5000 Lb. Capacity Yellow

Low-Profile Pallet Truck with Digital Scale for Moving Loads Through Warehouses and Production Areas, 5,000 lb. Capacity with 67-1/2 in. x 27 in. x 47 in.
An economy pallet master with a digital scale helps to maximize efficiency in the workplace. The scale allows the user to weigh the load on the spot for more streamlined shipping experience. A hydraulic hand pump operation lets the user find the perfect positioning. The frame is designed of steel for maximum strength and durability. The scale includes many options that can be selected to best fit the users’ needs. A powder-coat finish minimizes abrasions that may occur during handling.
Product Status
Out of Stock QuickShip
Key Features

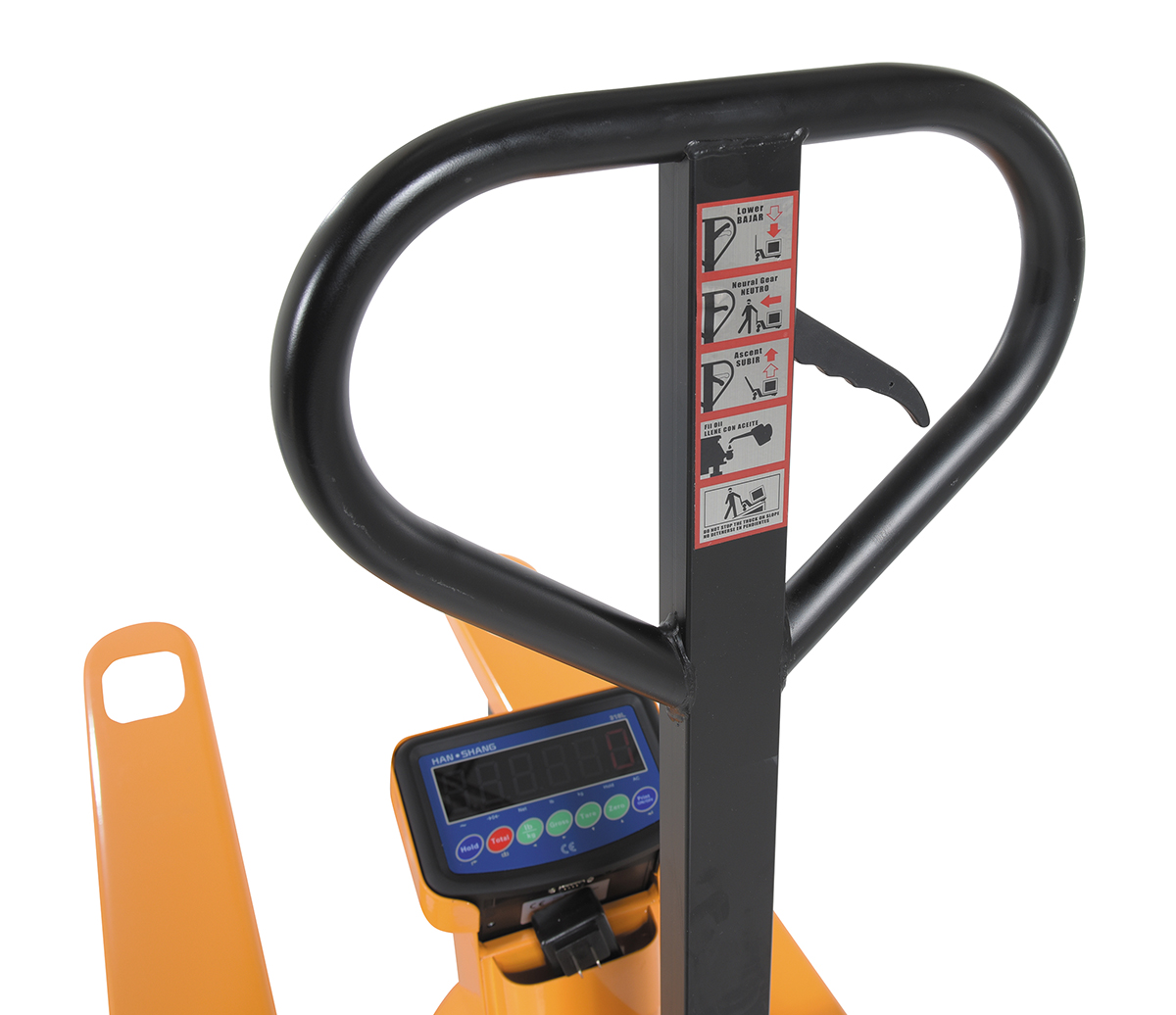

  • Digital scale allows for quick weight measurement
  • Scale includes (1) 6V 4 amp battery
  • Smooth rolling over a variety of surfaces
  • Designed for small and large items
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Series PM-SCALE Pallet Truck with Scale Operators Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 250 lbs
Assembled Size 27"W x 67.5"L x 47"H
Total Ship Weight 280 lbs
Package 1 Size 40"W x 68"D x 53"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5,000
Fork Spacing (in.) 27-1/2
Fork Width/Length (in.) 7 x 48

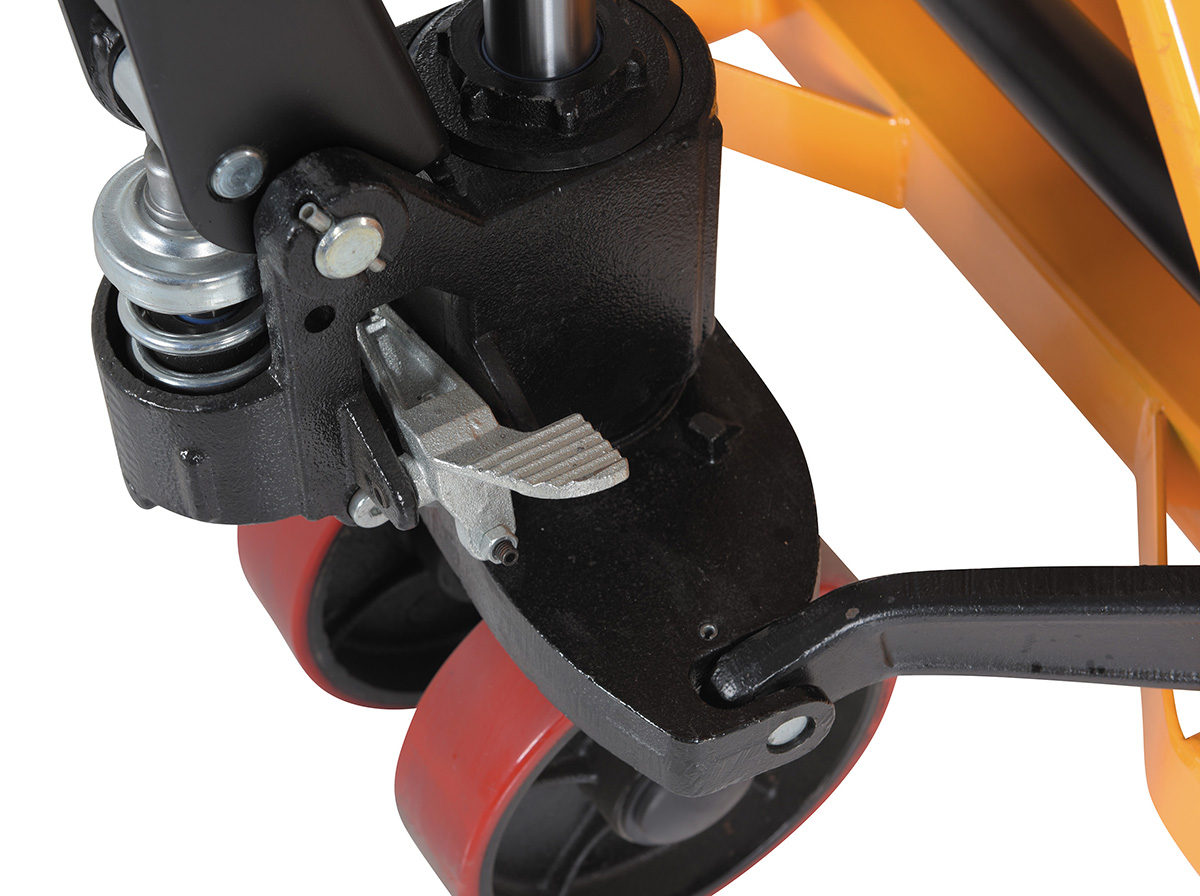

Steer Caster Qty./Diameter/Width (in.) (2) 7-1/4 x 2
Steer Caster Material Poly-on-Steel
Load Roller Qty./Diameter/Width (in.) (4) 2-1/2 x 2-5/8
Load Roller Material Polyurethane
Features Scale
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM-2748-SCL-LP-E
Product Name
Steel Low Profile Economy Pallet Truck with Scale 67-1/2 In. x 27 In. x 47 In. 5000 Lb. Capacity Yellow
UPC
691215335751
GTIN
00691215335751
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
67.5
Assembled Width(in.)
27
Assembled Height(in.)
47
Assembled Weight(lbs.)
250
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
68
Package Width (in.)
40
Package Height (in.)
53
Package Weight (in.)
280
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM-2748-SCL-LP-E

PM-2748-SCL-LP-E

Steel Low Profile Economy Pallet Truck with Scale 67-1/2 In. x 27 In. x 47 In. 5000 Lb. Capacity Yellow

An economy pallet master with a digital scale helps to maximize efficiency in the workplace. The scale allows the user to weigh the load on the spot for more streamlined shipping experience. A hydraulic hand pump operation lets the user find the perfect positioning. The frame is designed of steel for maximum strength and durability. The scale includes many options that can be selected to best fit the users’ needs. A powder-coat finish minimizes abrasions that may occur during handling.

  • Digital scale allows for quick weight measurement
  • Scale includes (1) 6V 4 amp battery
  • Smooth rolling over a variety of surfaces
  • Designed for small and large items

Core Data

Assembled Weight: 250 Assembled Size: 27"W x 67.5"L x 47"H Color: Yellow
Total Ship Weight: 280 Package 1 Size: 40"W x 68"D x 53"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 5,000
Fork Spacing (in.): 27-1/2
Fork Width/Length (in.): 7 x 48
Steer Caster Qty./Diameter/Width (in.): (2) 7-1/4 x 2
Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (4) 2-1/2 x 2-5/8
Load Roller Material: Polyurethane
Features: Scale
