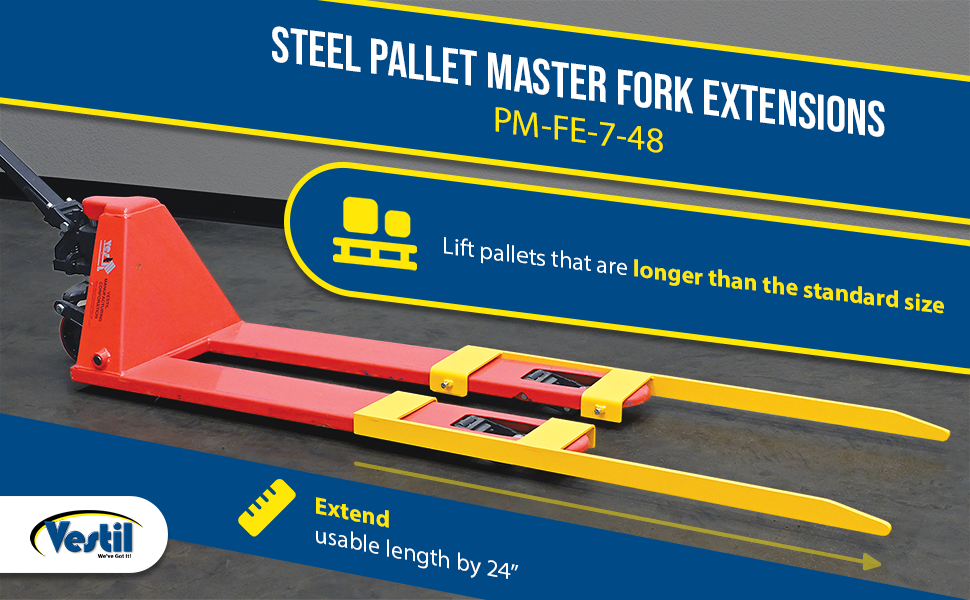

Steel Pallet Master Fork Extensions 7 In. x 48 In. Yellow

Pallet Master Fork Extensions for Extending Forklift Reach for Long and Oversized Loads, 4,000 lb. Capacity with 7 in. x 48 in.

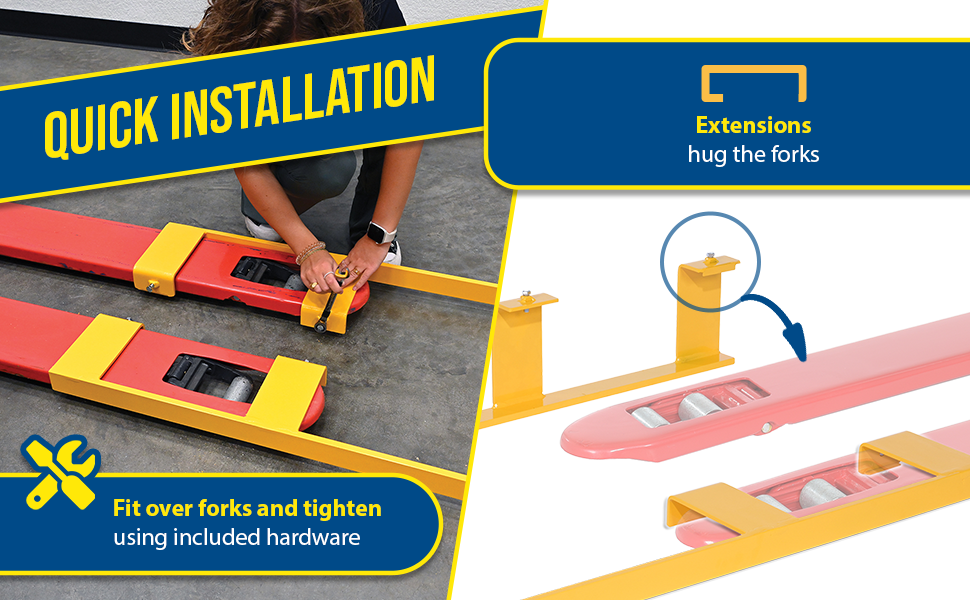

A pallet master fork extension provides the ability to lift and maneuver pallets of a variety of sizes. With the help of these extensions, each user is able to lift pallets that are longer than the standard size. The installation process is quick; culminating in the extension being secured directly to the fork itself. Capacity for each extension is determined by the capacity of the pallet master it is attached to. Max uniform capacity is 4,000 lb., not to exceed the capacity of the pallet jack the extensions are used on.
Product Status
Available QuickShip
Key Features

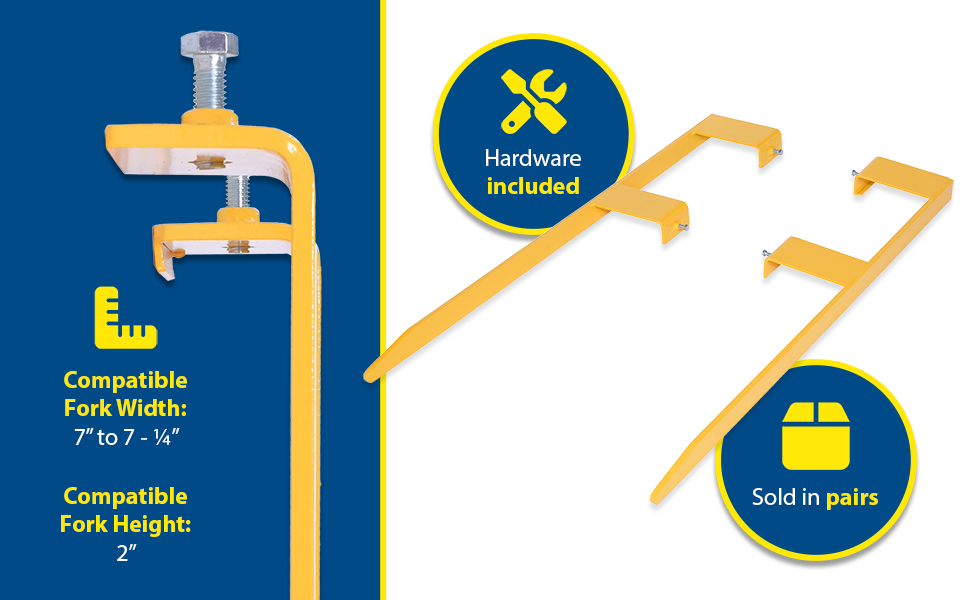

  • 7-1/4" fork pocket
  • 24" usable length
  • Sold in pairs
  • Hardware is included
New Product Images Coming Soon - Design change
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 19 lbs
Assembled Size 9.28125"W x 48"L x 2.5"H
Total Ship Weight 40 lbs
Package 1 Size 10"W x 49"D x 4"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Fork Pocket Width (in.) 7-1/4
Overall Length (in.) 48
Hardware Included? Yes
Max. Pallet Truck Fork Height (in.) 2
Compatible Fork Size (in.) 7 to 7-1/8
Fork Material Thickness (in.) 1/2
Bracket Material Thickness (in.) 1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM-FE-7-48
Product Name
Steel Pallet Master Fork Extensions 7 In. x 48 In. Yellow
UPC
691215378192
GTIN
00691215378192
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Fork Extensions
Assembled Depth (in.)
48
Assembled Width(in.)
9.28125
Assembled Height(in.)
2.5
Assembled Weight(lbs.)
19
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
PR-Pair
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
PM5-2738-WN, PM5-2748-DMHB, PM5-2748-Y, PM5-2748-PA-Y, PM5-2048-QL, PM5-2748-QL, PM5-2048, PM5-2736, PM5-2742, PM5-2748, PM5-2748-BK, PM5-2748-BL, PM5-2748-F, PM5-2748-N, PM5-2748-OR, PM5-2748-PINK, PM5-2748-RD, PM5-2748-SL, PM5-2748-WT

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
49
Package Width (in.)
10
Package Height (in.)
4
Package Weight (in.)
40
Subclass
11
Freight Class
60
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine
NMFC Number
193100
LTL Freight
Parcel
UNSPSC
24101629
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM-FE-7-48

PM-FE-7-48

Steel Pallet Master Fork Extensions 7 In. x 48 In. Yellow

A pallet master fork extension provides the ability to lift and maneuver pallets of a variety of sizes. With the help of these extensions, each user is able to lift pallets that are longer than the standard size. The installation process is quick; culminating in the extension being secured directly to the fork itself. Capacity for each extension is determined by the capacity of the pallet master it is attached to. Max uniform capacity is 4,000 lb., not to exceed the capacity of the pallet jack the extensions are used on.

  • 7-1/4" fork pocket
  • 24" usable length
  • Sold in pairs
  • Hardware is included

Core Data

Assembled Weight: 19 Assembled Size: 9.28125"W x 48"L x 2.5"H Color: Yellow
Total Ship Weight: 40 Package 1 Size: 10"W x 49"D x 4"H Freight: Parcel

Specifications

Fork Pocket Width (in.): 7-1/4
Overall Length (in.): 48
Hardware Included?: Yes
Max. Pallet Truck Fork Height (in.): 2
Compatible Fork Size (in.): 7 to 7-1/8
Fork Material Thickness (in.): 1/2
Bracket Material Thickness (in.): 1/4
