Steel Full Featured Pallet Truck 58 In. x 22-3/4 In. x 48 In. 10000 Lb. Capacity Yellow

Pallet Lift Truck for Moving Loads Through Warehouses and Production Areas, 10,000 lb. Capacity with 58 in. x 22-3/4 in. x 48 in.
The full featured pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. This pallet truck is equipped with internally mounted solid steel adjustable push rods. The spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life. Tow loops for simple towing of the truck. Pallet truck is rated for 5T capacity. A full capacity 5T load can be pulled/pushed manually for short distance, but for longer distance it needs to be towed.
Product Status
Available QuickShip
Key Features
  • Economical way for one person to move heavy pallet loads without the use of a fork truck
  • Steering wheels include bearing dust covers for added life
  • Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks
  • Hydraulic pump design facilitates easy-access seal replacement
Quick Actions

Product Resources

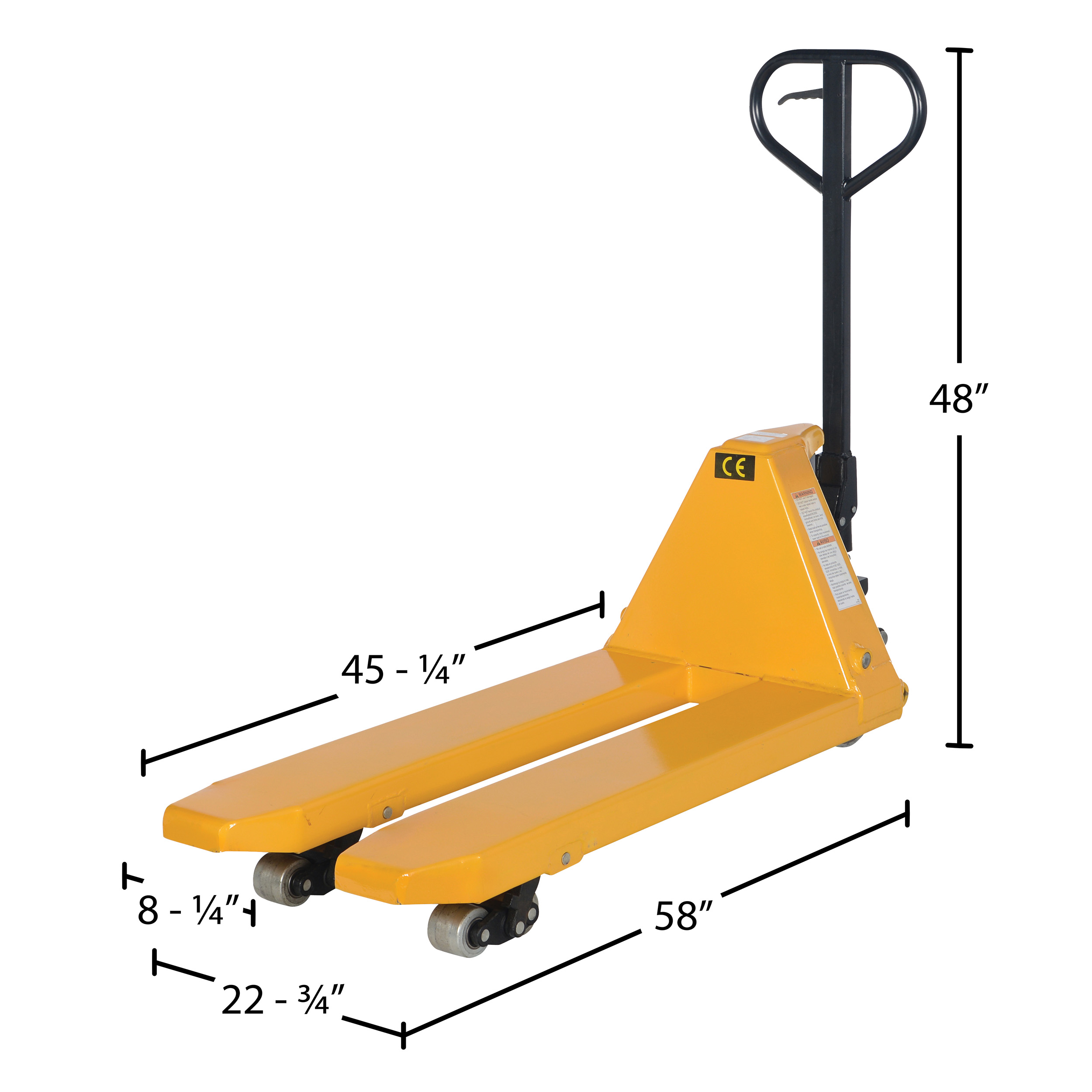

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   PM10-2245 Manual Pallet Truck Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 423 lbs
Assembled Size 22.75"W x 58"L x 48"H
Total Ship Weight 423 lbs
Package 1 Size 40"W x 64"D x 24"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 10,000
Fork Width/Length (in.) 8-1/2 x 45-1/4
Fork Spacing (in.) 22-3/4
Service Range (in.) 3-1/2 to 7-7/8
Steer Wheel Qty./Diameter/Width (in.) (2) 6-1/4 x 2
Steer Wheel Material Steel
Load Wheel Qty./Diameter/Width (in.) (2) 1 x 2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM10-2245
Product Name
Steel Full Featured Pallet Truck 58 In. x 22-3/4 In. x 48 In. 10000 Lb. Capacity Yellow
UPC
691215062183
GTIN
00691215062183
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
58
Assembled Width(in.)
22.75
Assembled Height(in.)
48
Assembled Weight(lbs.)
423
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
24
Package Weight (in.)
423
Subclass
2
Freight Class
92.5
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM10-2245

PM10-2245

Steel Full Featured Pallet Truck 58 In. x 22-3/4 In. x 48 In. 10000 Lb. Capacity Yellow

The full featured pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. This pallet truck is equipped with internally mounted solid steel adjustable push rods. The spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life. Tow loops for simple towing of the truck. Pallet truck is rated for 5T capacity. A full capacity 5T load can be pulled/pushed manually for short distance, but for longer distance it needs to be towed.

  • Economical way for one person to move heavy pallet loads without the use of a fork truck
  • Steering wheels include bearing dust covers for added life
  • Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks
  • Hydraulic pump design facilitates easy-access seal replacement

Core Data

Assembled Weight: 423 Assembled Size: 22.75"W x 58"L x 48"H Color: Yellow
Total Ship Weight: 423 Package 1 Size: 40"W x 64"D x 24"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 10,000
Fork Width/Length (in.): 8-1/2 x 45-1/4
Fork Spacing (in.): 22-3/4
Service Range (in.): 3-1/2 to 7-7/8
Steer Wheel Qty./Diameter/Width (in.): (2) 6-1/4 x 2
Steer Wheel Material: Steel
Load Wheel Qty./Diameter/Width (in.): (2) 1 x 2
