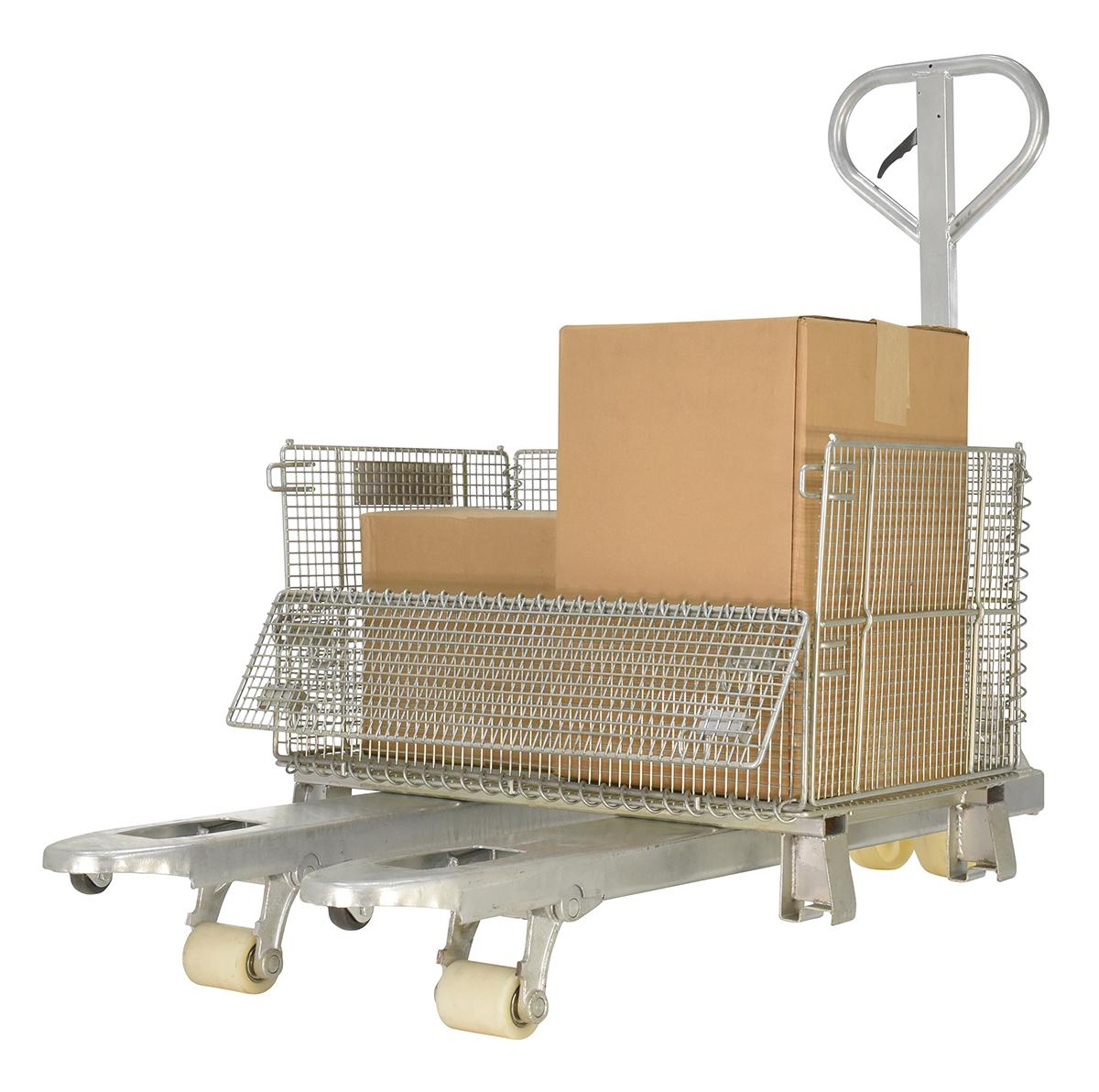

Galvanized Steel Pallet Truck 64 In. x 20-1/2 In. x 48-1/2 In. 5500 Lb. Capacity Gray

Galvanized Pallet Lift Truck for Moving Loads Through Warehouses and Production Areas, 5,500 lb. Capacity with 64 in. x 20-1/2 in. x 48-1/2 in.
The specialized pallet trucks are ideal for corrosive environments. The pallet truck includes a galvanized finish for strong durability in the harshest of environments. Full-featured pallet trucks were designed for chemical, pharmaceutical, and wash-down applications. 5,500 pounds uniform capacity.
Product Status
Available QuickShip
Key Features
  • Ergonomic handle height
  • Strong maneuver ability when loaded
  • Extra strength forks for lifting capabilities
  • Traverses smoothly over a variety of terrains
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 147 lbs
Assembled Size 20.5"W x 64"L x 48.5"H
Total Ship Weight 185 lbs
Package 1 Size 42"W x 64"D x 21"H
Color / Finish Gray
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5,500
Fork Spacing (in.) 20
Fork Width/Length (in.) 6-1/2 x 48
Service Range (in.) 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.) (2) 7 x 2
Steer Caster Material Polyurethane
Load Roller Qty./Diameter/Width (in.) (2) 3 x 3-1/2
Load Roller Material Rubber
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM5-2048-S-G
Product Name
Galvanized Steel Pallet Truck 64 In. x 20-1/2 In. x 48-1/2 In. 5500 Lb. Capacity Gray
UPC
691215113328
GTIN
00691215113328
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
64
Assembled Width(in.)
20.5
Assembled Height(in.)
48.5
Assembled Weight(lbs.)
147
Color/Finish
Gray
Material
Galvanized Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
42
Package Height (in.)
21
Package Weight (in.)
185
Subclass
2
Freight Class
92.5
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM5-2048-S-G

PM5-2048-S-G

Galvanized Steel Pallet Truck 64 In. x 20-1/2 In. x 48-1/2 In. 5500 Lb. Capacity Gray

The specialized pallet trucks are ideal for corrosive environments. The pallet truck includes a galvanized finish for strong durability in the harshest of environments. Full-featured pallet trucks were designed for chemical, pharmaceutical, and wash-down applications. 5,500 pounds uniform capacity.

  • Ergonomic handle height
  • Strong maneuver ability when loaded
  • Extra strength forks for lifting capabilities
  • Traverses smoothly over a variety of terrains

Core Data

Assembled Weight: 147 Assembled Size: 20.5"W x 64"L x 48.5"H Color: Gray
Total Ship Weight: 185 Package 1 Size: 42"W x 64"D x 21"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 5,500
Fork Spacing (in.): 20
Fork Width/Length (in.): 6-1/2 x 48
Service Range (in.): 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2
Steer Caster Material: Polyurethane
Load Roller Qty./Diameter/Width (in.): (2) 3 x 3-1/2
Load Roller Material: Rubber
