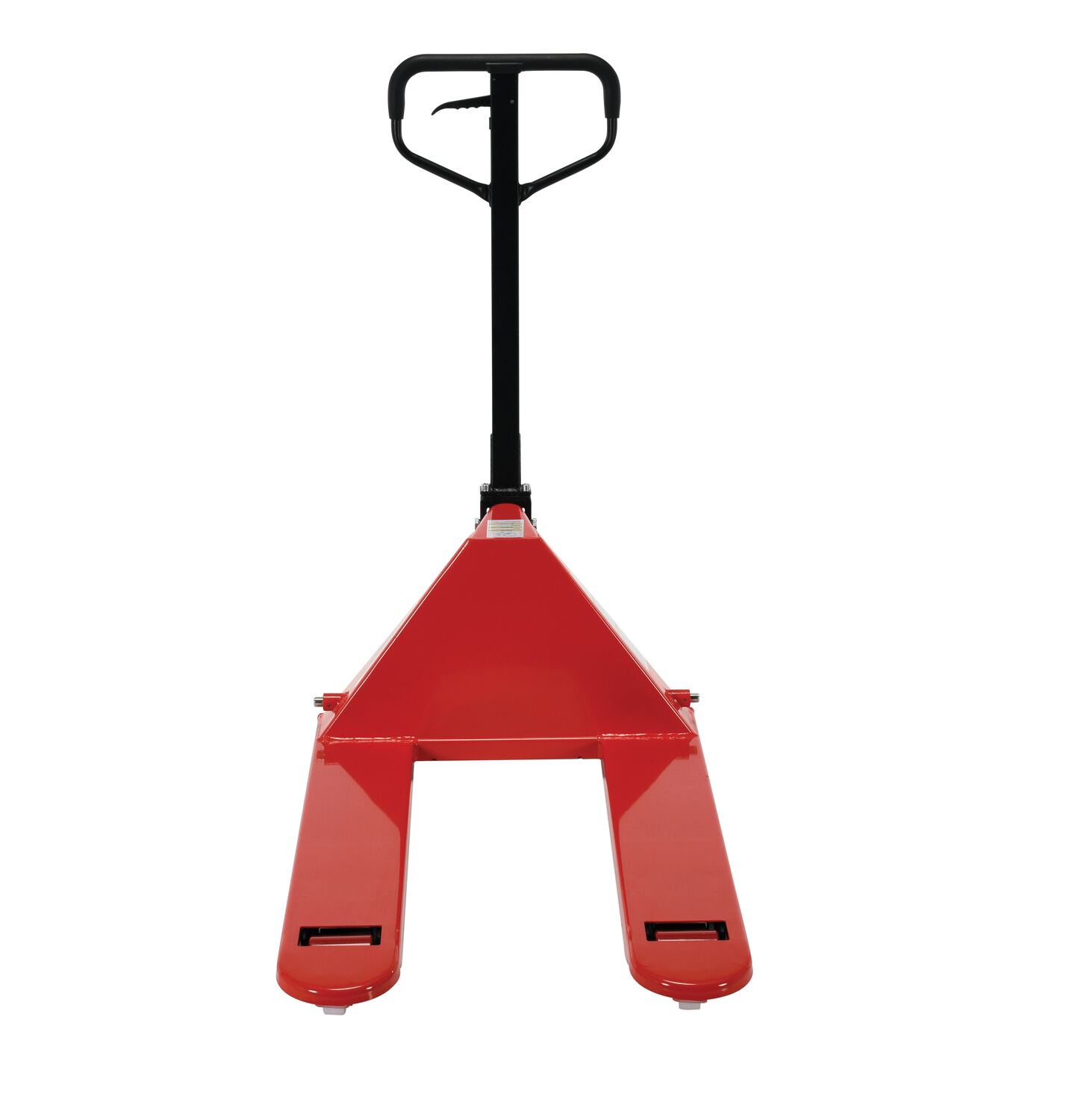

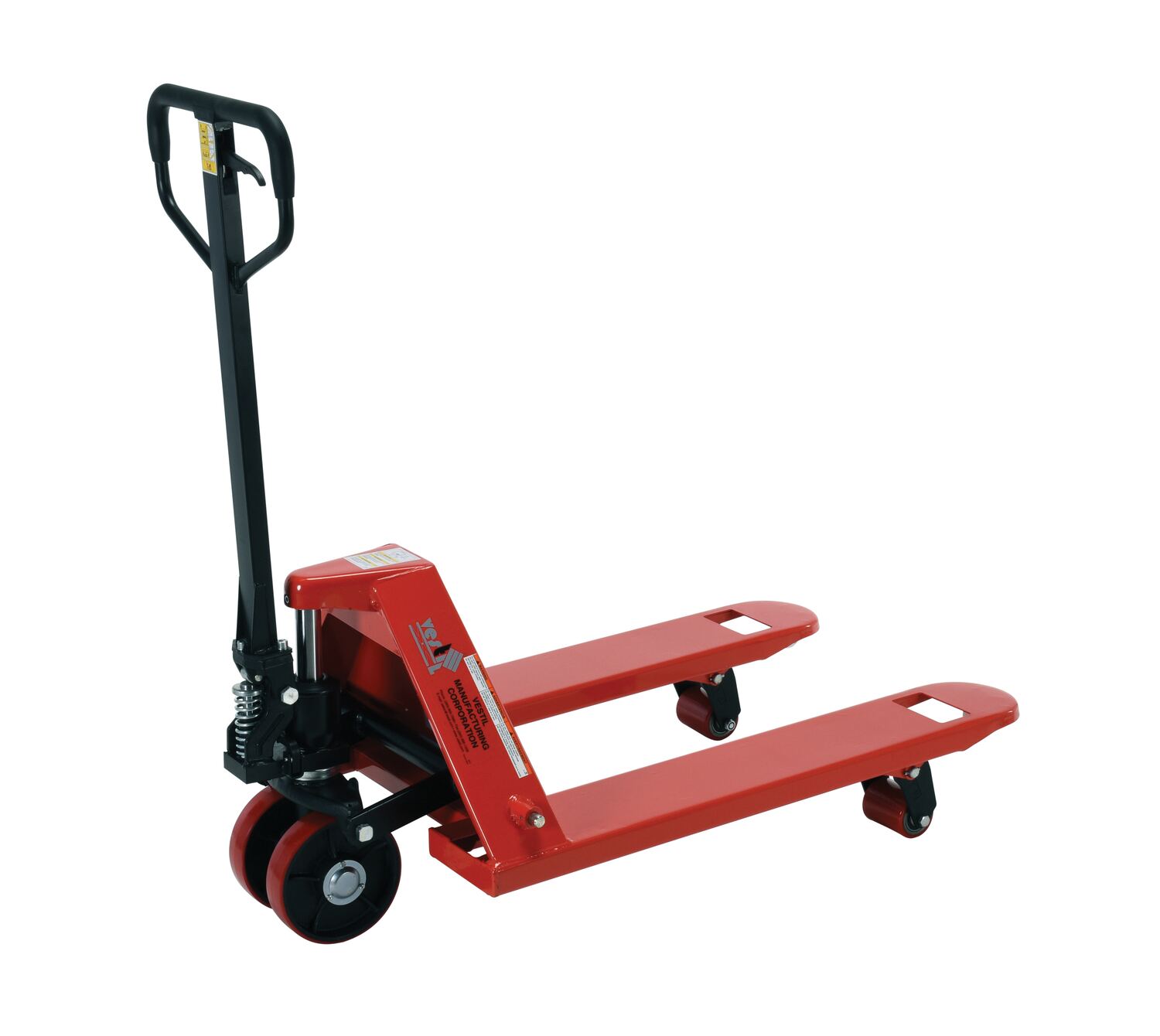

Steel Full Featured Pallet Truck 49-1/2 In. x 27 In. x 48-1/2 In. 5500 Lb. Capacity Red

Pallet Lift Truck for Moving Loads Through Warehouses and Production Areas, 5,500 lb. Capacity with 49-1/2 in. x 27 in. x 48-1/2 in.
An economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two articulating steering wheels and two front load rollers. Ergonomic design requires only 75 pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. Equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life.
Product Status
Available QuickShip
Key Features
  • Ergonomic handle height
  • Strong maneuver ability when loaded
  • Extra strength forks for lifting capabilities
  • Traverses smoothly over a variety of terrains
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 161 lbs
Assembled Size 27"W x 49.5"L x 48.5"H
Total Ship Weight 222 lbs
Package 1 Size 51"W x 64"D x 23"H
Color / Finish Red
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5,500
Fork Width/Length (in.) 7 x 36
Fork Spacing (in.) 27
Service Range (in.) 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.) (2) 8 x 2
Steer Caster Material Poly-on-Steel
Load Roller Qty./Diameter/Width (in.) (2) 3 x 3-3/4
Load Roller Material Polyurethane
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM5-2736
Product Name
Steel Full Featured Pallet Truck 49-1/2 In. x 27 In. x 48-1/2 In. 5500 Lb. Capacity Red
UPC
691215113335
GTIN
00691215113335
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
49.5
Assembled Width(in.)
27
Assembled Height(in.)
48.5
Assembled Weight(lbs.)
161
Color/Finish
Red
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required
Compatible Products
PM-FE-7-48

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
51
Package Height (in.)
23
Package Weight (in.)
222
Subclass
2
Freight Class
92.5
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM5-2736

PM5-2736

Steel Full Featured Pallet Truck 49-1/2 In. x 27 In. x 48-1/2 In. 5500 Lb. Capacity Red

An economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two articulating steering wheels and two front load rollers. Ergonomic design requires only 75 pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. Equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life.

  • Ergonomic handle height
  • Strong maneuver ability when loaded
  • Extra strength forks for lifting capabilities
  • Traverses smoothly over a variety of terrains

Core Data

Assembled Weight: 161 Assembled Size: 27"W x 49.5"L x 48.5"H Color: Red
Total Ship Weight: 222 Package 1 Size: 51"W x 64"D x 23"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 36
Fork Spacing (in.): 27
Service Range (in.): 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.): (2) 8 x 2
Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 3 x 3-3/4
Load Roller Material: Polyurethane
