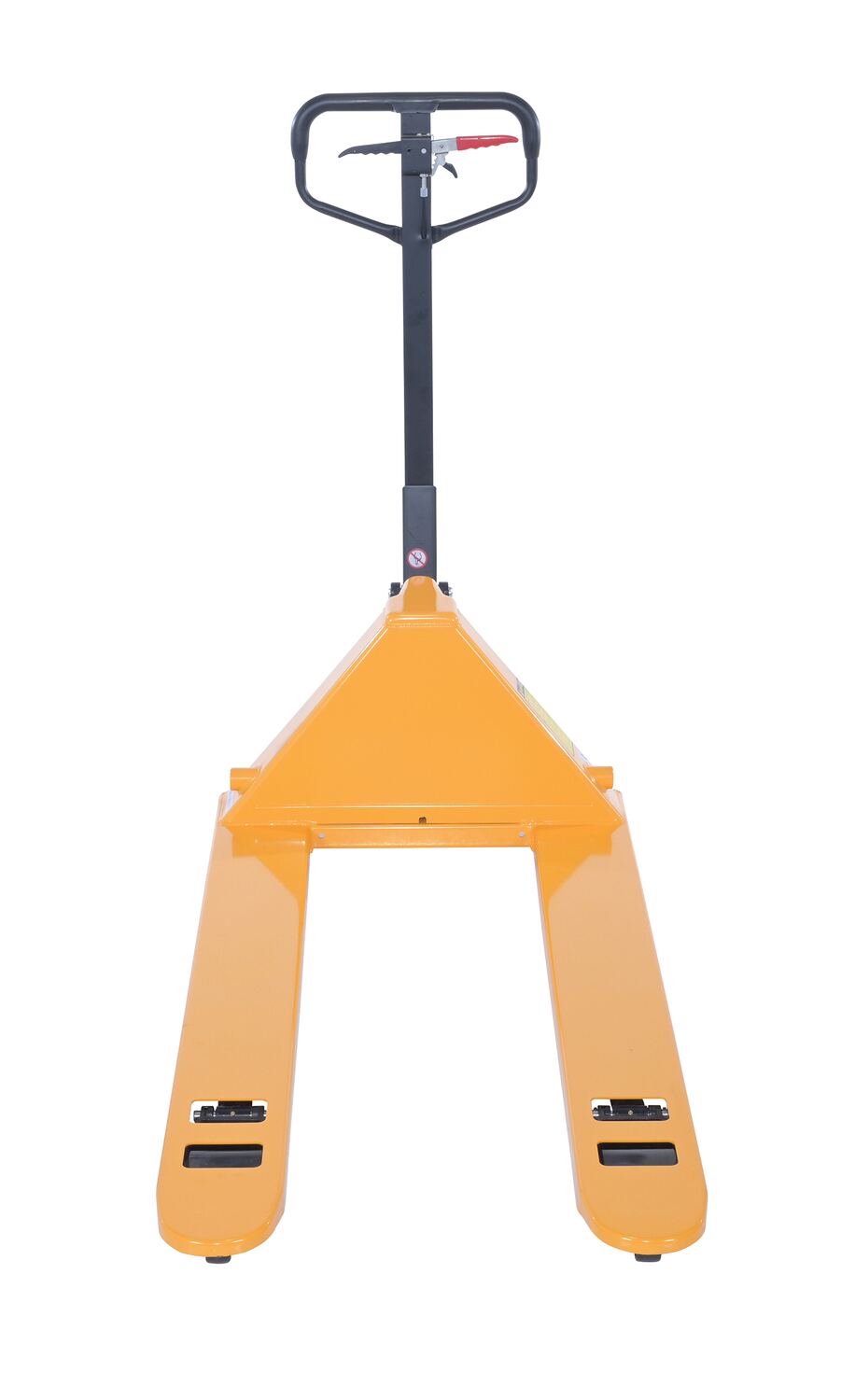

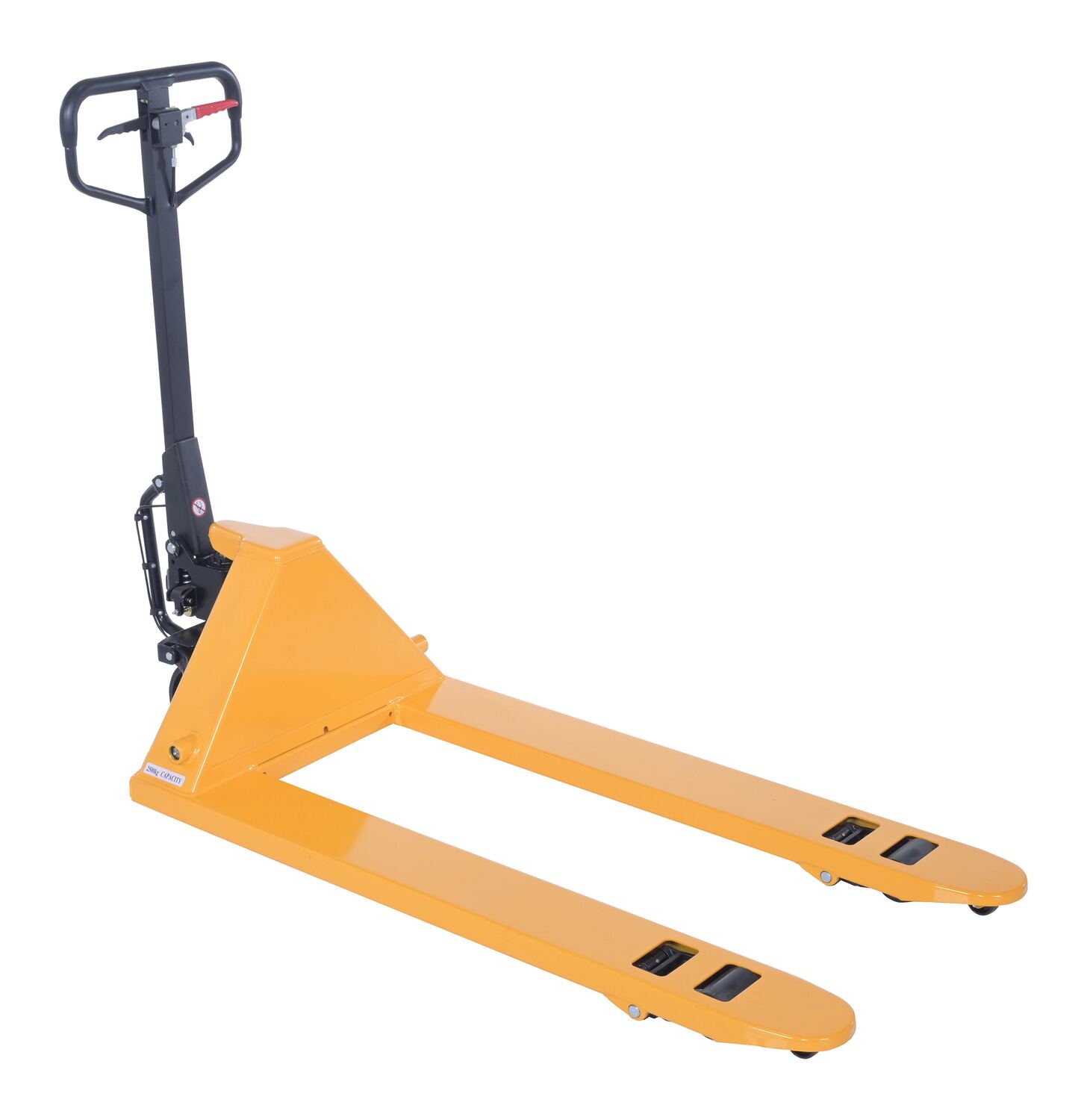

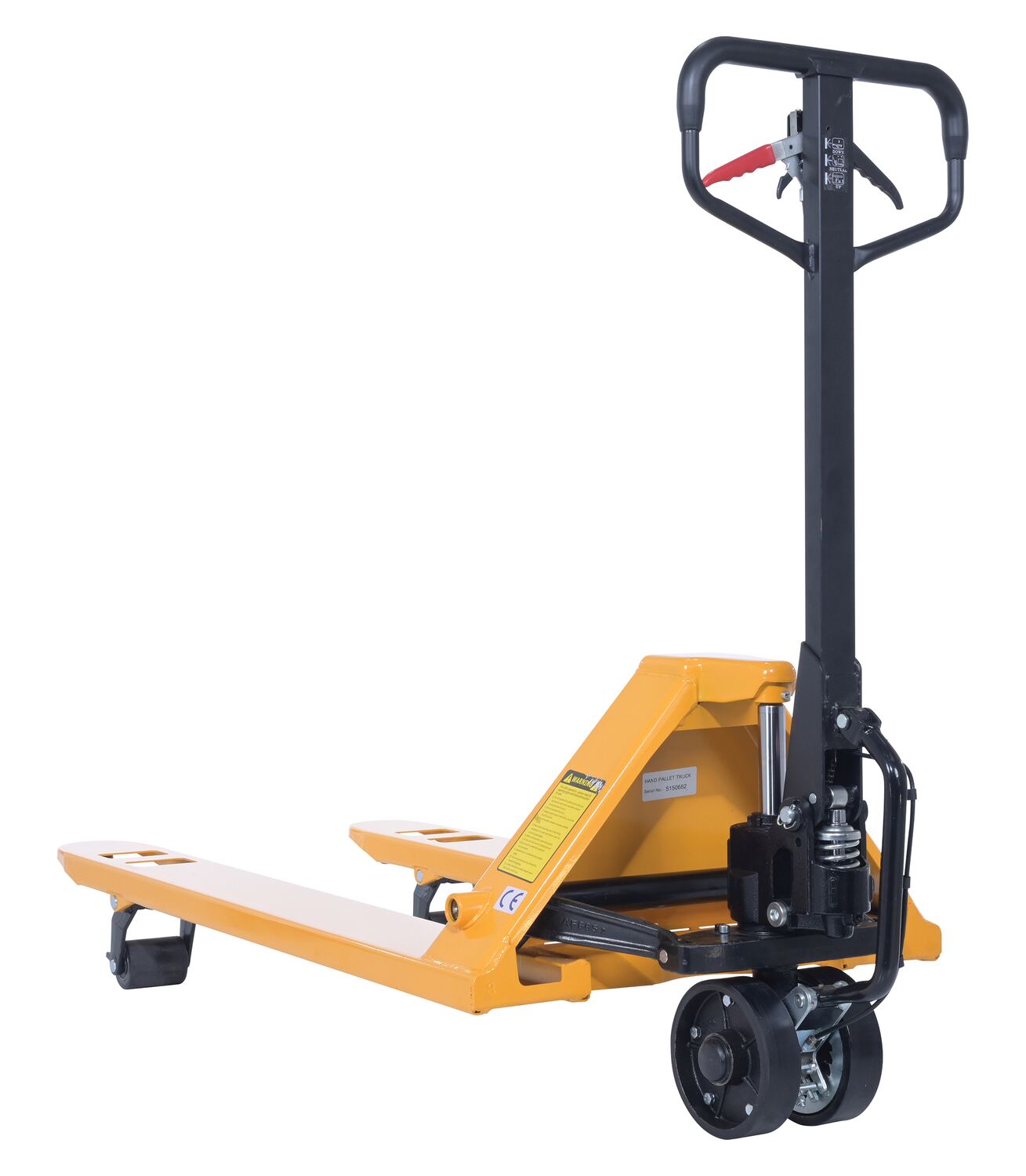

Steel Ergonomic Power Assist Pallet Truck 27 In. x 48 In. 5000 Lb. Capacity Yellow

Ergonomic Power Assist Pallet Truck for Moving Loads Through Warehouses and Production Areas, 5,000 lb. Capacity with 27 in. x 48 in., Yellow Finish

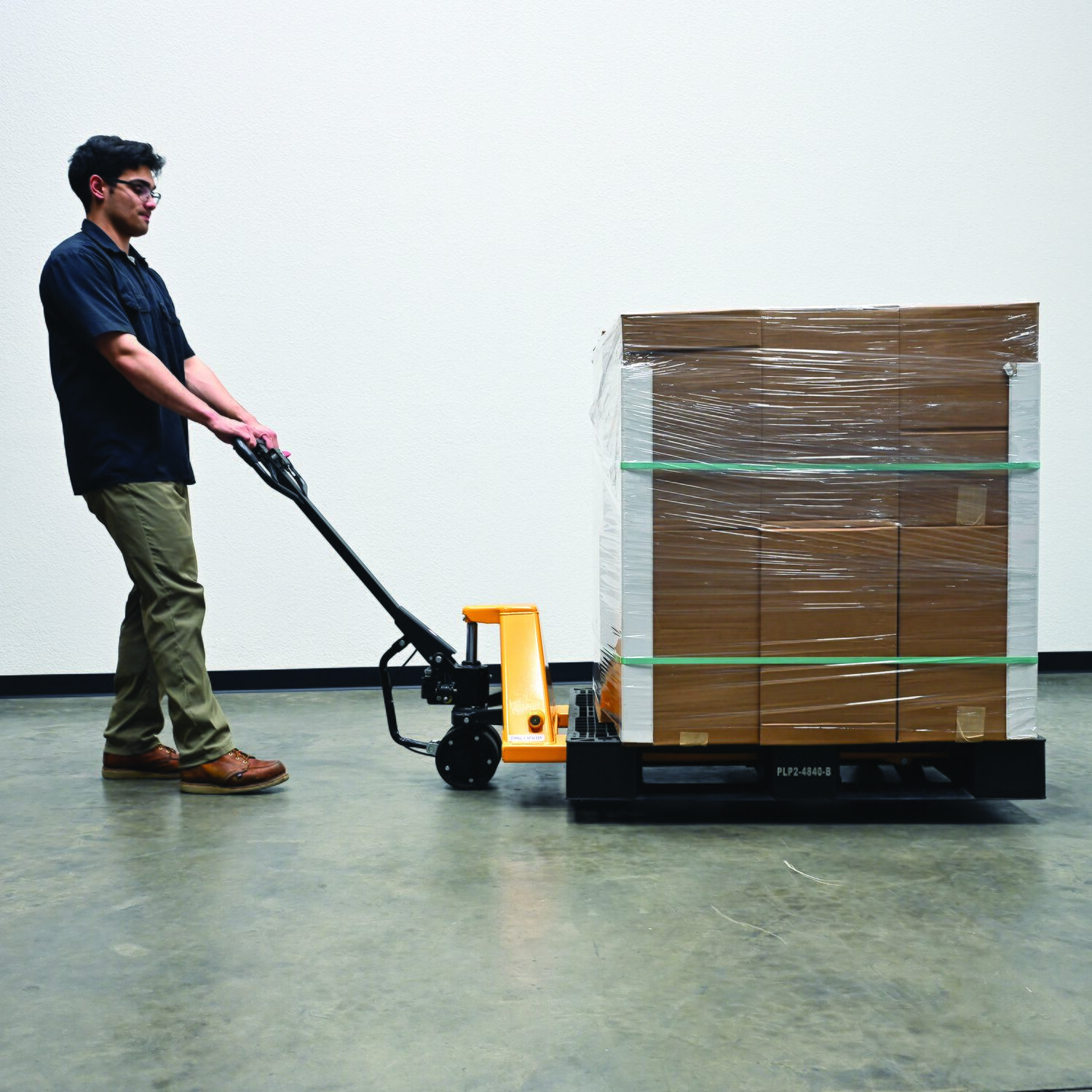

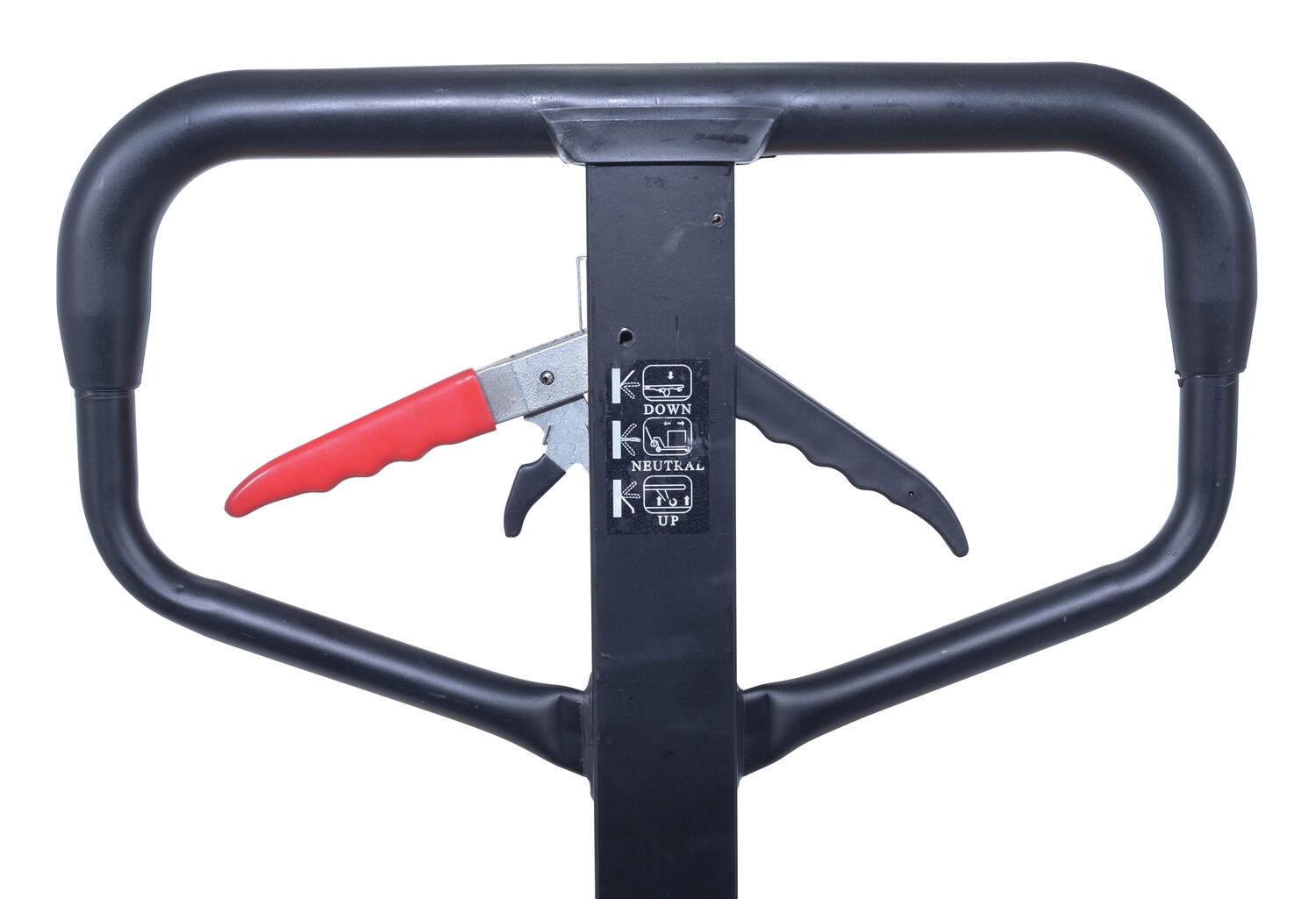

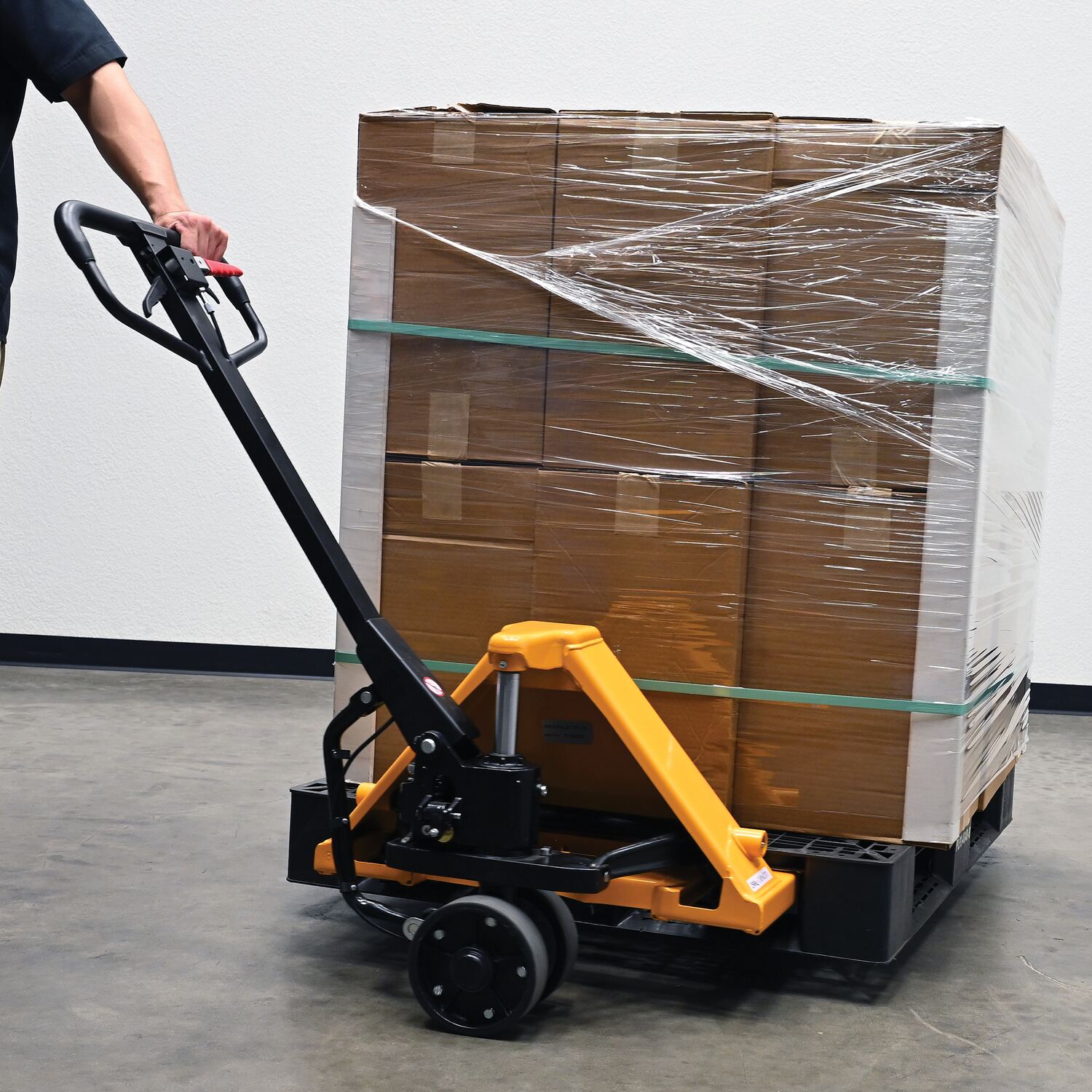

The Ergonomic power assist pallet truck is for anyone who has operated a fully loaded pallet truck and knows the most strenuous part is getting the wheels to start rolling. This pallet truck solves this back breaking problem. Pumping the handle of the pallet truck serves two purposes. First, it serves the traditional purpose of lifting the forks. Second, switch the power drive accumulator and by pulling the handle back, the pallet truck begins to roll backwards automatically, thus reducing the pulling force.
Product Status
Out of Stock QuickShip
Key Features
  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded

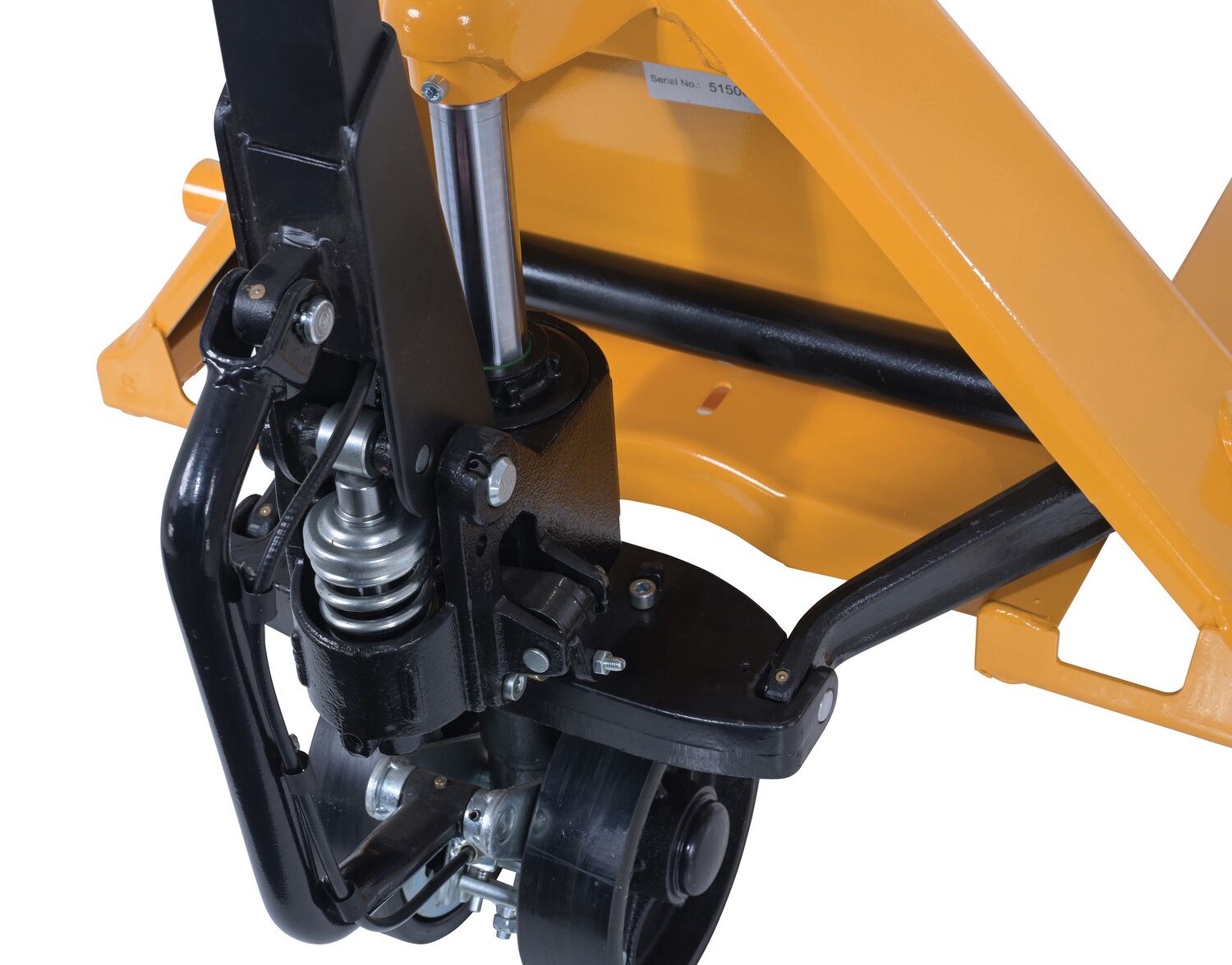

  • Steering wheels include bearing dust covers for added life

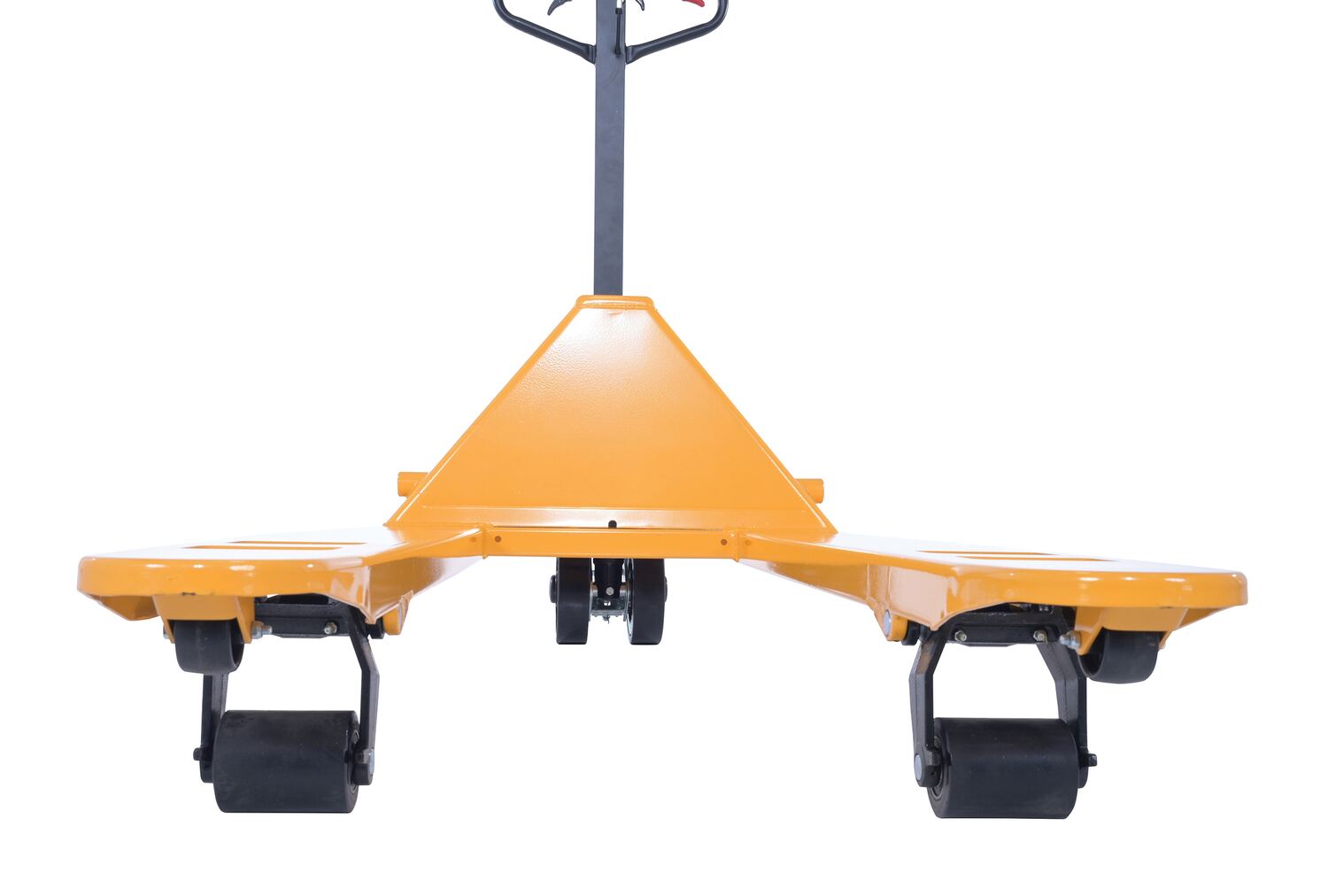

  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit

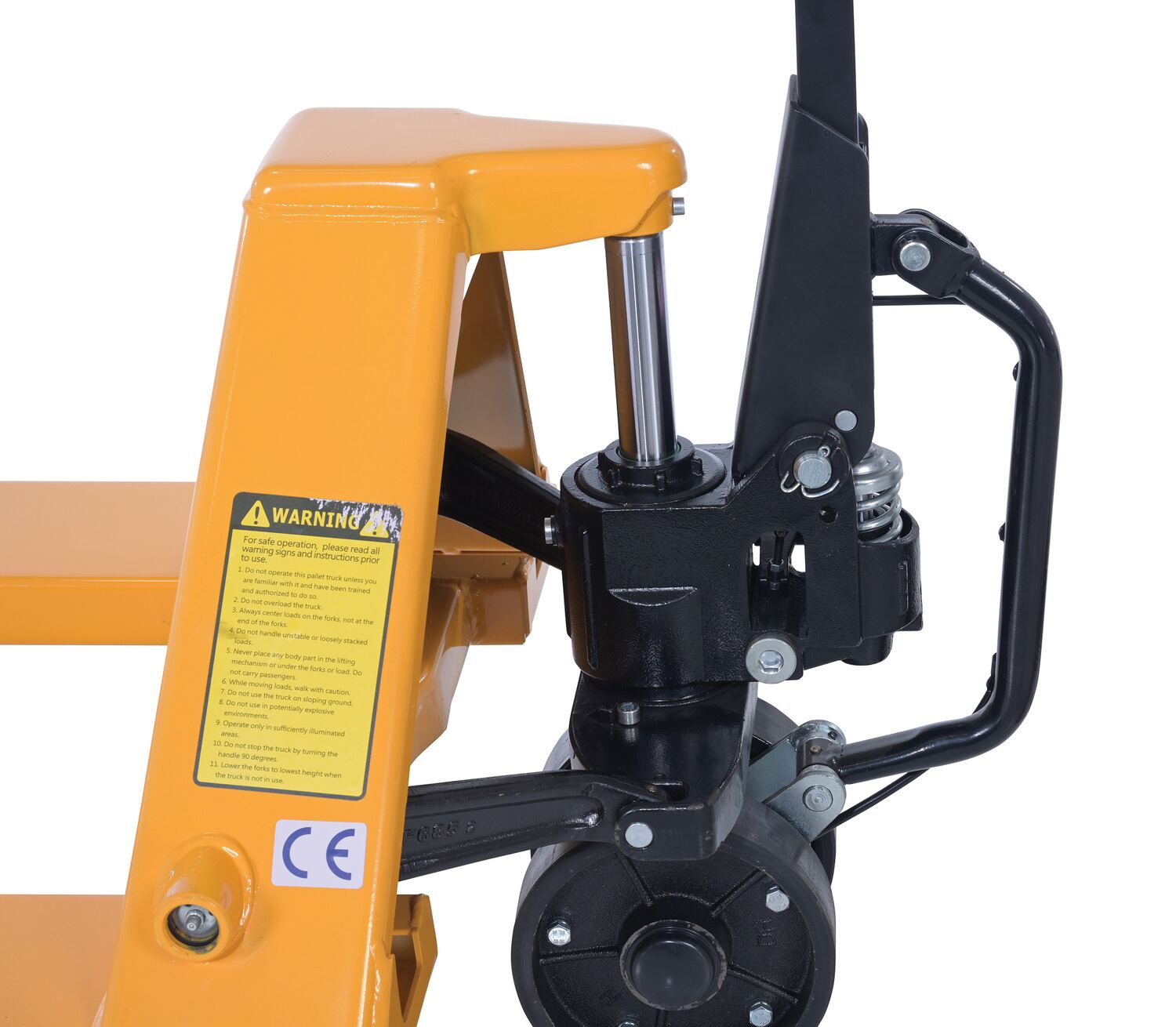

  • Chrome-plated hydraulic pump piston for long seal life
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 220 lbs
Assembled Size 27"W x 48"L x 48"H
Total Ship Weight 220 lbs
Package 1 Size 40"W x 64"D x 49"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lbs.) 5,000
Fork Spacing (in.) 27
Fork Width/Length (in.) 7 x 48
Service Range (in.) 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.) (2) 7 x 2
Steer Caster Material Poly-on-Steel
Load Roller Qty./Diameter/Width (in.) (2) 3 x 4
Load Roller Material Polyurethane
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM5-2748-PA-Y
Product Name
Steel Ergonomic Power Assist Pallet Truck 27 In. x 48 In. 5000 Lb. Capacity Yellow
UPC
691215091190
GTIN
00691215091190
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
48
Assembled Width(in.)
27
Assembled Height(in.)
48
Assembled Weight(lbs.)
220
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
SE
Approval Drawing Required? Y/N
N
Assembly
Assembly required
Compatible Products
PM-FE-7-48

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
49
Package Weight (in.)
220
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM5-2748-PA-Y

PM5-2748-PA-Y

Steel Ergonomic Power Assist Pallet Truck 27 In. x 48 In. 5000 Lb. Capacity Yellow

The Ergonomic power assist pallet truck is for anyone who has operated a fully loaded pallet truck and knows the most strenuous part is getting the wheels to start rolling. This pallet truck solves this back breaking problem. Pumping the handle of the pallet truck serves two purposes. First, it serves the traditional purpose of lifting the forks. Second, switch the power drive accumulator and by pulling the handle back, the pallet truck begins to roll backwards automatically, thus reducing the pulling force.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life

Core Data

Assembled Weight: 220 Assembled Size: 27"W x 48"L x 48"H Color: Yellow
Total Ship Weight: 220 Package 1 Size: 40"W x 64"D x 49"H Freight: LTL Palletized

Specifications

Uniform Capacity (lbs.): 5,000
Fork Spacing (in.): 27
Fork Width/Length (in.): 7 x 48
Service Range (in.): 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2
Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 3 x 4
Load Roller Material: Polyurethane
