Galvanized Steel Pallet Truck 62 In. x 27 In. x 48 In. 5500 Lb. Capacity Gray

Galvanized Specialized Pallet Truck for Moving Loads Through Warehouses and Production Areas, 5,500 lb. Capacity with 62 in. x 27 in. x 48 in., Gray – Model PM5-2748-S-G
The specialized pallet truck is ideal for corrosive environments. The full-featured pallet truck is designed for chemical, pharmaceutical, and wash-down applications.
Product Status
Available QuickShip
Key Features
  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Quick Actions

Product Resources

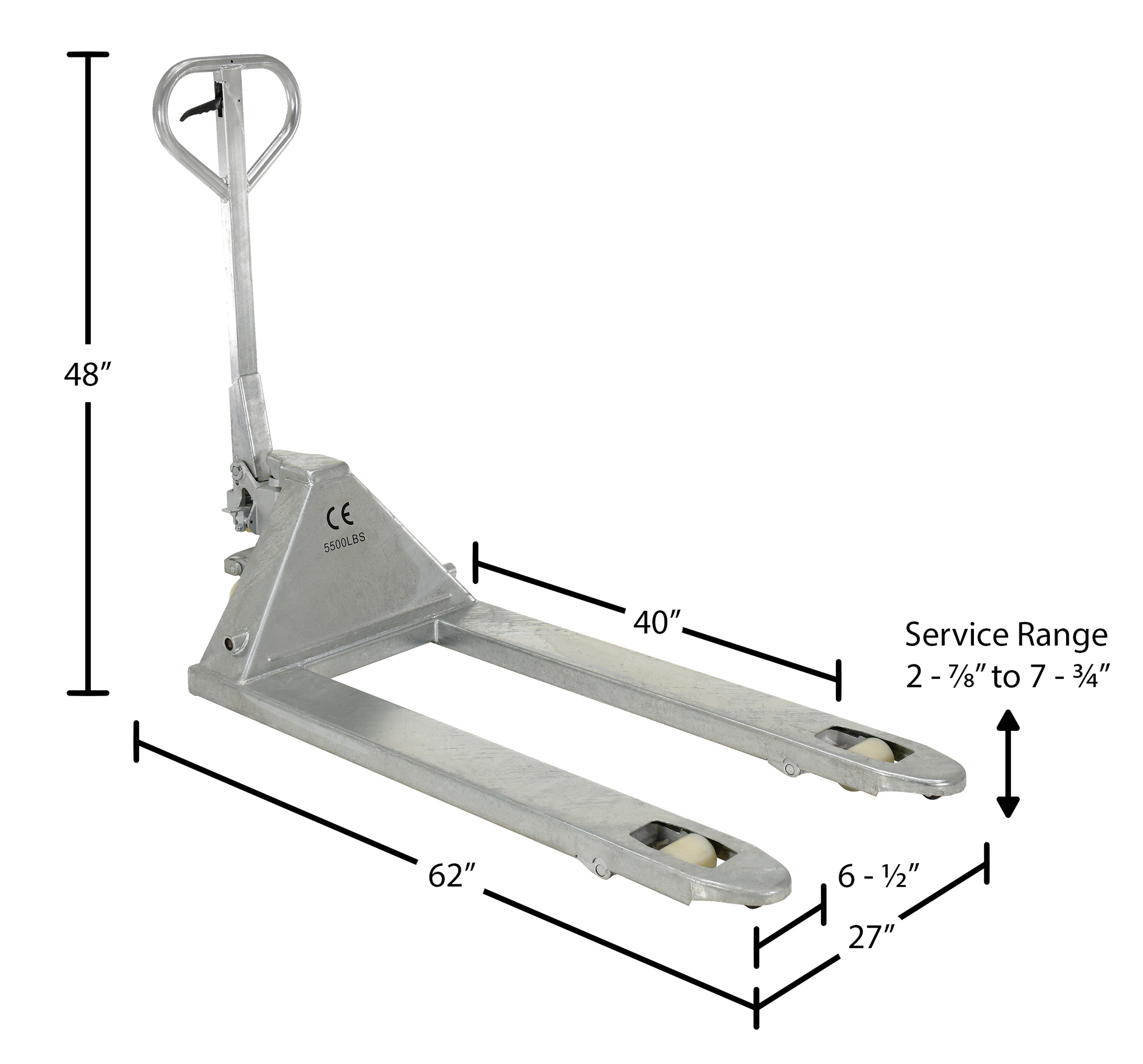

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 165 lbs
Assembled Size 27"W x 62"L x 48"H
Total Ship Weight 197 lbs
Package 1 Size 40"W x 64"D x 23"H
Color / Finish Gray
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5,500
Fork Spacing (in.) 27
Fork Width/Length (in.) 6-1/2 x 48
Service Range (in.) 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.) (2) 7 x 2
Steer Caster Material Nylon
Load Roller Qty./Diameter/Width (in.) (2) 3 x 3-1/2
Load Roller Material Nylon
Handle Height (in.) 48
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM5-2748-S-G
Product Name
Galvanized Steel Pallet Truck 62 In. x 27 In. x 48 In. 5500 Lb. Capacity Gray
UPC
691215030724
GTIN
00691215030724
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
62
Assembled Width(in.)
27
Assembled Height(in.)
48
Assembled Weight(lbs.)
165
Color/Finish
Gray
Material
Galvanized Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
23
Package Weight (in.)
197
Subclass
2
Freight Class
92.5
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM5-2748-S-G

PM5-2748-S-G

Galvanized Steel Pallet Truck 62 In. x 27 In. x 48 In. 5500 Lb. Capacity Gray

The specialized pallet truck is ideal for corrosive environments. The full-featured pallet truck is designed for chemical, pharmaceutical, and wash-down applications.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life

Core Data

Assembled Weight: 165 Assembled Size: 27"W x 62"L x 48"H Color: Gray
Total Ship Weight: 197 Package 1 Size: 40"W x 64"D x 23"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 5,500
Fork Spacing (in.): 27
Fork Width/Length (in.): 6-1/2 x 48
Service Range (in.): 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2
Steer Caster Material: Nylon
Load Roller Qty./Diameter/Width (in.): (2) 3 x 3-1/2
Load Roller Material: Nylon
Handle Height (in.): 48
