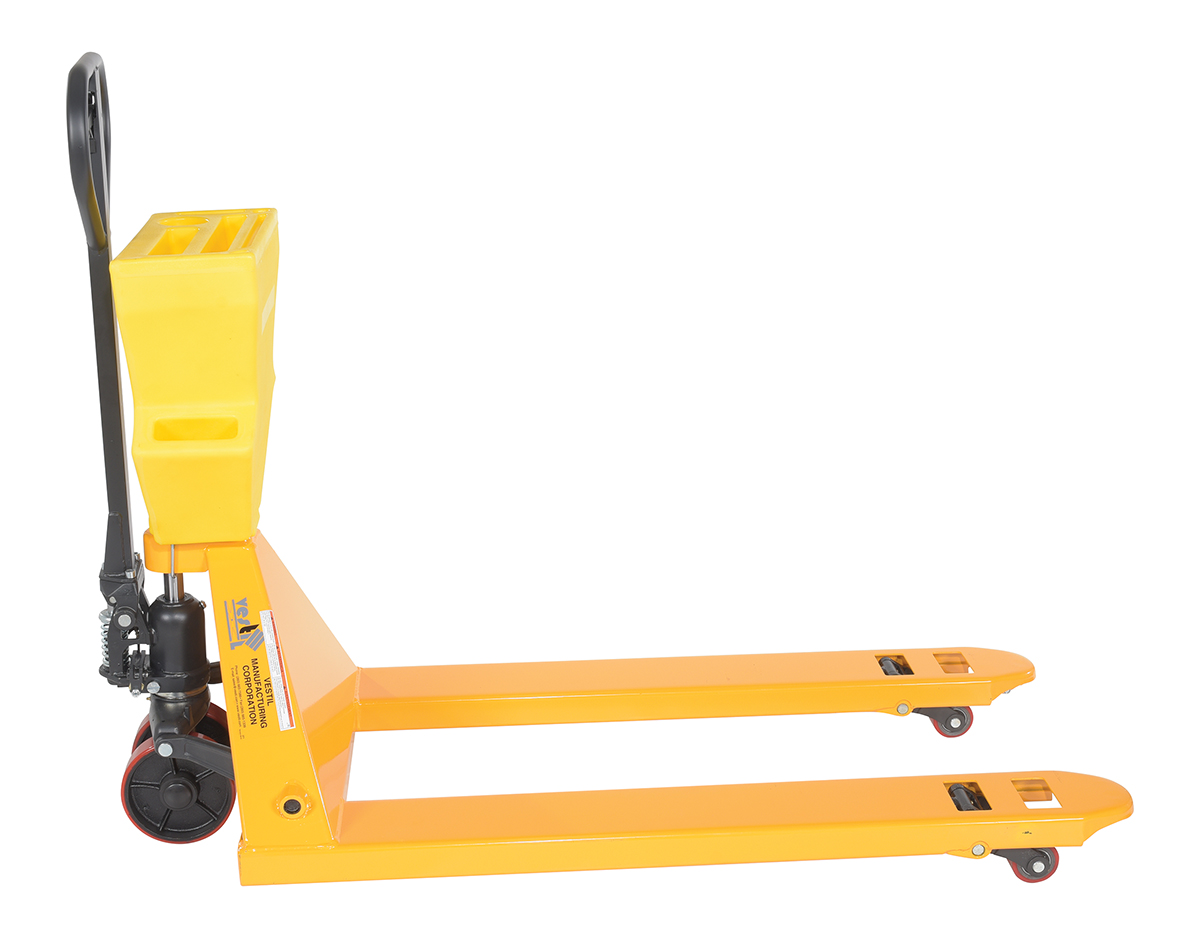

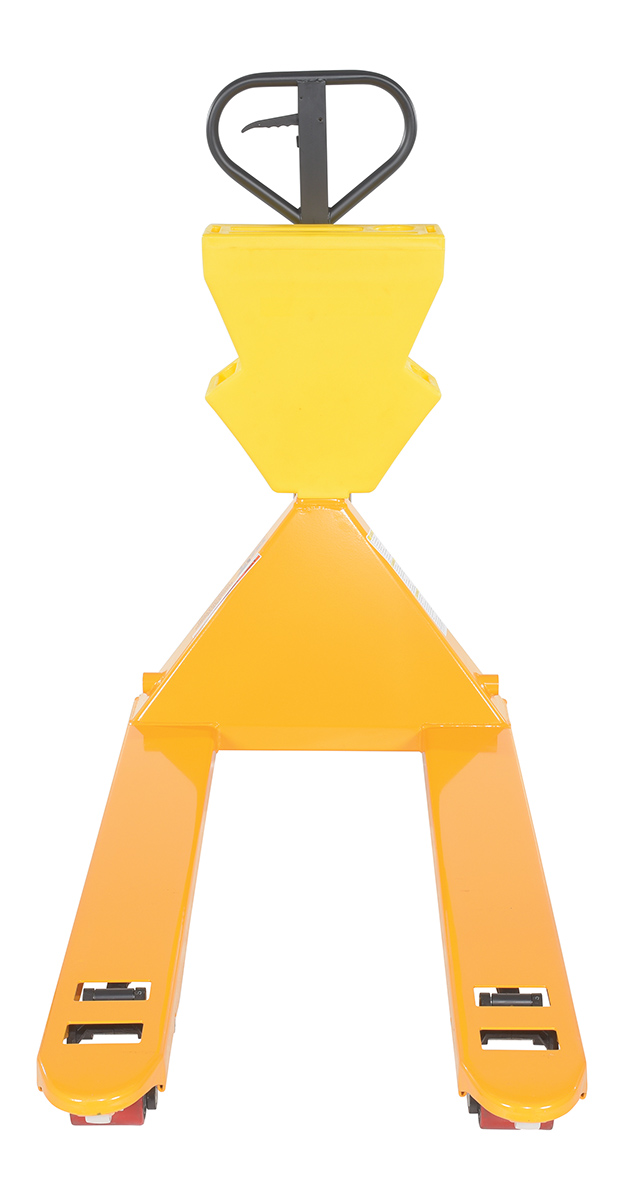

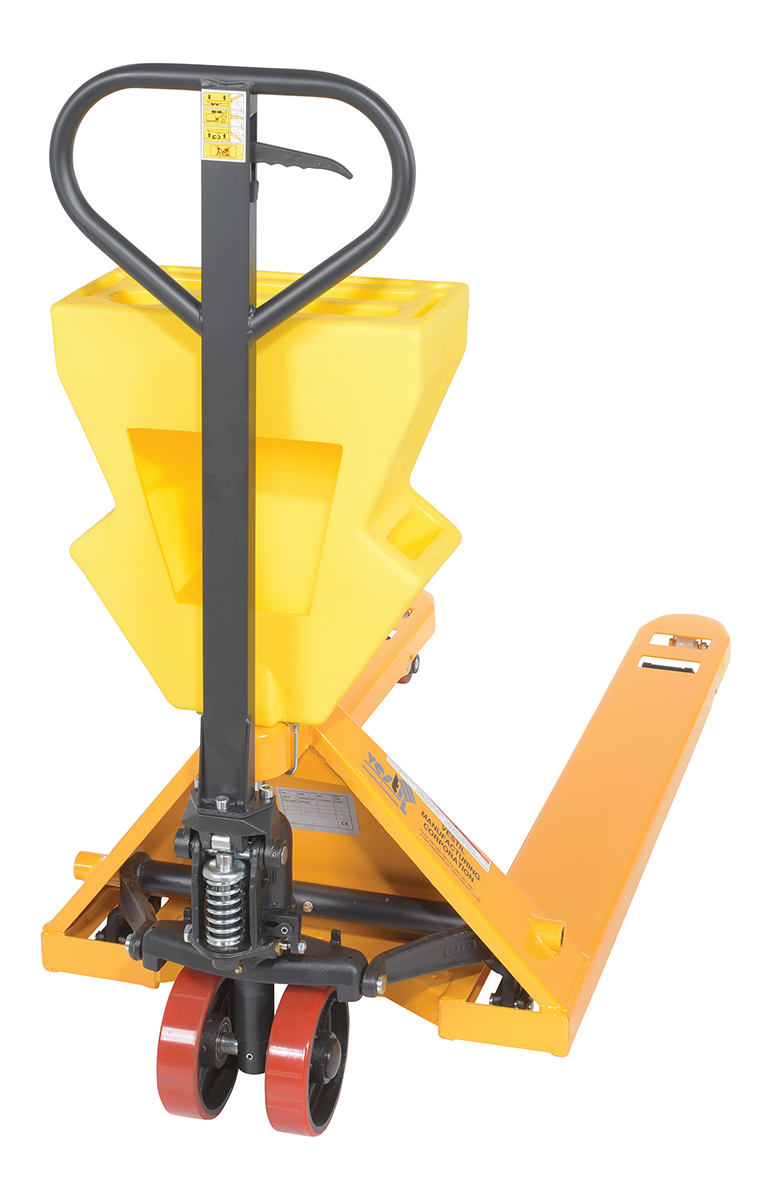

Steel/Plastic Pallet Truck 61-3/16 In. x 27 In. x 48 In. 5500 Lb. Capacity Yellow with Yellow P-Caddy

Pallet Truck Workstation for Moving Loads Through Warehouses and Production Areas, 5,500 lb. Capacity with 61-3/16 in. x 27 in. x 48 in., Yellow Finish – Model PM5-2748-Y-UP-001
A pallet truck with a storage caddy is the perfect bundle of two innovative products. The pallet truck has an ergonomically friendly design with a limited pulling force required, while the caddy allows the user to be more organized and efficient. With a strong powder coated steel construction, the pallet truck moves easily between areas. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. A molded plastic design allows the caddy to be durable throughout consistent daily use. Installation hardware and instructions included.
Product Status
Available QuickShip
Key Features

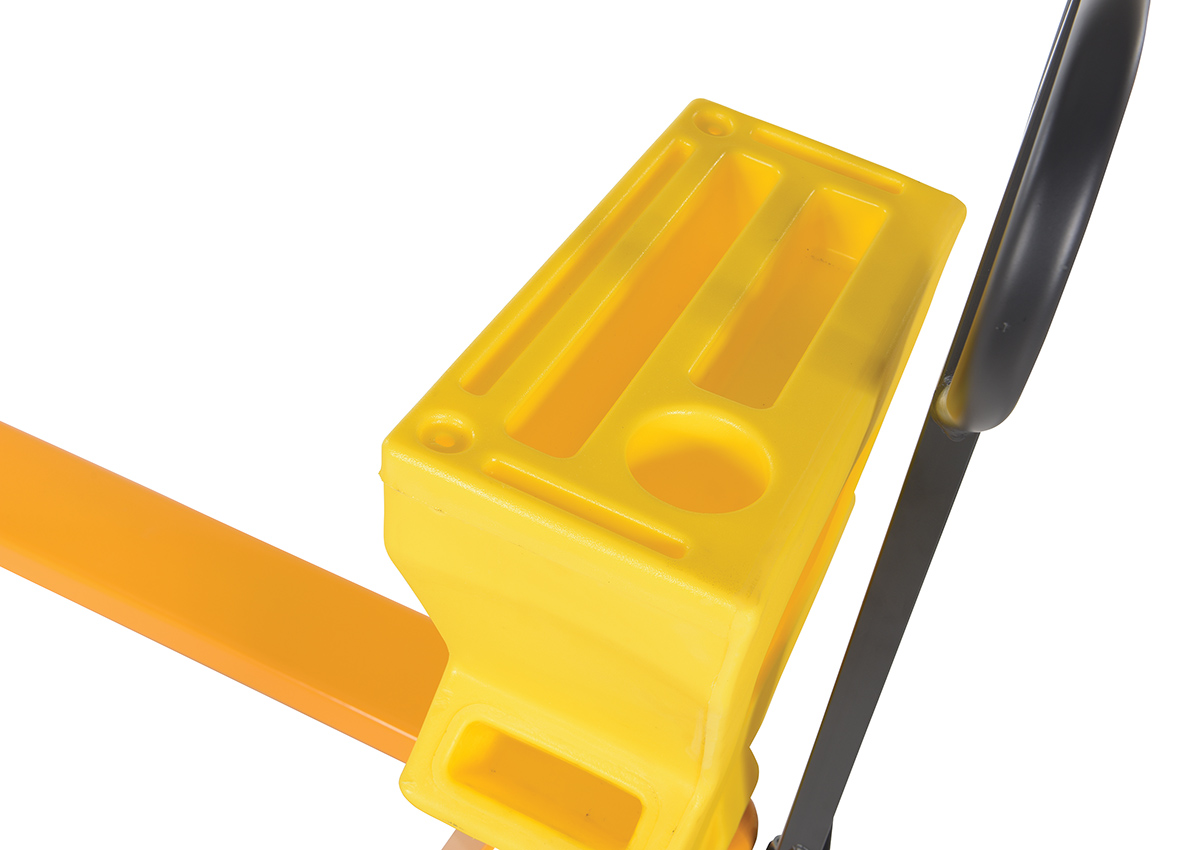

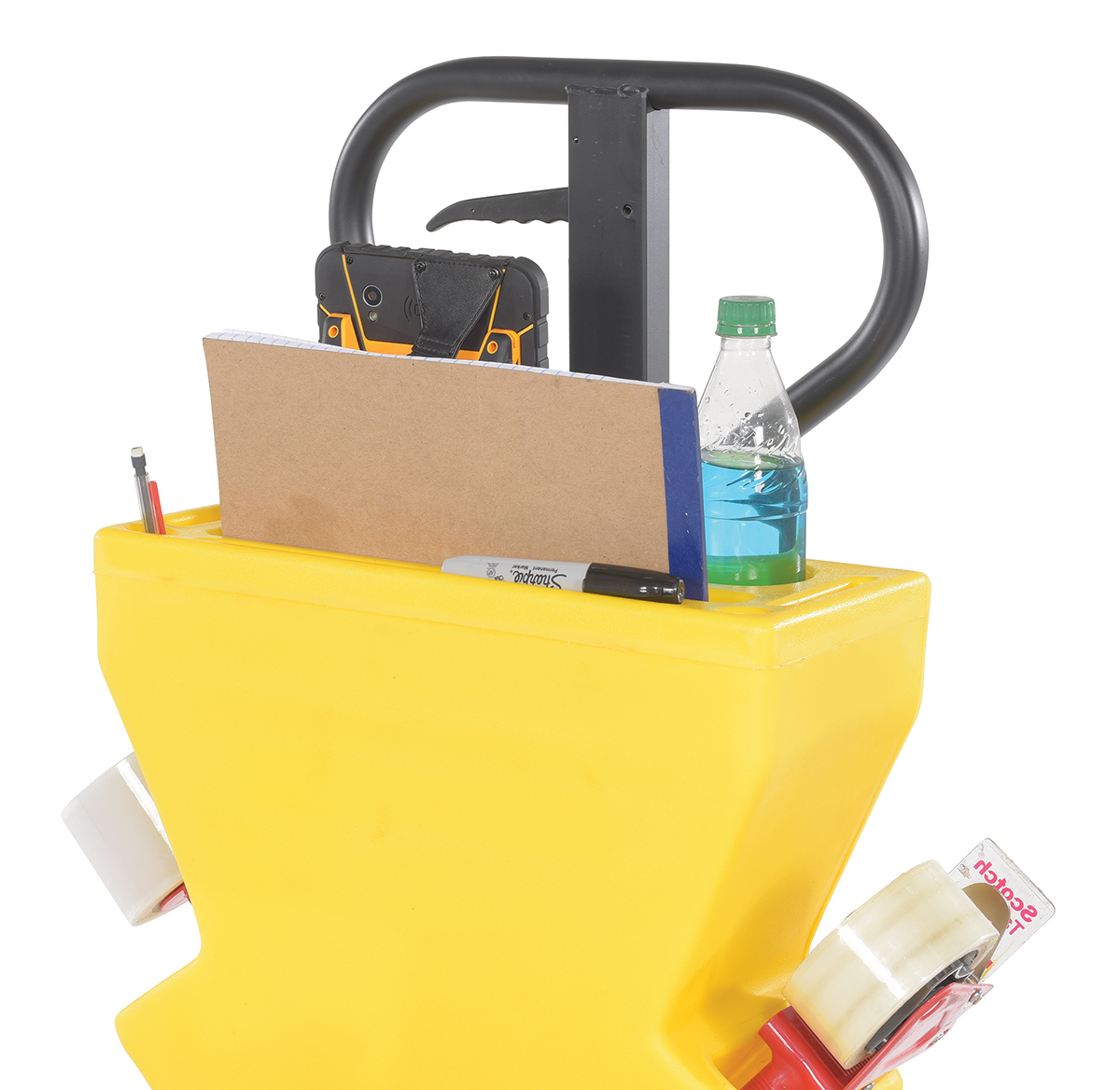

  • Caddy includes multiple storage places
  • Simple hand pump raising for perfect positioning
  • Caddy is simple to install for immediate use
  • Traverses smoothly over a variety of terrains
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 178 lbs
Assembled Size 27"W x 61.1875"L x 48"H
Total Ship Weight 218 lbs
Package 1 Size 40"W x 64"D x 27"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5500
Raised Height (in.) 7.75
Lowered Height (in.) 2.875
Power/Operation Hydraulic Hand Pump
Steer Caster Qty 2
Steer Caster Diameter/Width (in.) 7x2
Rigid Caster Qty 2
Rigid Caster Diameter/Width (in.) 3x3.5
Caster Color Red
Fork LengthxWidthxCenter (in.) 48x7x20
Handle Diameter/Height (in.) 1.125x48
Handle Type Push/Pull
Hardware Included Yes
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM5-2748-Y-UP-001
Product Name
Steel/Plastic Pallet Truck 61-3/16 In. x 27 In. x 48 In. 5500 Lb. Capacity Yellow with Yellow P-Caddy
UPC
691215348850
GTIN
00691215348850
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
61.1875
Assembled Width(in.)
27
Assembled Height(in.)
48
Assembled Weight(lbs.)
178
Color/Finish
Yellow
Material
Steel/Plastic
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
27
Package Weight (in.)
218
Subclass
2
Freight Class
92.5
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM5-2748-Y-UP-001

PM5-2748-Y-UP-001

Steel/Plastic Pallet Truck 61-3/16 In. x 27 In. x 48 In. 5500 Lb. Capacity Yellow with Yellow P-Caddy

A pallet truck with a storage caddy is the perfect bundle of two innovative products. The pallet truck has an ergonomically friendly design with a limited pulling force required, while the caddy allows the user to be more organized and efficient. With a strong powder coated steel construction, the pallet truck moves easily between areas. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. A molded plastic design allows the caddy to be durable throughout consistent daily use. Installation hardware and instructions included.

  • Caddy includes multiple storage places
  • Simple hand pump raising for perfect positioning
  • Caddy is simple to install for immediate use
  • Traverses smoothly over a variety of terrains

Core Data

Assembled Weight: 178 Assembled Size: 27"W x 61.1875"L x 48"H Color: Yellow
Total Ship Weight: 218 Package 1 Size: 40"W x 64"D x 27"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 5500
Raised Height (in.): 7.75
Lowered Height (in.): 2.875
Power/Operation: Hydraulic Hand Pump
Steer Caster Qty: 2
Steer Caster Diameter/Width (in.): 7x2
Rigid Caster Qty: 2
Rigid Caster Diameter/Width (in.): 3x3.5
Caster Color: Red
Fork LengthxWidthxCenter (in.): 48x7x20
Handle Diameter/Height (in.): 1.125x48
Handle Type: Push/Pull
Hardware Included: Yes
