  All Products   Ergonomic Solutions   Manual Pallet Trucks   Full Featured Pallet Trucks PM5-FB
Product Image

Visual Reference

PM5-FB
PM5-FB
PM5-FB
PM5-FB
PM5-FB
PM5-FB

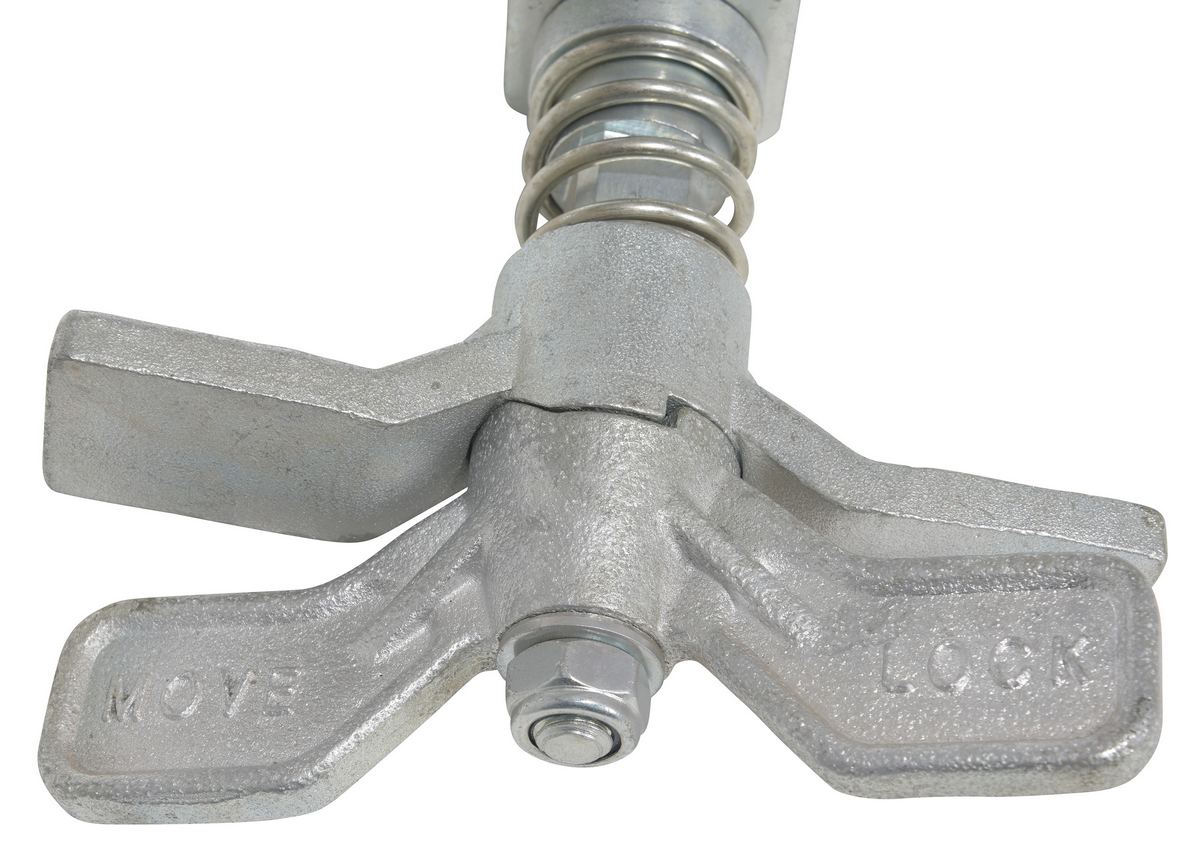

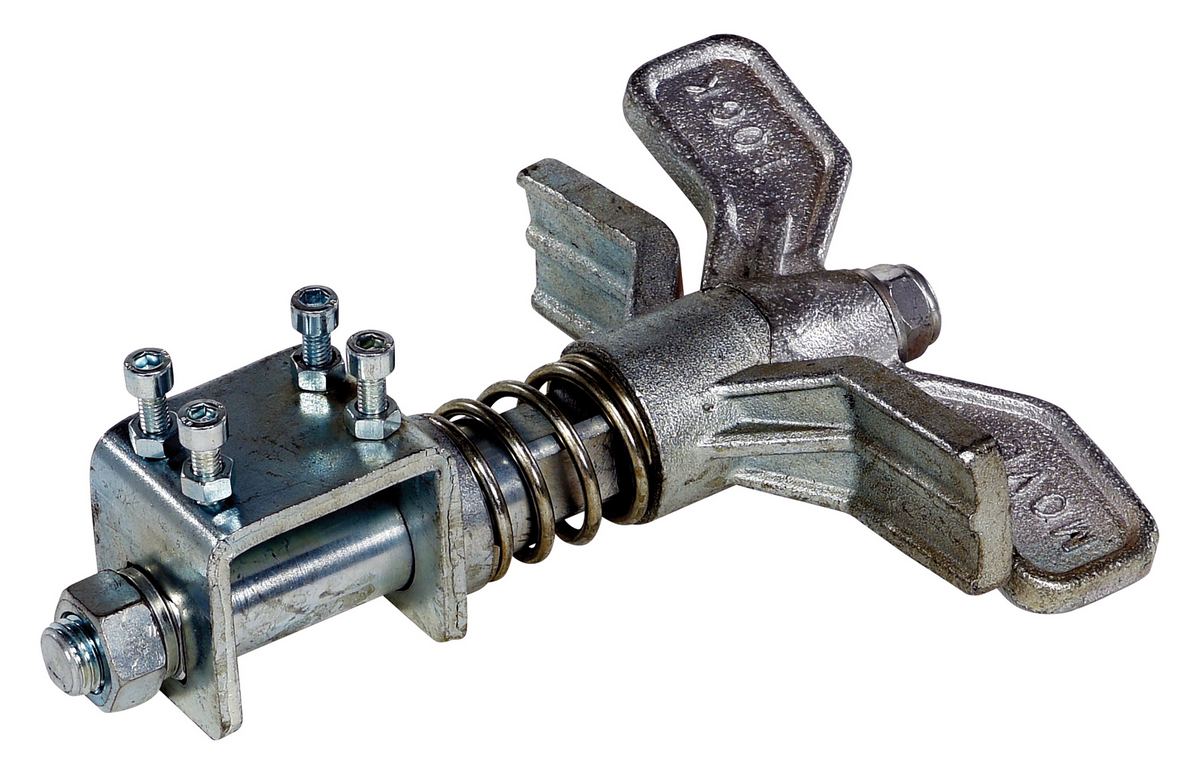

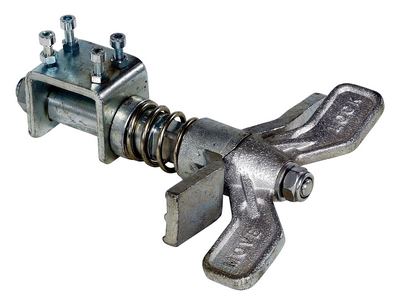

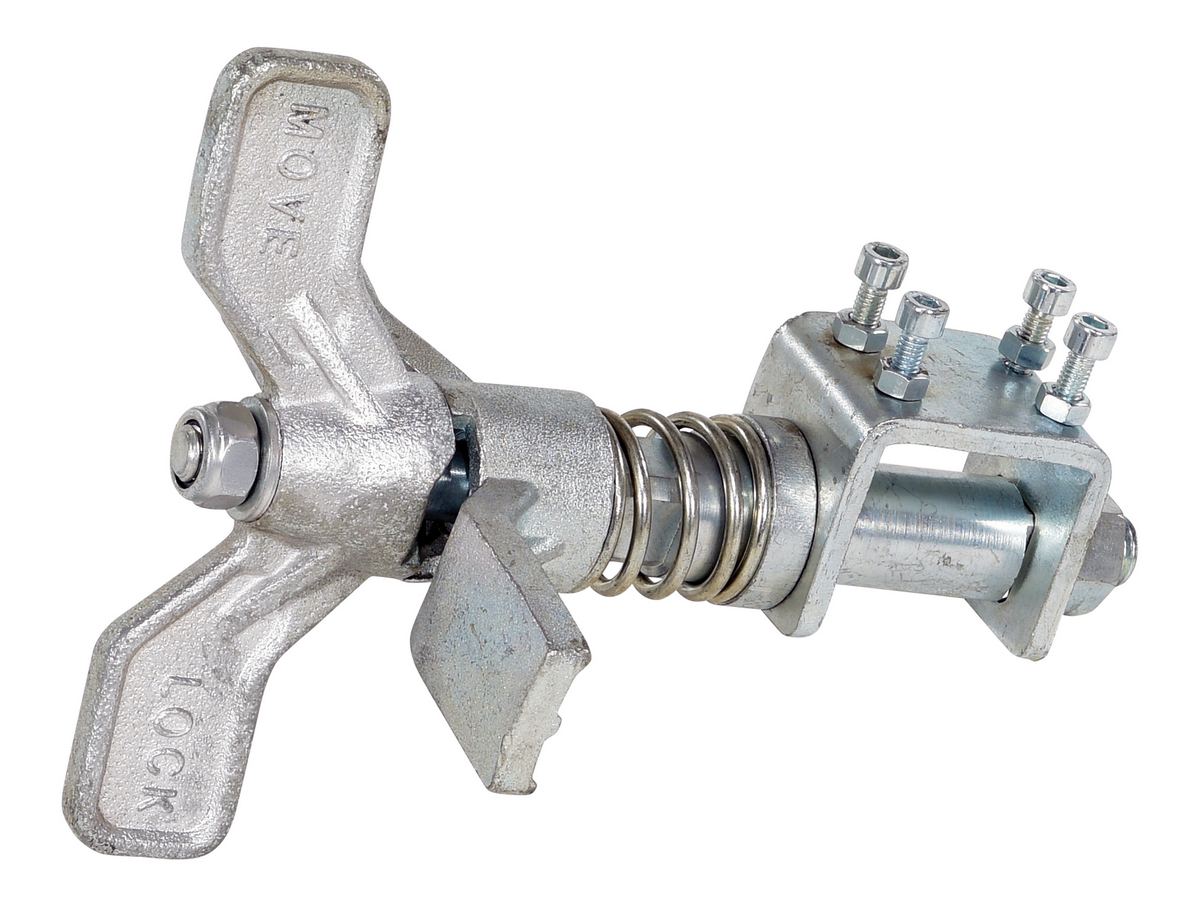

Foot Brake Kit For PM5/PM4/PM6 Models

Foot Brake Kit for Moving Loads Through Warehouses and Production Areas, Silver Finish
An optional foot brake kit provides stability to an otherwise free rolling pallet truck.
Product Status
Available
Key Features
  • Quickly attachable to pallet truck
  • Readable ‘move’ and ‘lock’ designation
  • Built of steel
  • Tension spring supported
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Hydraulic Oil SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 5 lbs
Assembled Size 6.375"W x 3"L x 8.5"H
Total Ship Weight 5 lbs
Package 1 Size 7"W x 8"D x 5"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Brand / Model Compatibility For use with PM4, PM5, PM10, and PM6 Models
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PM5-FB
Product Name
Foot Brake Kit For PM5/PM4/PM6 Models
UPC
691215062190
GTIN
00691215062190
Taxonomy 1
Power Transmission & Motion Control
Taxonomy 2
Tools
Taxonomy 3
Tool / Machine Components
Taxonomy 4
Foot Pedals
Assembled Depth (in.)
3
Assembled Width(in.)
6.375
Assembled Height(in.)
8.5
Assembled Weight(lbs.)
5
Color/Finish
Silver
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
PM5-2036, PM5-2736, PM5-2048, PM5-2748, PM5-2748-PINK, PM5-2748-N, PM5-2748-S, PM5-2748-FP, PM4-2072, PM4-2772, PM4-2096, PM4-2796, PM6-2748, PM10-2245

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
8
Package Width (in.)
7
Package Height (in.)
5
Package Weight (in.)
5
Subclass
1
Freight Class
65
NMFC Code
Hardware Group Hdwr in boxes crates drums etc
NMFC Number
95190
LTL Freight
Parcel
UNSPSC
24000000
HTSUS Number
8431.20.0000
USMCA HS
8431.20
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM5-FB

PM5-FB

Foot Brake Kit For PM5/PM4/PM6 Models

An optional foot brake kit provides stability to an otherwise free rolling pallet truck.

  • Quickly attachable to pallet truck
  • Readable ‘move’ and ‘lock’ designation
  • Built of steel
  • Tension spring supported

Core Data

Assembled Weight: 5 Assembled Size: 6.375"W x 3"L x 8.5"H Color: Silver
Total Ship Weight: 5 Package 1 Size: 7"W x 8"D x 5"H Freight: Parcel

Specifications

Brand / Model Compatibility: For use with PM4, PM5, PM10, and PM6 Models
