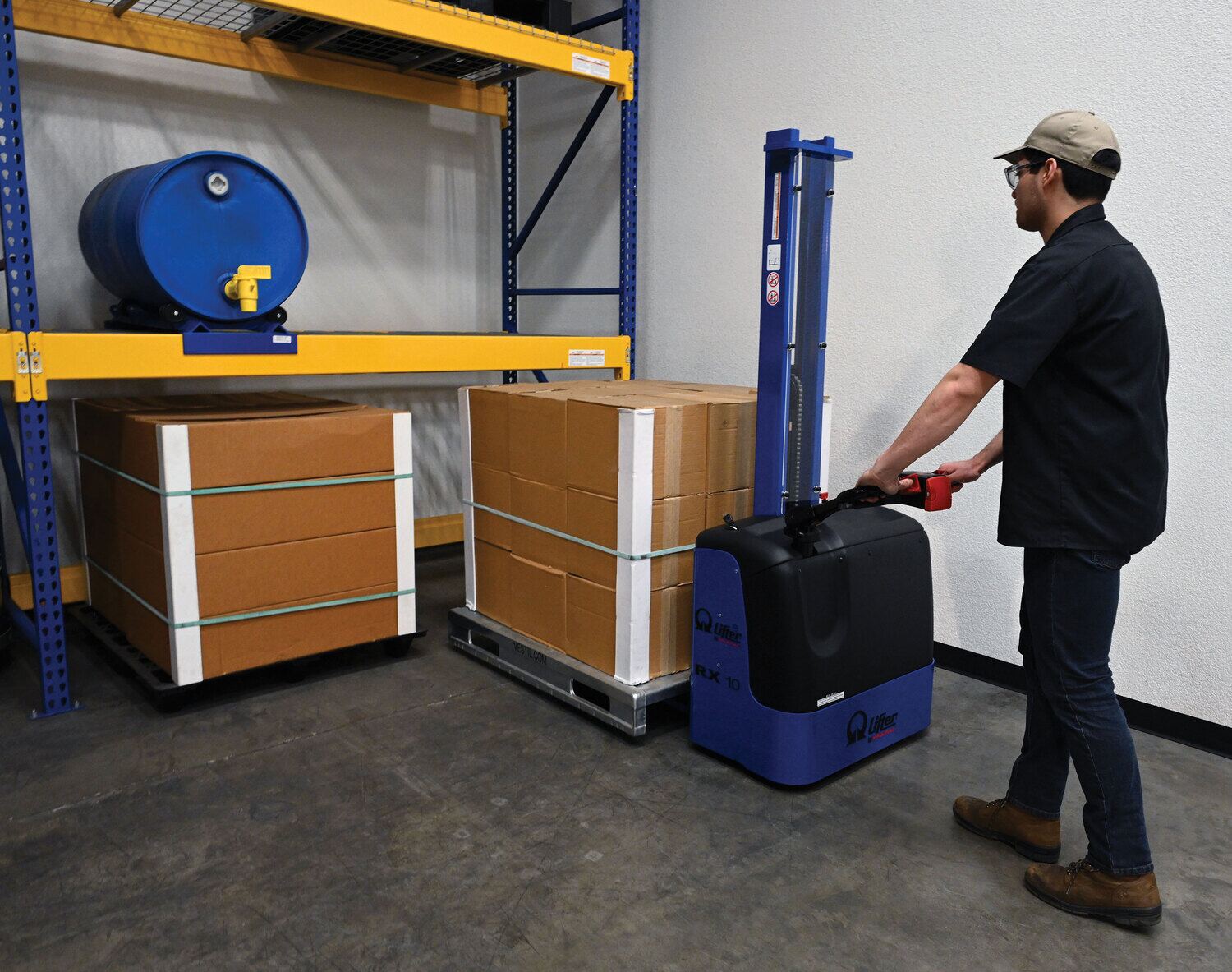

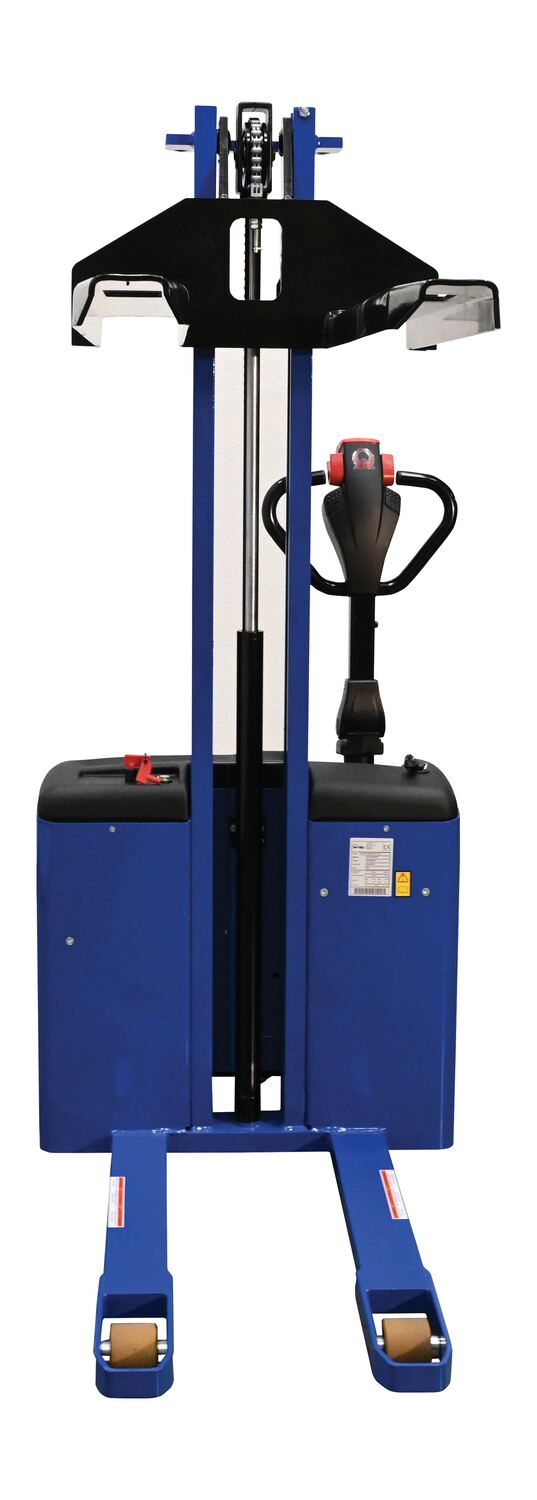

Steel Pramac DC Powered Narrow Mast Stacker Fixed Forks 67 In. x 31 In. x 73-1/2 In. 2200 Lb. Capacity Blue / Black

DC-Powered Stacker with Powered Lift for Moving Loads Through Warehouses and Production Areas, 2,200 lb. Capacity with 67 in. x 31 in. x 73-1/2 in.

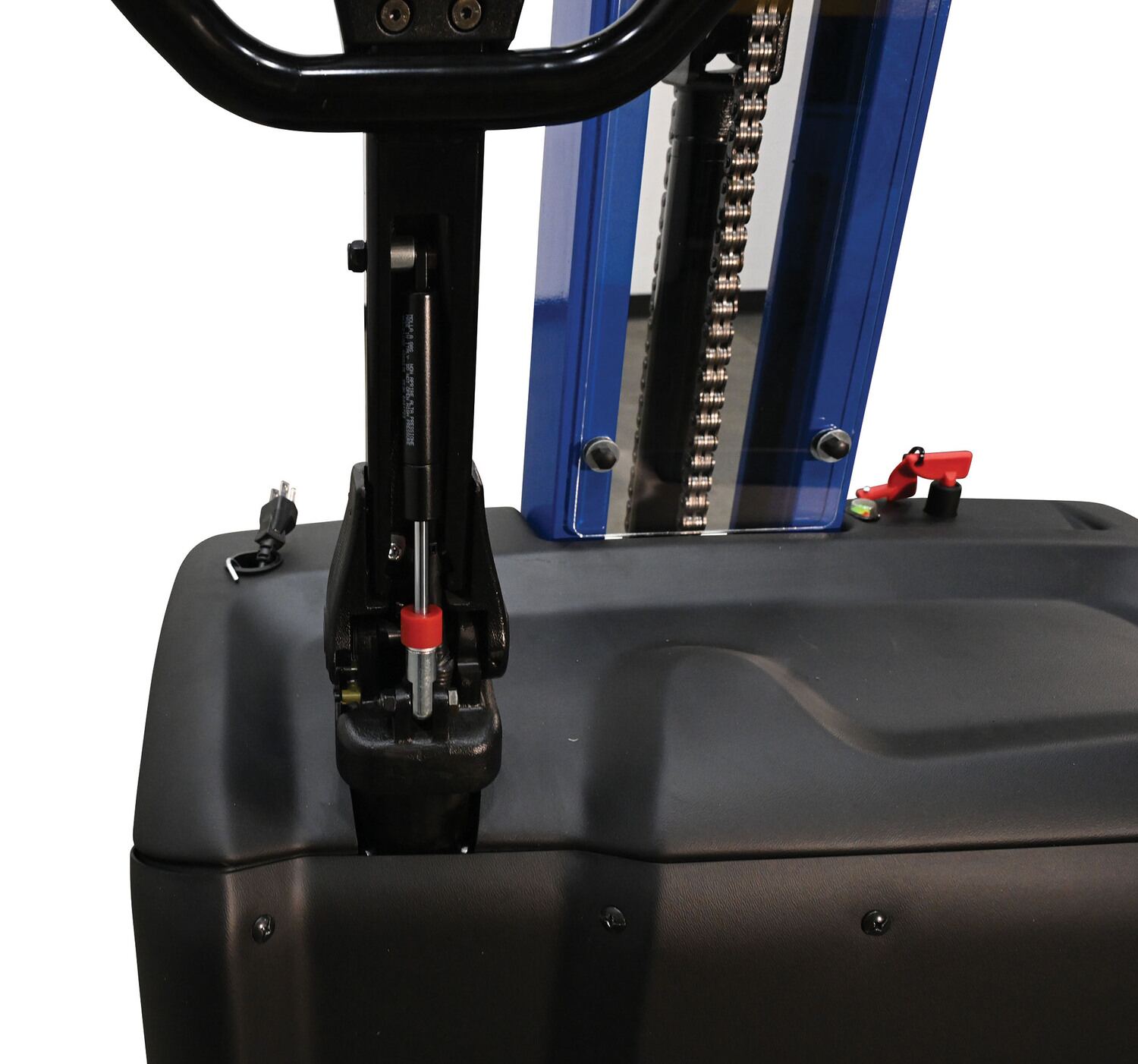

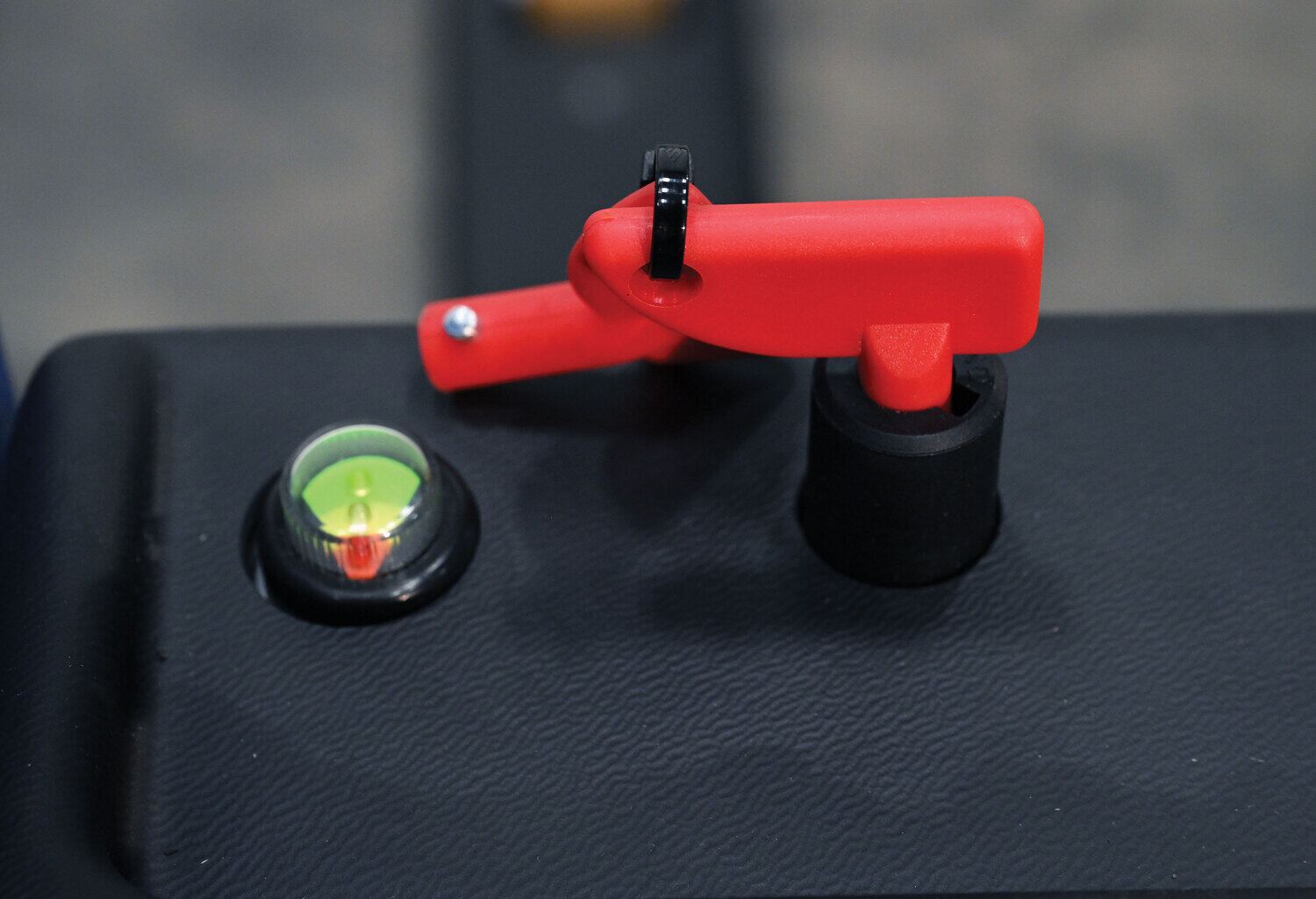

Electric power drive and lift. Ergonomic handle with a full control and safety system. Features "tortoise" push button for slow motion, a safety punch button with warning buzzer, and on-board battery charger. DC powered with two (2) 12V batteries.
Product Status
Available Non-Returnable
Key Features
  • Fixed forks for constant readiness
  • Powered model for quick movement
  • Blue finish
  • High handle for ergonomic steering
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hydraulic Oil SDS   Lead Acid Battery SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 810 lbs
Assembled Size 31.25"W x 66"L x 77.55"H
Total Ship Weight 874 lbs
Package 1 Size 31"W x 67"D x 80"H
Color / Finish Blue / Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,200
Service Range (in.) 3-1/2 to 59-1/2
Fork Width/Length (in.) 5-9/10 x 45-43/50
Fork Spacing (in.) 22
Overall Mast Height (in.) 77-1/2
Drive Motor DC 24V / 0.35 KW
Lift Motor DC 24V / 2.2 KW
Battery (2) 12V / 70~80 Ah
Travel Speed w/ Load (MPH) 2.2
Travel Speed w/o Load (MPH) 2.5
Lift Speed w/ Load 4.3" / sec
Lift Speed w/o Load 7.08" / sec

Battery Information

Battery Depth 11
Battery Width 14
Battery Height 9
Battery Weight 84
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PMC-SNM-FF-62
Product Name
Steel Pramac DC Powered Narrow Mast Stacker Fixed Forks 67 In. x 31 In. x 73-1/2 In. 2200 Lb. Capacity Blue / Black
UPC
691215063692
GTIN
00691215063692
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
66
Assembled Width(in.)
31.25
Assembled Height(in.)
77.55
Assembled Weight(lbs.)
810
Color/Finish
Blue / Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
IT
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
67
Package Width (in.)
31
Package Height (in.)
80
Package Weight (in.)
874
Subclass
7
Freight Class
110
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
84
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PMC-SNM-FF-62

PMC-SNM-FF-62

Steel Pramac DC Powered Narrow Mast Stacker Fixed Forks 67 In. x 31 In. x 73-1/2 In. 2200 Lb. Capacity Blue / Black

Electric power drive and lift. Ergonomic handle with a full control and safety system. Features "tortoise" push button for slow motion, a safety punch button with warning buzzer, and on-board battery charger. DC powered with two (2) 12V batteries.

  • Fixed forks for constant readiness
  • Powered model for quick movement
  • Blue finish
  • High handle for ergonomic steering

Core Data

Assembled Weight: 810 Assembled Size: 31.25"W x 66"L x 77.55"H Color: Blue / Black
Total Ship Weight: 874 Package 1 Size: 31"W x 67"D x 80"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,200
Service Range (in.): 3-1/2 to 59-1/2
Fork Width/Length (in.): 5-9/10 x 45-43/50
Fork Spacing (in.): 22
Overall Mast Height (in.): 77-1/2
Drive Motor: DC 24V / 0.35 KW
Lift Motor: DC 24V / 2.2 KW
Battery: (2) 12V / 70~80 Ah
Travel Speed w/ Load (MPH): 2.2
Travel Speed w/o Load (MPH): 2.5
Lift Speed w/ Load: 4.3" / sec
Lift Speed w/o Load: 7.08" / sec
