Product Image

Visual Reference

PMPS-60-AIR
PMPS-60-AIR
PMPS-60-AIR

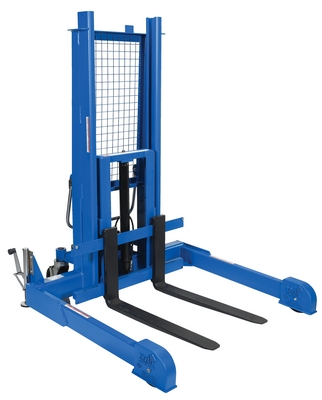

Steel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity Blue

Manual Pallet Master for Moving Loads Through Warehouses and Production Areas, 4,000 lb. Capacity with 60 in. Raised Height
The pallet master/server enables one person to easily move fully loaded pallets without the use of a fork truck. The unique straddle design works well with pallets and skids with and without an understructure. The unit is ideal for loading and unloading semi-trailers. Foot treadle control on an eight (8) foot coil cord standard. Floor lock standard. All welded steel construction.
Product Status
Available Non-Returnable
Key Features
  • Easily move fully loaded pallets enabled by one person
  • Straddle design works pallets and skids with or without an understructure
  • Ideal for loading and unloading semi-trailers without strenuous work
  • Foot treadle control on an eight (8) foot coil cord standard
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Pallet Master Pallet Server series PMPS Manual   Two Speed, Auto-Shifting Foot Pump Instruction Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 1029 lbs
Assembled Size 58"W x 66"L x 87"H
Total Ship Weight 1029 lbs
Package 1 Size 64"W x 64"D x 94"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,000
Operation Reciprocating Air/Oil
Fork Width/Length (in.) 4 x 36
Service Range (in.) 3 to 60
Adjustable Fork Spacing (in.) 8 to 37
Leg Spacing (in.) 49-1/2
Handle Height (in.) 36
Coil Cord Length (in.) 96
Rear Swivel Caster Quantity/Diameter/Width (in.) (2) 8 x 3
Rear Caster Material Phenolic
Front Wheel Quantity/Diameter/Width (in.) (2) 8 x 2
Front Wheel Material Glass Filled Nylon
Overall Width (in.) 58
Overall Length (in.) 6
Overall Raised Height (in.) 101
Overall Lowered Height (in.) 87
Maximum Fork Height Before Carriage Exceeds Height of Mast (in.) 42
Steel Construction ASTM A-36 Minimum
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PMPS-60-AIR
Product Name
Steel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity Blue
UPC
691215030946
GTIN
00691215030946
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
66
Assembled Width(in.)
58
Assembled Height(in.)
87
Assembled Weight(lbs.)
1029
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
64
Package Height (in.)
94
Package Weight (in.)
1029
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PMPS-60-AIR

PMPS-60-AIR

Steel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity Blue

The pallet master/server enables one person to easily move fully loaded pallets without the use of a fork truck. The unique straddle design works well with pallets and skids with and without an understructure. The unit is ideal for loading and unloading semi-trailers. Foot treadle control on an eight (8) foot coil cord standard. Floor lock standard. All welded steel construction.

  • Easily move fully loaded pallets enabled by one person
  • Straddle design works pallets and skids with or without an understructure
  • Ideal for loading and unloading semi-trailers without strenuous work
  • Foot treadle control on an eight (8) foot coil cord standard

Core Data

Assembled Weight: 1029 Assembled Size: 58"W x 66"L x 87"H Color: Blue
Total Ship Weight: 1029 Package 1 Size: 64"W x 64"D x 94"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,000
Operation: Reciprocating Air/Oil
Fork Width/Length (in.): 4 x 36
Service Range (in.): 3 to 60
Adjustable Fork Spacing (in.): 8 to 37
Leg Spacing (in.): 49-1/2
Handle Height (in.): 36
Coil Cord Length (in.): 96
Rear Swivel Caster Quantity/Diameter/Width (in.): (2) 8 x 3
Rear Caster Material: Phenolic
Front Wheel Quantity/Diameter/Width (in.): (2) 8 x 2
Front Wheel Material: Glass Filled Nylon
Overall Width (in.): 58
Overall Length (in.): 6
Overall Raised Height (in.): 101
Overall Lowered Height (in.): 87
Maximum Fork Height Before Carriage Exceeds Height of Mast (in.): 42
Steel Construction: ASTM A-36 Minimum
