Steel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue

Pallet Rack Drum Cradle for Organized Warehouse Storage and Material Support, 800 lb. Capacity with 42-1/2 in. x 15-7/8 in. x 5-5/8 in.
The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).
Product Status
Available QuickShip
Key Features
  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   PRDC SERIES Pallet Rack Drum Cradle, Pallet Rack Drum Roller Cradle, Optional Drip Pan INSTRUCTION MANUAL   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 36 lbs

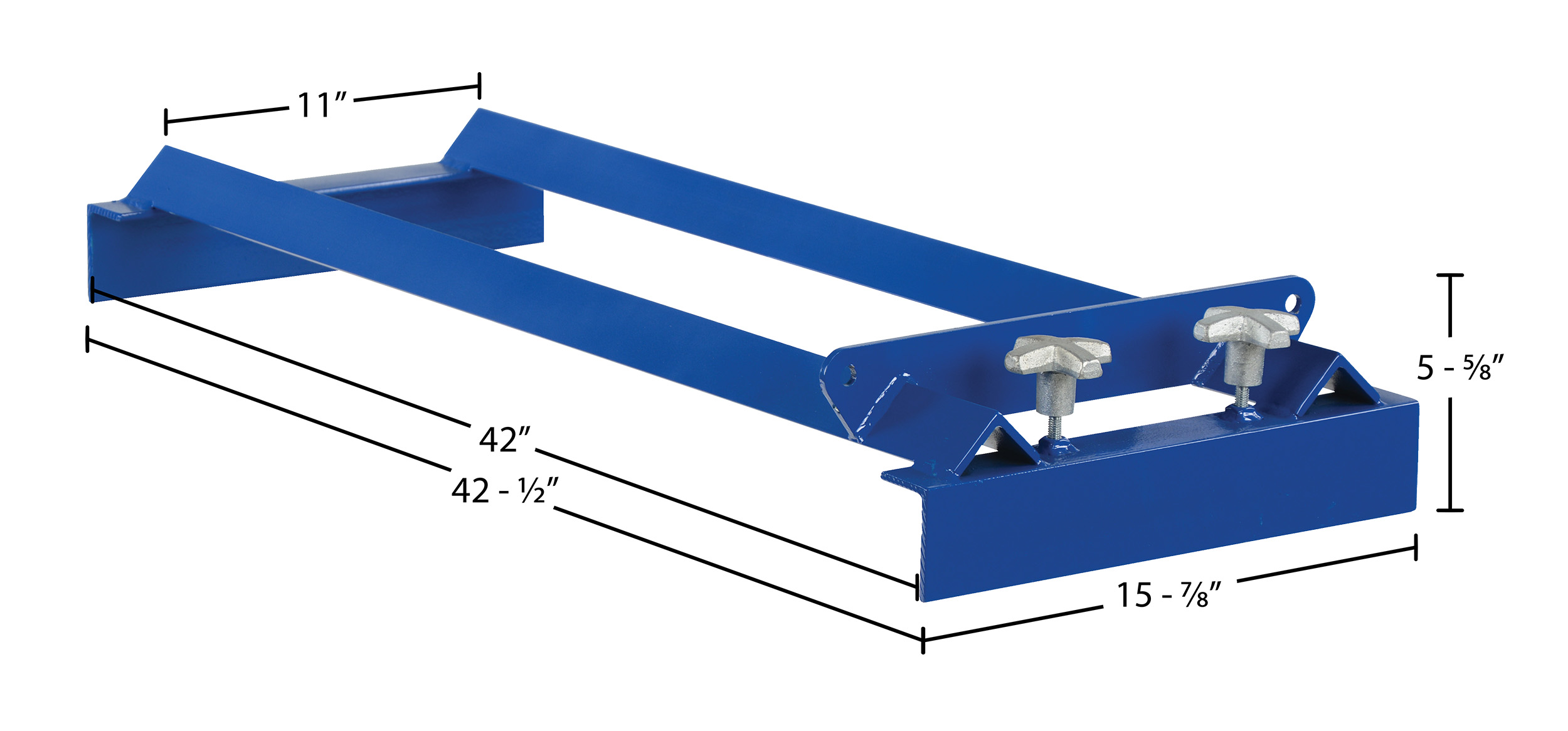

Assembled Size 15.875"W x 42.5"L x 5.625"H
Total Ship Weight 36 lbs
Package 1 Size 17"W x 45"D x 6"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 800
Acceptable Drum Size (gal.) 30 & 55
Acceptable Drum Type Steel
Acceptable Pallet Rack Depth (in.) 42
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PRDC-42
Product Name
Steel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue
UPC
691215102810
GTIN
00691215102810
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Accessories
Taxonomy 4
Drum Cradles
Assembled Depth (in.)
42.5
Assembled Width(in.)
15.875
Assembled Height(in.)
5.625
Assembled Weight(lbs.)
36
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
45
Package Width (in.)
17
Package Height (in.)
6
Package Weight (in.)
36
Subclass
8
Freight Class
85
NMFC Code
Racks and Related Articles viz
NMFC Number
164390
LTL Freight
Parcel
UNSPSC
24101904
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PRDC-42

PRDC-42

Steel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue

The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).

  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use

Core Data

Assembled Weight: 36 Assembled Size: 15.875"W x 42.5"L x 5.625"H Color: Blue
Total Ship Weight: 36 Package 1 Size: 17"W x 45"D x 6"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Acceptable Drum Type: Steel
Acceptable Pallet Rack Depth (in.): 42
