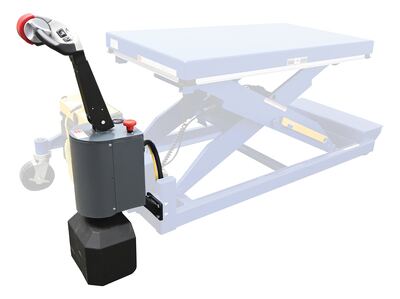

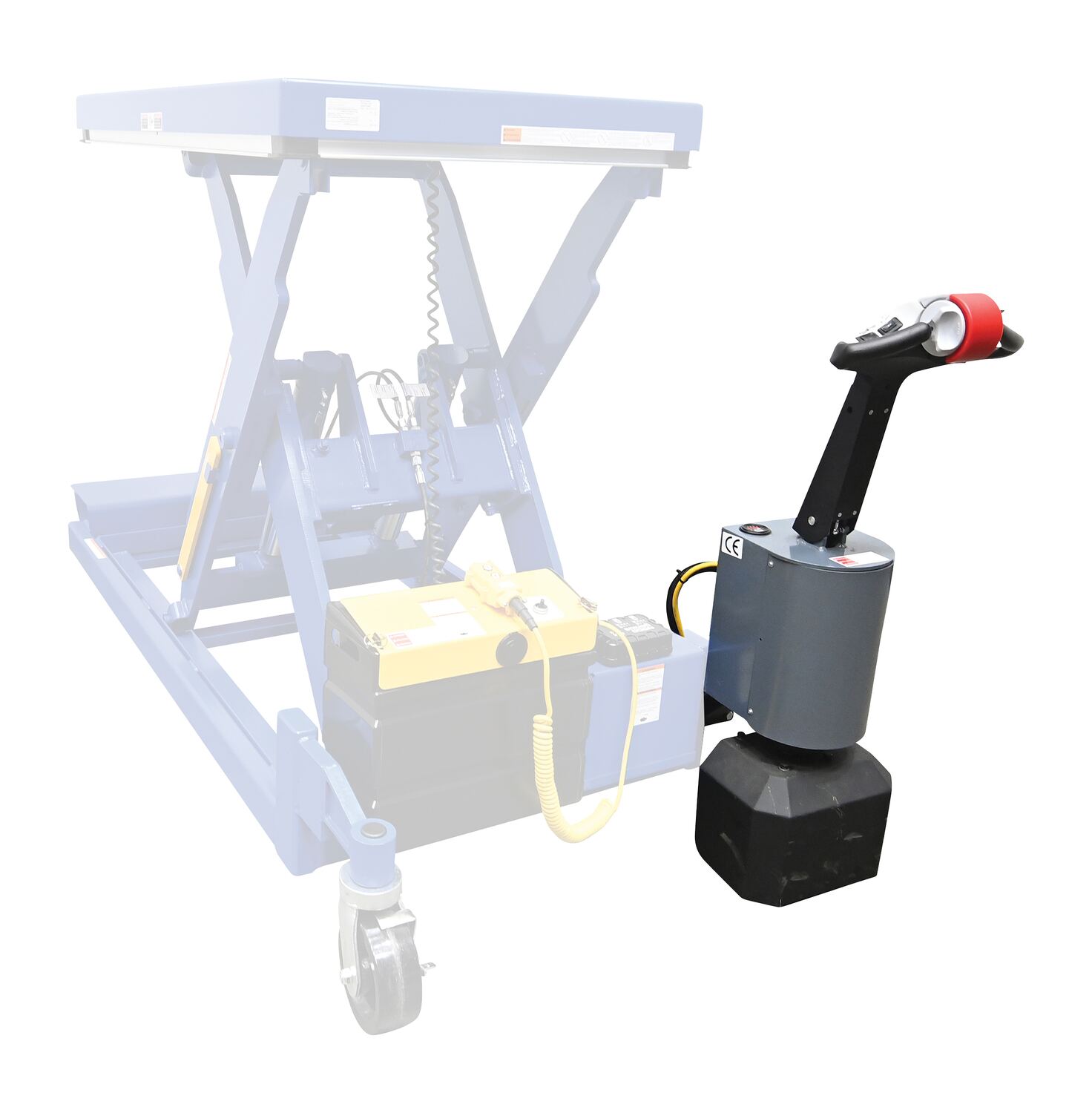

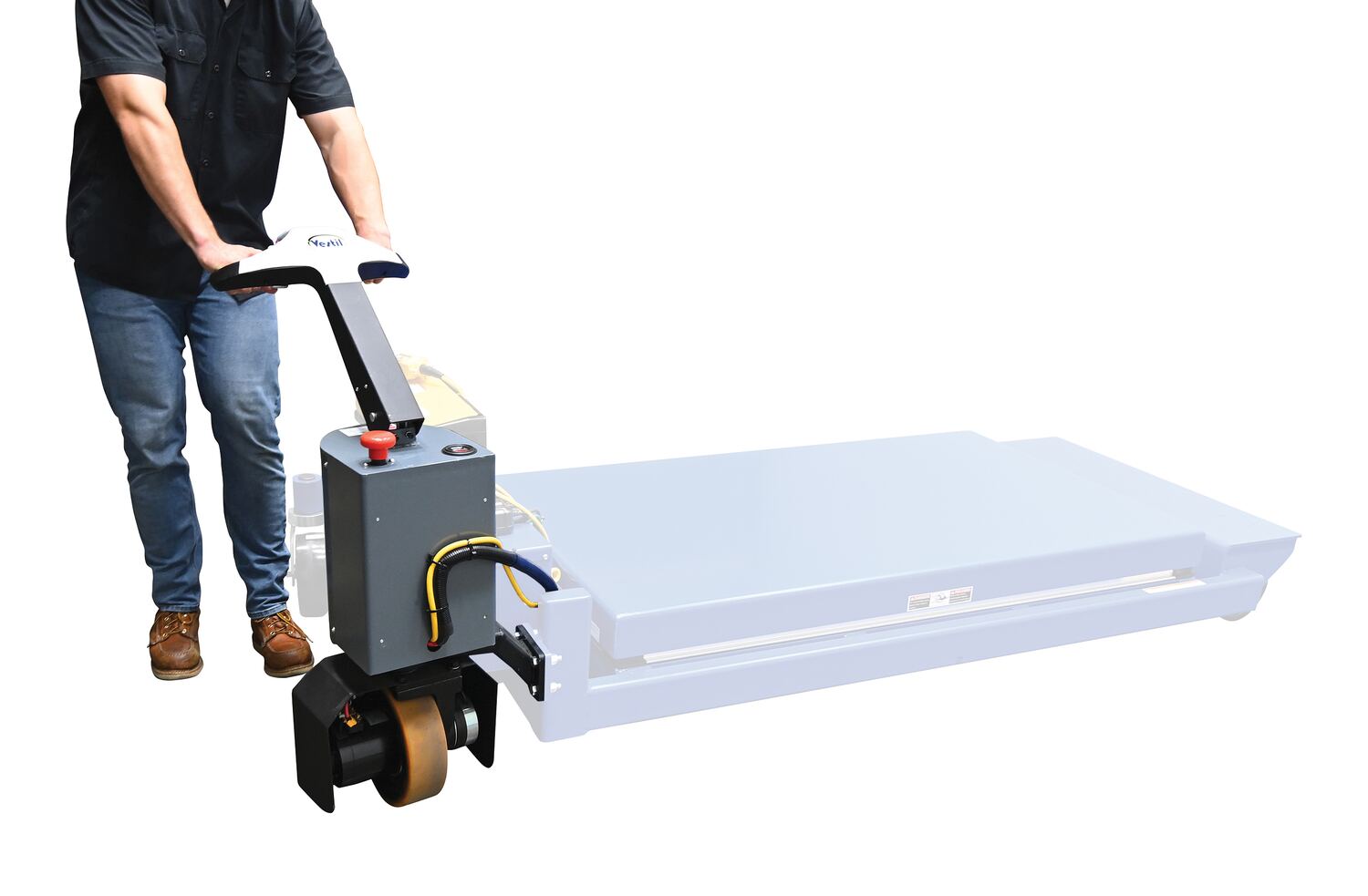

Factory Installed Power Traction Drive System 4,000 to 5,000 Lb. Capacity For Portable Lift Scissor Tables

Factory Installed Power Traction Drive System 4,000 to 5,000 Lb. Capacity for Portable Lift Scissor Tables for Ergonomic Load Lifting and Workstation Positioning, 5,000 lb. Capacity

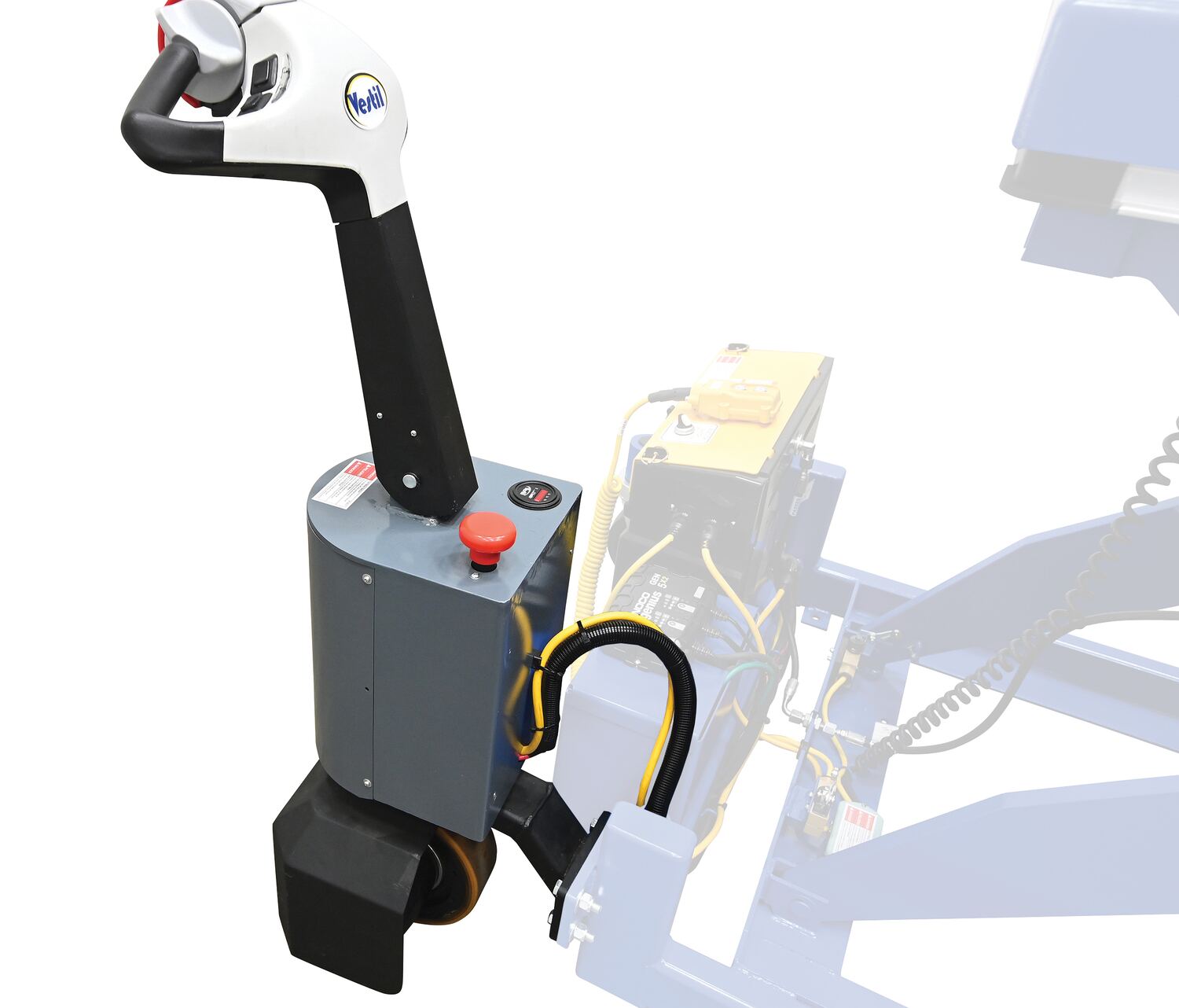

Optional Power Traction Drive system has a combination throttle/direction butterfly style controller and an adjustable yoke. The traction drive system also features an auto reverse emergency "belly" switch.
Product Status
Available Non-Returnable
Key Features
  • Optional power traction drive system for ideal operation
  • Factory installed
  • Maximum speed is 2.5 M.P.H.
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hydraulic Oil SDS   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 181 lbs
Assembled Size 15"W x 10.4375"L x 54.625"H
Total Ship Weight 259 lbs
Package 1 Size 0"W x 0"D x 0"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,000 to 5,000
Wheel Diameter (in.) 10
Wheel Type Poly on Steel
Controller Style Combination Throttle/Direction Butterfly

Battery Information

Battery Depth 11
Battery Width 14
Battery Height 9
Battery Weight 84
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PST-PTDS
Product Name
Factory Installed Power Traction Drive System 4,000 to 5,000 Lb. Capacity For Portable Lift Scissor Tables
UPC
691215031875
GTIN
00691215031875
Taxonomy 1
Material Handling
Taxonomy 2
Drive Systems
Assembled Depth (in.)
10.4375
Assembled Width(in.)
15
Assembled Height(in.)
54.625
Assembled Weight(lbs.)
181
Color/Finish
Blue
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
Y
Assembly
Assembled
Compatible Products
PST-1-46, PST-1-58, PST-2448-1-46, PST-2448-2-46, PST-2448-3-46, PST-2-46, PST-2464-1-58, PST-2464-2-58, PST-2464-3-58, PST-2-58, PST-3-46, PST-3-58, PST-4-47, PST-4-60, PST-5-47, PST-5-60

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Weight (in.)
259
Subclass
1
Freight Class
400
NMFC Code
Cars, Lift Trucks, or Vehicles, NOI, not designed for general highway use
NMFC Number
95190
LTL Freight
LTL Palletized
UNSPSC
24000000
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
84
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PST-PTDS

PST-PTDS

Factory Installed Power Traction Drive System 4,000 to 5,000 Lb. Capacity For Portable Lift Scissor Tables

Optional Power Traction Drive system has a combination throttle/direction butterfly style controller and an adjustable yoke. The traction drive system also features an auto reverse emergency "belly" switch.

  • Optional power traction drive system for ideal operation
  • Factory installed
  • Maximum speed is 2.5 M.P.H.
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 181 Assembled Size: 15"W x 10.4375"L x 54.625"H Color: Blue
Total Ship Weight: 259 Package 1 Size: 0"W x 0"D x 0"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,000 to 5,000
Wheel Diameter (in.): 10
Wheel Type: Poly on Steel
Controller Style: Combination Throttle/Direction Butterfly
