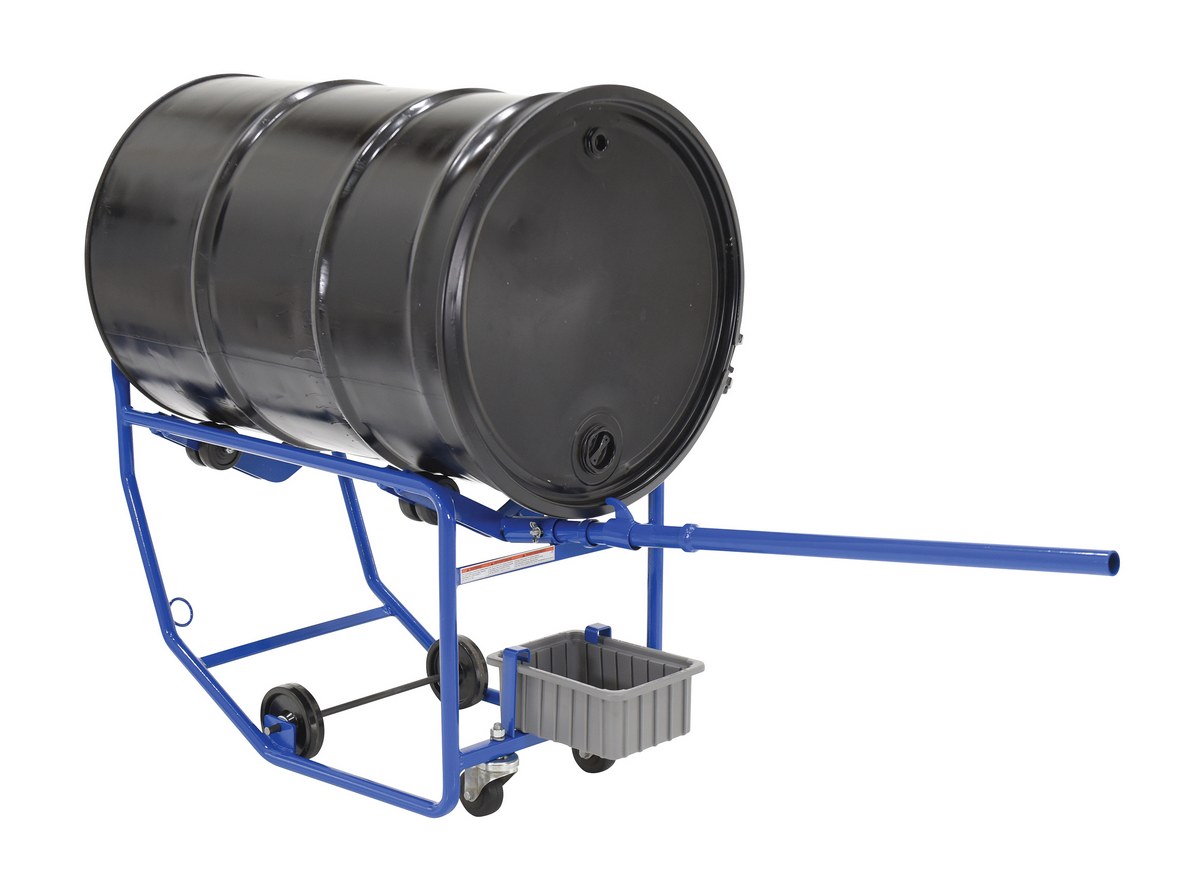

Steel Revolving Drum Cart 66-3/4 In. x 18-7/8 In. x 26-3/4 In. 1000 Lb. Capacity Blue

Barrel Cart for Opening, Moving, and Handling Industrial Drums and Barrels, 1,000 lb. Capacity with 66-3/4 in. x 18-7/8 in. x 26-3/4 in.
Designed to rotate a 55 gallon steel drum from the vertical position to the horizontal position so their contents may be emptied. Equipped with rollers for mixing. Includes a built in drip pan to provide a clean, safe work floor. Rolls on two (2) 3" swivel casters and two (2) 5" rigid casters. Simple one-person operation. Steel construction. Durable powder coat finish.
Product Status
Available
Key Features
  • Transport drums in a horizontal position
  • Bottom pan to catch spills
  • Smooth surface to prevent damage
  • Leverage to vertical position when in proper point
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Model RDC-100-10 Revolving Drum Cart/Dispenser Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 50 lbs
Assembled Size 18.875"W x 66.75"L x 26.75"H
Total Ship Weight 52 lbs
Package 1 Size 26"W x 35"D x 19"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,000
Accepts 55-gallon steel drum
Usable Length (in.) 30-3/4
Rigid Casters Quantity/Diameter/Width (in.) (2) 5 x 1-3/8
Rigid Caster Material Polyolefin
Swivel Caster Quantity/Diameter/Width (in.) (2) 3 x 1-1/4
Swivel Caster Material Polyolefin
Dual Roller (qty.) 4
Drip Pan Included? Yes
Extended Product Details

Marketing Specs.

MFG Model # (Series)
RDC-100-10
Product Name
Steel Revolving Drum Cart 66-3/4 In. x 18-7/8 In. x 26-3/4 In. 1000 Lb. Capacity Blue
UPC
691215116039
GTIN
00691215116039
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Drum Movers
Taxonomy 4
Rotating Carts
Assembled Depth (in.)
66.75
Assembled Width(in.)
18.875
Assembled Height(in.)
26.75
Assembled Weight(lbs.)
50
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
35
Package Width (in.)
26
Package Height (in.)
19
Package Weight (in.)
52
Subclass
2
Freight Class
100
NMFC Code
Carts Barrel Hand SU on wheels or KD flat
NMFC Number
188760
LTL Freight
Parcel
UNSPSC
24101501
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: RDC-100-10

RDC-100-10

Steel Revolving Drum Cart 66-3/4 In. x 18-7/8 In. x 26-3/4 In. 1000 Lb. Capacity Blue

Designed to rotate a 55 gallon steel drum from the vertical position to the horizontal position so their contents may be emptied. Equipped with rollers for mixing. Includes a built in drip pan to provide a clean, safe work floor. Rolls on two (2) 3" swivel casters and two (2) 5" rigid casters. Simple one-person operation. Steel construction. Durable powder coat finish.

  • Transport drums in a horizontal position
  • Bottom pan to catch spills
  • Smooth surface to prevent damage
  • Leverage to vertical position when in proper point

Core Data

Assembled Weight: 50 Assembled Size: 18.875"W x 66.75"L x 26.75"H Color: Blue
Total Ship Weight: 52 Package 1 Size: 26"W x 35"D x 19"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,000
Accepts: 55-gallon steel drum
Usable Length (in.): 30-3/4
Rigid Casters Quantity/Diameter/Width (in.): (2) 5 x 1-3/8
Rigid Caster Material: Polyolefin
Swivel Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/4
Swivel Caster Material: Polyolefin
Dual Roller (qty.): 4
Drip Pan Included?: Yes
