Molded Rubber Hose/Cable Crossover Bridge 32-5/8 In. x 12 In. x 3-1/2 In. 2400 Lb. Capacity Black

Extruded Hose and Cable Bridge for Protecting Hoses and Cables Across Traffic Areas, 2,400 lb. Capacity with 32-5/8 in. x 12 in. x 3-1/2 in.

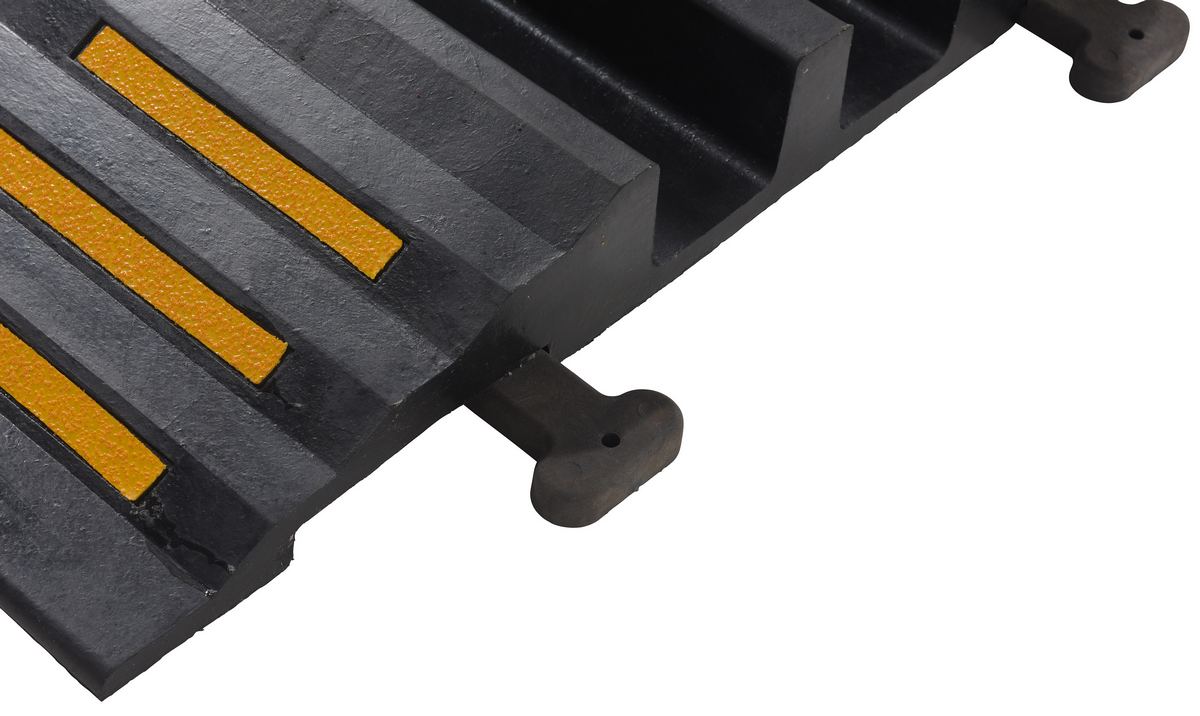

The molded rubber hose and cable Crossover is designed to protect cables and hoses from pedestrian and rolling traffic. The top surface of each crossover includes serrations for extra traction. Optional connectors may be used to interlock individual units together to form wider crossovers. Simply lock together as many units as required. This crossover is ideal for people who are always switching out cables but don't want to move the ramp.
Product Status
Available QuickShip
Key Features
  • Design protects cables & hoses from pedestrian and rolling traffic
  • Top surface serrations provide extra traction
  • Locking units are easy to assemble
  • High level capacity can handle the heavy loads
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   30 Days Warranty
Product Data

Core Data

Assembled Weight 32 lbs
Assembled Size 12"W x 32.625"L x 3.5"H
Total Ship Weight 33 lbs
Package 1 Size 13"W x 15"D x 13"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 2,400
Usable Span Width (in.) 3-1/2
Usable Span Height (in.) 2-7/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
RHCB-12
Product Name
Molded Rubber Hose/Cable Crossover Bridge 32-5/8 In. x 12 In. x 3-1/2 In. 2400 Lb. Capacity Black
UPC
691215032377
GTIN
00691215032377
Taxonomy 1
Electrical
Taxonomy 2
Accessories
Taxonomy 3
Cable Protectors
Assembled Depth (in.)
32.625
Assembled Width(in.)
12
Assembled Height(in.)
3.5
Assembled Weight(lbs.)
32
Color/Finish
Black
Material
Rubber
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
IN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
15
Package Width (in.)
13
Package Height (in.)
13
Package Weight (in.)
33
Freight Class
70
NMFC Code
Plastic or rubber articles containers
NMFC Number
156600
LTL Freight
Parcel
UNSPSC
24141510
HTSUS Number
4006.90.1000
USMCA HS
4006.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: RHCB-12

RHCB-12

Molded Rubber Hose/Cable Crossover Bridge 32-5/8 In. x 12 In. x 3-1/2 In. 2400 Lb. Capacity Black

The molded rubber hose and cable Crossover is designed to protect cables and hoses from pedestrian and rolling traffic. The top surface of each crossover includes serrations for extra traction. Optional connectors may be used to interlock individual units together to form wider crossovers. Simply lock together as many units as required. This crossover is ideal for people who are always switching out cables but don't want to move the ramp.

  • Design protects cables & hoses from pedestrian and rolling traffic
  • Top surface serrations provide extra traction
  • Locking units are easy to assemble
  • High level capacity can handle the heavy loads

Core Data

Assembled Weight: 32 Assembled Size: 12"W x 32.625"L x 3.5"H Color: Black
Total Ship Weight: 33 Package 1 Size: 13"W x 15"D x 13"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 2,400
Usable Span Width (in.): 3-1/2
Usable Span Height (in.): 2-7/8
