Polyphenylene Sulfide Manual Rotary Drum Pump 10 In. 8 In. x 12 In. Black

Manual Barrel Pump for Opening, Moving, and Handling Industrial Drums and Barrels, 8 in. x 12 in.
The manual drum pump is designed for dispensing and transferring liquids out of fifty-five (55) gallon drum. It is ideal for transferring soluble, corrosive, volatile and aggressive chemicals. Suitable for use with acetone and ad-blue.
Product Status
Available QuickShip
Key Features
  • Designed for dispensing liquids out of fifty-five (55) gallon drum
  • Outlet spout is made from 304 stainless steel
  • Ideal for transferring soluble, corrosive, volatile and aggressive chemicals
  • Suitable for use with acetone and ad-blue
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 5 lbs

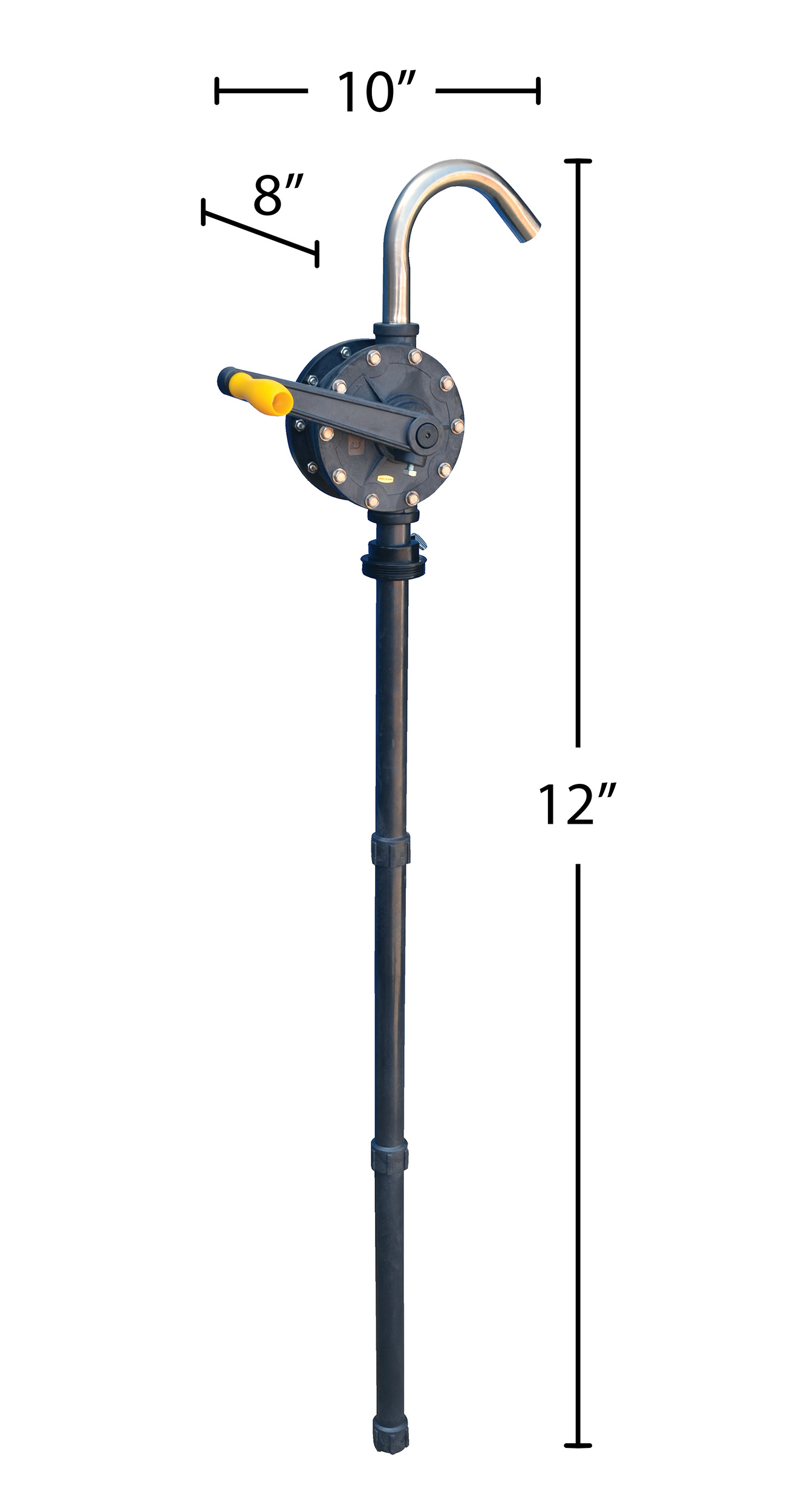

Assembled Size 8"W x 10"L x 12"H
Total Ship Weight 6 lbs
Package 1 Size 7"W x 25"D x 7"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Pump Type Rotary - Vane
Flow Dispense Per Stroke (ml) 300
Maximum Fluid Temperature Degrees (Fahrenheit / Celsius) 140 Degrees Fahrenheit / 60 Degrees Celsius
MNPT Bung Size (in.) 2
Suction Tube Length Maximum (in.) 42
Inlet Outside Diameter (in.) 1-1/4
Outlet Curved Spot Outside Diameter (in.) 1
Maximum Viscosity (SSU) 2000
Seal Construction PTFE
Vane Construction PTFE
Suction Tube Construction PPS (Polyphenylene sulfide)
Adjustable Outlet Degrees 0 - 360
Application Liquids acid, alkali, gasoline, diesel, machine oil, water, alcohol, thinner, Acetone, Ad-Blue, MEK and other chemical liquids
Component Materials PPS, PTFE
Nitric Acid Resistance Percentage 40
Displacement per Stroke (ounces) 10.14
Pump Motor Type Crank
Pump Mounting Bung
Self-Priming Yes
Extended Product Details

Marketing Specs.

MFG Model # (Series)
RP-90RT
Product Name
Polyphenylene Sulfide Manual Rotary Drum Pump 10 In. 8 In. x 12 In. Black
UPC
691215102742
GTIN
00691215102742
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Accessories
Taxonomy 4
Drum Pumps
Assembled Depth (in.)
10
Assembled Width(in.)
8
Assembled Height(in.)
12
Assembled Weight(lbs.)
5
Color/Finish
Black
Material
PPS (Polyphenylene sulfide)
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
25
Package Width (in.)
7
Package Height (in.)
7
Package Weight (in.)
6
Freight Class
85
NMFC Code
Pumps hand or windmill NOI
NMFC Number
127935
LTL Freight
Parcel
UNSPSC
40151530
HTSUS Number
8413.91.9099
USMCA HS
8413.91
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: RP-90RT

RP-90RT

Polyphenylene Sulfide Manual Rotary Drum Pump 10 In. 8 In. x 12 In. Black

The manual drum pump is designed for dispensing and transferring liquids out of fifty-five (55) gallon drum. It is ideal for transferring soluble, corrosive, volatile and aggressive chemicals. Suitable for use with acetone and ad-blue.

  • Designed for dispensing liquids out of fifty-five (55) gallon drum
  • Outlet spout is made from 304 stainless steel
  • Ideal for transferring soluble, corrosive, volatile and aggressive chemicals
  • Suitable for use with acetone and ad-blue

Core Data

Assembled Weight: 5 Assembled Size: 8"W x 10"L x 12"H Color: Black
Total Ship Weight: 6 Package 1 Size: 7"W x 25"D x 7"H Freight: Parcel

Specifications

Pump Type: Rotary - Vane
Flow Dispense Per Stroke (ml): 300
Maximum Fluid Temperature Degrees (Fahrenheit / Celsius): 140 Degrees Fahrenheit / 60 Degrees Celsius
MNPT Bung Size (in.): 2
Suction Tube Length Maximum (in.): 42
Inlet Outside Diameter (in.): 1-1/4
Outlet Curved Spot Outside Diameter (in.): 1
Maximum Viscosity (SSU): 2000
Seal Construction: PTFE
Vane Construction: PTFE
Suction Tube Construction: PPS (Polyphenylene sulfide)
Adjustable Outlet Degrees: 0 - 360
Application Liquids: acid, alkali, gasoline, diesel, machine oil, water, alcohol, thinner, Acetone, Ad-Blue, MEK and other chemical liquids
Component Materials: PPS, PTFE
Nitric Acid Resistance Percentage: 40
Displacement per Stroke (ounces): 10.14
Pump Motor Type: Crank
Pump Mounting: Bung
Self-Priming: Yes
